DCP020503P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DCP020503P

DCP020503P: Descriptionminiature, 2W isolated unregulated DC/DC converters; CategoryPower/power management The power supply circuit; File Size182KB，10 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

DCP020503P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DCP020503P	-	-	View	Buy Now

DCP020503P Overview

miniature, 2W isolated unregulated DC/DC converters

DCP020503P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Maximum load regulation	30%
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.018 A
Maximum output voltage	3.46 V
Minimum output voltage	3.3 V
Nominal output voltage	3.13 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	BCDMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DCP

DCP02

SERIES

DCP

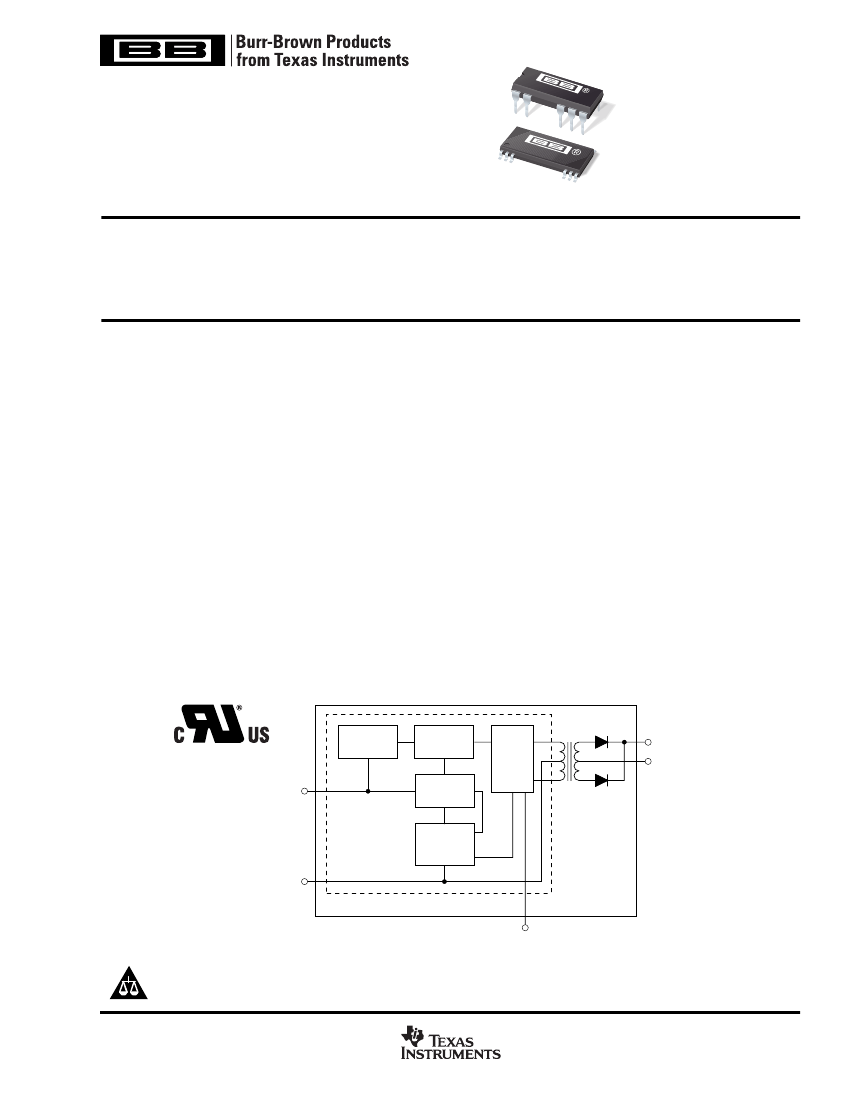

SBVS011B – MAY 2001

Miniature, 2W Isolated

UNREGULATED DC/DC CONVERTERS

FEATURES

UP TO 89% EFFICIENCY

THERMAL PROTECTION

DEVICE-TO-DEVICE SYNCHRONIZATION

SO-28 POWER DENSITY OF 106W/in

(6.5W/cm

)

EN55022 CLASS B EMC PERFORMANCE

UL1950 RECOGNIZED

JEDEC 14-PIN AND SO-28 PACKAGES

DESCRIPTION

The DCP02 series is a family of 2W, unregulated, isolated

DC/DC converters. Requiring a minimum of external com-

ponents and including on-chip device protection, the DCP02

series provides extra features such as output disable and

synchronization of switching frequencies.

The use of a highly integrated package design results in highly

reliable products with power densitiesof 79W/in

(4.8W/cm

)

for DIP-14, and 106W/in

(6.5W/cm

) for SO-28. This com-

bination of features and small size makes the DCP02 suitable

for a wide range of applications.

APPLICATIONS

POINT-OF-USE POWER CONVERSION

GROUND LOOP ELIMINATION

DATA ACQUISITION

INDUSTRIAL CONTROL AND INSTRUMENTATION

TEST EQUIPMENT

800kHz

Oscillator

Reset

OUT

Power

Stage

SYNC/DISABLE

Watch-dog/

start-up

PSU

Thermal

Shutdown

Power Controller IC

BIAS

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

www.ti.com
