DAC8221AW datasheet, PDF - EEWORLD Datasheet

DAC8221AW: Descriptiondual 12-bit buffered multiplying cmos D/A converter; CategoryAnalog mixed-signal IC converter; File Size598KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

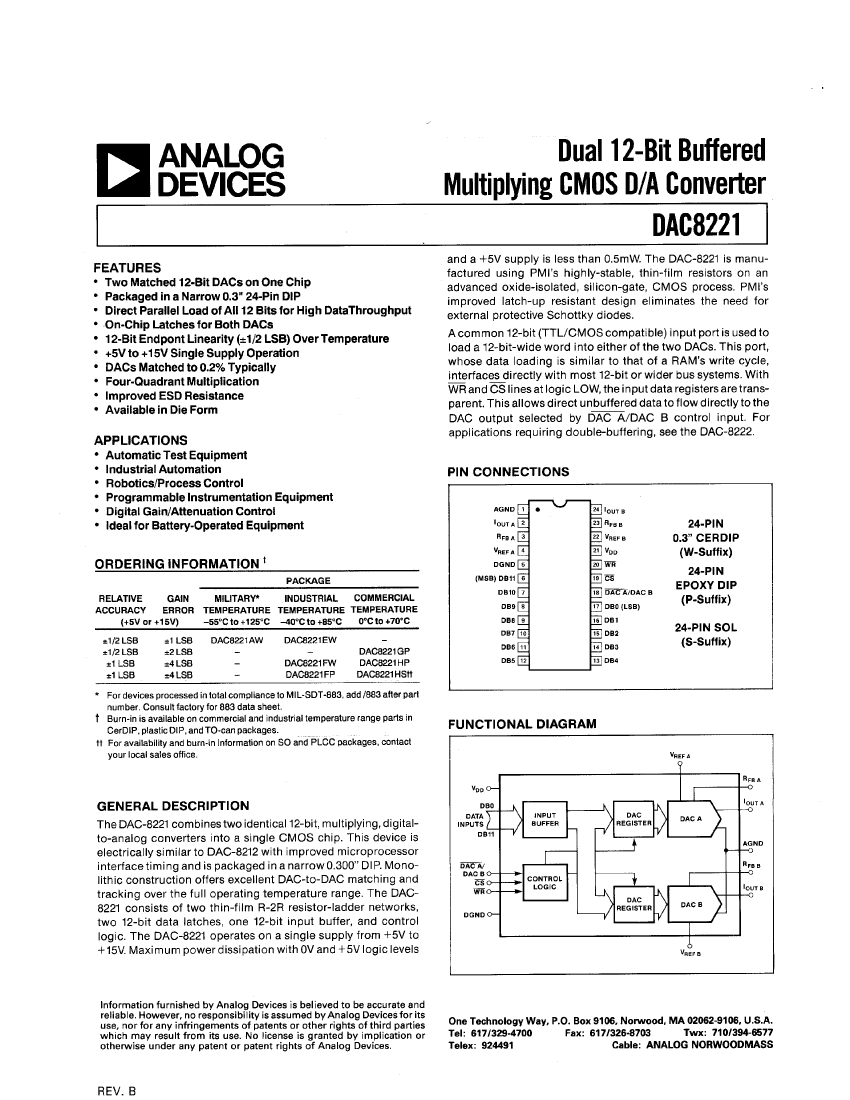

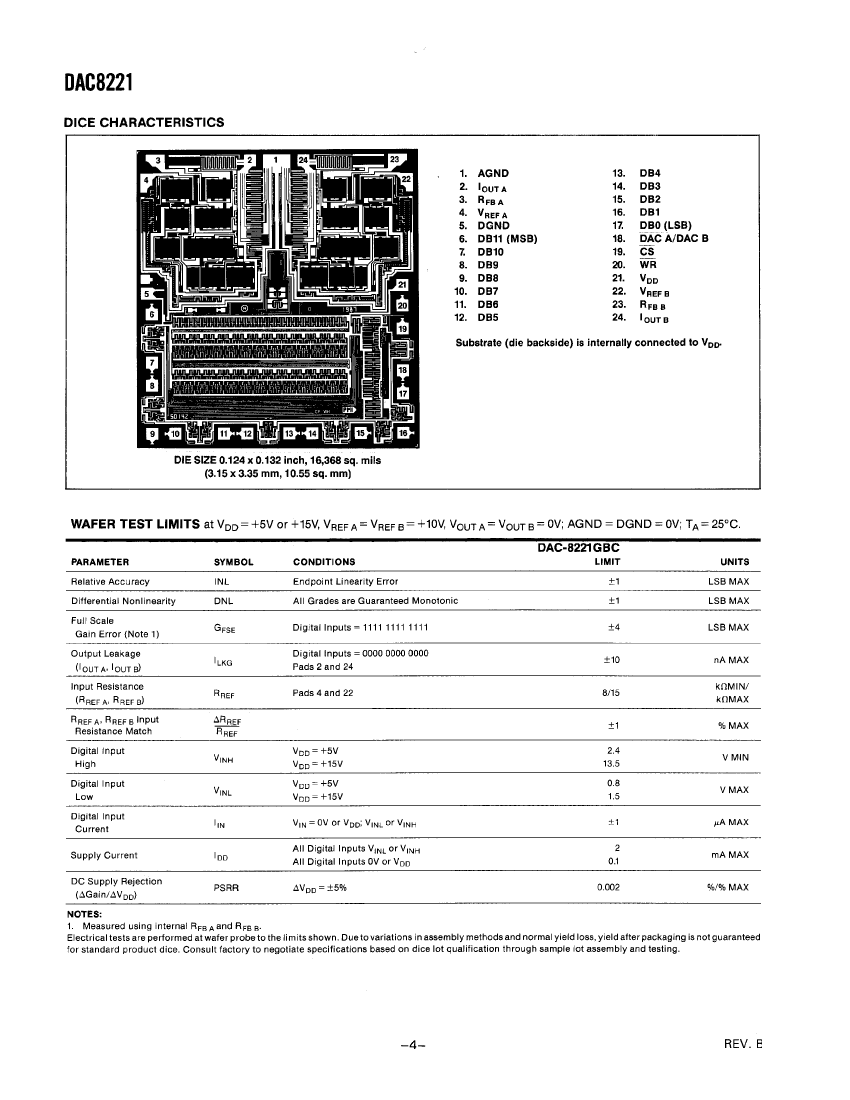

DAC8221AW Overview

dual 12-bit buffered multiplying cmos D/A converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	0.300 INCH, CERDIP-24
Contacts	24
Reach Compliance Code	unknown

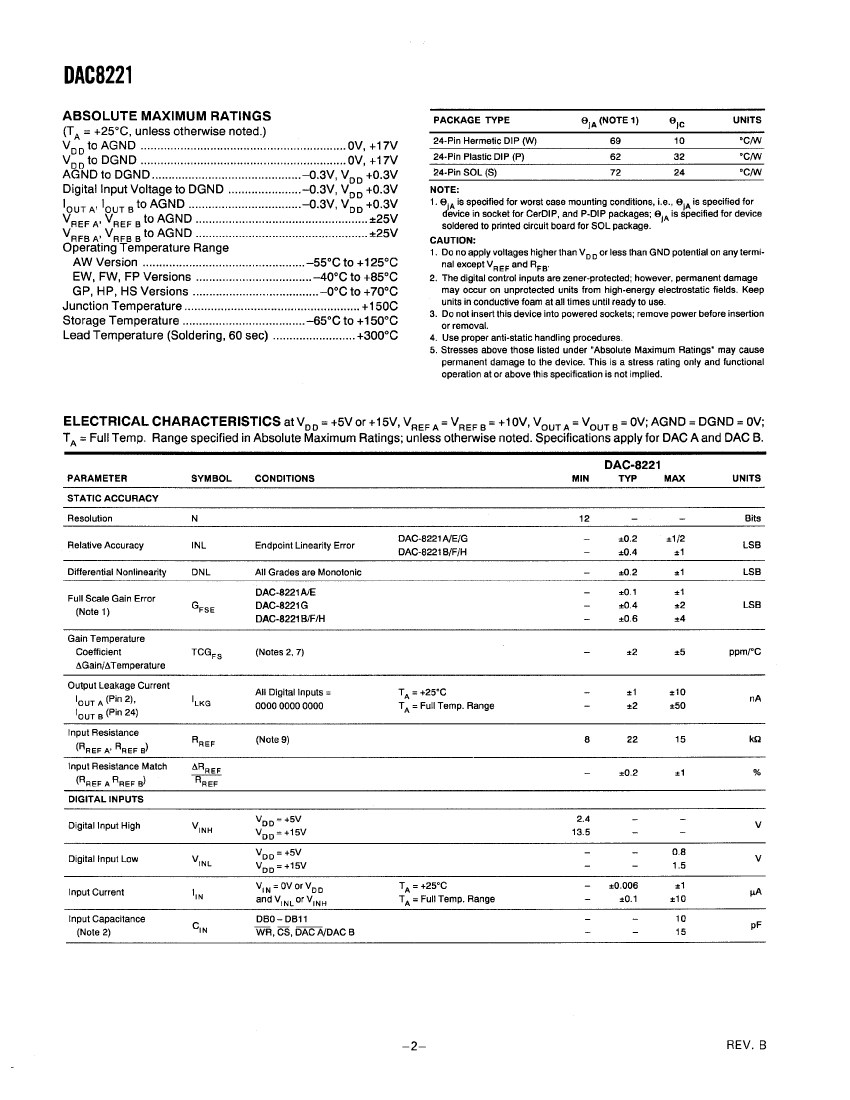

Maximum analog output voltage	15 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-GDIP-T24
JESD-609 code	e0

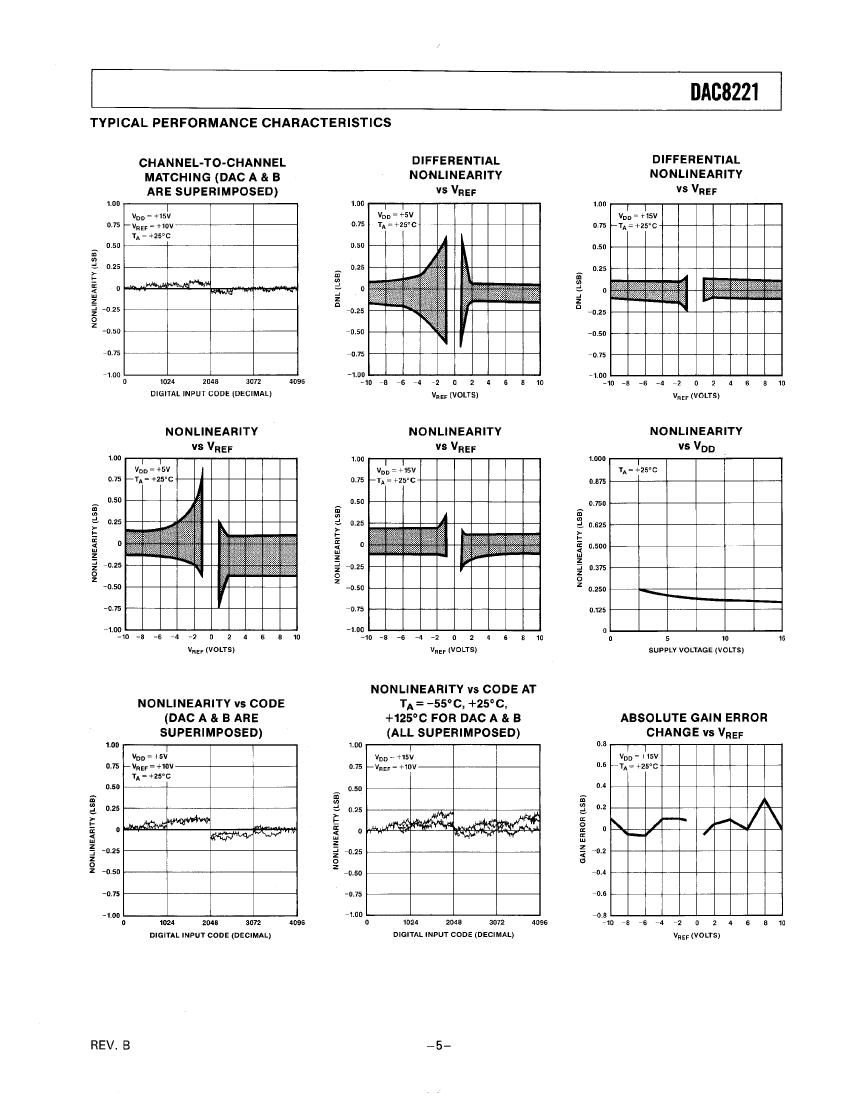

Maximum linear error (EL)	0.0122%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	5.715 mm

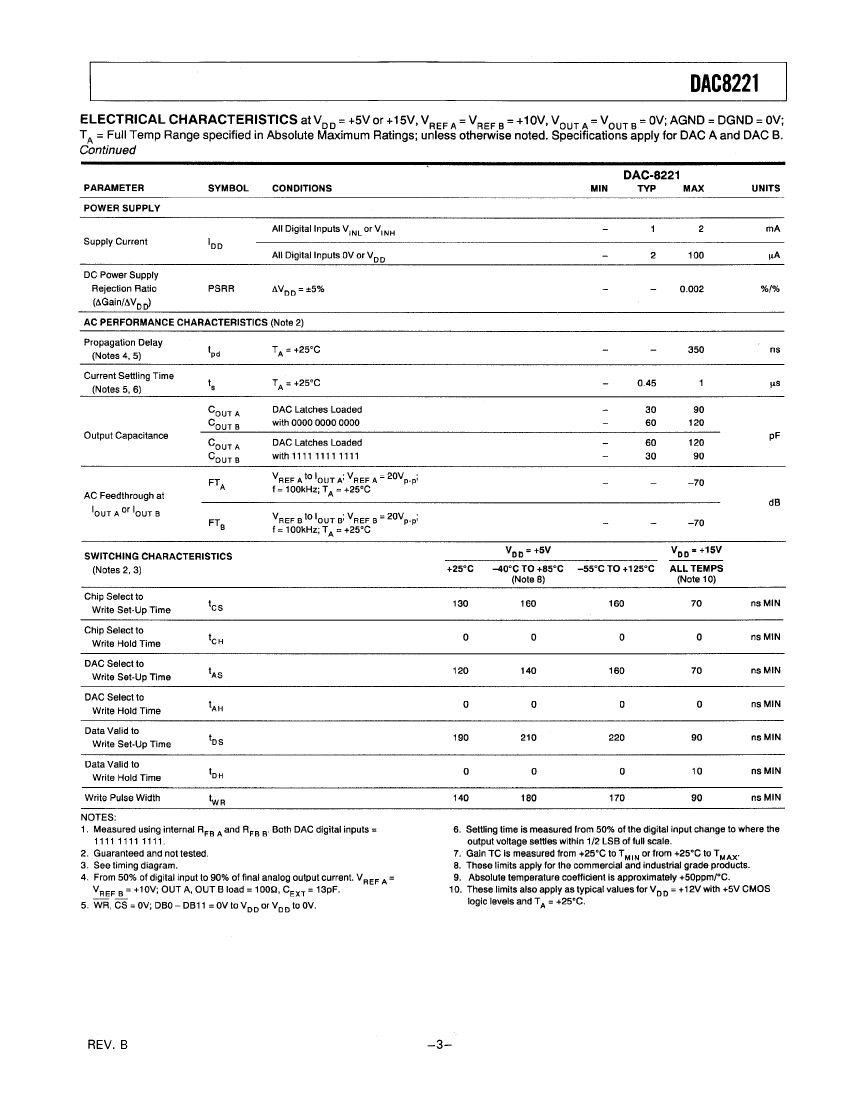

Maximum stabilization time	1 µs
Nominal settling time (tstl)	0.45 µs
Maximum slew rate	2 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
