D4BL-2CRB-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D4BL-2CRB-A

D4BL-2CRB-A: Descriptionguard lock safety-door switch; CategoryMechanical and electronic products switch; File Size2MB，17 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

D4BL-2CRB-A Overview

guard lock safety-door switch

D4BL-2CRB-A Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
Switch type	SNAP ACTING/LIMIT SWITCH

Preview

Download Datasheet

View All

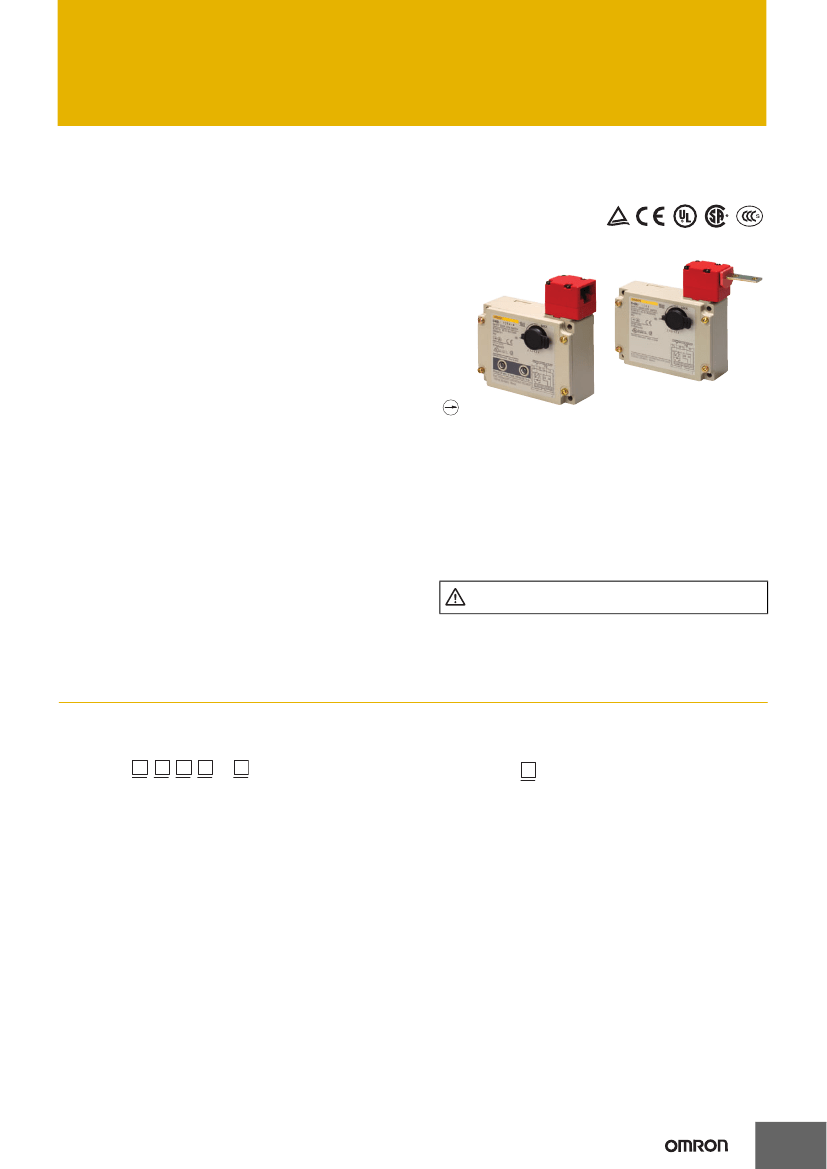

Guard Lock Safety-door Switch

D4BL

C39I-E-02

Release Protective Cover Locks Using

Controller Signals or Pushbutton

Switches after the Cutting Tool Stops

Moving Due to Inertia

Note:

Contact your sales representative for details

on models with safety standard certification.

• A mechanical lock is applied automatically when the Operation

Key is inserted. A high level of safety is achieved using a

mechanism where the lock is only released when voltage is

applied to the solenoid.

• Conforms to EN (TÜV) standards corresponding to the CE

marking.

• Certified by UL, CSA and CCC standards.

• The Switch contact is opened by a direct opening mechanism

(NC contacts only) when the protective cover is opened. Direct

opening mechanism that is EN-certified is indicated by on the

Switch.

• Auxiliary release key ensures easy maintenance and unlocks the

door in the case of a power failure.

• Tough aluminum die-cast body incorporating a switch box with

degree of protection satisfying IP67, UL, and CSA TYPE6P, 13.

• Equipped with a horizontal and vertical conduit opening.

• Models incorporating easy-to-see indicators for monitoring and

those using an adjustable Operation Key for a swinging door are

available.

• The mounting direction of the head can be changed

Be sure to read the

“Safety Precautions”

on page 13.

to allow the Operation Key to be inserted from four

directions.

•

Conforms to ISO 14119.

Model Number Structure

Model Number Legend

Switch

Operation Key

D4BL -

D4BL - K

1. Conduit Size (2-conduit)

1: PG13.5

2: G1/2

4: M20

2. Built-in Switch (with Safety Switch and Lock Monitor Switch

Contacts)

C: 1NC/1NO (slow-action) + 1NC (slow-action)

D: 2NC (slow-action) + 1NC (slow-action)

3. Head Mounting Direction

R: Four mounting directions possible (right-side mounting at

shipping)

4. Door Lock and Release (Auxiliary Release Key is Incorporated

by All Models)

A: Mechanical lock/24 VDC solenoid release

G: 24 VDC Solenoid lock/Mechanical release

5. Indicator

Blank: Without indicator

A: 10 to 115 VAC or VDC driving (with orange and green LED

indicator unit)

1. Operation Key Type

1: Horizontal mounting

2: Vertical mounting

3: Adjustable mounting (Horizontal)
