10/100 PC CARD LAN
MAGNETICS MODULES
RoHS-5 peak reflow temperature rating 235°C
RoHS-6 peak reflow temperature rating 245°C
Low profile packages from .094” (2,39mm) to .078”
(1,98mm) for PC card and cardbus applications
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
RoHS-5
Compliant
Part
Number
3
RoHS-6
Compliant
Part
Number
4
Turns Ratio
(±5%)
TX
RX
Insertion Loss
(dB MAX)
100 kHz-100 MHz
30 MHz
Return Loss
(dB MIN)
60 MHz 80 MHz
Differential to Common
Mode Rejection
(dB MIN)
30 MHz
50 MHz 100 MHz
Crosstalk
(dB MIN)
30 MHz 62 MHz 100 MHz
Hipot
(Vrms MIN)
PE-69012
H0001
H0002
H0009
H0013
H0019
H0020
H0022
H0025
1.
2.
3.
4.
⎯
⎯
⎯
H0009 NL
2a
H0013 NL
2a
H0019NL
2a
H0020NL
2a
H0022NL
2a
H0025NL
2a
1:1
2 :1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
-1.3
-2.0
-1.3
-0.9
-0.9
-0.9
-1.0
-2.0
-2.0
-18
-18
-18
-16
-16
-18
-16
-18
-18
-13
-12
-13
-12
-12
-12
-12
-14
-12
-11
-10
-11
-11
-11
-11
-12
-12
-12
-40
-30
-30
-35
-35
-40
-42
-40
-40
-35
-30
-30
-33
-33
—
—
-35
-35
-30
-30
-30
-20
-20
-30
-33
-30
-30
-40
-40
-40
-50
-50
-45
-45
-50
-45
-40
-40
-35
-45
-45
-45
-40
-45
-45
-35
-35
-30
-40
-40
-37
-35
-40
-37
1500
1500
1500
1500
1500
1500
1500
1500
1500
Add “T”
for Tape & Reel packaging, e.g. PE-69012T.
MSL (Moisture
Sensitivity Level): a=1, b=2, c=3, d=4, e=5.
RoHS-5:
Product does not contain 5 out of the 6 banned substances specified in the RoHS directive (product contains lead in applications considered solder).
RoHS-6:
Product does not contain 5 out of the 6 banned substances specified in the RoHS directive. Some internal connections may contain lead in high-temperature
solder (solder alloys containing more than 85% lead).

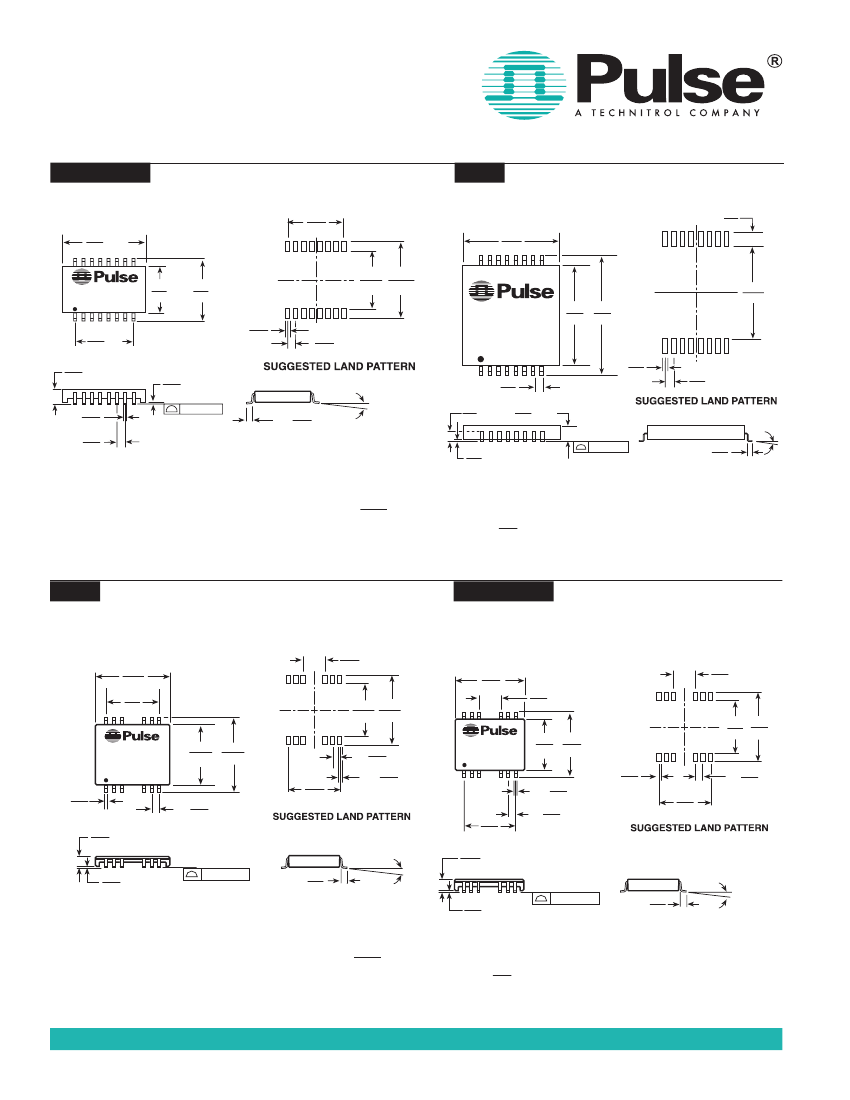

Mechanicals

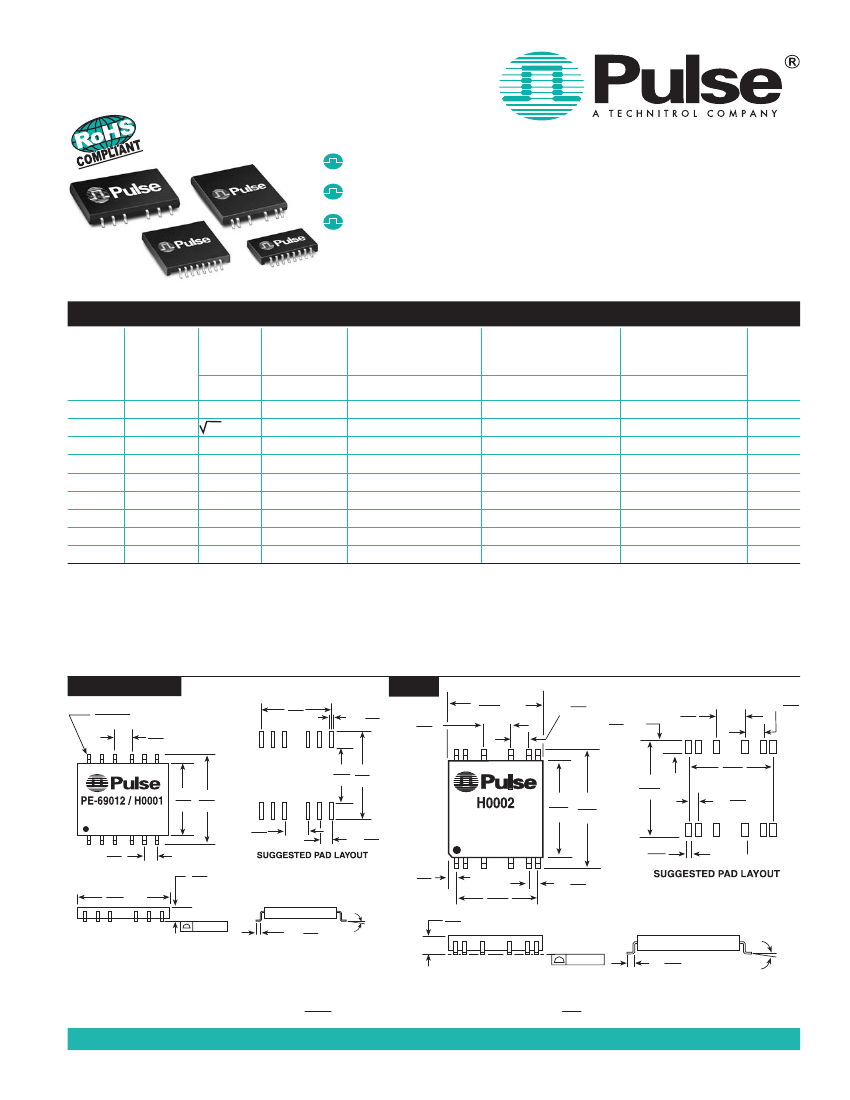

PE-69012, H0001
.010 X .020
0,25 X 0,51
.200
5,08
.585 .705
14,86 17,91
.525 .685
13,34 17,40 MAX
.200
5,08
.600
15,24
.030
12X
0,76
H0002
2X
.150
3,81
.600
MAX
15,24
4X
.100
2,54
.080
TYP
2,03
.150
2X
3,81
4X
.100
2,54
Date Code
Country of Origin
8X
.100
2,54
.094
MAX
2,39
.800
MAX
20,32
.004/0,10
12 Surfaces
.040
12 X
1,02
.100
8X
2,54
DATE CODE
COUNTRY OF ORIGIN
.650
.800 MAX
16,51 20,32
.820
20,83
.450
11,43
4X
.050
1,27
TYP
.075
1,91
4X
.050
2,27
.030
0,76
0° 8°
.450
15,24
.084
MAX
2,13
0° 8°
.004/0,10
12 Surfaces
12X .040
1,02
Weight
. . . . . . . .1.3 grams
Tape & Reel
. . . . . .600/reel
Tube
. . . . . . . . . . . .25/tube
Inches
.010
Dimensions:
mm Unless otherwise specified, all tolerances are ±
0,25
Weight
. . . . . . . .1.2 grams
Tape & Reel
. . . . . .900/reel
Tube
. . . . . . . . . . . 35/tube
USA 858 674 8100
•
UK 44 1483 401 700
•
France 33 3 84 35 04 04
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 769 5538070
•
Taiwan 886 2 26980228
www.pulseeng.com
1
H304.G (8/06)
10/100 PC CARD LAN
MAGNETICS MODULES
Mechanicals
H0013, H0019*
.350
8,89
H0009
.055
1,40
.560
14,22
.500
MAX
12,70
DATE CODE
COUNTRY OF ORIGIN
H0013/19
.280
.380
MAX
MAX
7,11
9,65
.290 .410
7,37 10,41
.030
0,76
.350
TYP
8,89
.078
MAX
1,98
.020
16X 0,51
.050
7X 1,27
.010
0,25
16X
H0009
.050
1,27
16 X 0° 8°
16X
0,89
.047
1,19
DATE CODE
COUNTRY OF ORIGIN
.560 .670
14,22 17,01
.590
14,99
*
.050
1,27
.082
MAX
2,08
.030
0,76
.050
1,27
TYP
.004/0,10
*The H0019 has a Max height of
.035
(0,22 mm)
.086”
16 Surfaces
0° 8°
.005/0,13
16 SURFACES
16X.030
0,76
.003
0,08
Weight
. . . . . . . . ..3 grams
Tape & Reel
. . . . .2000/reel
Tube
. . . . . . . . . . . .40/tube
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Weight
. . . . . . . .1.3 grams
Tape & Reel
. . . . . .900/reel
Tube
. . . . . . . . . . . .25/tube
H0020
H0022, H0025
.500
12,70
.350
8,89
.150
3,81
.465
11,81
.410 .525
10,41 13,34
.400 .495
10,16 12,57
.150
3,81
.340 . 450
8,63 11,43
.020
0,51
.050
8X
1,27
12X .030
0,76
.150
3,81
DATE CODE
COUNTRY OF ORIGIN
H0020
12X .020
0,51
.077
MAX
1,96
8X .050
1,27
.350
8,89
.050
8X 1,27
.030
12X 0,76
DATE CODE
COUNTRY OF ORIGIN
H0022/25
.360 .475
9,14 12,07
8X .050
1,27
.350
8,89
12X
.350
8,89
12X 0° 8°
.010
0,25
.004/0,10
12 SURFACES
12X .040
1,02
.085
MAX
2,16
12X 0° 8°
.010
0,25
.004/0,10
12 SURFACES
12X .040
1,02
Weight
. . . . . . . . .4 grams
Tape & Reel
. . . . . .500/reel
Tube
. . . . . . . . . . . .40/tube
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Weight
. . . . . . .355 grams
Tape & Reel
. . . . .1000/reel
Tube
. . . . . . . . . . . .40/tube
USA 858 674 8100
•
UK 44 1483 401 700
•
France 33 3 84 35 04 04
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 769 5538070
•
Taiwan 886 2 26980228
www.pulseeng.com
2
H304.G (8/06)

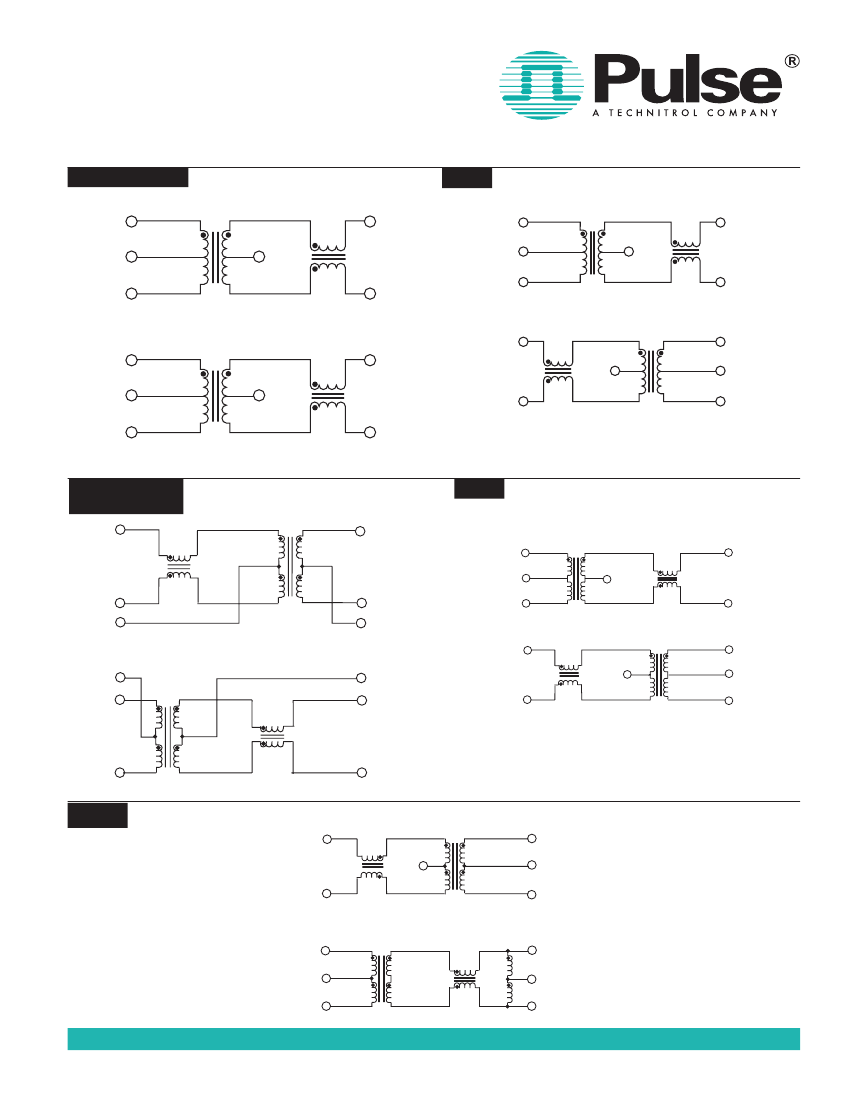

10/100 PC CARD LAN
MAGNETICS MODULES
Application Circuits
.01
mF
H0001
CT 1
14 CT
13 RX+
LAN I/O
Connector
A1
A2
QSI 66II
10/100Base-TX Ethernet Transceiver
RX+
RD+ 2
RX-
RD- 3
12 RX-
TX+
TD+ 5
10 TX+
A15
TX-
TD- 6
CT 7
9 TX-
8 CT
.1
mF
2 KV
.01
mF
A14
Chassis Ground
H0009
TDK TSC78Q2120
10/100Base-TX Ethernet Transceiver
LAN I/O
Connector
RXIP
RD+ 1
16 RX+
A15
RXIN
RD- 2
CT 3
.01
μF
RX
15 RX-
14 CT
11 CT
10 TX+
A14
TXOP
CT 6
TD+ 7
A1
TXON
TD- 8
TX
9 TX-
A2
.01
μF
.1
μF
2 KV
Chassis Ground
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
TEL: 858 674 8100
FAX: 858 674 8262
Pulse European
Headquarters
Einsteinstrasse 1
71083 Herrenberg
Germany
TEL: 49 7032 7806 0
FAX: 49 7032 7806 12
Pulse China
Headquarters
No. 1
Industrial District
Changan, Dongguan
China
TEL: 86 769 85538070
FAX: 86 769 85538870
Pulse North China
Room 1503
XinYin Building
No. 888 YiShan Rd.
Shanghai 200233
China
TEL: 86 21 54643211/2
FAX: 86 21 54643210
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
TEL: 65 6287 8998
FAX: 65 6280 0080
Pulse North Asia
No. 26
Kao Ching Rd.
Yang Mei Chen
Taoyuan Hsien
Taiwan, R. O. C.
TEL: 886 3 4641811
FAX: 886 3 4641911
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
© Copyright, 2006. Pulse Engineering, Inc. All rights reserved.
www.pulseeng.com
4
H304.G (8/06)
