Part Number

Search

D8LC20UR

Description
super fast recovery rectifiers(200v 8A)
CategoryDiscrete semiconductor    diode
File Size282KB,7 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric View All

D8LC20UR Online Shopping

Suppliers Part Number Price MOQ In stock
D8LC20UR - - View Buy Now

D8LC20UR Overview

super fast recovery rectifiers(200v 8A)

D8LC20UR Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerSHINDENGEN
Parts packaging codeTO-220AB
package instructionR-PSFM-T3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW NOISE, FREE WHEELING DIODE
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationCOMMON ANODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.98 V
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Humidity sensitivity level2
Maximum non-repetitive peak forward current60 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current8 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
SHINDENGEN
Super Fast Recovery Rectifiers
Dual
D8LC20UR
200V 8A
FEATURES
Low noise
trr35ns
Fully Isolated
OUTLINE DIMENSIONS
Case : ITO-220
Unit : mm
Molding
APPLICATION
Switching power supply
Free Wheel
Home Appliances, Office Equipment
Telecommunication, Factory Automation
RATINGS
●Absolute Maximum Ratings (If not specified Tc=25℃)
Item
Symbol
Conditions
Tstg
Storage Temperature
Operating Junction Temperature
Tj
V
RM
Maximum Reverse Voltage
I
O
Average Rectified Forward Current
50Hz sine wave, R-load, Rating for each diode Io/2, Tc=122℃
I
FSM
50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃
Peak Surge Forward Current
Vdis
Terminals to case, AC 1 minute
Dielectric Strength
Mounting Torque
TOR
(Recommended torque:
0.3N½m)

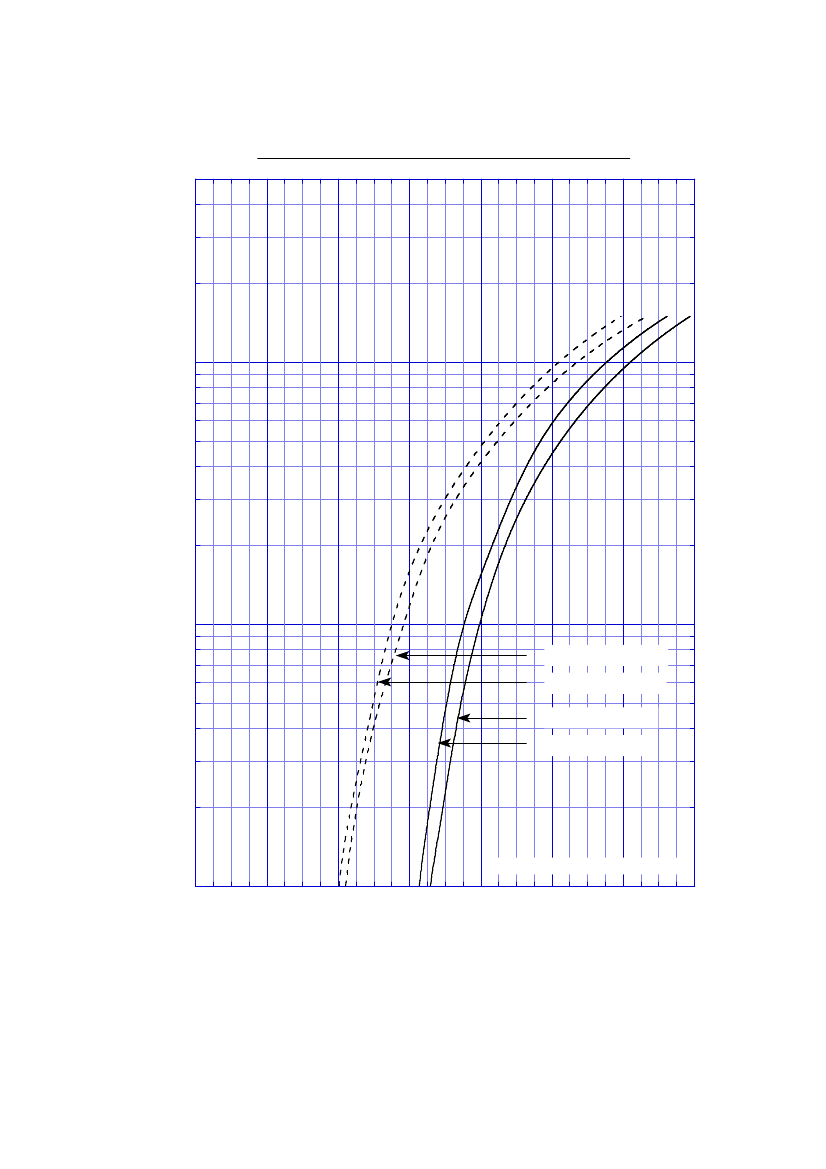

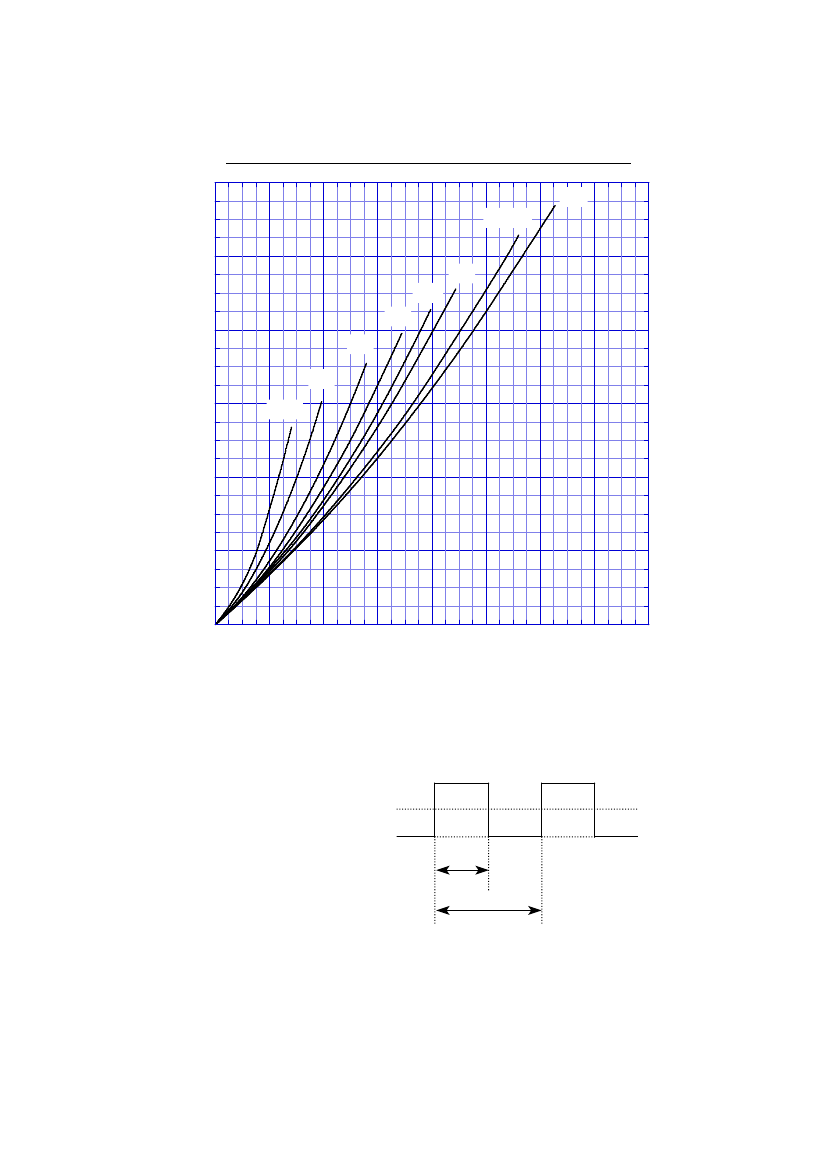

●Electrical Characteristics (If not specified Tc=25℃)
Item
Symbol
Conditions
V
F
I
F
=4A,
Pulse measurement, Rating of per diode
Forward Voltage
I
R
Reverse Current
V
R
=V
RM
, Pulse measurement, Rating of per diode
trr
I
F
=0.5A,  I
R
=1A,  Rating of per diode
Reverse Recovery Time
θjc
junction to case
Thermal Resistance
Ratings
-40∼150
150
200
8
60
1.5
0.5
Ratings
Max.0.98
Max.10
Max.35
Max.3.3
Unit
V
A
A
kV
N½m
Unit
V
μA
ns
℃/W
Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd
