P
USHBUTTON
S
WITCHES
22
MM
F
ULLY
S
EALED
M
ETAL
P
USHBUTTON
WITH
W
IRE
L
EADS

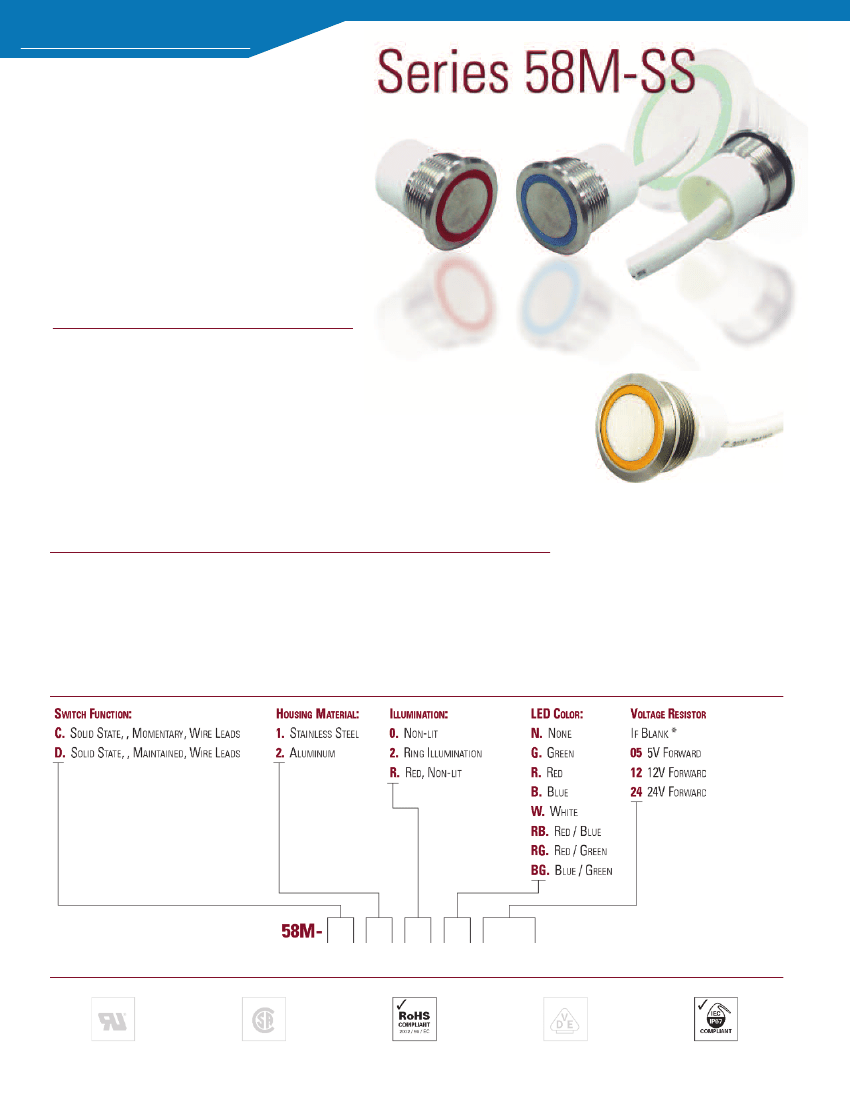

Built on the proven series 48 platform these
rugged switches come in stainless steel or
aluminum housings, solid state with either
momentary or maintained action and lighted or
unlighted versions. The variety of options in this
compact package size make the 58M ideal for
many applications: transportation, outdoor
controls, security products, food processing and
medical products.
A
PPLICATIONS
•
•
•
•
•
•
•
•
Outdoor Controls
Kiosks
Security Equipment
Medical Equipment
Food Processing Equipment
Military Equipment
Industrial Machinery
Transportation: Mass-Transit, Lift Trucks
A
CTUAL
S
IZE
K
EY
F
EATURES
:
•
Momentary or Maintained Action
•
Stainless Steel or
Aluminum Housing
•
Non Lit or Ring Illumination
•
Variety of LED colors
•
•
•
•
Solid State
Panel Sealed to IP67
ROHS Compliant
Gold Plated Contacts
O
RDERING
I
NFORMATION
:
S
TANDARDS
/ A
GENCY
/ R
ATINGS
:
* Current limiting resistor is
required to limit LED
forward current to 20 mA
(not included).
www.itwswitches.com
34
Contact an Authorized Distributor or Factory for Pricing
S
ERIES
58M: 22
MM
F
ULLY
S
EALED
M
ETAL
P
USHBUTTON
P
RODUCT
D

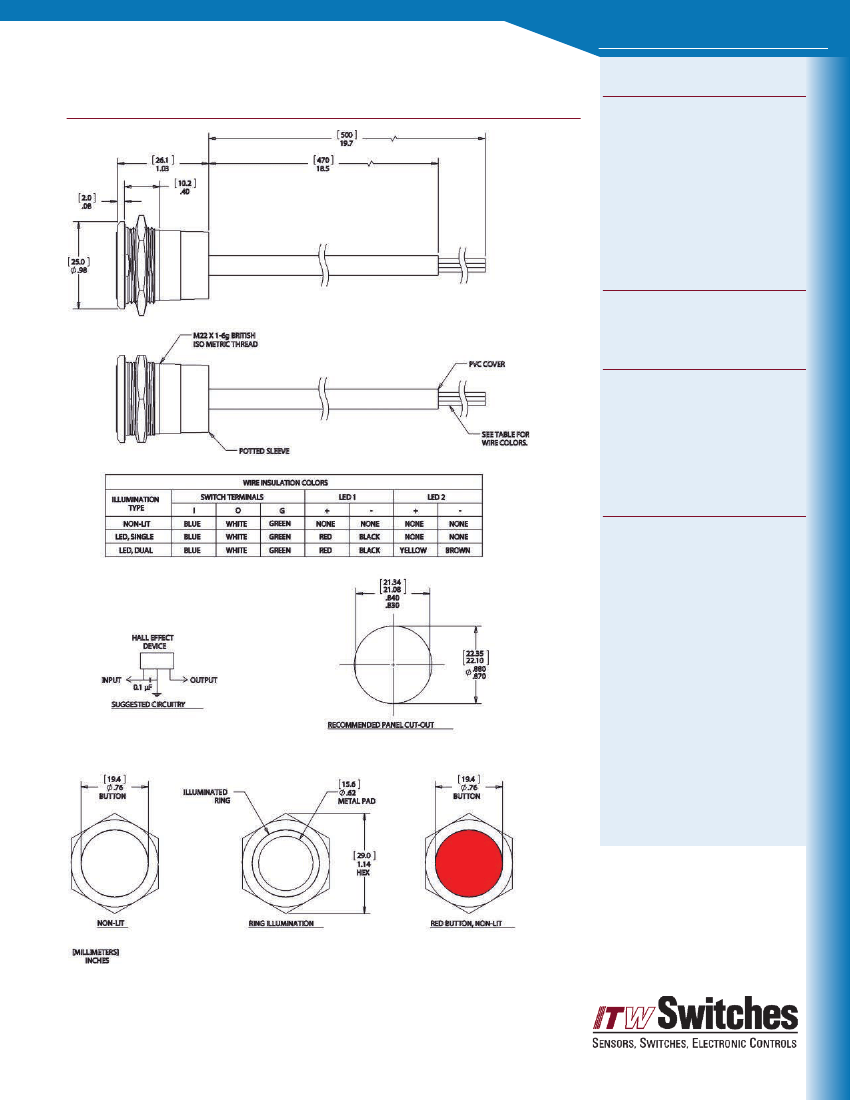

RAWINGS
P
USHBUTTON
S
WITCHES
MECHANICAL CHARACTERISTICS
CIRCUIT:
SPST-NO-DB (FORM X)
BUTTON TRAVEL (NOM):
[2.3] .09
OPERATING FORCE (NOM):
[3N] 306g
PANEL THICKNESS:
[0.5-4.5] .02-.18
NUT TORQUE (MAX):
[11.5 kgf/cm] 10 lb/in
HARDWARE:
BULK PACKAGED SEALING
WASHER AND HEX NUT ARE
INCLUDED.
ENVIRONMENTAL SPECIFICATIONS
ACTUATOR INGRESS
PROTECTION:
IP67
OPERATING TEMPERATURE:
NON-LIT: [-40 C to +85 C]
-40 F to +185 F
ILLUMINATED: [-25 C to +85 C]
-13 F to +185 F
ELECTRICAL SPECIFICATIONS
SUPPLY VOLTAGE:
4.2V TO 24V, 26.5 MAX
SUPPLY CURRENT:
B<Brp, Vcc=12V: 3mA TYP
to 8mA MAX
B>Bop, Vcc=12V: 4mA TYP
to 8mA MAX
OUTPUT LOAD:
SINKING (I out MAX = 25mA)
REVERSE BATTERY VOLTAGE:
-30V MAX
REVERSE OUTPUT CURRENT:
-50mA MAX
SWITCH LIFE:
MOMENTARY: 1,000,000 CYCLES
MAINTAINED: 50,000 CYCLES
WIRE LEADS:
UL STYLE 1007
26 AWG, STRANDED
Copyright © 2013 ITW Switches 3/13
Designs and specifications are subject to change
without notice due to product improvement.
35
800.544.3354
