VTC4-D53C-12M800 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VTC4-D53C-12M800

VTC4-D53C-12M800: Descriptionvoltage controlled temperature compensated crystal oscillator; CategoryPassive components oscillator; File Size181KB，7 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

VTC4-D53C-12M800 Overview

voltage controlled temperature compensated crystal oscillator

VTC4-D53C-12M800 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	20 ppm
frequency stability	3%
JESD-609 code	e4
Manufacturer's serial number	VTC4
Installation features	SURFACE MOUNT
Nominal operating frequency	12.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5mm x 3.2mm x 1.5mm
Nominal supply voltage	2.8 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

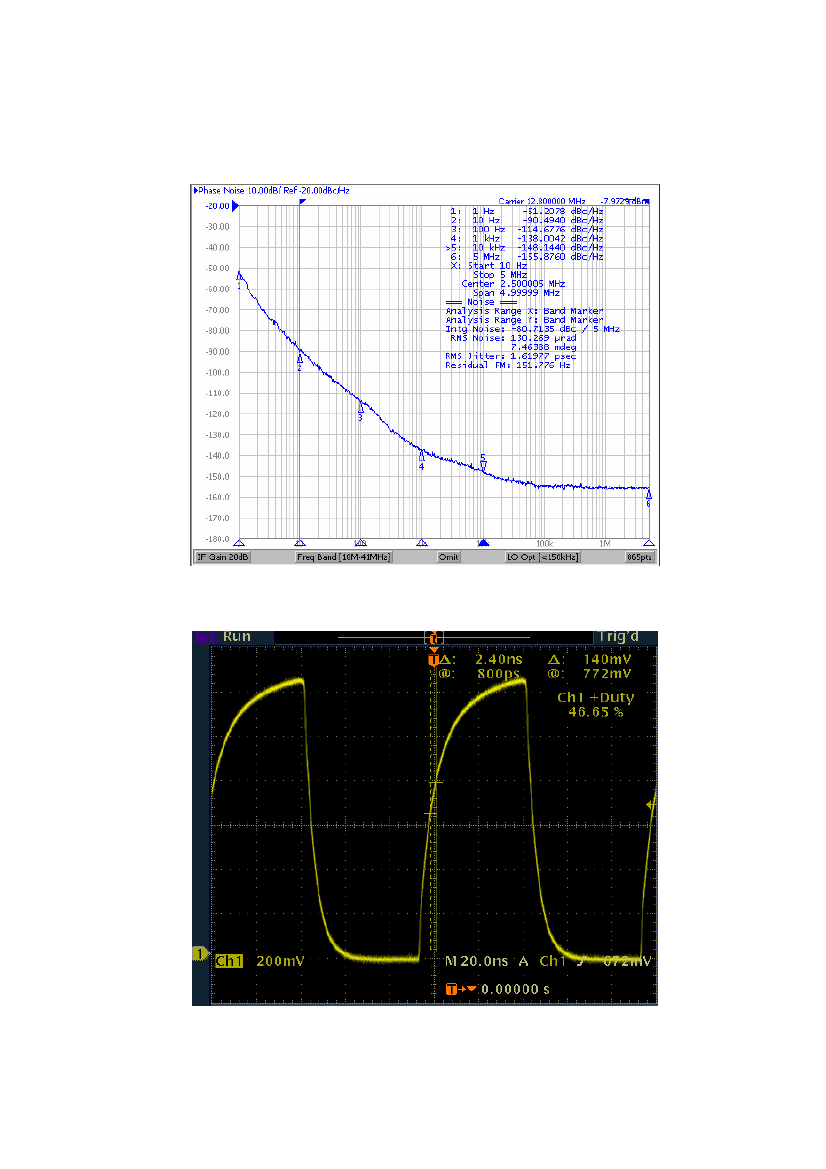

Preview

Download Datasheet

View All

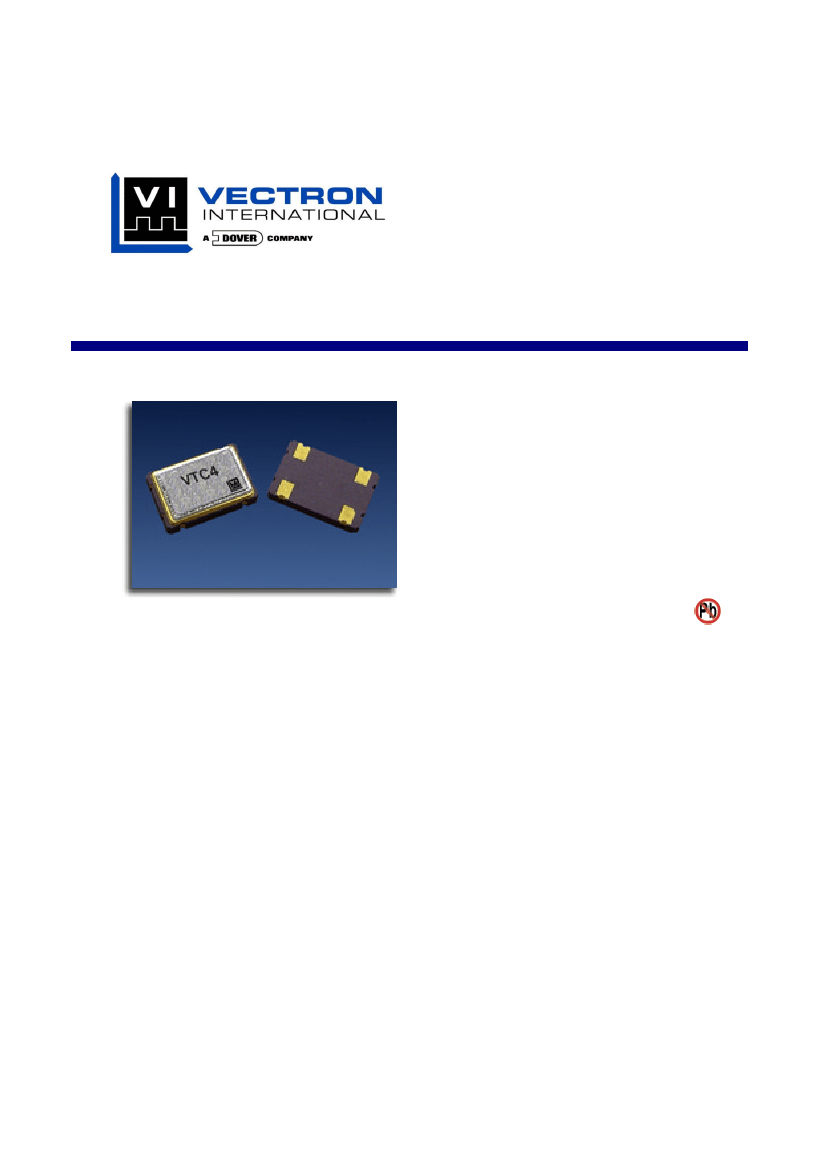

VTC4 series

Voltage Controlled Temperature Compensated Crystal Oscillator

Features

•

Clipped Sine Wave Output

•

Output Frequencies to 27 MHz

•

Fundamental Crystal Design

•

Optional VCXO Function available

•

Gold over nickel contact pads

•

Hermetically Sealed Ceramic SMD package

The VTC4, VCTXCO

•

Product is compliant to RoHS directive

and fully compatible with lead free assembly

Applications

•

Wireless Communications

•

Base Stations

•

Point to point radios

•

Broadband Access

•

Test Equipment

•

Handsets

Description

Vectron’s VTC4 Temperature Compensated

Crystal Oscillator (TCXO) is a quartz stabilized,

clipped sine wave output, temperature

compensated oscillator, operating off either 2.8,

3.0, 3.3 or 5.0 volt supply.

Vectron International 267 Lowell Road, Hudson NH 03051

Tel: 1-88-VECTRON-1

e-mail: vectron@vectron.com

VTC4-D53C-12M800 Related Products

	VTC4-D53C-12M800	VTC4-D55A-12M800
Description	voltage controlled temperature compensated crystal oscillator	voltage controlled temperature compensated crystal oscillator
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Vectron International, Inc.	Vectron International, Inc.
Reach Compliance Code	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL
Ageing	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	2.5 V	2.5 V
Minimum control voltage	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO
Frequency offset/pull rate	20 ppm	20 ppm
frequency stability	3%	5%
JESD-609 code	e4	e4
Manufacturer's serial number	VTC4	VTC4
Installation features	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	12.8 MHz	12.8 MHz
Maximum operating temperature	70 °C	55 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V
physical size	5mm x 3.2mm x 1.5mm	5mm x 3.2mm x 1.5mm
Nominal supply voltage	2.8 V	2.8 V
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
