DDZ9689T - DDZ9717T
SURFACE MOUNT PRECISION ZENER DIODE
NEW PRODUCT
Features
·
·
·
·
·
·
·
Ultra-Small Surface Mount Package
Very Sharp Breakdown Characteristics
Very Tight Tolerance on V
Z
Ideally Suited for Automated Assembly Processes
Very Low Leakage Current
Lead Free By Design/RoHS Compliant (Note 6)
"Green" Device (Note 5)
A
B
CATHODE MARK
SOD-523
Dim
A
B
C
D
MARKING CODE
Min
1.50
1.10
0.25
0.70
0.10
0.50
Max
1.70
1.30
0.35
0.90
0.20
0.70
Mechanical Data
·
·
·
·
·
·
·
·
Case: SOD-523
Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Electrical
Specifications Table
Ordering Information: See Last Page
Weight: 0.002 grams (approximate)
@ T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
V
F
T
j,
T
STG
E
C
D
E
G
G
All Dimensions in mm
Maximum Ratings
Forward Voltage
Characteristic
Operating and Storage Temperature Range
Value
0.9
-65 to +150
Unit
V
°C
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
@ T
A
= 25°C unless otherwise specified
Symbol
P
d
R
qJA
Value
150
833
Unit
mW
°C/W
Thermal Resistance, Junction to Ambient Air (Note 1)
Notes:
1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our webs at
ite
http://www.diodes.com/datasheets/ap02001.pdf.
DS30553 Rev. 3 - 2
1 of 6
www.diodes.com
DDZ9689T - DDZ9717T
NEW PRODUCT
Electrical Characteristics
Type
Number
DDZ9689T
DDZ9690T
DDZ9691T
DDZ9692T
DDZ9693T
DDZ9694T
DDZ9696T
DDZ9697T
DDZ9698T
DDZ9699T
DDZ9700T
DDZ9701T
DDZ9702T
DDZ9703T
DDZ9705T
DDZ9707T
DDZ9708T
DDZ9709T
DDZ9711T
DDZ9712T
DDZ9713T
DDZ9714T
DDZ9715T
DDZ9716T
DDZ9717T
Notes:
@ T
A
= 25°C unless otherwise specified
Zener Voltage Range (Note 2)
Table 1
Maximum Reverse
Leakage Current (Note 3)
I
ZT
I
R
@ V
R
mA
5
2
1
0.1
0.1
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
V
3
4
5
5.1
5.7
6.2
6.9
7.6
8.4
9.1
9.8
10.6
11.4
12.1
13.6
15.2
16.7
18.2
20.4
21.2
22.8
25.0
27.3
29.6
32.6
mA
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Type
Code
Nom (V)
HH
HJ
HK
HL
HM
HN
HP
HQ
HR
HS
HT
HU
HV
HW
HY
MD
ME
MF
MH
MJ
MK
ML
MM
MN
MO
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
18
20
22
24
27
28
30
33
36
39
43
V
Z
@ I
ZT
Min (V)
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
17.10
19.00
20.90
22.80
25.65
26.60
28.50
31.35
34.20
37.05
40.85
Max (V)
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
14.70
15.75
16.80
18.90
21.00
23.10
25.20
28.35
29.40
31.50
34.65
37.80
40.95
45.15
2. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
T
= 30°C
±1°C.
3. Short duration pulse test used to minimize self-heating effect.
DS30553 Rev. 3 - 2
2 of 6
www.diodes.com
DDZ9689T - DDZ9717T
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
180
1000
NEW PRODUCT
150
P
d
, POWER DISSIPATION (mW)
100
120
10
90
1.0
60
0.1
30
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

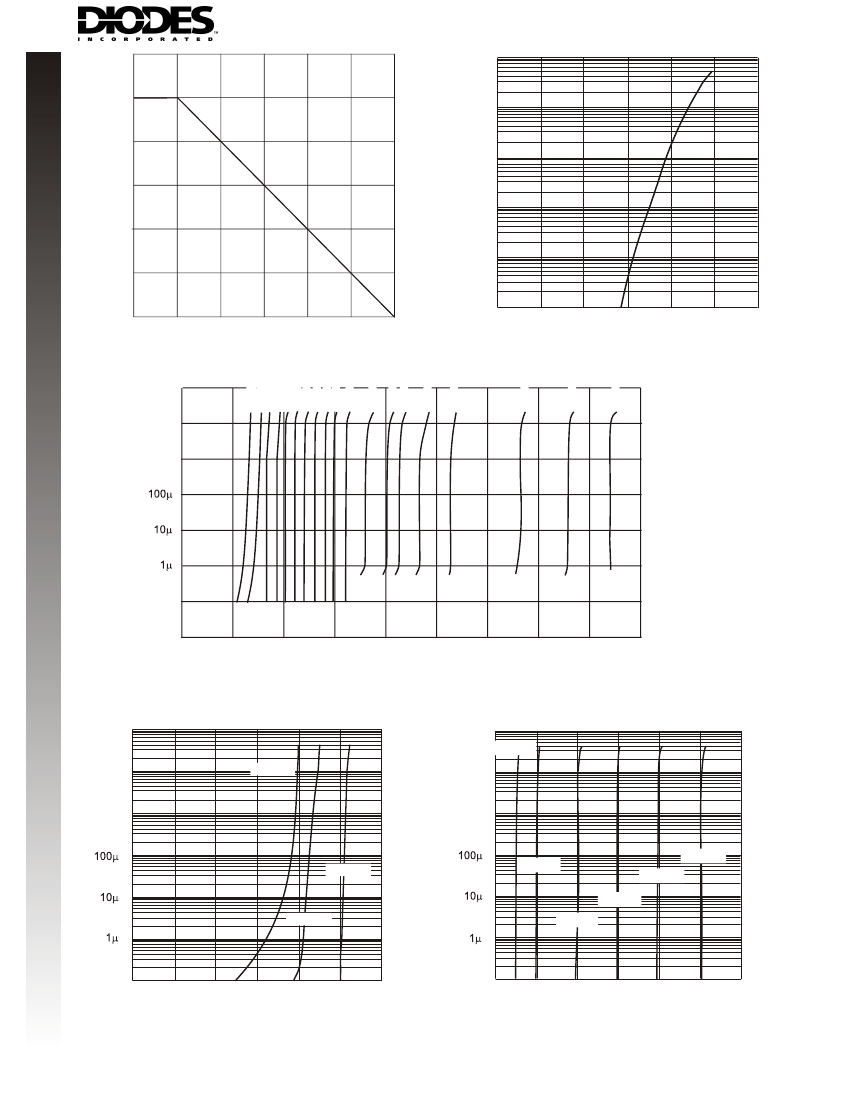

Fig. 1 Power Dissipation vs Ambient Temperature
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
9697T
9698T
9699T
9700T
9701T
9702T
9707T
9708T
9692T
9693T
9694T
9703T
10m
I
Z
, ZENER CURRENT (A)
1m
100n
10n
0
5
10
15
20
9696T
9705T
9709T
9714T
9711T
25
30
35
9716T
9717T
100m
40
45
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100m
100m
DDZ9696T
10m
I
Z
, ZENER CURRENT (A)
DDZ9692T
10m
I
Z
, ZENER CURRENT (A)
1m
1m
DDZ9701T
DDZ9697T
DDZ9700T
DDZ9699T
DDZ9698T
DDZ9694T
DDZ9693T
100n
3.0
4.0
5.0
6.0
7.0
8.0
9.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 4 Typical Reverse Characteristics, DDZ9692T - DDZ9694T
100n
8.0
10.0
11.0
12.0
13.0
14.0
15.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 5 Typical Reverse Characteristics, DDZ9696T - DDZ9701T
DS30553 Rev. 3 - 2
3 of 6
www.diodes.com
DDZ9689T - DDZ9717T
100m
100m
NEW PRODUCT
10m
I
Z
, ZENER CURRENT (A)
10m
I
Z
, ZENER CURRENT (A)
1m
DDZ9702T
1m
DDZ9707T
DDZ9708T
DDZ9703T
DDZ9705T
DDZ9709T
100n
14
15
16
17
18
19
20
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Reverse Characteristics, DDZ9702T - DDZ9705T
100n
19
20
21
22
23
24
25
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 7 Typical Reverse Characteristics, DDZ9707T - DDZ9709T
100m
100m
10m
DDZ9714T
10m
I
Z
, ZENER CURRENT (A)
DDZ9716T
I
Z
, ZENER CURRENT (A)
1m
DDZ9711T
1m
DDZ9717T
DDZ9715T
100n
26
28
30
32
34
36
38
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 8 Typical Reverse Characteristics, DDZ9711T - DDZ9715T

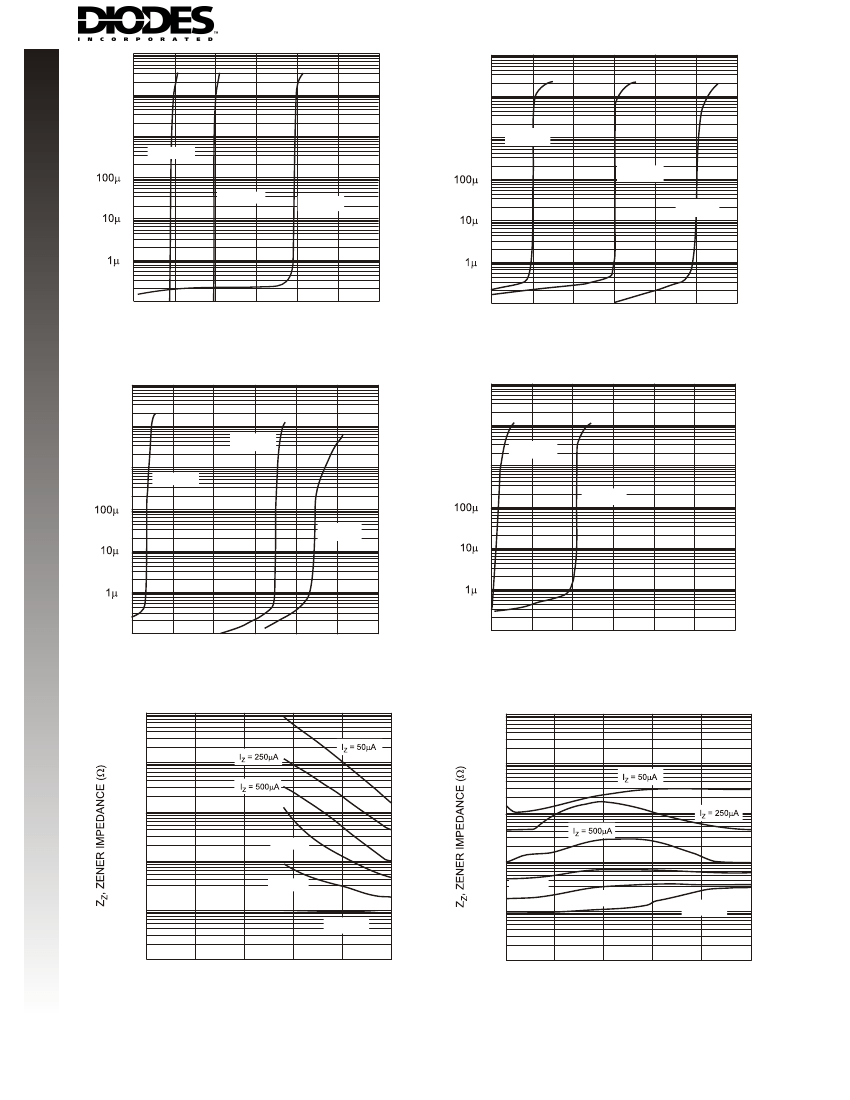

10,000
100n
38
40
42
44
46
48
50
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 9 Typical Reverse Characteristics, DDZ9716T - DDZ9717T
10,000
1000
1000
100
I
Z
= 1mA
100
10
I
Z
= 5mA
10
I
Z
= 1mA
I
Z
= 5mA
1
I
Z
= 20mA
1
I
Z
= 20mA
0.1
2
3
4
5
6
7
V
Z
, ZENER VOLTAGE (V)
Fig. 10 Typical Zener Impedance Characteristics,
DDZ9689T - DDZ9692T
0.1
7
8
9
10
11
12
V
Z
, ZENER VOLTAGE (V)
Fig. 11 Typical Zener Impedance Characteristics,
DDZ9693T - DDZ9699T
DS30553 Rev. 3 - 2
4 of 6
www.diodes.com
DDZ9689T - DDZ9717T
10,000
10,000
NEW PRODUCT
1000
1000
100
100
10
I
Z
= 5mA
10
I
Z
= 5mA
I
Z
= 1mA
I
Z
= 1mA
1
1
0.1
12
13
14
15
16
17
18
V
Z
, ZENER VOLTAGE (V)

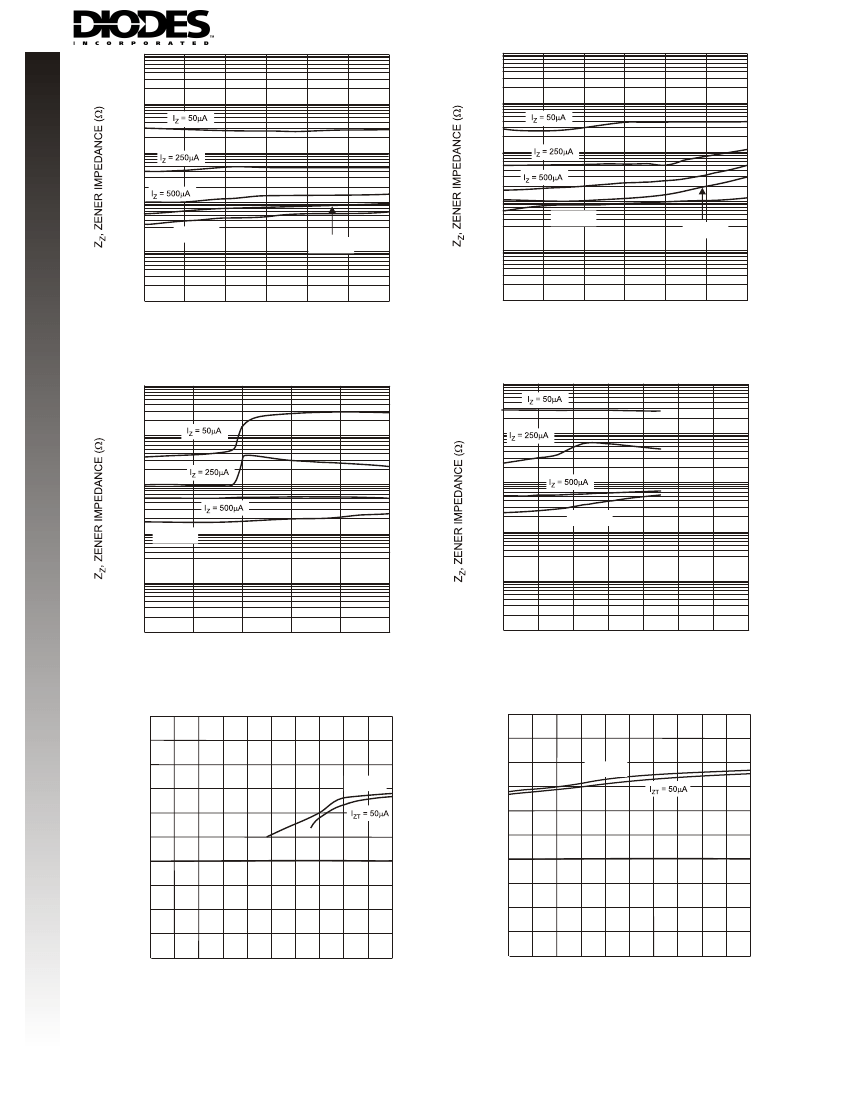

Fig. 12 Typical Zener Impedance Characteristics,
DDZ9699T - DDZ9705T
10,000
0.1
18
19
20
21
22
23
24
V
Z
, ZENER VOLTAGE (V)
Fig. 13 Typical Zener Impedance Characteristics,
DDZ9705T - DDZ9709T
10,000
1000
1000
100
100
I
Z
= 2mA
10
I
Z
= 2mA
10
1
1
0.1
24
26
28
30
32
34
V
Z
, ZENER VOLTAGE (V)
Fig. 14 Typical Zener Impedance Characteristics,
DDZ9709T - DDZ9714T
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
0
2
4
6
8
10
V
Z
, ZENER VOLTAGE (V)
Fig. 16 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZ9694T - DDZ9697T
I
ZT
= 5mA
0.1
34
36
38
40
42
44
46
48
V
Z
, ZENER VOLTAGE (V)
Fig. 15 Typical Zener Impedance Characteristics,
DDZ9715T - DDZ9717T
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
10
12
14
16
18
20
V
Z
, ZENER VOLTAGE (V)
Fig. 17 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZ9697T - DDZ9707T
I
ZT
= 5mA
DS30553 Rev. 3 - 2
5 of 6
www.diodes.com
DDZ9689T - DDZ9717T
