DCX54/-16
NPN SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Type Available (DCX51)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
SOT89-3L
COLLECTOR
2,4
1
BASE
NEW PRODUCT
Mechanical Data
•
•
•
•
•
•
•
Case: SOT89-3L
Case Material: Molded Plastic, "Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish — Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 3
Ordering Information: See Page 3
Weight: 0.072 grams (approximate)
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
CM
I
C
3 E
C 4
2 C
1 B
3
TOP VIEW
EMITTER

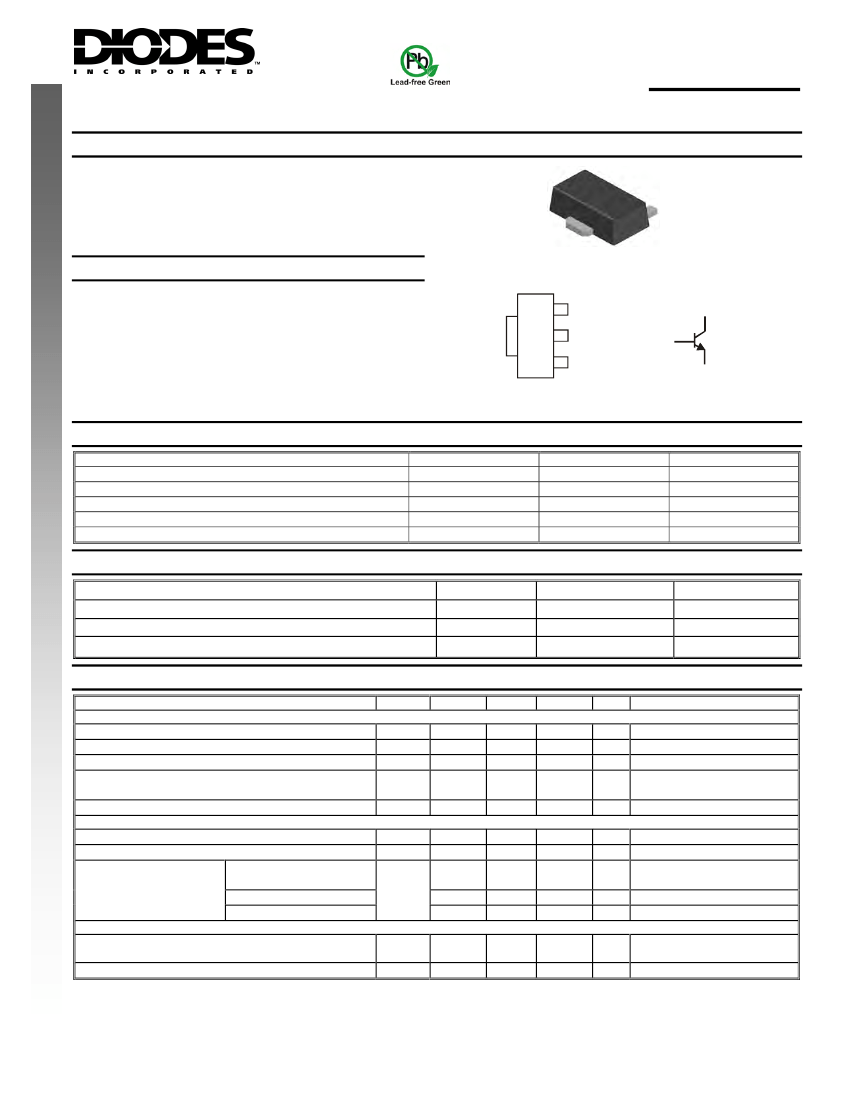

Schematic and Pin Configuration
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Peak Pulse Current
Continuous Collector Current
Characteristic
Value
45
45
5
1.5
1
Unit
V
V
V
A
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 3) @ T
A
= 25°C
Thermal Resistance, Junction to Ambient Air (Note 3) @ T
A
= 25°C
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
j
, T
STG
Value
1
125
-55 to +150
Unit
W
°C/W
°C
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
V
CE(SAT)
V
BE(ON)
DCX54, DCX54-16
h
FE
Min
45
45
5
⎯
⎯
⎯
⎯
⎯
63
40
63
100
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
200
⎯
Max
⎯
⎯
⎯
100
20
100
0.5
1.0
⎯
⎯
250
250
⎯
15
Unit
V
V
V
nA
μA
nA
V
V
⎯
⎯
⎯
⎯
MHz
pF
Test Conditions
I
C
= 100μA, I
E
= 0A
I
C
= 10mA, I
B
= 0A
I
E
= 10μA, I
C
= 0A
V
CB
= 30V, I
E
= 0
V
CB
= 30V, I
E
= 0, T
A
= 150°C
V
EB
= 5V, I
C
= 0A
I
C
= 500mA, I
B
= 50mA
I
C
= 500mA, V
CE
= 2V
I
C
= 5mA, V
CE
= 2V
I
C
= 500mA, V
CE
= 2V
I
C
= 150mA, V
CE
= 2V
I
C
= 150mA, V
CE
= 2V
I
C
= 50mA, V
CE
= 5V,
f = 100MHz
V
CB
= 10V, f = 1MHz
DC Current Gain
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
Output Capacitance
Notes:
1.
2.
3.
4.
DCX54
DCX54-16
f
T
C
obo
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on FR-4 PCB; pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Measured under pulsed conditions. Pulse width = 300μs. Duty cycle
≤2%.
DS31229 Rev. 2 - 2
1 of 4
www.diodes.com
DCX54/-16
© Diodes Incorporated
160
140
120
CAPACITANCE(pF)
100
80
60
40
20
0
0
10
20
30
40
V
R
, REVERSE VOLTAGE (V)

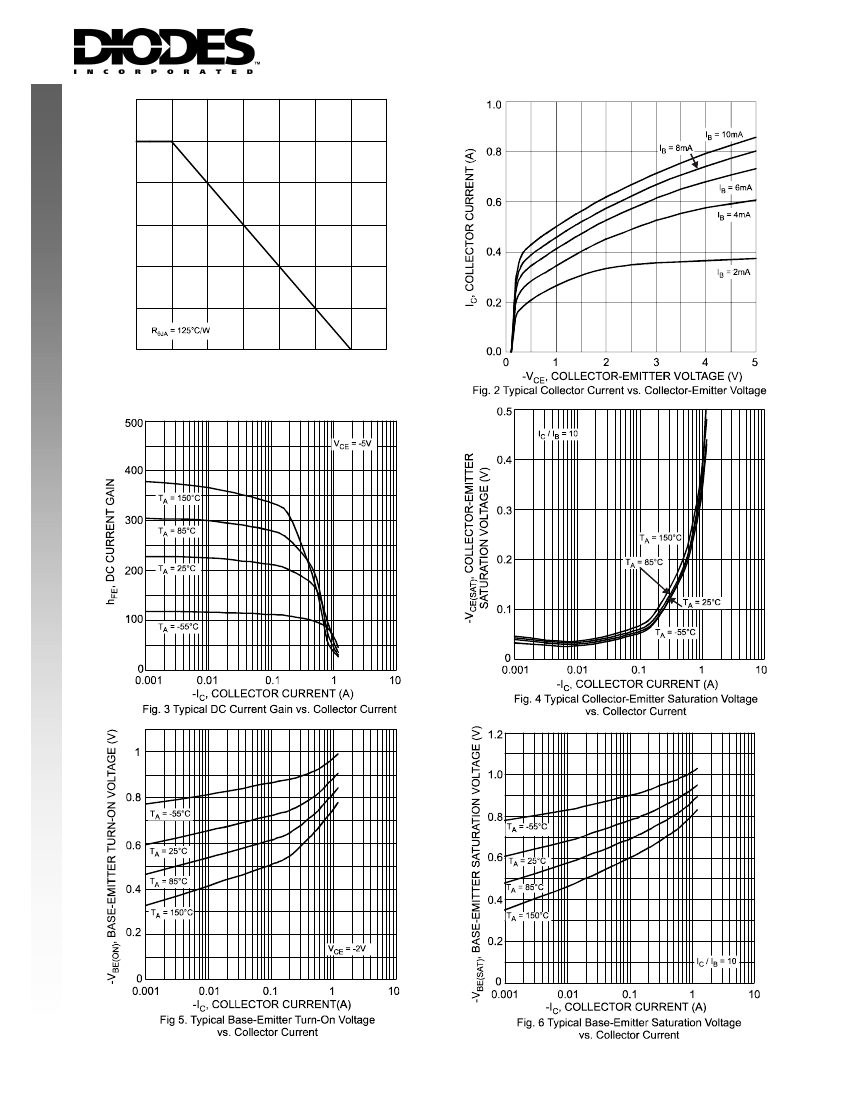

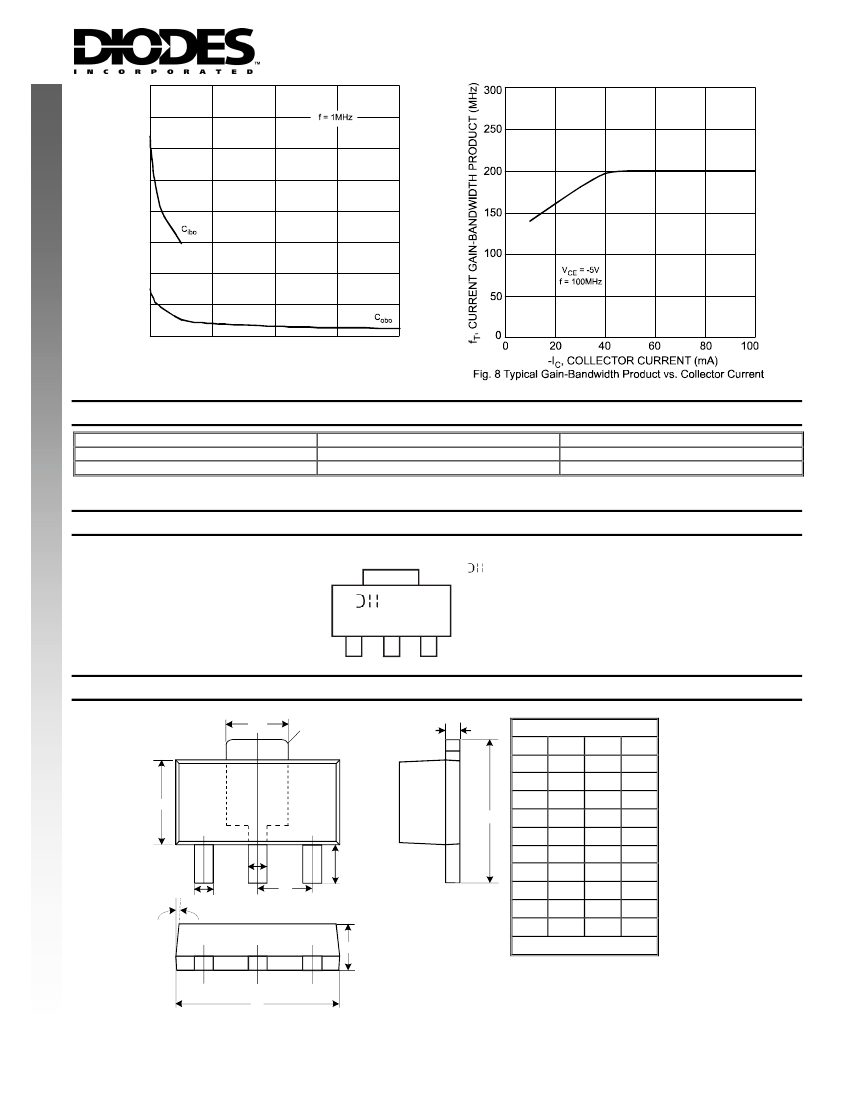

Fig. 7 Typical Capacitance Characteristics
NEW PRODUCT
Ordering Information
(Note 5)
Device
DCX54-13
DCX54-16-13
Notes:
5.
Packaging
SOT89-3L
SOT89-3L
Shipping
2500/Tape & Reel
2500/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/ap02007.pdf.
Marking Information
(Top View)
YWW
XXX
= Manufacturer’s code marking
XXX = Product type marking code Ex: N14 = DCX54
N14-16 = DCX54 -16
YWW = Date code marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
Package Outline Dimensions
D1
0
20
0.
R
C
SOT89-3L
Dim
A
B
B1
H
Min
1.40
0.45
0.37
0.35
4.40
1.50
2.40
—
3.95
0.90
Max
1.60
0.55
0.47
0.43
4.60
1.70
2.60
—
4.25
1.20
Typ
1.50
0.50
0.42
0.38
4.50
1.60
2.50
1.50
4.10
1.05
E
C
D
D1
B
B1
8°
e
(4X
)
L
E
e
H
L
A
All Dimensions in mm
D
DS31229 Rev. 2 - 2
3 of 4
www.diodes.com
DCX54/-16
© Diodes Incorporated
Suggested Pad Layout
1.7
NEW PRODUCT
2.7
0.4
1.9
1.3
0.9
3.0
Unit: mm
