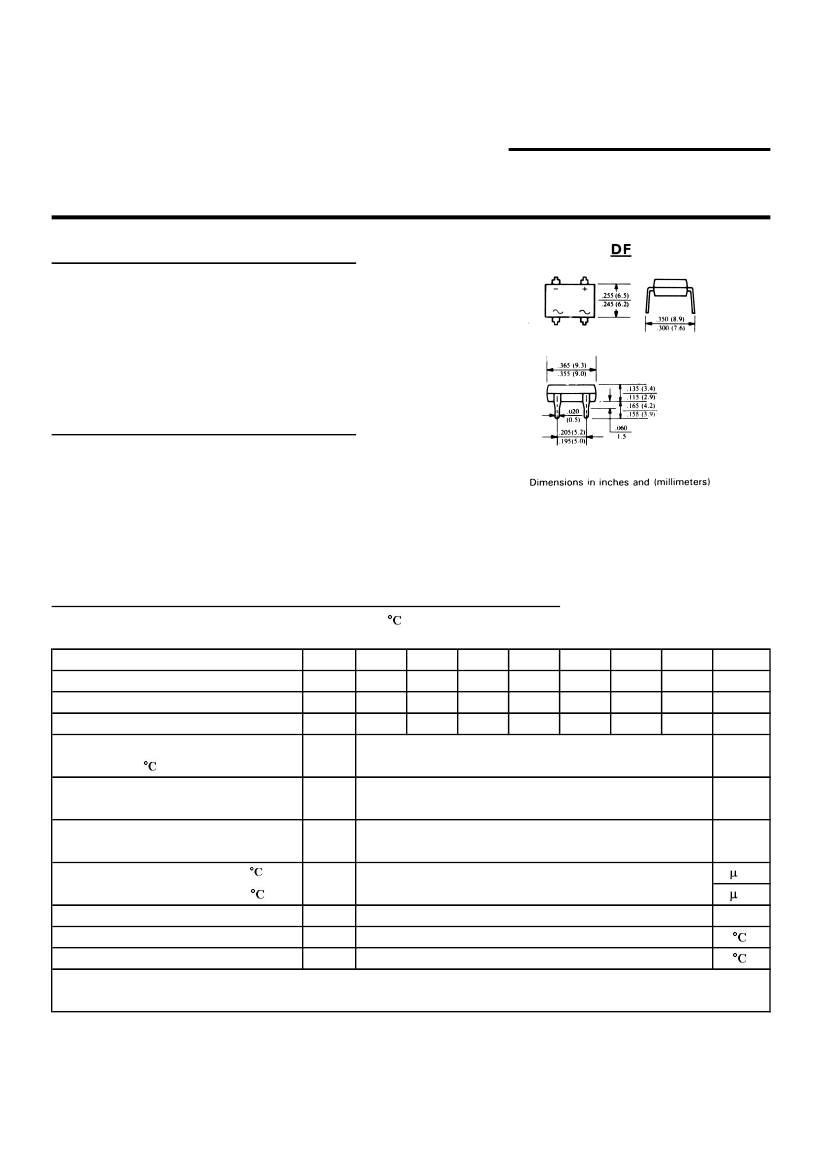

CHENYI ELECTRONICS

DF005 THRU DF10

SINGLE PHASE GLASS

PASSIVATED BRIDGE RECTIFIER

Voltage: 50 TO 1000V CURRENT:1.0A

FEATURES

Ideal for printed circuit board

Reliable low cost construction utilizing molded plastic

technique

Surge overload rating: 50A peak

MECHANICAL DATA

Terminal:

Plated leads solderable per

MIL-STD 202E, method 208C

Case:

UL-94 Class V-0 recognized Flame Retardant Epoxy

Polarity:

Polarity symbol marked on body

Mounting position:

any

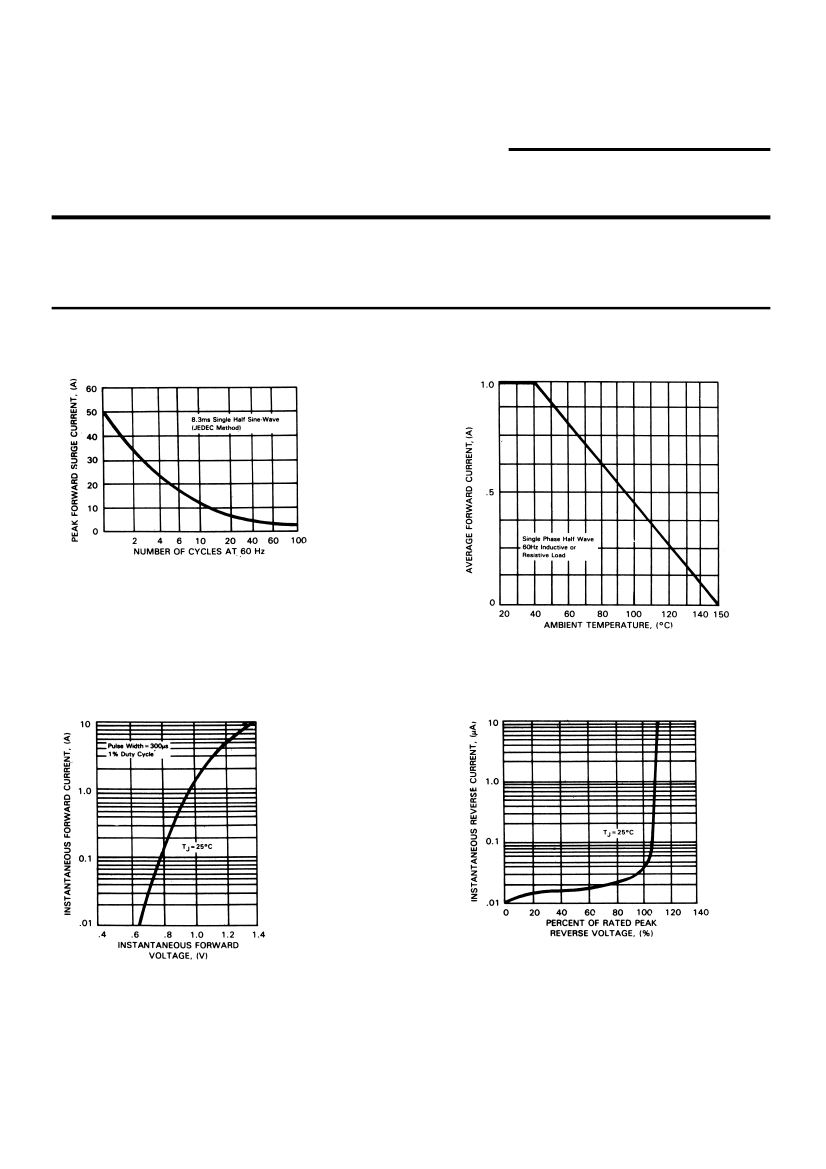

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Single-phase, half-wave, 60HZ, resistive or inductive load rating at 25

for capacitive load, derate current by 20%)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

current at Ta=40

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

forward current 1.0A

Maximum DC Reverse Voltage Ta=25

at rated DC blocking voltage

Typical Junction Capacitance

Operating Temperature Range

Storage and operation Junction Temperature

Note:

1. Measure at 1MHZ and applied reverse voltage of 4.0 volt

Ta=125

Tstg

1.1

10.0

500

-55 to +125

-55 to +150

Ifsm

If(av)

Vrrm

Vrms

Vdc

DF005

DF01

100

DF02

200

140

200

DF04

400

280

400

DF06

600

420

600

DF08

800

560

800

DF10

1000

700

1000

units

, unless otherwise stated,

Page 1 of 2
