DF005M THRU DF10M
MINIATURE GLASS PASSIVATED SINGLE-PHASE-BRIDGE RECTIFIER
Reverse Voltage -
50 to 1000 Volts
Case Style DFM
Forward Current -
1.0 Ampere
FEATURES
0.255 (6.5) 0.315 (8.00)
0.245 (6.2) 0.285 (7.24)
0.335 (8.51)
0.320 (8.12)
♦
This series is UL listed under the Recognized Component
Index, file number E54214
♦
Plastic package used has Underwriters Laboratory
Flammability Classification 94V-0
♦
Glass passivated chip junctions
♦
Surge overload rating of 50 Amperes peak
♦
Ideal for printed circuit boards
♦
High temperature soldering guaranteed:
260°C/10 seconds at 5 lbs. (2.3kg) tension
0.130 (3.3)
0.120 (3.05)
0.045 (1.14)
0.035 (0.89)
0.023 (0.58)
0.018 (0.46)
0.205 (5.2)
0.195 (5.0)
0.080 (2.03)
0.050 (1.27)
0.185 (4.69)
0.150 (3.81)
0.075 (1.90)
0.055 (1.39)
0.013 (3.3)
0.0086 (0.22)
MECHANICAL DATA
Case:
Molded plastic body over passivated junctions
Terminals:
Plated lead solderable per MIL-STD-750,
Method 2026
Polarity:
Polarity symbols marked on body
Mounting Position:
Any
Weight:
0.04 ounce, 1.0 gram
0.350 (8.9)
0.300 (7.6)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
DF
005M
DF
01M
DF
02M
DF
04M
DF
06M
DF
08M
DF
10M
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward output rectified current
at T
A
=40°C
Peak forward surge current single sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t < 8.3ms)
Maximum instantaneous forward voltage drop
per leg at 1.0A
Maximum reverse current
at rated DC blocking voltage per leg
Typical junction capacitance per leg
(NOTE 1)
Typical thermal resistance per leg
(NOTE 2)
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
t
V
F
T
A
=25°C
T
A
=125°C
I
R
C
J
R
ΘJA
R
ΘJL
T
J
, T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1.0
50.0
10.0
1.1
5.0
500.0
25.0
40.0
15.0
-55 to +150
600
420
600
800 1000 Volts
560
700
Volts
800 1000 Volts
Amp
Amps
A
2
sec
Volts
µA
pF
°C/W
°C
Operating junction and storage temperature range
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Thermal resistance from junction to ambient and from junction to lead mounted on
P.C.B. with 0.5 x 0.5" (13 x 13mm) copper pads
4/98

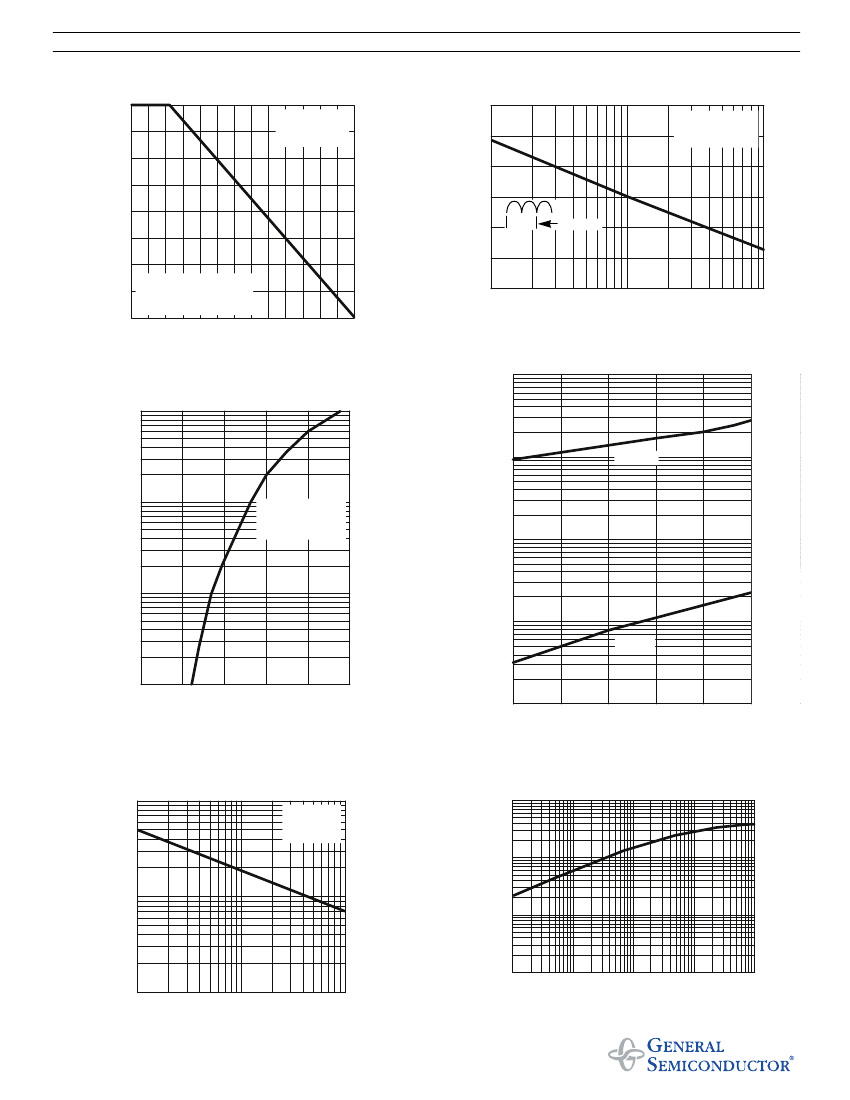

RATINGS AND CHARACTERISTICS CURVES DF005M THRU DF10M
FIG. 1 - DERATING CURVE OUTPUT RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
1.0
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
1.0 CYCLE
T
J
=150°C
SINGLE SINE-WAVE
(JEDEC Method)
0.5
P.C.B. MOUNTED ON
0.51 x 0.51” (13 x 13mm)
COPPER PADS WITH
0.06” (1.5mm) LEAD LENGTH
100
0
20
40
60
80
100
120
140 150
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
AMBIENT TEMPERATURE, °C
100
FIG. 3 - TYPICAL FORWARD CHARACTERISTICS
PER LEG
10
INSTANTANEOUS REVERSE CURRENT,
AMPERES
INSTANTANEOUS FORWARD CURRENT,
AMPERES
10
T
J
=125°C
1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
1
0.1
0.1
T
J
=25°C
0.01
0.4
0.6
0.8
1.0
1.2
1.4
0.01
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
FIG. 6 - TYPICAL TRANSIENT THERMAL
IMPEDANCE
FIG. 5 - TYPICAL JUNCTION
CAPACITANCE PER LEG
100
JUNCTION CAPACITANCE, pF
TRANSIENT THERMAL IMPEDANCE,
°C/W
T
J
=25°C
f=1.0 MH
Z
Vsig=50mVp-p
100
10
10
1
0.1
0.01
0.1
1
t, HEATING TIME, sec.
10
100
1
1
10
REVERSE VOLTAGE, VOLTS
100
