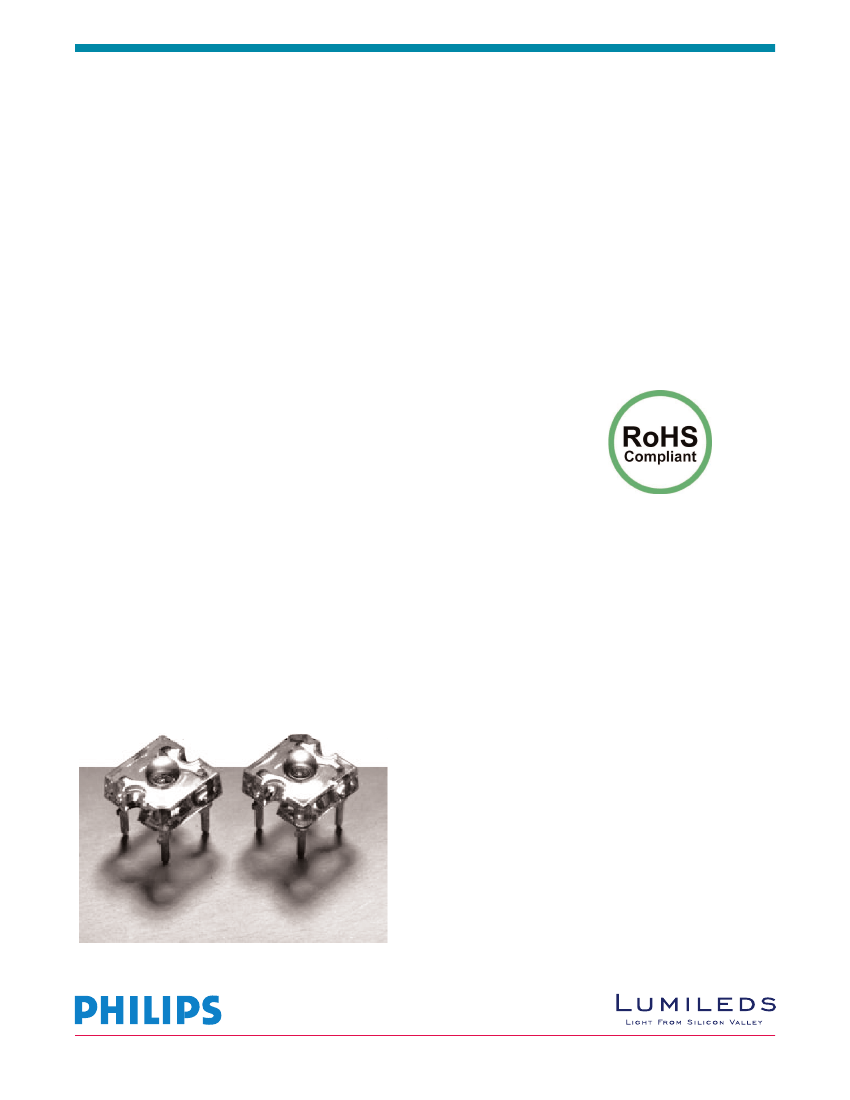

Technical Datasheet DS55
Lead Free
SuperFlux LEDs
Introduction
This revolutionary package design allows the lighting designer to
reduce the number of LEDs required and provide a more uniform
and unique illuminated appearance than with other LED solutions.
This is possible through the efficient optical package design and
high current capabilities.
The low profile package can be easily coupled with reflectors or
lenses to efficiently distribute light and provide the desired lit
appearance. This product family employs red, red orange and amber
LED materials, which allow designers to match the color of many
lighting applications like vehicle signal lamps, specialty lighting, and
electronic signs.
Key Benefits
Rugged Lighting Products
Electricity Savings
Maintenance Savings
Features
Lead Free
RoHS Compliant
High Luminance
Uniform Color
Low Power Consumption
Low Thermal Resistance
Low Profile
Meets SAE/ECE/JIS
Automotive Color
Requirements
Packaged in tubes for use with
automatic insertion equipment
HPWA
HPWT
HPWA
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
MH02
MH02
DH02
DH02
RD02
BH02
MD02
RL02
DD02
ML02
BD02
DL02
RH02
BL02
Typical
Applications
Automotive Exterior Lighting
Electronic Signs and Signals
Specialty Lighting

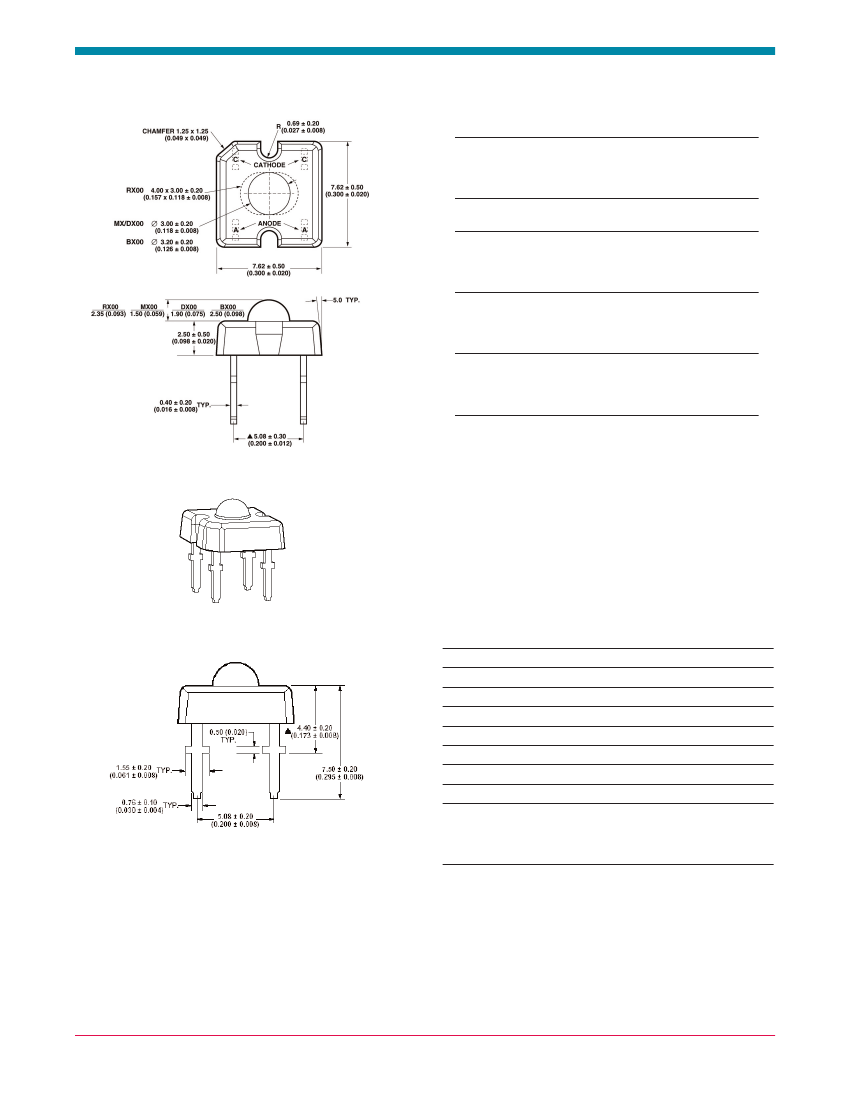

Outline Drawings
Selection Guide
Table 1
Total Included
Total Flux
Φ
V
(LM)
@ 70 mA
[1]
Device Type
HPWA MH02
HPWA DH02
HPWT RD02
HPWT MD02
HPWT DD02
HPWT BD02
HPWT RH02
HPWT MH02
HPWT DH02
HPWT BH02
HPWT RL02
HPWT ML02
HPWT DL02
HPWT BL02
TS AlInGaP Amber
2.5
TS AlInGaP Red Orange
5.0
TS AlInGaP Red
3.8
Angle
θ
90V
(Degrees)
[2]
Typ.
95
75
44 X 88
100
70
50
44 X 88
100
70
50
44 X 88
100
70
50
LED Color
AS AlInGaP Red Orange
Typ.
2.0
Notes:
1.Φv is the total luminous flux output as measured with
an integrating sphere after the device has stabilized.
(R
θ
J A
= 200°C/W, T
A
= 25ºC)
2.θ
0.90 V
is the included angle at which 90% of the total
luminous flux is captured.
Absolute Maximum Ratings at
T
A
= 25ºC
Table 2
Parameter
DC Forward Current
Power Dissipation
Reverse Voltage (IR = 100 mA)
Operating Temperature Range
Storage Temperature Range
High Temperature Chamber
LED Junction Temperature
Solder Conditions
[2]
[1]
HPWA
70
187
10
HPWT
70
221
10
Units
mA
mW
V
ºC
ºC
40 to +100
55 to +100
125ºC, 2 Hours
125ºC
Preheat Temperature
Solder Temperature
85 +/ 15°C, 70 sec +/ 20 sec
250 +/ 5°C, 2.5 +/ 0.5 sec
[1.5mm (0.06 in) below seating plane]
Notes:
1. De rate as shown in Figures 4a and 4b.
2. See "Recommended Soldering Conditions", Page 8.
Lead Free SuperFlux LEDs Datasheet DS55 (10/06)
2
Optical Characteristics at
T
A
= 25°C, I
F
= 70 mA,
R
θ
J A
= 200°C/W
Table 3
Total
Peak
Wavelength
Device
Type
HPWA MH02
HPWA DH02
HPWT RD02
HPWT MD02
HPWT DD02
HPWT BD02
HPWT RH02
HPWT MH02
HPWT DH02
HPWT BH02
HPWT RL02
HPWT ML02
HPWT DL02
HPWT BL02
596
594
626
620
640
630
λ
peak (nm)
Typ.
624
Dominant
Wavelength
λ
dom(nm)
[1]
Typ.
618
Included
Angle
θ
0.90 V
(Degrees)
[2]
Typ.
95
75
44 X 88
100
70
50
44 X 88
100
70
50
44 X 88
100
70
50
Luminous
Intensity/
Total Flux
I
v
(cd)/
Φ
v
(lm)
Typ.
0.6
0.9
1.25
0.6
1.5
2.0
1.25
0.6
1.5
2.0
1.25
0.6
1.5
2.0
Viewing
Angle 2
θ
Typ.
90
60
25 x 68
70
40
30
25 x 68
70
40
30
25 x 68
70
40
30
1/2
Electrical Characteristics at T
A
=25°C
Table 4
Forward Voltage
V
F
(Volts)
@
I
F
= 70mA (HPWA,
HPWT)
Device
Type
HPWA xH02
HPWT xD02
HPWT xH02
HPWT xL02
Reverse
Breakdown
V
R
(Volts)
μ
A
[1]
Capacitance
C (pF)
V
F
= 0,
F = 1MHz.
Thermal
Resistance
R
θ
J PIN
(°C/W)
Speed of
Response
@ I
R
= 100
τ
s
(ns)
[2]
Typ.
20
20
20
20
(Degrees)
Min
1.83
2.19
2.19
2.19
Typ
2.2
2.6
2.6
2.6
Max
2.67
3.03
3.03
3.15
Min
10
10
10
10
Typ.
20
20
20
20
Typ.
40
40
40
40
Typ.
155
125
125
125
Notes:
1.Operation in reverse bias is not recommended.
2.τs is the time constant, e
t/τs
.
Notes:
1.The dominant wavelength is derived from the CIE
Chromaticity Diagram and represents the perceived color
of the device.
2.θ
0.90 V
is the included angle at which 90% of the total lumi
nous flux is captured.
Lead Free SuperFlux LEDs Datasheet DS55 (10/06)
3
Part Number Selection
Red
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
RD02 00000
RD02 D4000
RD02 E4000
RD02 F4000
BD02 00000
BD02 D4000
BD02 E4000
BD02 F4000
DD02 00000
DD02 D4000
DD02 E4000
DD02 F4000
MD02 00000
MD02 D4000
MD02 E4000
MD02 F4000
Viewing Angle
2
θ
1/2
(Degrees)
25
25
25
25
X 68
X 68
X 68
X 68
30
30
30
30
40
40
40
40
70
70
70
70
Min. Flux
[1]
Φ
v (lm)
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
1.5
2.0
2.5
3.0
Max Flux
Φ
v (lm)
4.8
6.1
7.3
4.8
6.1
7.3
4.8
6.1
7.3
4.8
6.1
7.3
Minimum
Intensity (cd)
1.9
2.5
3.1
3.8
3.0
4.0
5.0
6.0
2.3
3.0
3.8
4.5
0.9
1.2
1.5
1.8
Maximum
Intensity (cd)
6.0
7.6
9.1
9.6
12.2
14.6
7.2
9.2
11.0
2.9
3.7
4.4
Note:
1.
Φv
is the total luminous flux output as measured with an integrating sphere after the device has stabilized.
Lead Free SuperFlux LEDs Datasheet DS55 (10/06)
4
Red Orange
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWA
HPWA
HPWA
HPWA
RH02 00000
RH02 D4000
RH02 E4000
RH02 F4000
RH02 G4000
RH02 H4000
BH02 00000
BH02 D4000
BH02 E4000
BH02 F4000
BH02 G4000
BH02 H4000
DH02 00000
DH02 D4000
DH02 E4000
DH02 F4000
DH02 G4000
DH02 H4000
MH02 00000
MH02 D4000
MH02 E4000
MH02 F4000
MH02 G4000
MH02 H4000
MH02 B4000
DH02 B4000
MH02 C4000
DH02 C4000
Viewing Angle
2
θ
1/2
(Degrees)
25
25
25
25
25
25
X 68
X 68
X 68
X 68
X 68
X 68
30
30
30
30
30
30
40
40
40
40
40
40
70
70
70
70
70
70
90
40
90
40
Min. Flux
Φ
v (lm)
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.5
2.0
2.5
3.0
3.5
4.0
1.0
1.0
1.5
1.5
Max Flux
Φ
v (lm)
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
4.8
6.1
7.3
9.7
12.0
3.6
3.6
4.2
4.2
Minimum
Intensity (cd)
1.9
2.5
3.1
3.8
4.4
5.0
3.0
4.0
5.0
6.0
7.0
8.0
2.3
3.0
3.8
4.5
5.3
6.0
0.9
1.2
1.5
1.8
2.1
2.4
0.6
1.5
0.9
2.3
Maximum
Intensity (cd)
6.0
7.6
9.1
12.1
15.0
9.6
12.2
14.6
19.4
24.0
7.2
9.2
11.0
14.6
18.0
2.9
3.7
4.4
5.8
7.2
2.2
5.4
2.5
6.3
Amber
Part Number
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
RL02 00000
RL02 C4000
RL02 D4000
BL02 00000
BL02 C4000
BL02 D4000
DL02 00000
DL02 C4000
DL02 D4000
ML02 00000
ML02 C4000
ML02 D4000
Viewing Angle
2
θ
1/2
(Degrees)
25 X 68
25 X 68
25 X 68
30
30
30
40
40
40
70
70
70
Min. Flux
Φ
v (lm)
1.0
1.5
2.0
1.0
1.5
2.0
1.0
1.5
2.0
1.0
1.5
2.0
Max Flux
Φ
v (lm)
4.2
4.8
4.2
4.8
4.2
4.8
4.2
4.8
Minimum
Intensity (cd)
1.3
1.9
2.5
2.0
3.0
4.0
1.5
2.3
3.0
0.6
0.9
1.2
Maximum
Intensity (cd)
5.3
6.0
8.4
9.6
6.3
7.2
2.5
2.9
Lead Free SuperFlux LEDs Datasheet DS55 (10/06)
5
