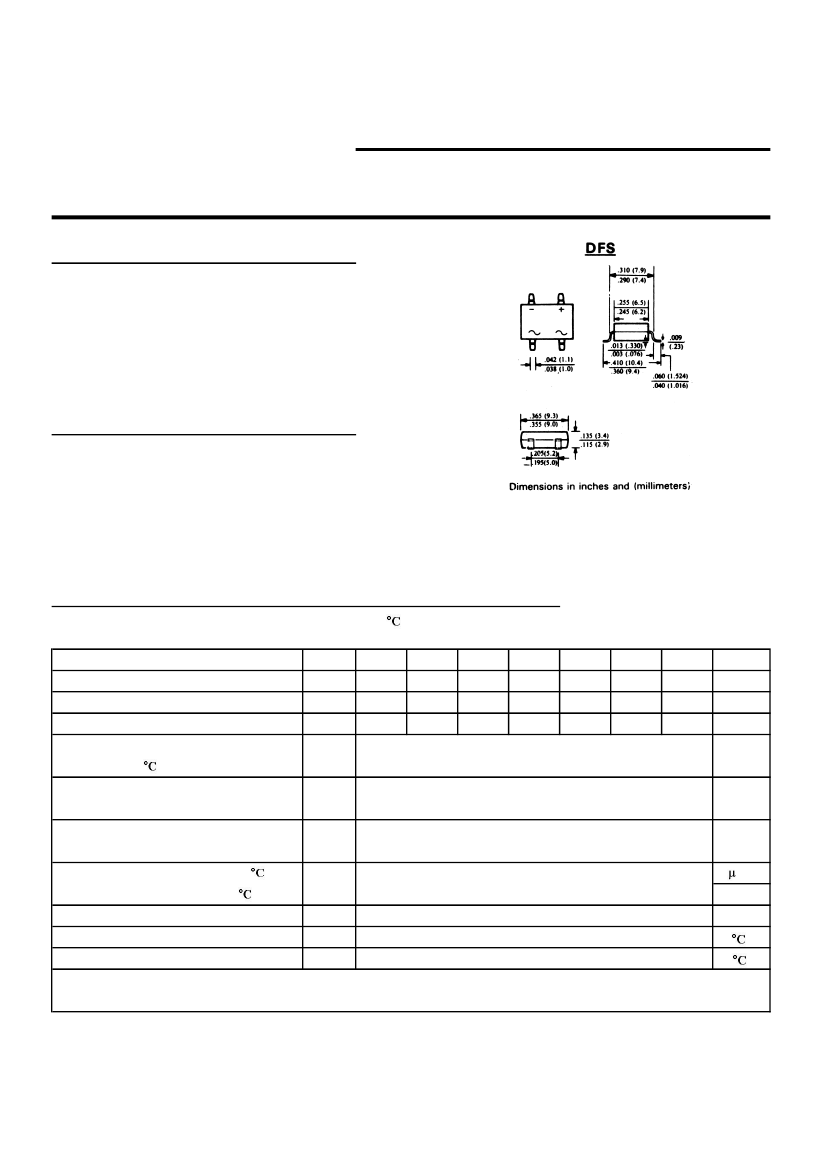

CHENYI ELECTRONICS

DF005S THRU DF10S

SINGLE PHASE GLASS

PASSIVATED SURFACE MOUNT BRIDGE RECTIFIER

Voltage: 50 TO 1000V CURRENT:1.0A

FEATURES

For surface mount application

Reliable low cost construction utilizing molded plastic

technique

Surge overload rating: 50A peak

MECHANICAL DATA

Terminal:

Plated leads solderable per

MIL-STD 202E, method 208C

Case:

UL-94 Class V-0 recognized Flame Retardant Epoxy

Polarity:

Polarity symbol marked on body

Mounting position:

any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Single-phase, half-wave, 60HZ, resistive or inductive load rating at 25

for capacitive load, derate current by 20%)

SYMBOL DF005S

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

current at Ta=40

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

forward current 1.0A

Maximum DC Reverse Voltage Ta=25

at rated DC blocking voltage Ta=125

Typical Junction Capacitance

Operating Temperature Range

Storage and operation Junction Temperature

Note:

1. Measure at 1MHZ and applied reverse voltage of 4.0 volt

Tstg

1.1

10.0

500

-55 to +125

-55 to +150

Ifsm

If(av)

Vrrm

Vrms

Vdc

DF01S

100

DF02S

200

140

200

DF04S

400

280

400

DF06S

600

420

600

DF08S

800

560

800

DF10S

1000

700

1000

units

, unless otherwise stated,

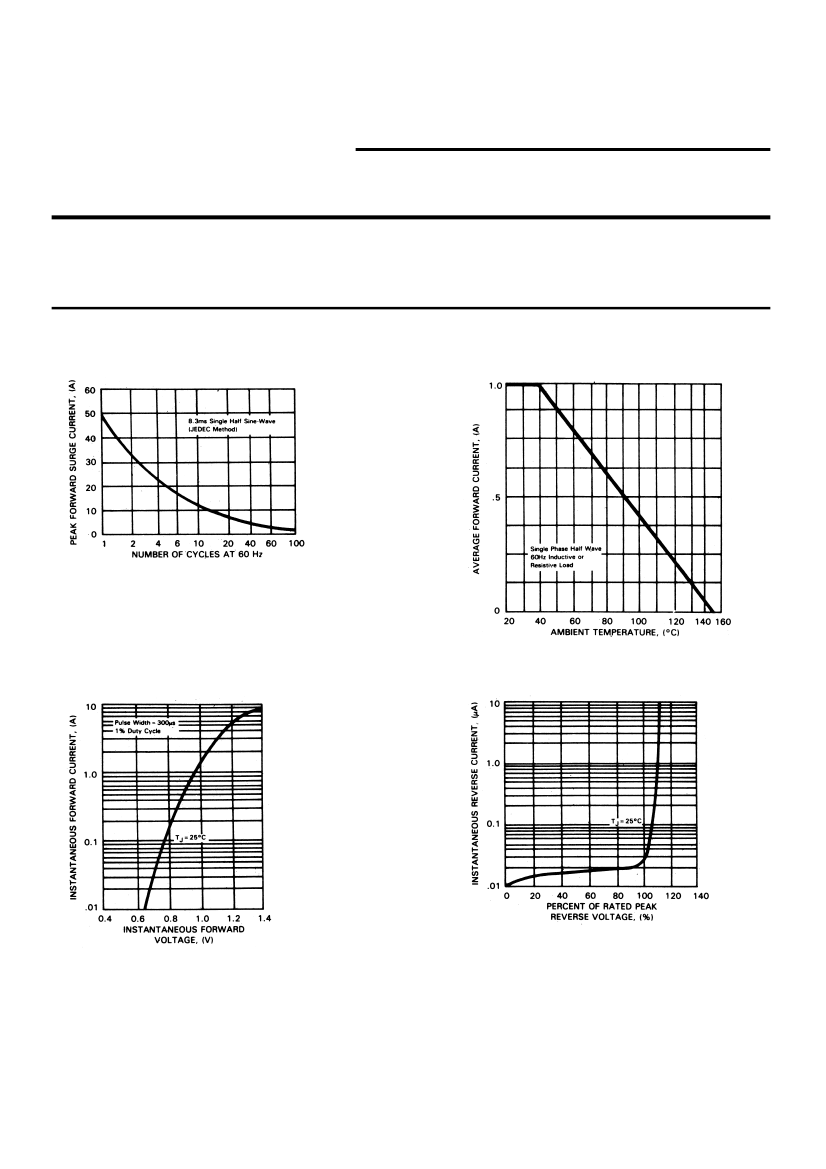

Page 1 of 2
