DF21-30P-0.6PTB

Description
0.6mm pitch board-to-fine-coaxial cable connectors
File Size167KB,6 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet View All

DF21-30P-0.6PTB Overview

0.6mm pitch board-to-fine-coaxial cable connectors

NEW
0.6mm Pitch Board-to-Fine-Coaxial Cable Connectors
DF21 Series
(7)

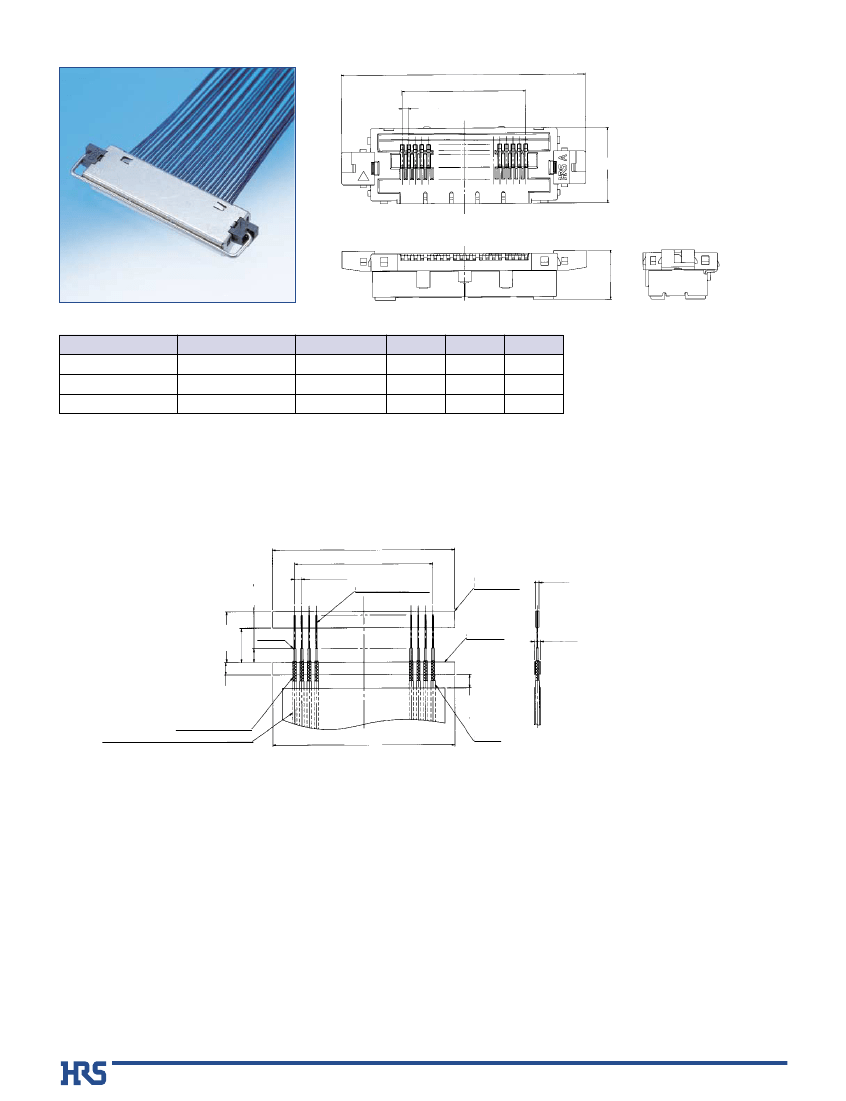

DF21-*P-0.6SD Plug
+DF21-*P-0.6SD-GND

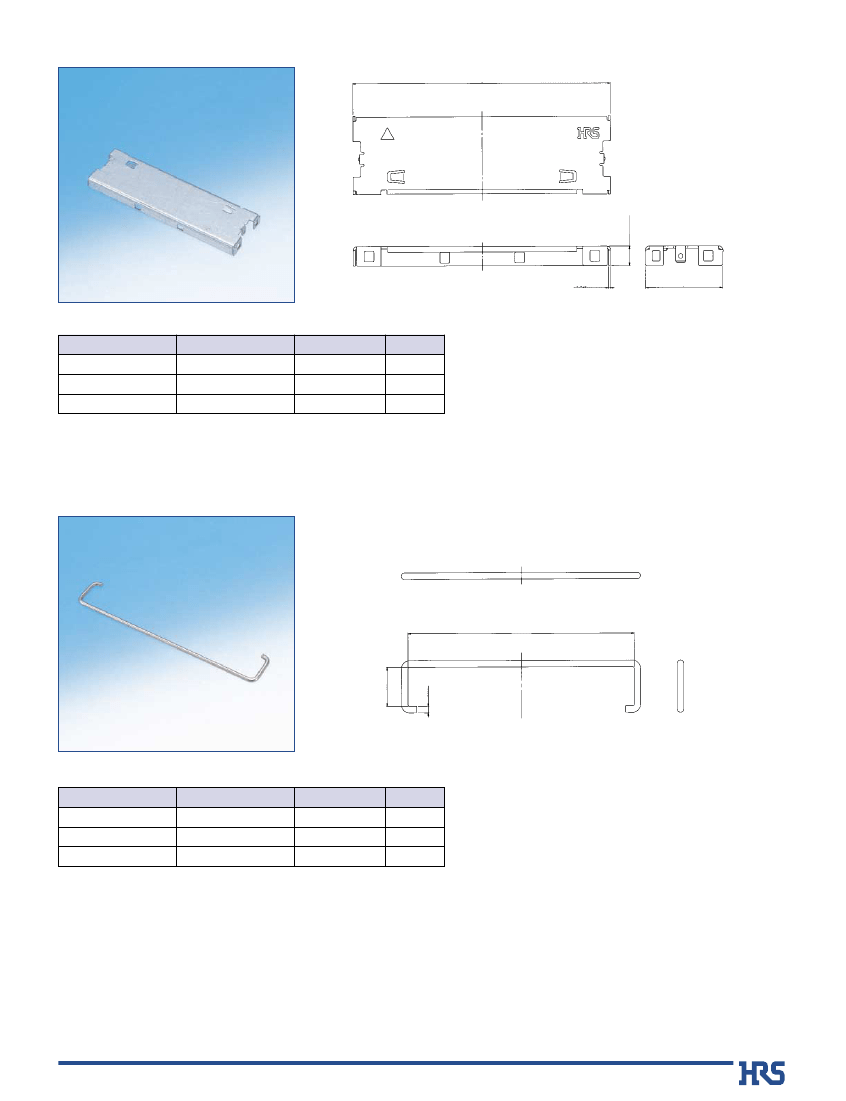

Pull-out tab
DF21-
*P/DP-0.6PTB
1.55mm
Contact wipe
PCB

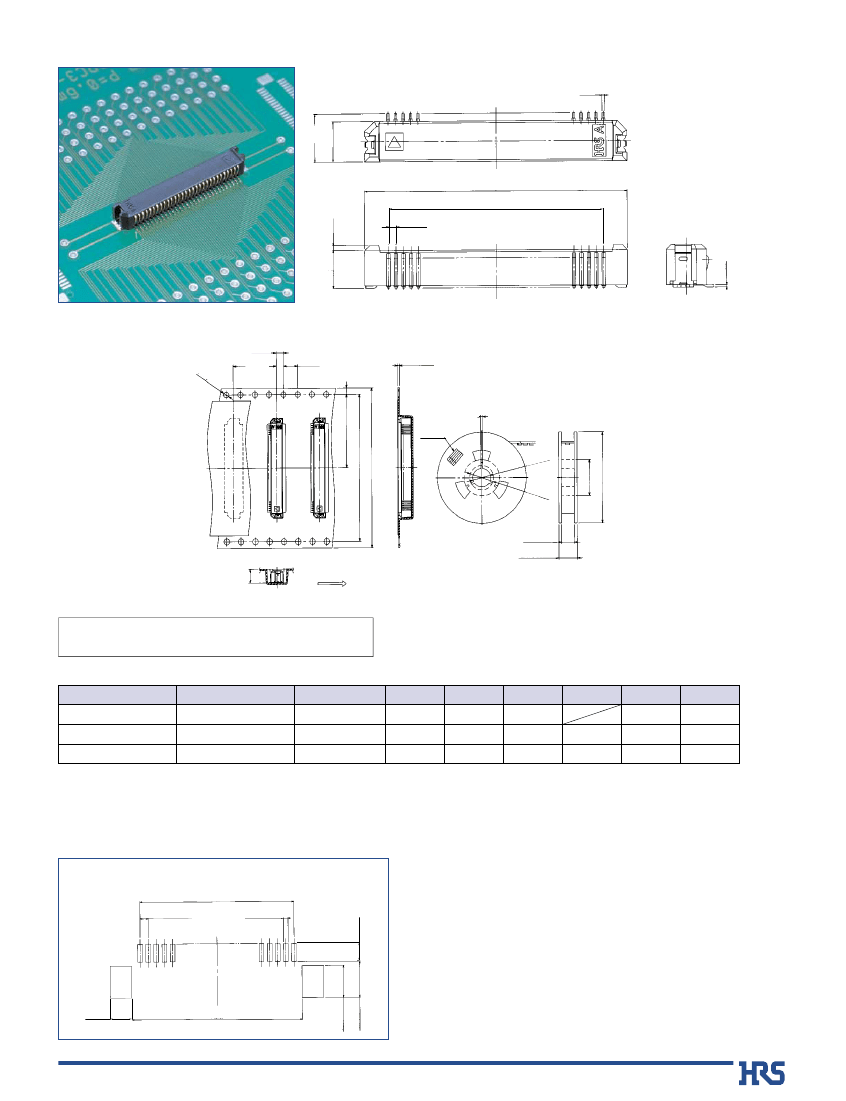

DF21-*S-0.6V
Receptacle
s

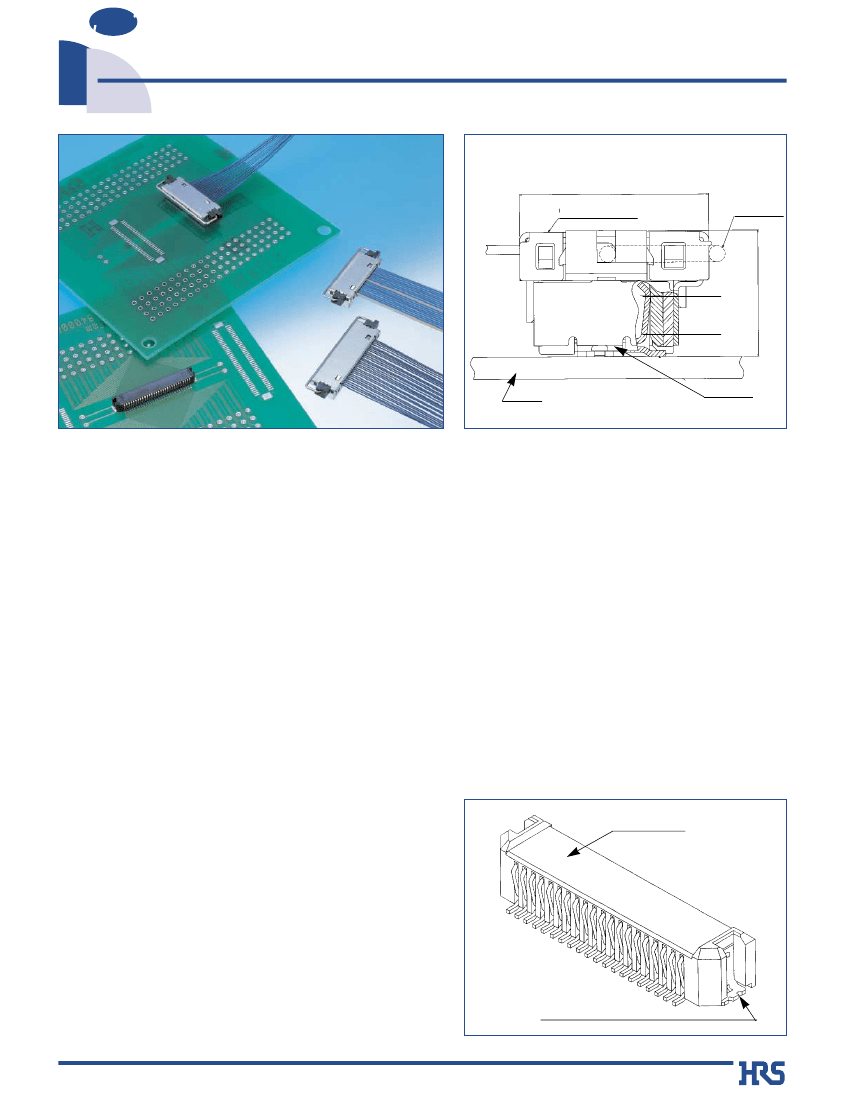

Features
1.High Interconnection Reliability
Effective contact mating length of 1.55 mm, innovative bellow style contact design, built-in interlocking feature of
mated connectors assures high electrical and mechanical reliability, providing needed rigidity to resist
excessive twisting.
Superior reliability of the termination of the fine coaxial cable is accomplished with batch soldering.
2. Shielded design
Metal shell encloses the connector and makes contact with all external conductors of the fine coaxial cable
permitting reliable ground connection to the board side of mated assemblies.
3. Reliable mating/unmating
The connectors are self-align during mating.
Optional pull-out tab permits connection and disconnection in narrow spaces.
Polarized configuration prevents incorrect mating.
4. Board placement with Automatic Equipment.
The upper surface provides flat area for placement of embossed tape packaged connectors with vacuum
nozzles of automatic equipment.
s
Applications
Notebook computers, liquid crystal displays (LCD), video and
audio devices, medical instruments, portable devices and
any other device requiring reliable connection and
termination with fine pitch coaxial cable.
Receptacle
Flat surface
for placement
with Automatic
Equipment
Metal Hold-down
(4.55)
2002.11
