DF1-16S-2.5R24 datasheet, PDF - EEWORLD Datasheet

DF1-16S-2.5R24: Description2.5mm pitch connector for discrete wire connection; CategoryThe connector The connector; File Size235KB，7 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

DF1-16S-2.5R24 Overview

2.5mm pitch connector for discrete wire connection

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.236 inch
subject depth	0.362 inch
body length	1.693 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR COPPER
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.3924 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DF1
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
polarization key	HOUSING SIDE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	16
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	.556 N
Base Number Matches	1

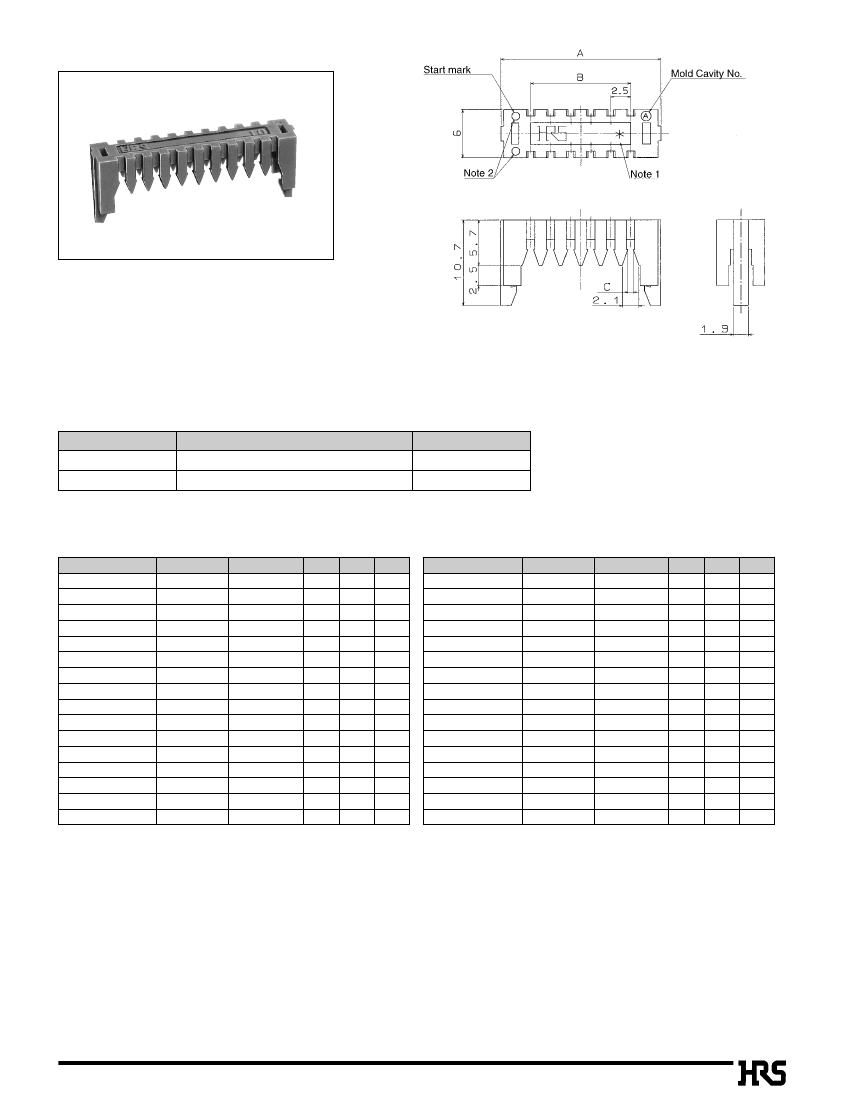

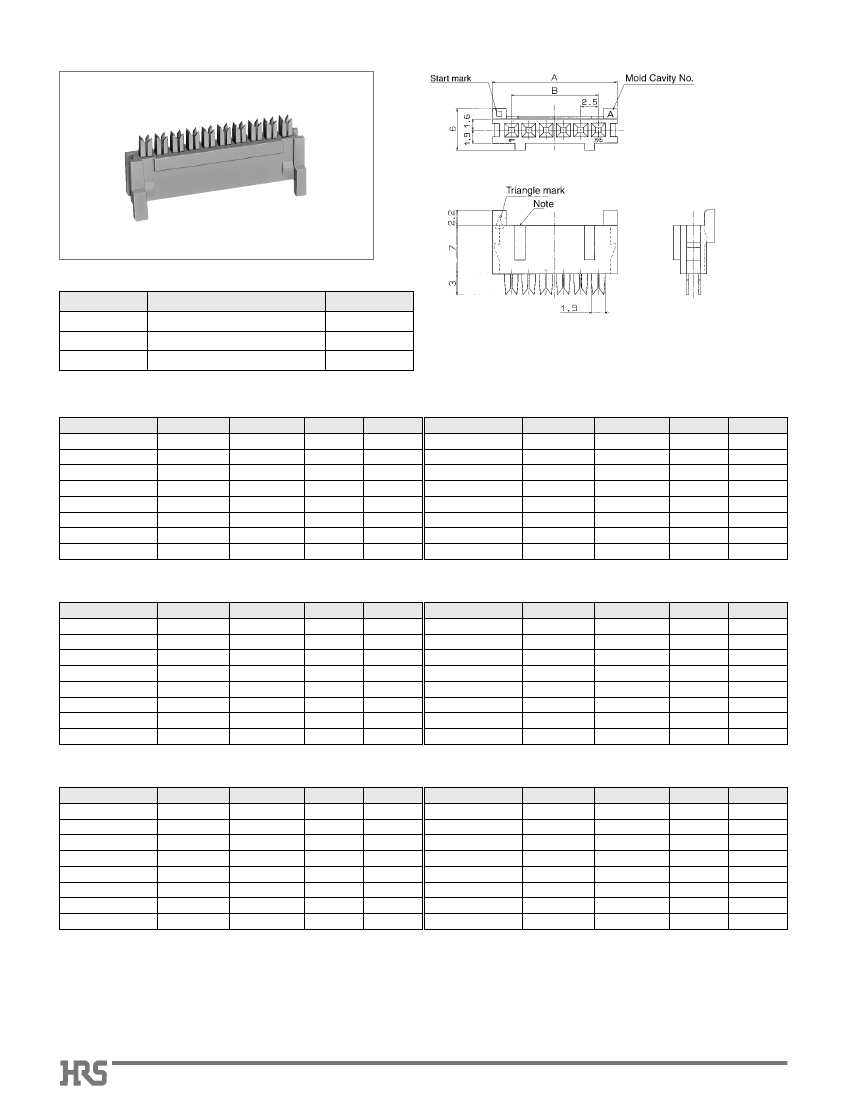

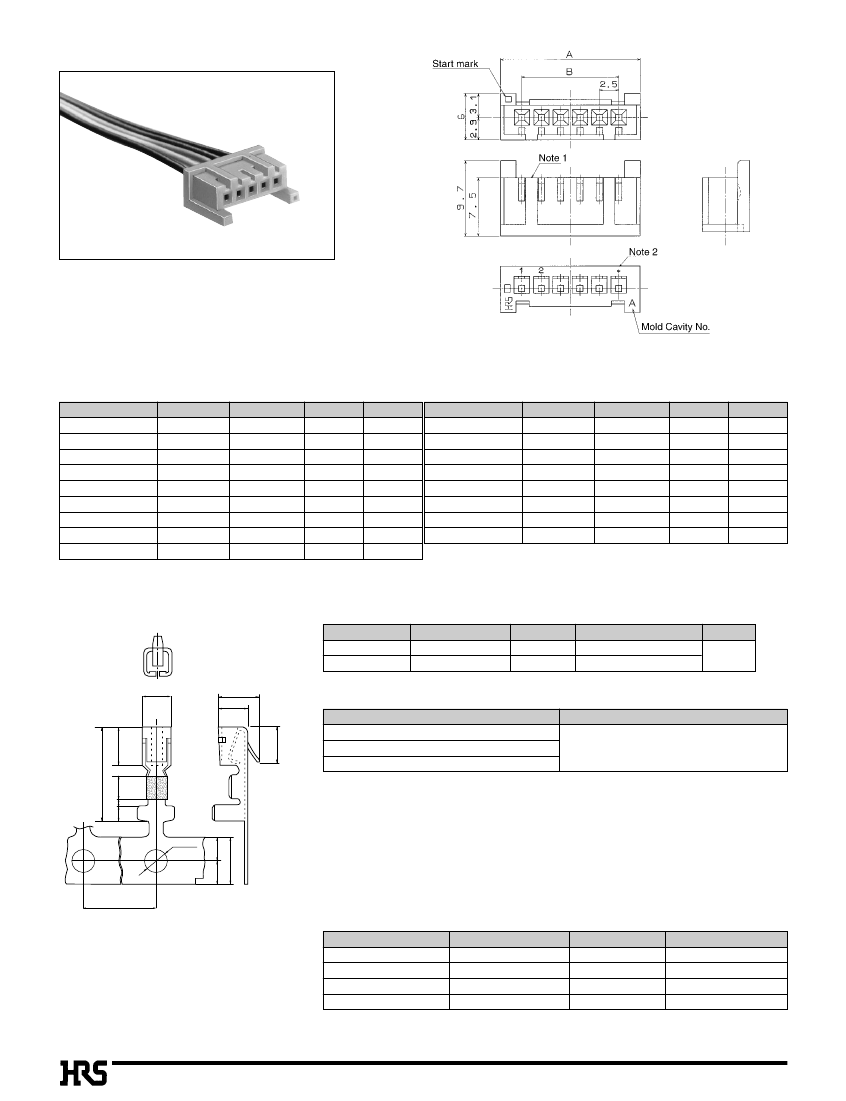

2.5mm Pitch Connector for Discrete Wire Connection

DF1 Series

sFeatures

1. Board Mounting Height (Crimping Type)

10mm

2.5mm pitch connector achieves the low profile.

2. Insulation Displacement Area Protected by Protector (ID Type)

The connector is structured to protect the insulation displacement connection area by the protector. Therefore, the connector

has a strong tensile strength against the cable and prevents dusts.

3. Easy Connection by Easy Tool (ID Type)

No expensive insulation displacement machine is needed. The connection can be established only by mating the cable into the protector

and fastening it with the ID tool

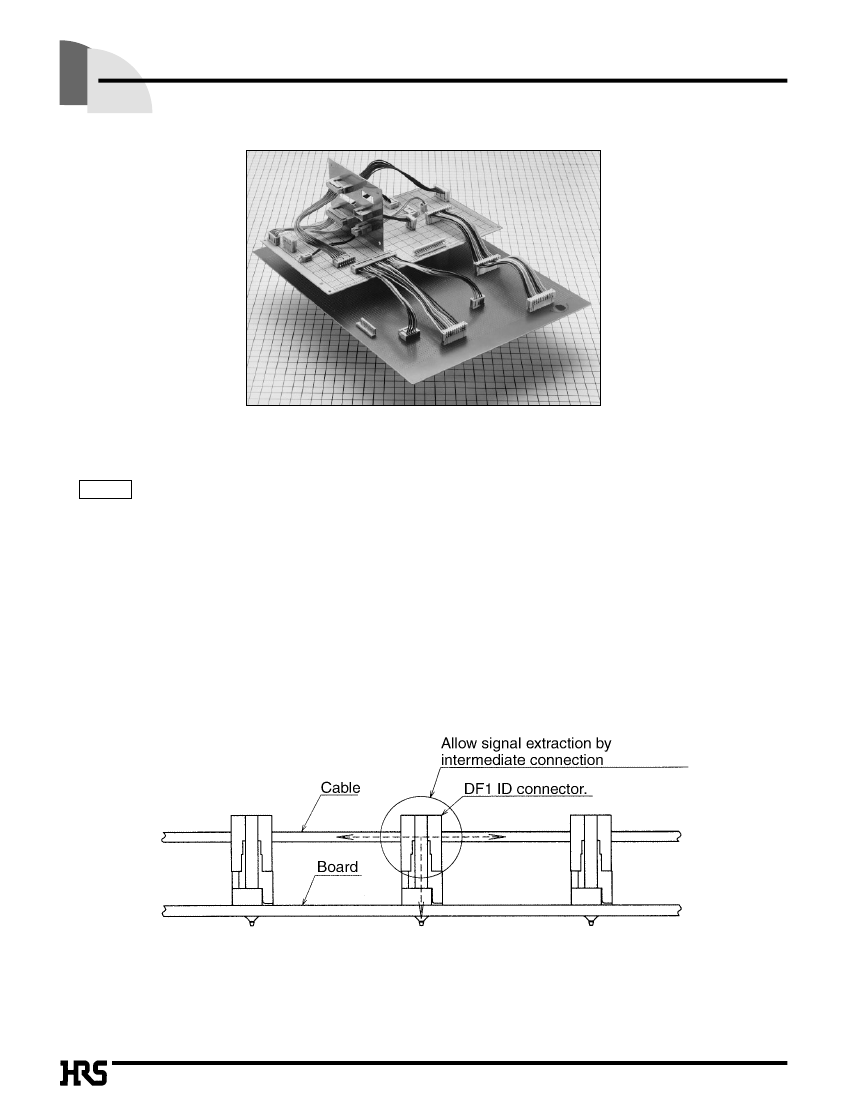

4. Intermediate Connection Possible (ID Type)

For intermediate connection, the connector allows signal extraction during cabling.

[Intermediate Connection]

sApplications

FA equipment, measurement equipment

B146
