DF10LC20U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF10LC20U

DF10LC20U: Descriptionsuper fast recovery rectifiers(200v 10a); CategoryDiscrete semiconductor diode; File Size231KB，6 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com; Environmental Compliance

Download Datasheet Parametric View All

DF10LC20U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF10LC20U	-	-	View	Buy Now

DF10LC20U Overview

super fast recovery rectifiers(200v 10a)

DF10LC20U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	SHINDENGEN
Parts packaging code	SFM
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOW NOISE, FREE WHEEL
application	SUPER FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e6
Humidity sensitivity level	2
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SHINDENGEN

Super Fast Recovery Rectifiers

Dual

DF10LC20U

200V 10A

FEATURES

●

SMT

●

Low noise

●

trr35ns

OUTLINE DIMENSIONS

Case : STO-220

Unit : mm

APPLICATION

●

Switching power supply

●

DC/DC converter

●

Free Wheel

●

Home Appliances, Office Equipment

●

Telecommunication, Factory Automation

RATINGS

●Absolute Maximum Ratings (If not specified Tc=25℃)

Item

Symbol

Conditions

Storage Temperature

Tstg

Operating Junction Temperature

Maximum Reverse Voltage

Average Rectified Forward Current

50Hz sine wave, R-load, Rating for each diode Io/2, Tc=127℃

FSM

Peak Surge Forward Current

50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃

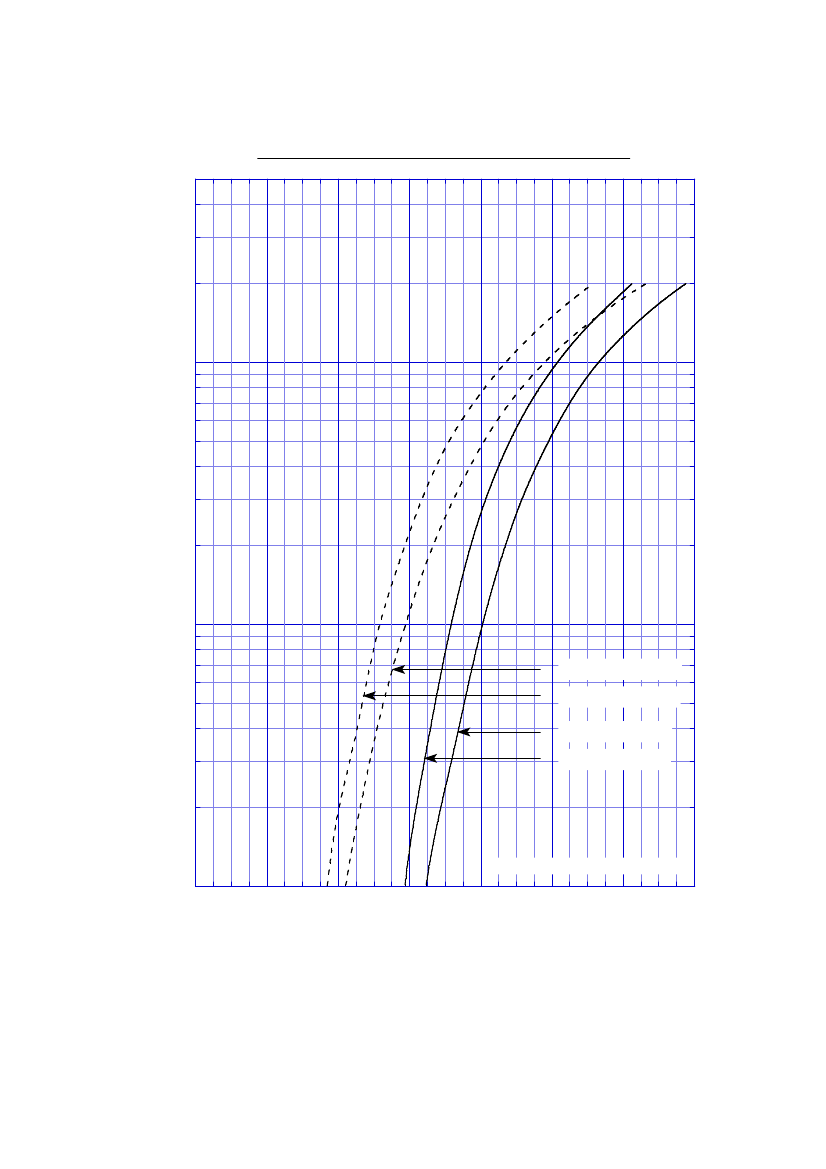

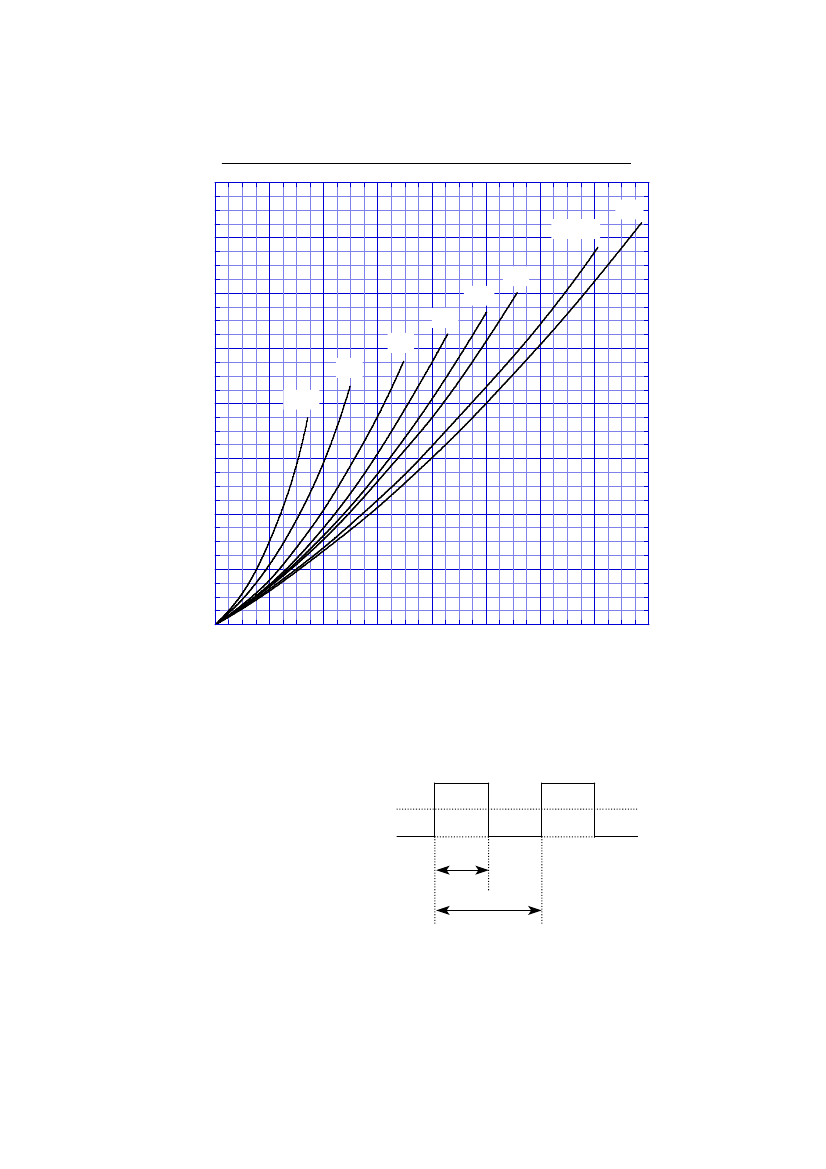

●Electrical Characteristics (If not specified Tc=25℃)

Item

Symbol

Conditions

Forward Voltage

=5A,

Pulse measurement, Rating of per diode

, Pulse measurement, Rating of per diode

Reverse Current

=0.5A, I

=1A, Rating of per diode

Reverse Recovery Time

trr

Thermal Resistance

θjc

junction to case

Ratings

-40∼150

150

200

Unit

℃

Ratings

Unit

Max.0.98

Max.10

μA

Max.35

Max.2

℃/W
