D3L60

Description
super fast recovery rectifiers(600v 3A)
CategoryDiscrete semiconductor    diode
File Size284KB,7 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric View All

D3L60 Online Shopping

Suppliers Part Number Price MOQ In stock
D3L60 - - View Buy Now

D3L60 Overview

super fast recovery rectifiers(600v 3A)

D3L60 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSHINDENGEN
Parts packaging codeTO-220AC
package instructionITO-220, 2 PIN
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresFREEWHEELING DIODE
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.6 V
JEDEC-95 codeTO-220AC
JESD-30 codeR-PSFM-T2
JESD-609 codee0
Humidity sensitivity level2
Maximum non-repetitive peak forward current60 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current3 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
Maximum reverse recovery time0.05 µs
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
SHINDENGEN
Super Fast Recovery Rectifiers
Single
D3L60
600V 3A
FEATURES
High Voltage
trr50ns
Fully Isolated Molding
Dielectric
OUTLINE DIMENSIONS
Case : ITO-220
(Unit : mm)
strength 1.5kV guaranteed
APPLICATION
PFC
Switching power supply
Free Wheel
CTV+B output, lighting
RATINGS
●Absolute Maximum Ratings (If not specified Tc=25℃)
Item
Symbol
Conditions
Storage Temperature
Tstg
Operating Junction Temperature
Tj
Maximum Reverse Voltage
V
RM
Average Rectified Forward Current
I
O
50Hz sine wave, R-load, Tc=127℃
I
FSM
Peak Surge Forward Current
50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃
Dielectric Strength
Vdis
Terminals to case, AC 1 minute
Mounting Torque
TOR
(Recommended torque:
0.3N½m)
●Electrical Characteristics (If not specified
Item
Symbol

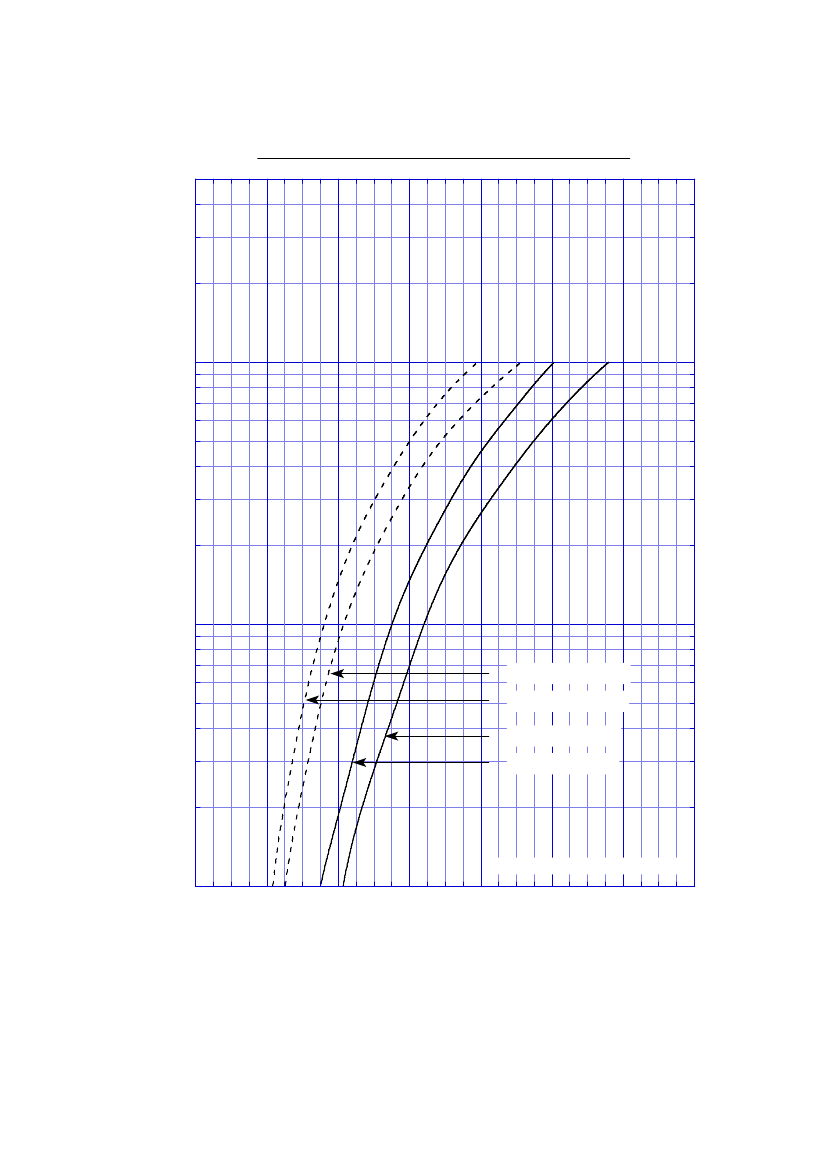

Forward Voltage
V
F
Reverse Current
I
R
Reverse Recovery Time
trr
θjc
Thermal Resistance
θjf
θja
Tc=25℃)
Conditions
I
F
=3A,
Pulse measurement
V
R
=V
RM,
Pulse measurement
I
F
=0.5A,  I
R
=1A
junction to case
junction to heat-sink
junction to ambient
Ratings
-55∼150
150
600
3
60
1.5
0.5
Ratings
Max.1.65
Max.10
Max.50
Max.4.5
Max.6
Max.55
Unit
V
A
A
kV
N½m
Unit
V
μA
ns
℃/W
Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd
