MH16D72AKLB-10,75
1,207.959,552-BIT (16,777,216-WORD BY 72-BIT) Double Data Rate Synchronous DRAM Module
DESCRIPTION
The MH16D72AKLB is 16777216 - word x 72-bit Double
Data Rate(DDR) Sy nchronous DRAM mounted module.
This consists of 9 industry standard 16M x 8 DDR
Sy nchronous DRAMs in TSOP with SSTL_2 interf ace which
achiev es v ery high speed data rate up to 133MHz.
This socket-ty pe memory m odule is suitable f or main
memory in computer systems and easy to interchange or
add modules.
93pin
1pin
FEATURES
Max.
Frequency
CLK
Access Time
[component level]
Type name
MH16D72AKLB-75
MH16D72AKLB-10
133MHz
100MHz
+ 0.75ns
+ 0.8ns
- Utilizes industry standard 16M X 8 DDR Synchronous DRAMs
in TSOP package , industry standard Registered Buffer in
TSSOP package , and industry standard PLL in TSSOP package.
-
Vdd=Vddq=2.5v ±0.2V
144pin
145pin
52pin
53pin
- Double data rate architecture; two data transf ers per
clock cy c le
- Bidirectional, data strobe (DQS) is transmitted/receiv ed
with data
- Dif f erential clock inputs (CK0 and /CK0)
- data and data mask ref erenced to both edges of DQS
- /CAS latency - 2.0/2.5 (programmable)
- Burst length- 2/4/8 (programmable)
- Auto precharge / All bank precharge controlled by A10
- 4096 ref resh cy c les /64ms
- Auto ref resh and Self ref resh
- Row address A0-11 / Column address A0-9
- SSTL_2 Interf ace
- Module 1bank Conf igration
- Burst Ty pe - sequential/interleav e(programmable)
- Commands entered on each positiv e CLK edge
184pin
92pin
APPLICATION
Main memory unit for PC, PCserver
MIT-DS-0397-1.1
MITSUBISHI ELECTRIC
24.Nov.2000
1
Preliminary Spec.
Some contents are subject to change without notice.
MITSUBISHI LSIs
,
MH16D72AKLB-10,75
1,207.959,552-BIT (16,777,216-WORD BY 72-BIT) Double Data Rate Synchronous DRAM Module
PIN CONFIGURATION
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PIN
NAME
VREF
DQ0
VSS
DQ1
DQS0
DQ2
VDD
DQ3
NC
RESET
VSS
DQ8
DQ9
DQS1
VDDQ
NC
NC
VSS
DQ10
DQ11
CKE0
VDDQ
DQ16
DQ17
DQS2
VSS
A9
DQ28
A7
VDDQ
DQ19
A5
DQ24
VSS
DQ25
DQS3
A4
VDD
DQ26
DQ27
A2
VSS
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
PIN
NO.
43
44
45
46
47
48
49
50
51
52
KEY
DQ32
VDDQ
DQ33
DQS4
DQ34
VSS
BA0
DQ35
DQ40
VDDQ
/WE
DQ41
/CAS
VSS
DQS5
DQ42
DQ43
VDD
NC
DQ48
DQ49
VSS
NC
NC
VDDQ
DQS6
DQ50
DQ51
VSS
VDDID
DQ56
PIN
NAME
A1
CB0
CB1
VDD
DQS8
A0
CB2
VSS
CB3
BA1
PIN
NO.
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
PIN
NAME
DQ57
VDD
DQS7
DQ58
DQ59
VSS
NC
SDA
SCL
VSS
DQ4
DQ5
VDDQ
DM0
DQ6
DQ7
VSS
NC
NC
A13
VDDQ
DQ12
DQ13
DM1
VDD
DQ14
DQ15
CKE1
VDDQ
NC
DQ20
A12
VSS
DQ21
A11
DM2
VDD
DQ22
A8
DQ23
VSS
A6
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
PIN
NO.
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
KEY
VSS
DQ36
DQ37
VDD
DM4
DQ38
DQ39
VSS
DQ44
/RAS
DQ45
VDDQ
/S0
/S1
DM5
VSS
DQ46
DQ47
NC
VDDQ
DQ52
DQ53
PIN
NAME
DQ28
DQ29
VDDQ
DM3
A3
DQ30
VSS
DQ31
CB4
CB5
VDDQ
CK0
/CK0
VSS
DM8
A10
CB6
VDDQ
CB7
PIN
NO.
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
PIN
NAME
NC
VDD
DM6
DQ54
DQ55
VDDQ
NC
DQ60
DQ61
VSS
DM7
DQ62
DQ63
VDDQ
SA0
SA1
SA2
VDDSPD
NC: Not Connected
MIT-DS-0397-1.1
MITSUBISHI ELECTRIC
24.Nov.2000
2
Preliminary Spec.
Some contents are subject to change without notice.
MITSUBISHI LSIs
MH16D72AKLB-10,75
1,207.959,552-BIT (16,777,216-WORD BY 72-BIT) Double Data Rate Synchronous DRAM Module

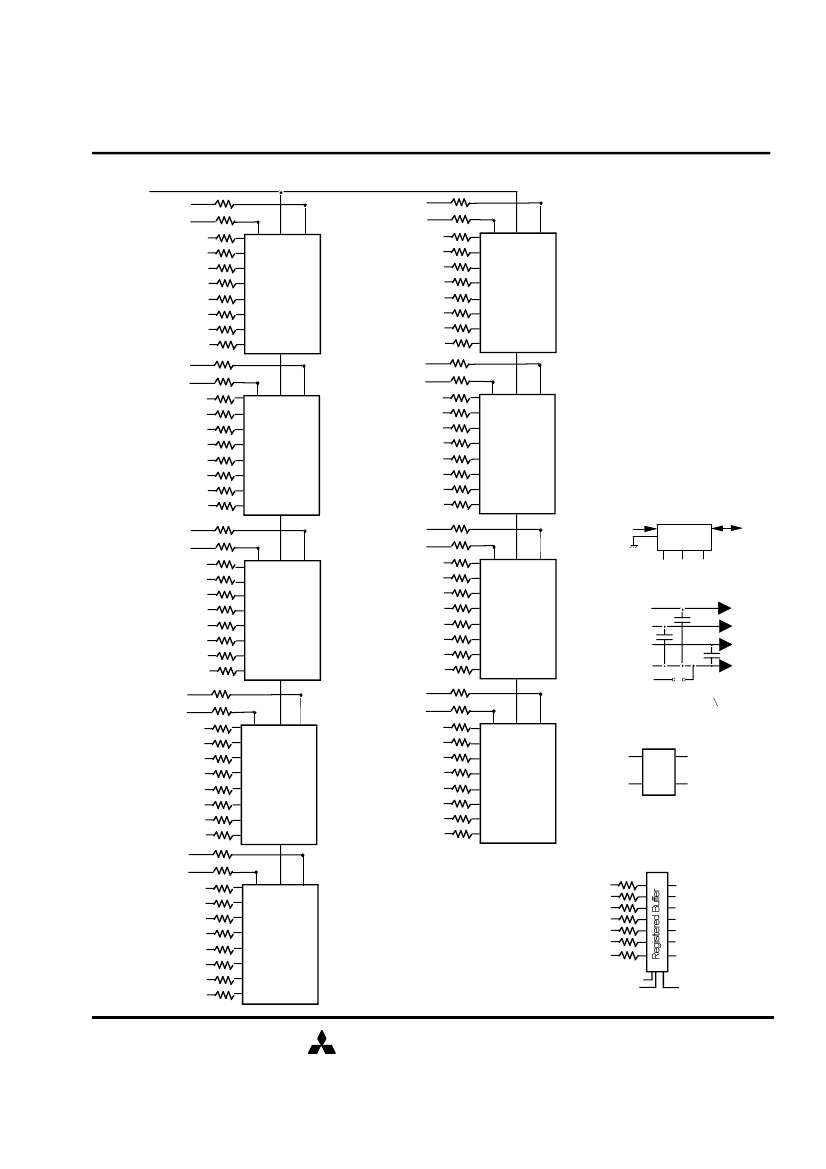

Block Diagram
