7705201EC datasheet, PDF - EEWORLD Datasheet

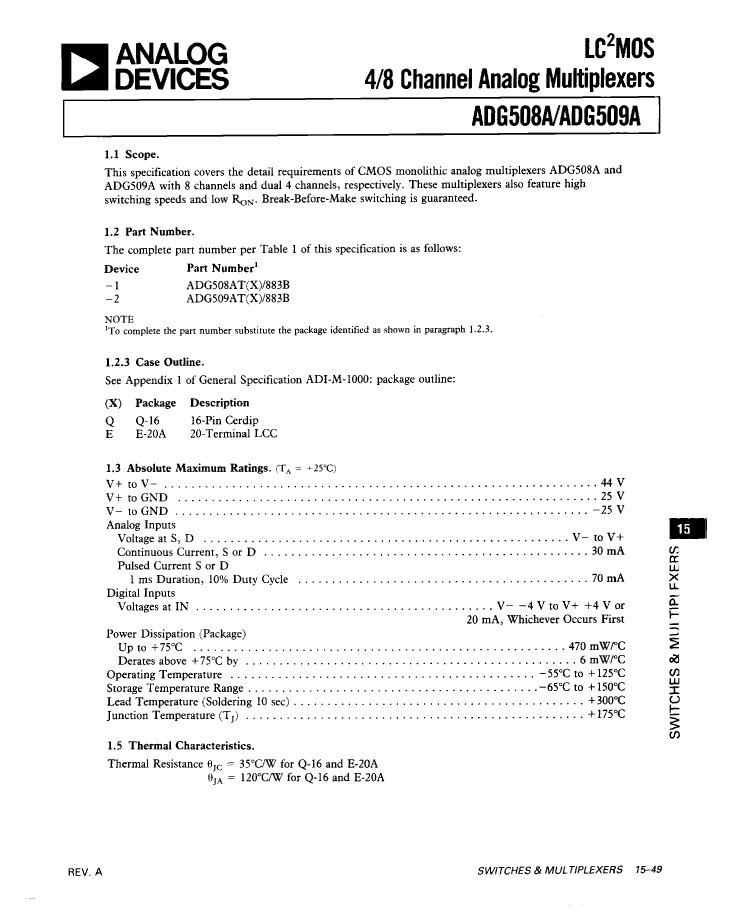

7705201EC: DescriptionIC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size247KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

7705201EC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7705201EC	-	-	View	Buy Now

IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch

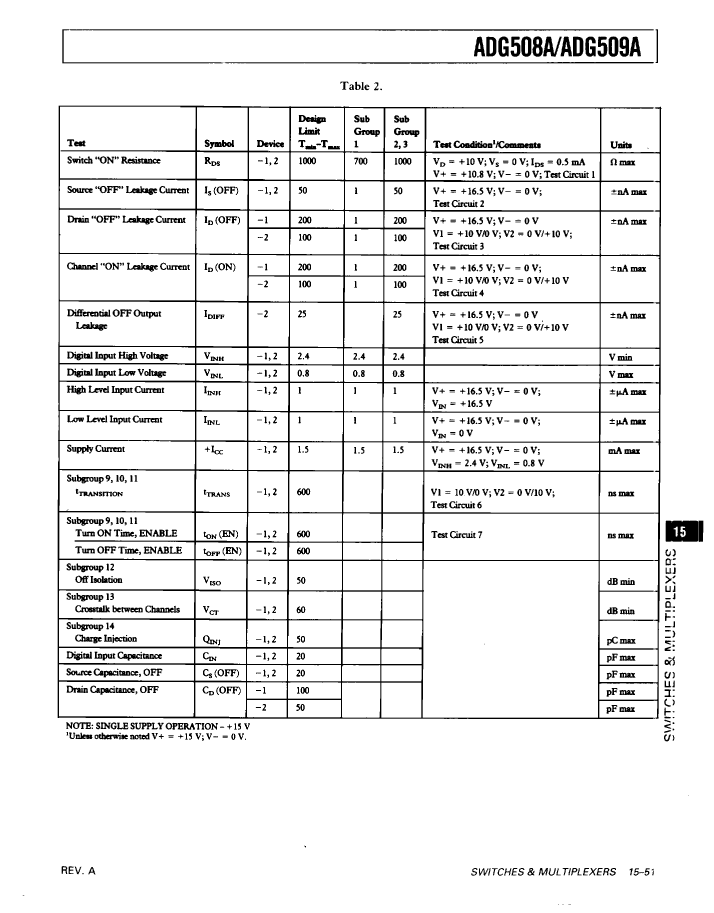

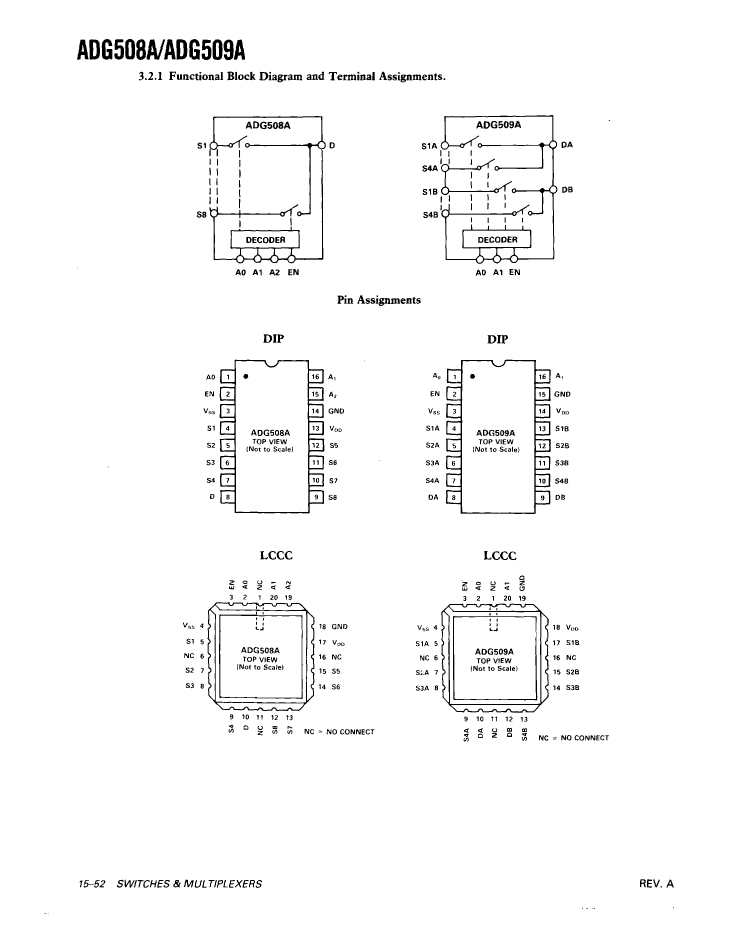

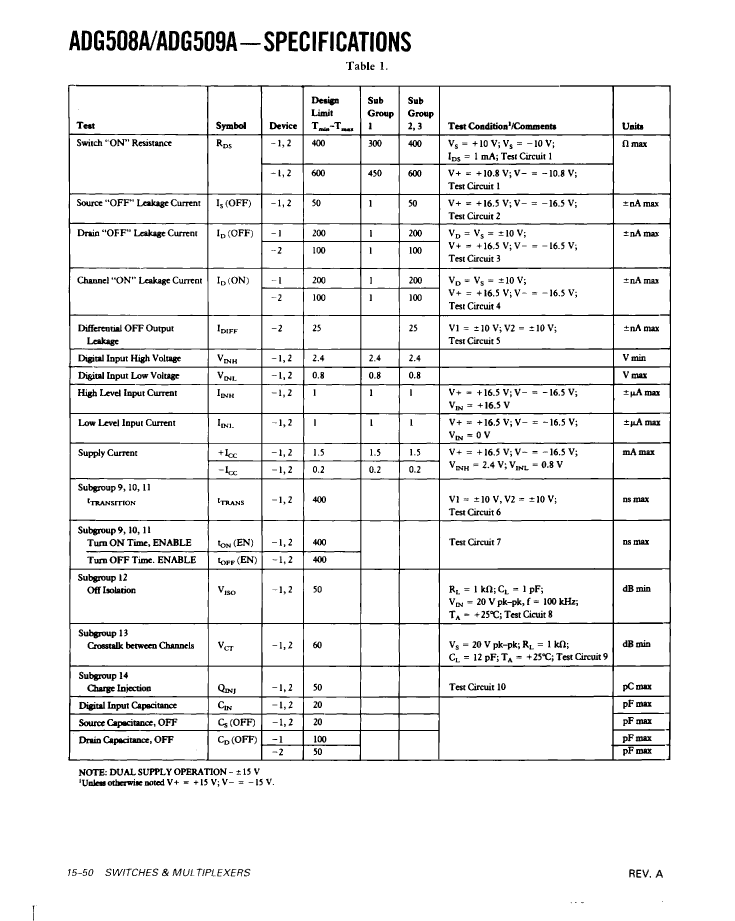

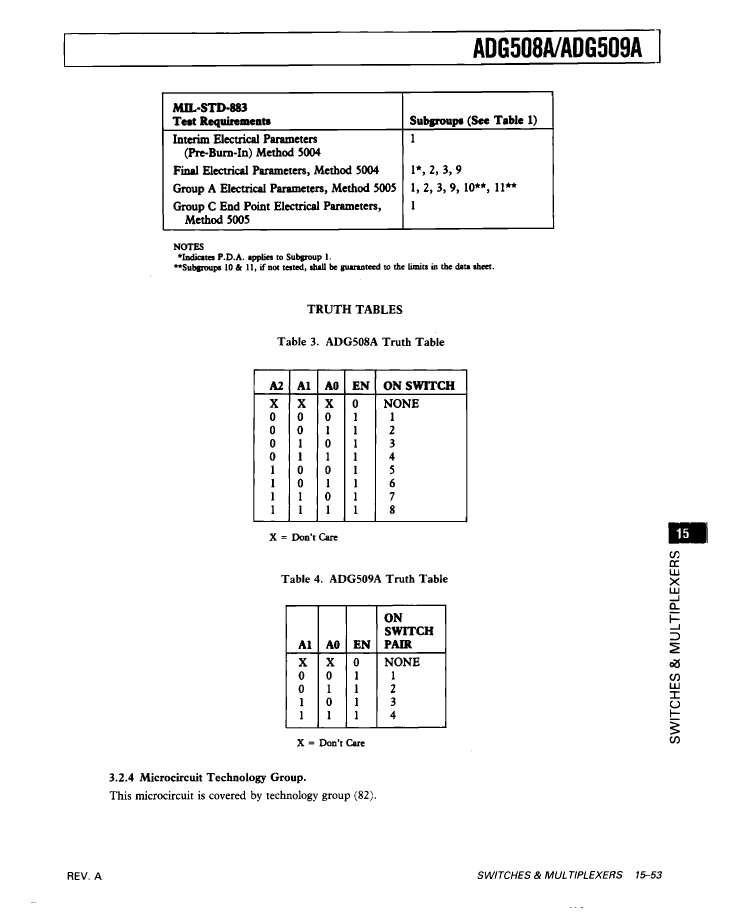

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.05 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	450 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	1.5 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	7705201EC	7705201EB
Description	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, Multiplexer or Switch
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP,	DIP,
Reach Compliance Code	compliant	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0
length	19.05 mm	19.05 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	8	8
Number of functions	1	1
Number of terminals	16	16
Maximum on-state resistance (Ron)	450 Ω	450 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply current (Isup)	1.5 mA	1.5 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
Base Number Matches	1	1
