0.5mm Pitch SMT Board to Board Connector
DF16 Series
Correspond to Automatic Mounting
The vacuum pick-up area is prepared for automatic
mounting machine.

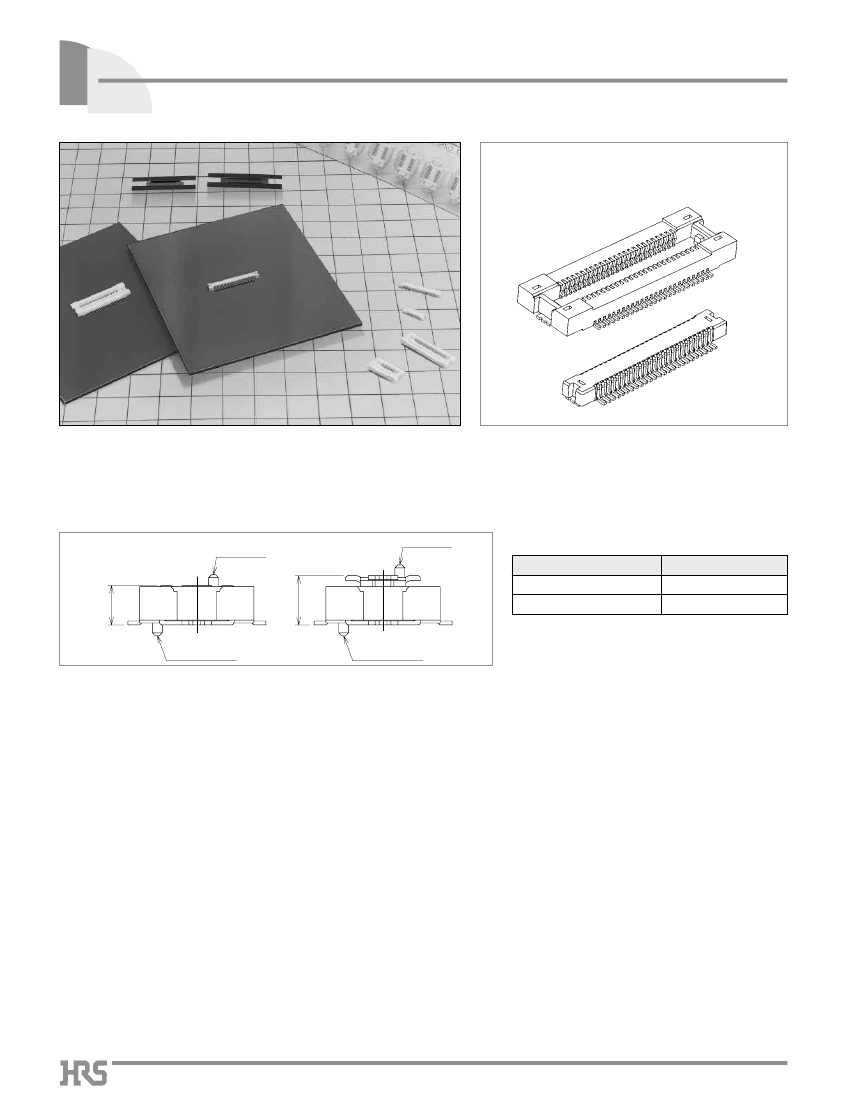

sFeatures
1. Miniaturizing and Slimming
In addition to 0.5mm pitch miniaturization, board to stacking height of 2mm and 2.5mm are prrovided.
Header
Header
Receptacle commonly uses DF16#-*DS-0.5V.
Header Product Name
Stacking Height
2.0mm
2.5mm
2±0.15
2.5±0.15
DF16#(2.0)-*DP-0.5V
DF16#(2.5)-*DP-0.5V
Receptacle
Receptacle
Note1: The stacking height doesn't include the solder paste thickness.
2. High Contact Reliability
The bellows female contact has a sufficient spring characteristic despite the low profile, and achieves high contact reliability.
3. Click Sensitivity in Mating
The click feeling is considered to facilitate insertion check when the connector is mated.
4. Metal Fitting Available
The metal fitting to prevent the solder peel is provided, considering the mounting on FPC.
5. Corresponding to Automatic Mounting
The connector has the vacuum pick-up area, and enables the automatic mounting with the embossed tape packaging.
Connector specification with no boss and no fitting is also.
sApplications
Mobile phone, LCD(Liquid Crystal Display), and so on
A204
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
DF16 Seriesq0.5mm Pitch SMT
or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range
Condition
100V DC
150V AC/1 minute
100mA
: 40
to
70% (Note 2)
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
500M
ohms
min
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max.Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Polyamide
Phosphor copper
Brass
Treatment
White Beige (Natural)
Gold plated
Tin plated
White Beige (Natural)
Gold plated
Tin plated
UL Standard
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
sOrdering
Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog page
A310~A315.
qReceptacle/Header
DF16
q
q
Series Name
w
Type
Fitting
Blank
B
K
K
Boss
K
: DF16
#
(
**
) -
*
DS - 0.5 V (
**
)
w
e
r
t
y
u
i
e
Product height
Receptacle
Header
: None
: 2.0, 2.5
V
y
Contact Pitch
: 0.5mm
u
Contact Type
: Straight SMT
r
Number of Contacts
(Note1)
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
∞
14, 16, 20, 30, 34, 40, 50, 60, 80
i
Pakaging Type
(86) : Gold plating, embossed tape packaging
Note1: For the 14, 16 and 80 contacts connector, the stacking height 2.0mm product only is available.
For the 34 contacts connectors, the stacking height of 2.5mm product only is available.
A205
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF16 Seriesq0.5mm Pitch SMT Board to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

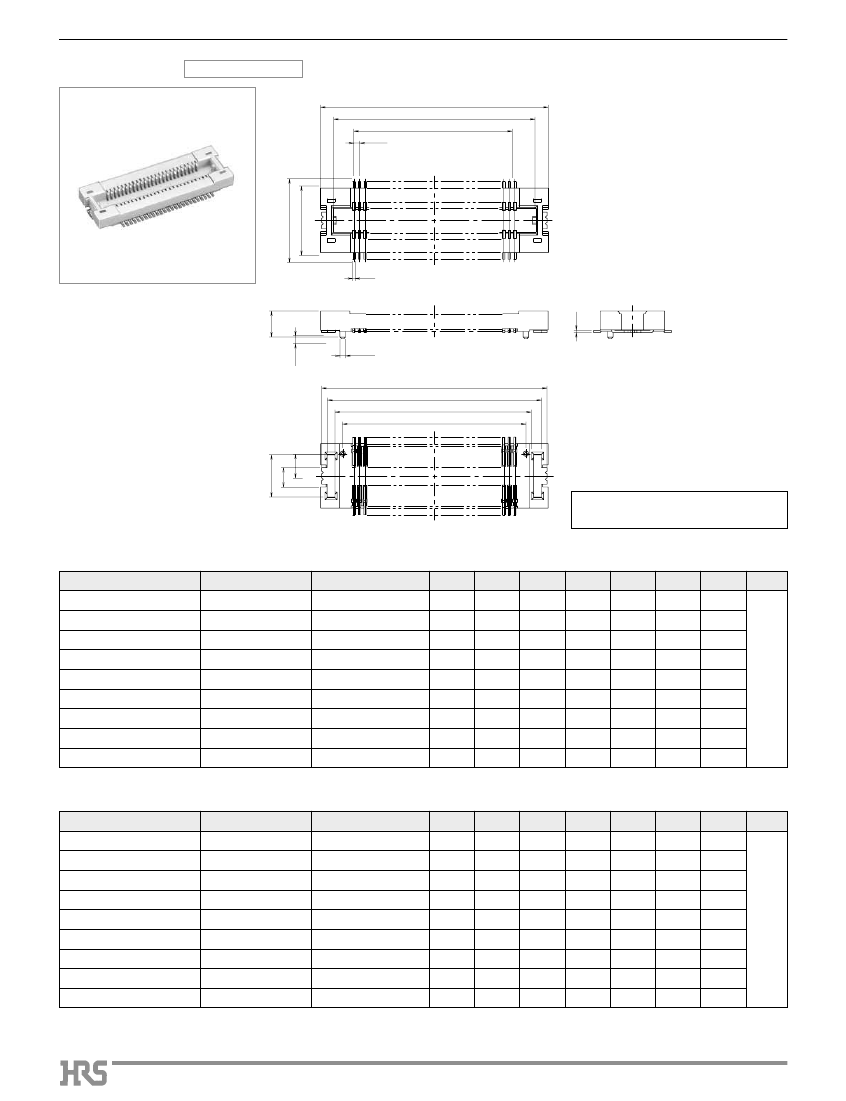

sReceptacle
With metal fitting
A
B
C
P=0.5
5.8
7
0.2
1.95
0.65
Ø0.5
D
E
F
G
3.8
1.5
2
0.2
[Specific No.]
–
* *
,
(*
*)
(86) :Gold
plated,
embossed tape
packaging
qReceptacle
with metal fitting, with boss
Part Number
DF16-14DS-0.5V(
86
)
DF16-16DS-0.5V(
86
)
DF16-20DS-0.5V(
86
)
DF16-30DS-0.5V(
86
)
DF16-34DS-0.5V(
86
)
DF16-40DS-0.5V(
86
)
DF16-50DS-0.5V(
86
)
DF16-60DS-0.5V(
86
)
DF16-80DS-0.5V(
86
)
CL No.
679-0010-1-86
679-0001-0-86
679-0002-3-86
679-0003-6-86
679-0009-2-86
679-0004-9-86
679-0005-1-86
679-0006-4-86
679-0008-0-86
Number of Contacts
14
16
20
30
34
40
50
60
80
A
19.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
D
08.8
09.3
10.3
12.8
13.8
15.3
17.8
20.3
25.3
E
07.8
08.3
09.3
11.8
12.8
14.3
16.8
19.3
24.3
F
06.4
06.9
07.9
10.4
11.4
12.9
15.4
17.9
22.9
G
05.0
05.5
06.5
09.0
10.0
11.5
14.0
16.5
21.5
Unit: mm
RoHS
YES
qReceptacle
with metal fitting, without boss
Part Number
DF16B-14DS-0.5V(
86
)
DF16B-16DS-0.5V(
86
)
DF16B-20DS-0.5V(
86
)
DF16B-30DS-0.5V(
86
)
DF16B-34DS-0.5V(
86
)
DF16B-40DS-0.5V(
86
)
DF16B-50DS-0.5V(
86
)
DF16B-60DS-0.5V(
86
)
DF16B-80DS-0.5V(
86
)
CL No.
679-0030-9-86
679-0021-8-86
679-0022-0-86
679-0023-3-86
679-0029-0-86
679-0024-6-86
679-0025-9-86
679-0026-1-86
679-0028-7-86
Number of Contacts
14
16
20
30
34
40
50
60
80
A
09.0
09.5
10.5
13.0
14.0
15.5
18.0
20.5
25.5
B
06.8
07.3
08.3
10.8
11.8
13.3
15.8
18.3
23.3
C
03.0
03.5
04.5
07.0
08.0
09.5
12.0
14.5
19.5
D
08.8
09.3
10.3
12.8
13.8
15.3
17.8
20.3
25.3
E
07.8
08.3
09.3
11.8
12.8
14.3
16.8
19.3
24.3
F
06.4
06.9
07.9
10.4
11.4
12.9
15.4
17.9
22.9
G
–––
–––
–––
–––
–––
–––
–––
–––
–––
Unit: mm
RoHS
YES
A206
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
DF16 Seriesq0.5mm Pitch SMT
or contact your Hirose sales representative.

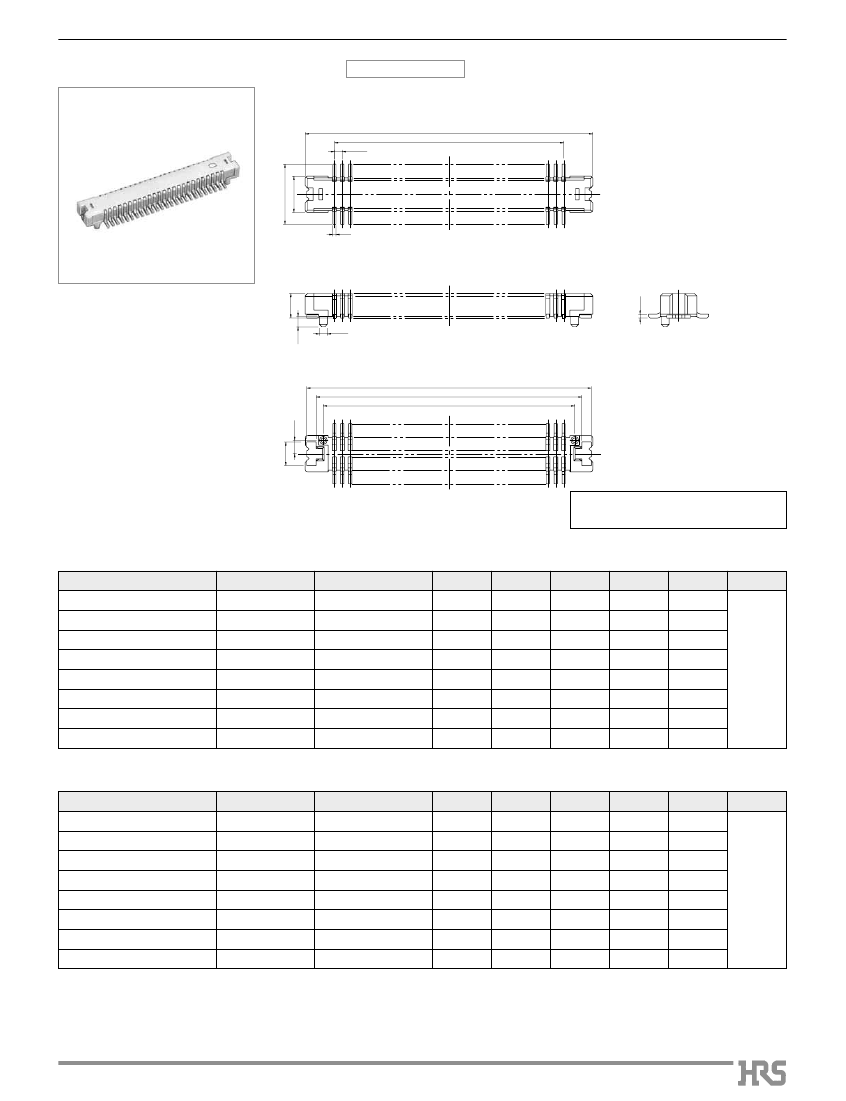

sBoard
to Board 2mm Header
With metal fitting
A
B
P= 0.5
3.8
2.3
0.2
1.55
0.65
Ø0.5
C
D
E
1.5
0.85
[Specific No.]
–
* *
,
(*
*)
(86) :Gold
plated,
embossed tape
packaging
qBoard
to Board 2mm Header with metal fitting, with boss
Part Number
DF16(2.0)-14DP-0.5V(
86
)
DF16(2.0)-16DP-0.5V(
86
)
DF16(2.0)-20DP-0.5V(
86
)
DF16(2.0)-30DP-0.5V(
86
)
DF16(2.0)-40DP-0.5V(
86
)
DF16(2.0)-50DP-0.5V(
86
)
DF16(2.0)-60DP-0.5V(
86
)
DF16(2.0)-80DP-0.5V(
86
)
CL No.
679-0049-7-86
679-0041-5-86
679-0042-8-86
679-0043-0-86
679-0044-3-86
679-0045-6-86
679-0046-9-86
679-0048-4-86
Number of Contacts
14
16
20
30
40
50
60
80
A
06.7
07.2
08.2
10.7
13.2
15.7
18.2
23.2
B
03.0
03.5
04.5
07.0
09.5
12.0
14.5
19.5
C
06.5
07.0
08.0
10.5
13.0
15.5
18.0
23.0
D
05.3
05.8
06.8
09.3
11.8
14.3
16.8
21.8
E
04.4
04.9
05.9
08.4
10.9
13.4
15.9
20.9
0.25
Unit: mm
RoHS
YES
qBoard
to Board 2mm Header with metal fitting, without boss
Part Number
DF16B(2.0)-14DP-0.5V(
86
)
DF16B(2.0)-16DP-0.5V(
86
)
DF16B(2.0)-20DP-0.5V(
86
)
DF16B(2.0)-30DP-0.5V(
86
)
DF16B(2.0)-40DP-0.5V(
86
)
DF16B(2.0)-50DP-0.5V(
86
)
DF16B(2.0)-60DP-0.5V(
86
)
DF16B(2.0)-80DP-0.5V(
86
)
CL No.
679-0069-4-86
679-0061-2-86
679-0062-5-86
679-0063-8-86
679-0064-0-86
679-0065-3-86
679-0066-6-86
679-0068-1-86
Number of Contacts
14
16
20
30
40
50
60
80
A
06.7
07.2
08.2
10.7
13.2
15.7
18.2
23.2
B
03.0
03.5
04.5
07.0
09.5
12.0
14.5
19.5
C
06.5
07.0
08.0
10.5
13.0
15.5
18.0
23.0
D
05.3
05.8
06.8
09.3
11.8
14.3
16.8
21.8
E
–––
–––
–––
–––
–––
–––
–––
–––
Unit: mm
RoHS
YES
A207
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF16 Seriesq0.5mm Pitch SMT Board to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

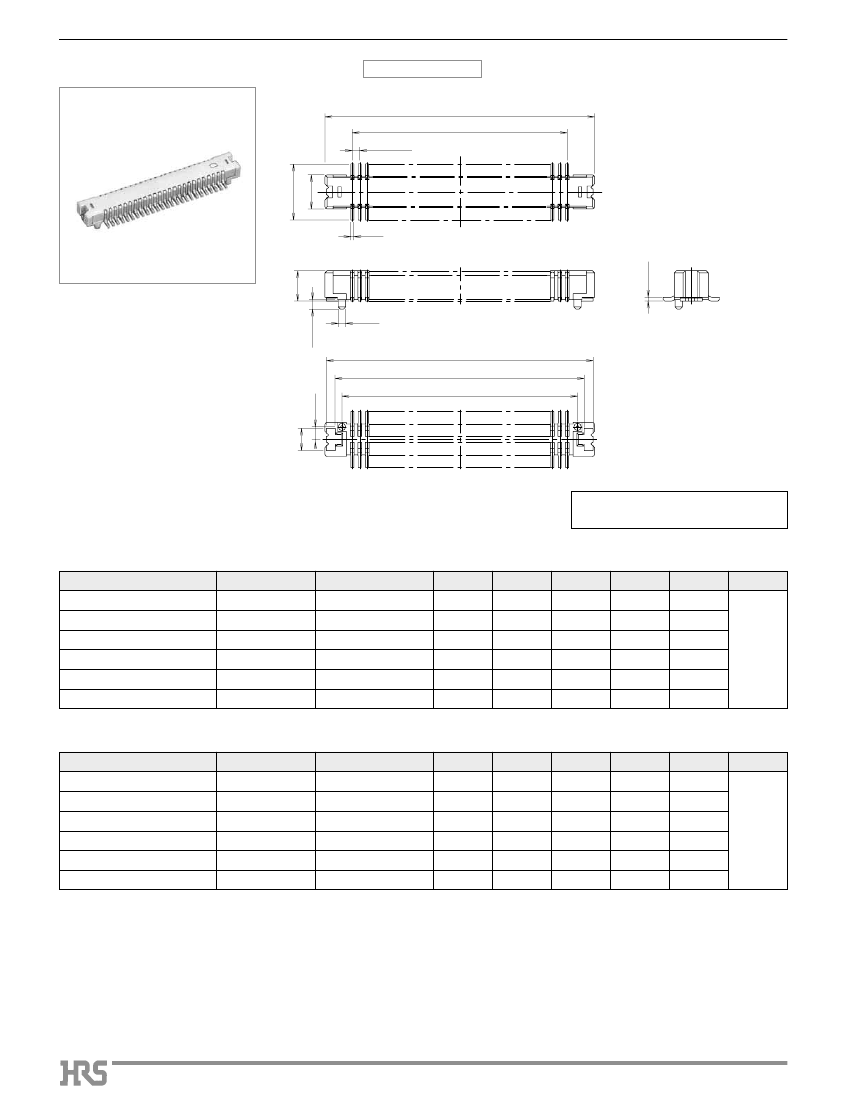

sBoard
to Board 2.5mm Header
With metal fitting
A
B
P=0.5
3.8
2.3
0.2
2.05
Ø0.5
0.65
C
D
E
0.85
1.5
[Specific No.]
–
* *
,
(*
*)
(86) :Gold
plated,
embossed tape
packaging
qBoard
to Board 2.5mm Header with metal fitting, with boss
Part Number
DF16(2.5)-20DP-0.5V(
86
)
DF16(2.5)-30DP-0.5V(
86
)
DF16(2.5)-34DP-0.5V(
86
)
DF16(2.5)-40DP-0.5V(
86
)
DF16(2.5)-50DP-0.5V(
86
)
DF16(2.5)-60DP-0.5V(
86
)
CL No.
679-0082-2-86
679-0083-5-86
679-0089-1-86
679-0084-8-86
679-0085-0-86
679-0086-3-86
Number of Contacts
20
30
34
40
50
60
A
08.2
10.7
11.7
13.2
15.7
18.2
B
04.5
07.0
08.0
09.5
12.0
14.5
C
08.0
10.5
11.5
13.0
15.5
18.0
D
06.8
09.3
10.3
11.8
14.3
16.8
E
05.9
08.4
09.4
10.9
13.4
15.9
0.25
Unit: mm
RoHS
YES
qBoard
to Board 2.5mm Header with metal fitting, without boss
1. Overview In the process of writing microcontroller programs, keyboards are commonly used as a way to implement human-machine interfaces. The general implementation methods are as follows: 1. Connec...
When will the FSMC multi-master access conflict bug of the STM32F103xCDE series be solved? Is ST still preparing to solve this problem? Through understanding the market positioning of STM32, it seems ...
:) I applied for the DK-LM3S8962 board from TI for free. I played with it for a long time. I feel that the built-in Ethernet is quite good, and there is also CAN, but there is no USB, and there is no ...
[i=s]This post was last edited by chrisrh on 2021-3-10 10:05[/i]Learn about timers. The timers of FM33LC046N are divided into four categories:
Advanced timer ATIM, general timer GPTIM, basic timer BST...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
With the rapid development of science and technology, especially the widespread application of digital technology and various ultra-large-scale integrated circuits, electronic equipment, especially...[Details]
In
circuit design,
current
measurement
is widely used, and the main fields are divided into three categories: in measurement,
the electric meter
is used to measure the curre...[Details]
1 Introduction
The high temperature tester is mainly used for temperature tracking measurement and data acquisition during the heating process. By systematically analyzing the test data, the...[Details]
When the WDP500-2A plane grating monochromator is used to test the emission wavelength of a high-power laser diode at different currents, the matching of the laser diode has the disadvantages of lo...[Details]
introduction
In the discharge process of tokamak plasma physics, the study of rupture and sawtooth is of great significance. Rupture and sawtooth exist in most tokamaks. Rupture is a notew...[Details]
This paper designs a dot matrix LED text display screen that is easy to update, expandable, and low-cost. The way to reduce costs is
① Use the Bluetooth data transmission function of mobile ph...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
PV inverter manufacturer SMA has launched its first DC arc fault circuit interrupter (AFCI) PV inverter and has received UL certification.
The new SunnyBoy AFCI inverter models include 3000-US...[Details]
0 Introduction
With the rise and continuous improvement of the solid-state lighting industry, light-emitting diodes (LEDs) have become an alternative lighting technology and are gr...[Details]
introduction
MAX6636 is a multi-channel precision temperature monitor that can not only monitor local temperature, but also connect up to 6 diodes externally. Each channel has a programmable...[Details]
hint:
The number of speakers and their spacing limit the sound field of a portable stereo system.
Spatial audio attempts to artificially recreate the experience of listening to sounds i...[Details]
Spatial Division Multiplexing (SDM) MIMO processing can significantly improve spectrum efficiency and thus greatly increase the capacity of wireless communication systems. Spatial Division Multip...[Details]
Today, with energy becoming increasingly scarce, the utilization of natural energy has become the focus of people's attention. Among various natural energies, the endless solar energy is highly fav...[Details]
LED light sources have many environmental advantages, but early products still have certain technical bottlenecks in heat dissipation and high brightness design that cannot be broken through....[Details]
-50dp-05v(86)_pdf/pg_0001.png)
MCU
京公网安备 11010802033920号
EEWORLD-50dp-05v(86)_pdf/1.png)
-50dp-05v(86)_pdf/2.png)
-50dp-05v(86)_pdf/3.png)
-50dp-05v(86)_pdf/4.png)
-50dp-05v(86)_pdf/5.png)
-50dp-05v(86)_pdf/pg_0002.png)
-50dp-05v(86)_pdf/pg_0003.png)
-50dp-05v(86)_pdf/pg_0004.png)
-50dp-05v(86)_pdf/pg_0005.png)
