5559-05P3-210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5559-05P3-210

5559-05P3-210: Description4.20mm (.165") pitch mini-fit Jr. plug housing, single row, without panel mount ears; CategoryThe connector The connector; File Size334KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5559-05P3-210 Overview

4.20mm (.165") pitch mini-fit Jr. plug housing, single row, without panel mount ears

5559-05P3-210 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	RECTANGULAR POWER CONNECTOR

Preview

Download Datasheet

View All

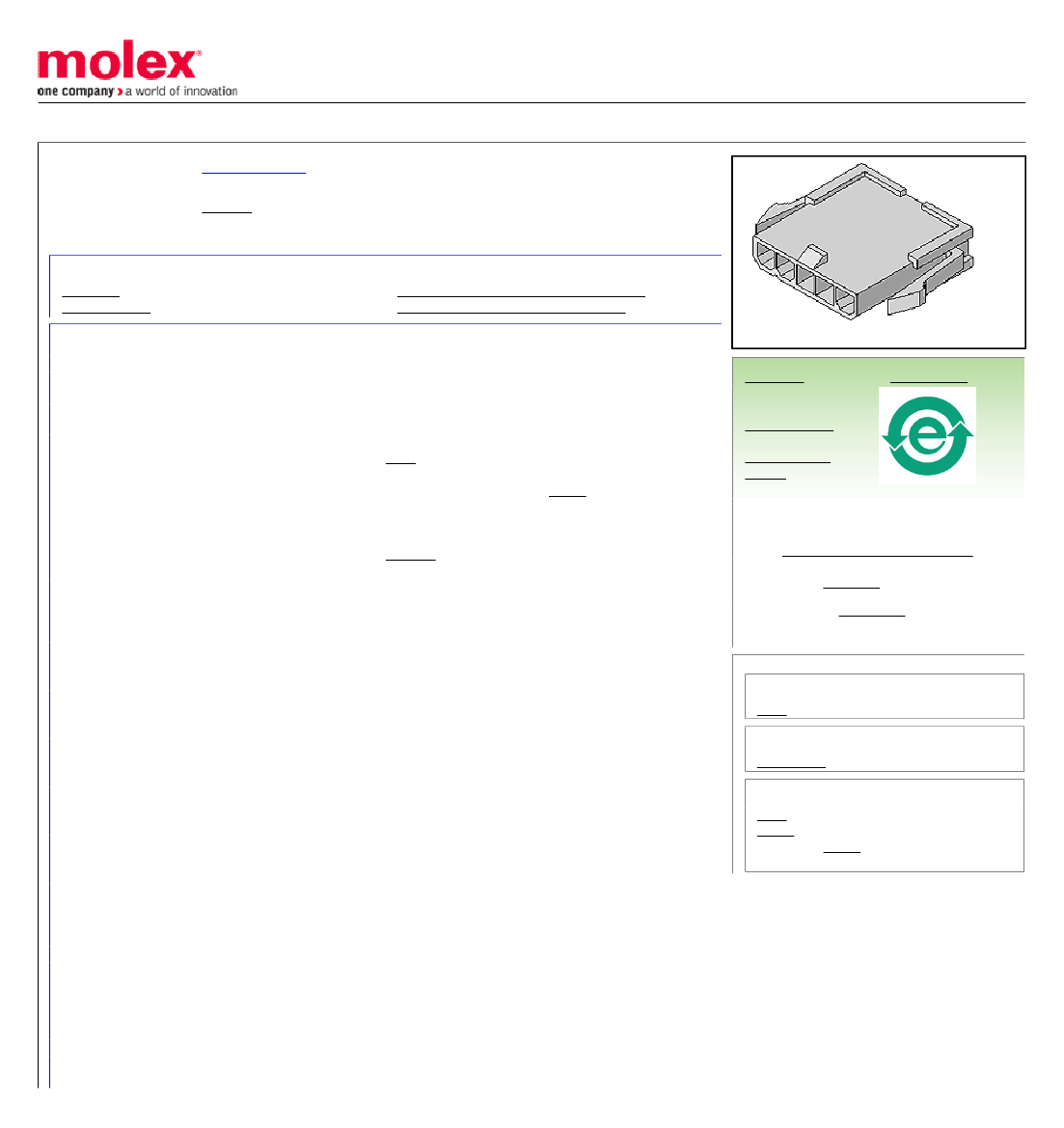

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039014047

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Plug Housing, Single Row, without Panel Mount

Ears, PA Polyamide Nylon 6/6, UL 94V-0, 4 Circuits

Documents:

3D Model

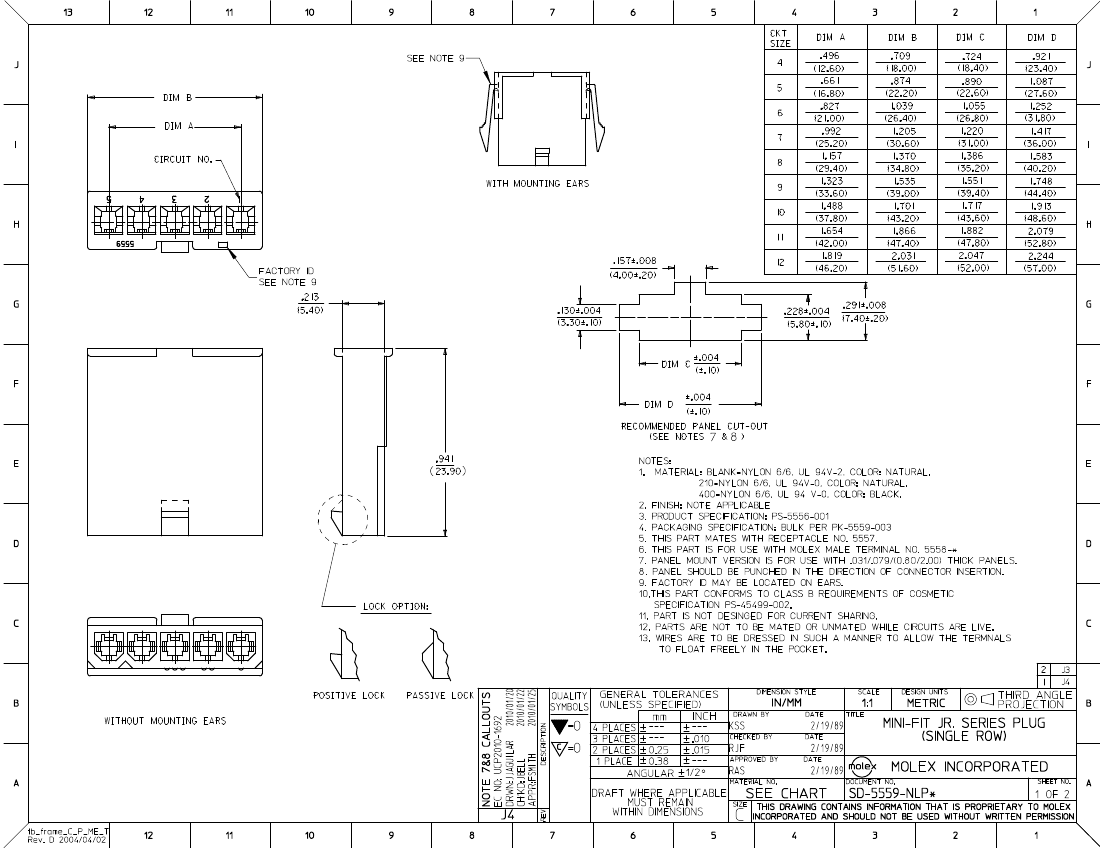

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Comments

Crimp Housings

5559

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-0

Male

None

Yes

Nylon

Bag

0.165 In

4.20 mm

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

39-01-4041 Receptacle Housing

Use With

5558 Mini-Fit Jr.™ Male Crimp Terminals.

44478 Mini-Fit HCS™ Male Crimp

Terminals. 30490 Mini-Fit® Male Grounding

Crimp Terminals

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-04P3-210

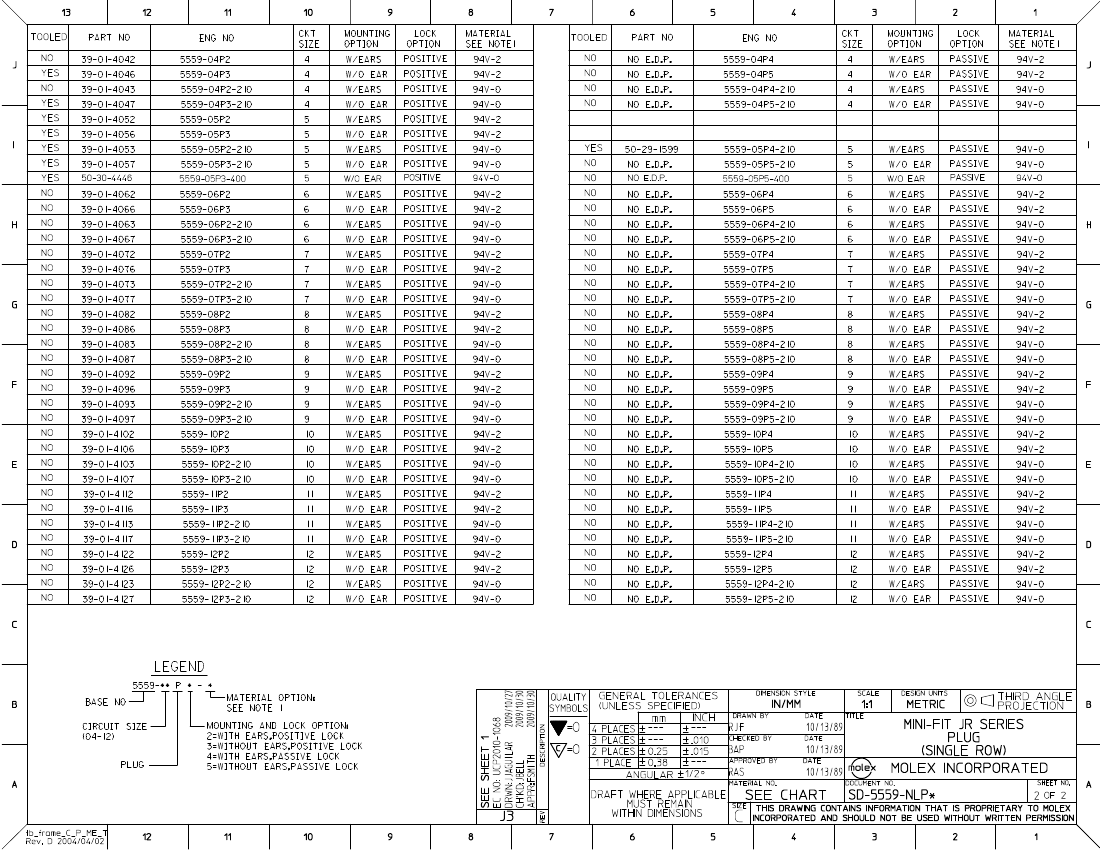

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-5559-003

PS-5556-001

SD-5559-NLP*

5559-05P3-210 Related Products

	5559-05P3-210	5559-04P3-210	5559-05P2	5559-05P2-210
Description	4.20mm (.165") pitch mini-fit Jr. plug housing, single row, without panel mount ears	4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 4 circuits	4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, with panel mount ears, PA polyamide nylon 6/6, UL 94v-2, 5 circuits	4.20mm (.165") pitch mini-fit Jr. plug housing, single row, with panel mount ears
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
