5559-05P3-225 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 5559-05P3-225

5559-05P3-225: Description4.20mm (.165") pitch mini-fit Jr.? plug housing, dual row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 5 circuits, glow wire compatible; File Size123KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5559-05P3-225 Overview

4.20mm (.165") pitch mini-fit Jr.? plug housing, dual row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 5 circuits, glow wire compatible

Preview

Download Datasheet

View All

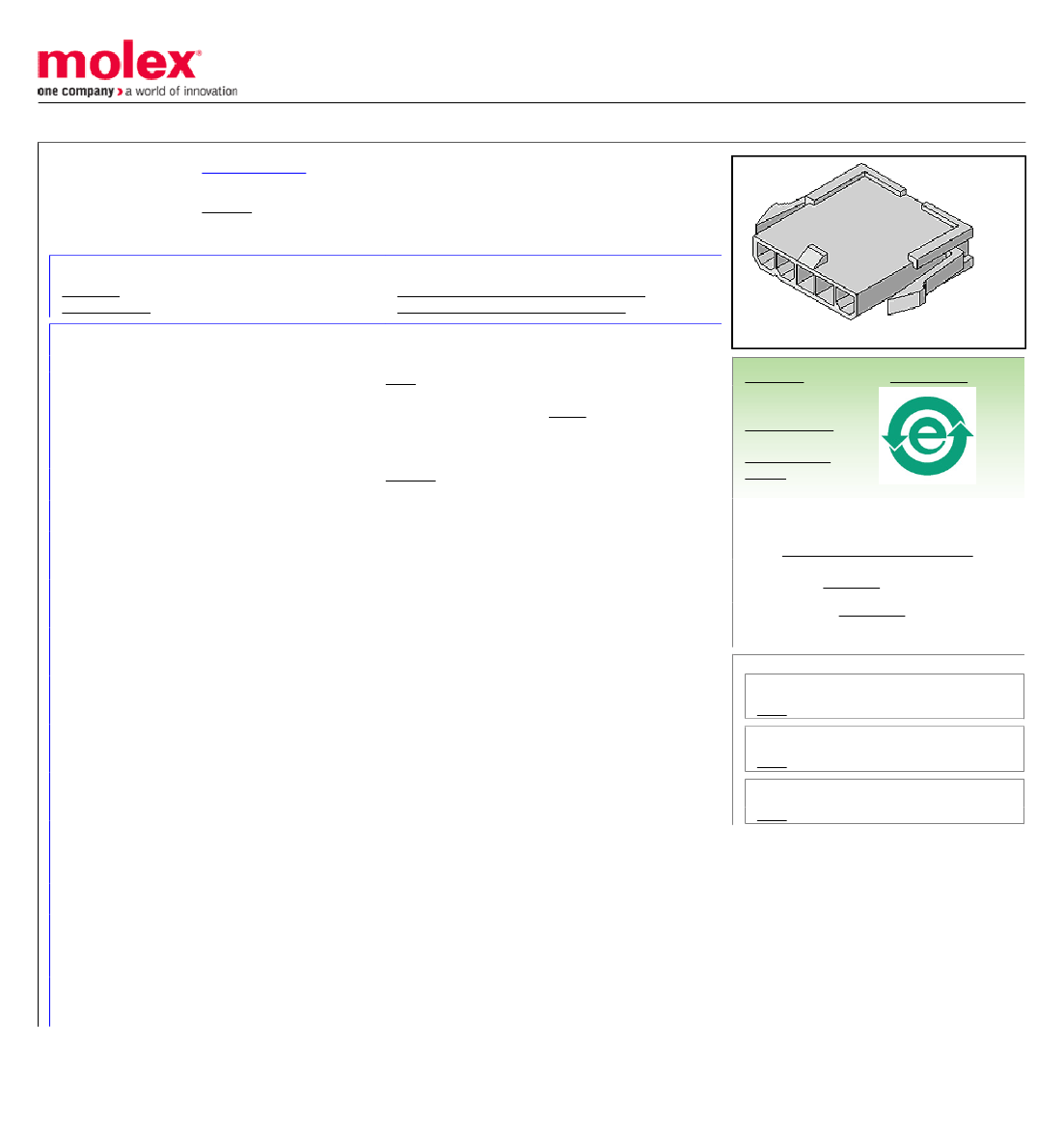

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050361681

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Plug Housing, Dual Row, without Panel Mount Ears,

PA Polyamide Nylon 6/6, UL 94V-0, 5 Circuits, Glow Wire Compatible

Documents:

3D Model

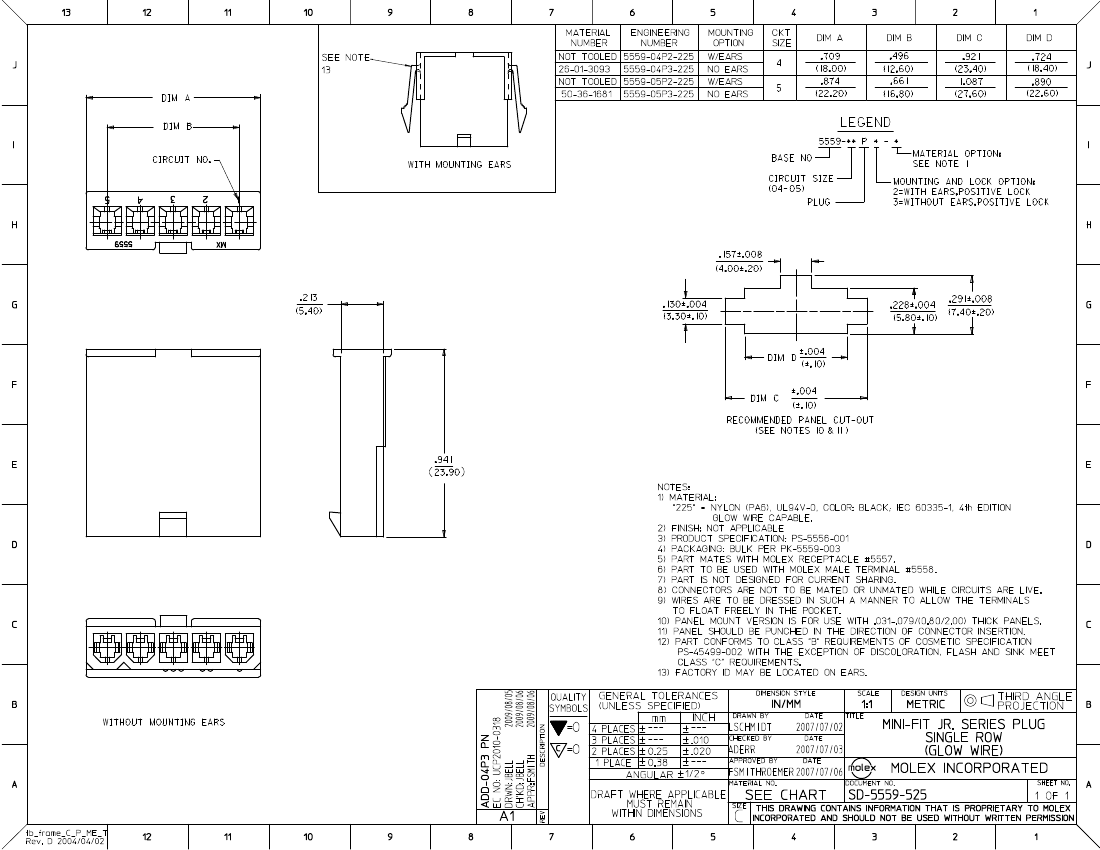

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Crimp Housings

5559

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.

minifit_jr

Mini-Fit Jr.™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Ports

Stackable

Temperature Range - Operating

Black

Plug

Yes

None

Yes

Nylon

Bag

0.165 In

4.20 mm

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

5557 Receptacle Housing

Use With

5558 Male Terminal

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-05P3-225

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-5559-003

PS-5556-001

SD-5559-525

TS-5556-002

This document was generated on 05/19/2010
