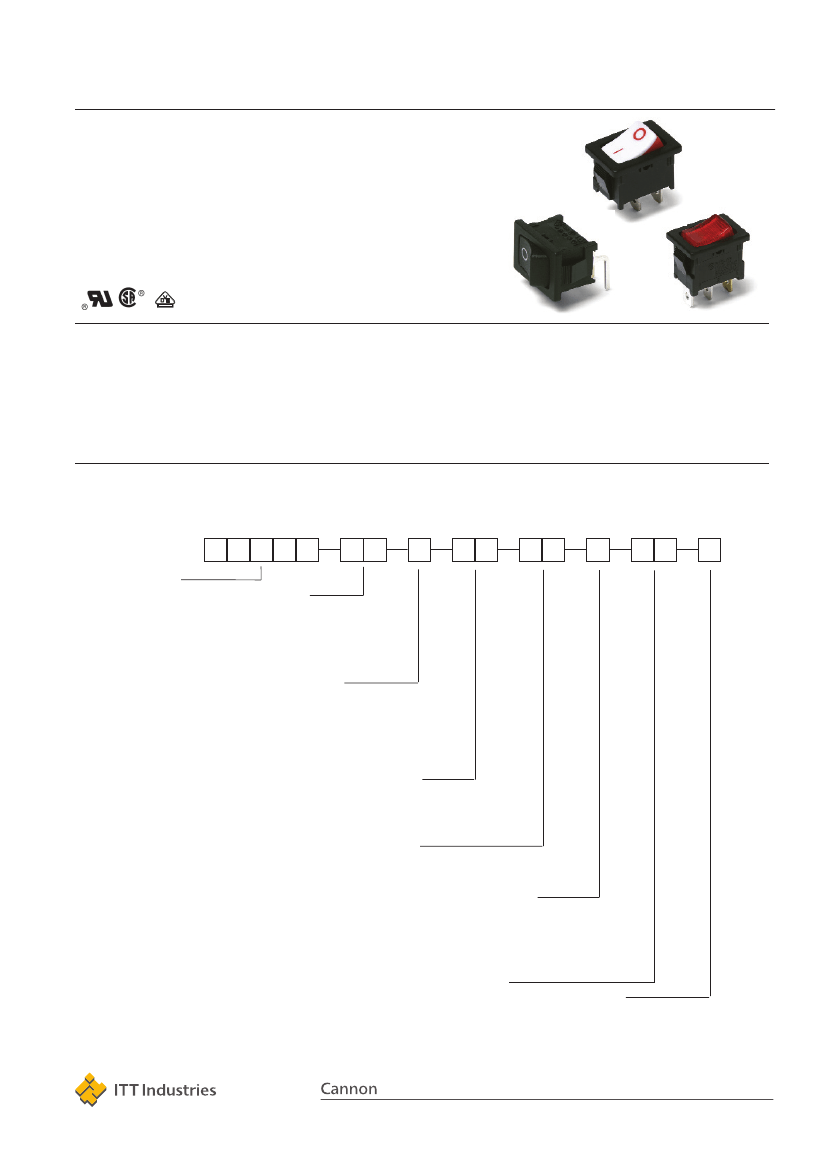

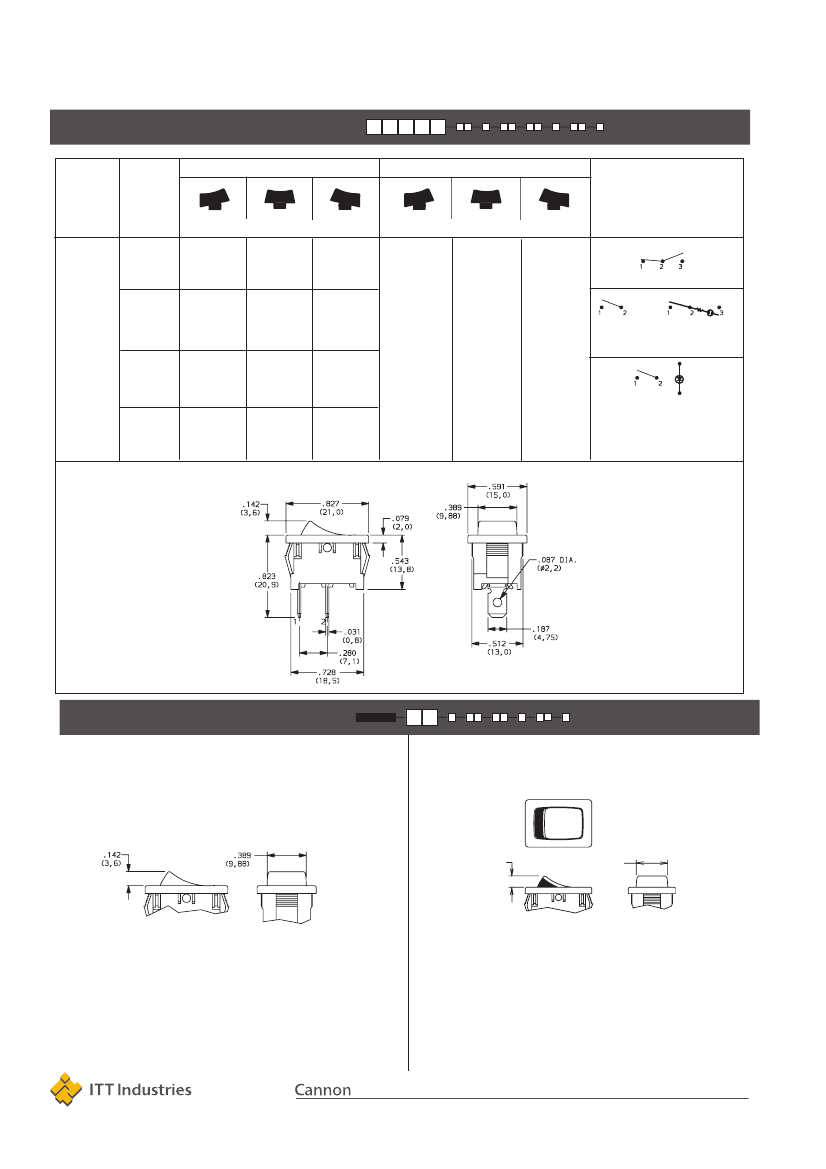

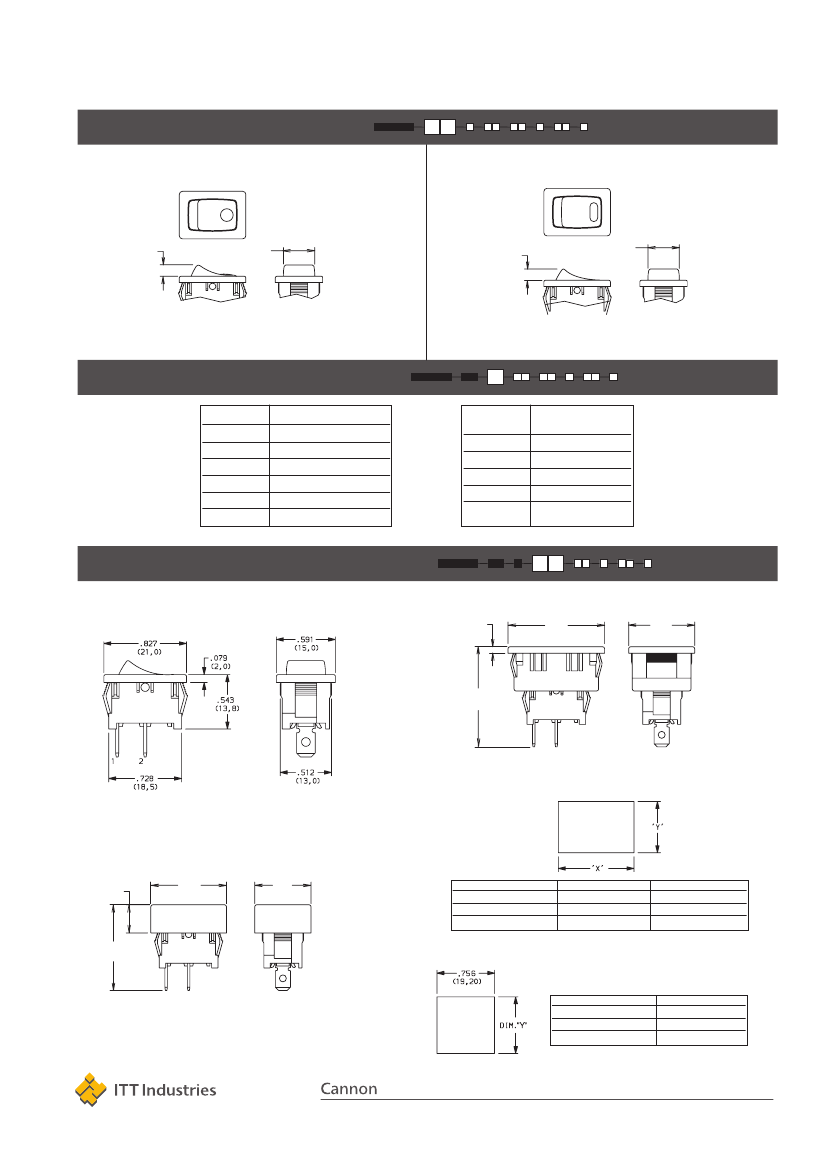

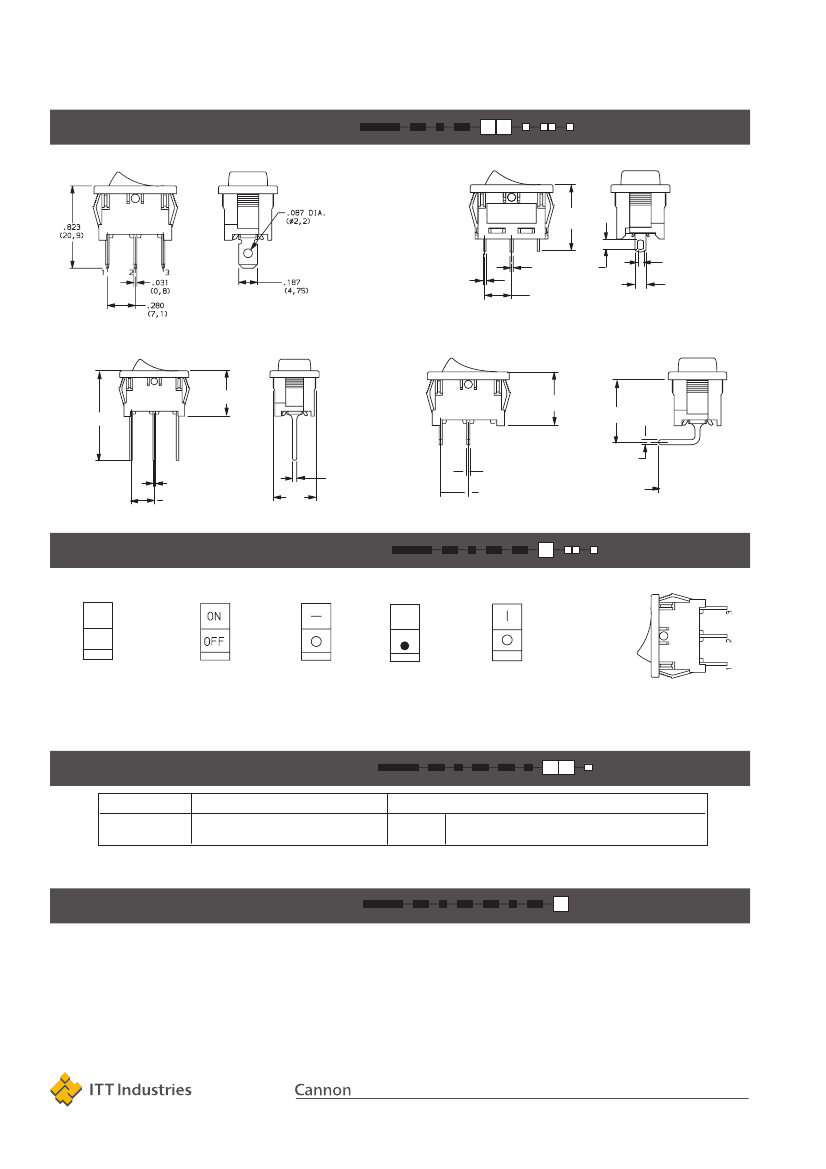

C&K DA Series
Miniature Single Pole Rocker Switches
Features/Benefits
Typical Applications
•
Nice actuator styling with
•
Small appliances
multiple options
•
Computers and peripherals
•
Guards to prevent accidental
•
Medical instrumentation
actuation
•
Momentary and maintained functions
•
IP65 splash proof rubber boot option
Specifications
CONTACT RATING:
UL/CSA: 16 AMPS @ 125 VAC, 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP.
VDE: 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgSn02ln03.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages 4 thru 6. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DA101
SPDT On-None-On
DA102
SPST On-None-Off
DA103
SPDT On-Off-On
DA12
*
SPST On-None-Off
Actuator
J1
Rocker
J2
Two-tone rocker
J3
Illuminated rocker
J4
Circle, illuminated rocker
J5
Oval, illuminated rocker
Actuator Color
2
(STD). Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
(STD.) Snap-in, black
S1
Snap-in, white
B2
Recessed snap-in bracket, black
G2
Guard, black
Termination
15
(STD.) .187” quick connect
17
Solder lug
02
Thru-hole
A
Right angle
Actuator Marking
(NONE)
(STD.) No marking
D
ON-OFF
H
”O l” - international ON-OFF
N
Large dot
P
”O -” international ON-OFF
Contact Rating
QF
(STD.) Silver
Lamp Rating
(NONE)
(STD.) No lamp
6
LED
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inch (mm)
Dimensions subject to change
*
DA12 - for switches with both marking and illumination
3
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
DA101
ON
NONE
ON
SP
DA102
ON
NONE
OFF
2-3
N/A
2-1
OR
For 7 & 8
Illuminated Versions
Only
+
DA103
ON
OFF
ON
–
For 6 Illuminated
Versions Only
DA12 *
ON
NONE
OFF
*
DA12 - for switches with both marking and illumination
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
.142
(3,6)
.389
(9,88)
NOTE:
J3 actuator available with DAX02 switch functions only.
NOTE:
Available with DA102 switch function and P actuator marking only.
Dimensions are shown: Inch (mm)
Dimensions subject to change
4
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches
ACTUATOR
J4
CIRCLE, ILLUMINATED ROCKER
J5
OVAL, ILLUMINATED ROCKER
.142
(3,6)
.389
(9,88)
.142
(3,6)
.389
(9,88)
NOTE:
Available with DA102 switch function and
7 & 8 lamp ratings only.
NOTE:
Available with DA102 switch function and
6 lamp rating only.
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
(STD.) BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
OPTION
CODE
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
WHITE
RED
BLACK
BLACK
RED
BLACK
WHITE
WHTE
RED
2
1
3
R
A
G
1
2
3
4
5
J2 actuator only
MOUNTING STYLE/COLOR
S2
S1
(STD.) SNAP-IN, BLACK
SNAP-IN, WHITE
B2
RECESSED SNAP-IN BRACKET, BLACK
.080
(2,03)
1.200
(30,48)
.820
(20,83)
1.244
(31,60)
NOTE:
Available with DA10X switch functions only.
S2, S1 & G2 PANEL MOUNTING
G2
GUARD, BLACK
.350
(8,89)
.940
(23,88)
.700
(17,78)
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
0.756-.004 (19,2-0,1)
0.764-.004 (19,4-0,1)
0.779-.004 (19,8-0,1)
“Y”
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
1.064
(27,03)
B2 PANEL MOUNTING
NOTE:
Available with DA10X switch functions only.
PANEL THICKNESS
0.030-0.049 (0,75-0,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“Y”
1.068 (27,13)
1.076 (27,33)
1.092 (27,74)
Dimensions are shown: Inch (mm)
Dimensions subject to change
5
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches
TERMINATION
15
(STD.) .187” QUICK CONNECT
17
SOLDER LUG
.669
(17,0)
.024
(0,6)
.031
(0,8)
.268
(6,8)
.098 DIA.
(ø2,5)
.059
(1,5)
.110
(2,8)
02
THRU-HOLE
A
RIGHT ANGLE
.543
(13,8)
1.075
(27,3)
1
1
2
3
.031
(0,8)
.280
(7,1)
.051
(1,3)
.512
(13,0)
.031
(0,8)
.280
(7,1)
2
.543
(13,8)
.630
(16,0)
.051
(1,3)
.138
(3,5)
ACTUATOR MARKING
NONE
(STD.) NO MARKING
D
ON-OFF
H
Ol
N
LARGE DOT
P
O-
NOTE:
Orientation of actuator marking and terminals.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/3 HP; 10 AMPS @ 250 VAC; 1/2 HP,
(UL/CSA). 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC (VDE)
QF
(STD.)
LAMP RATING
(NONE)
(STD.) NO LAMP
6
LED RATING @ 10 mA Vf=1.85V
7
8
125 VAC 33kΩ NEON
250 VAC 150kΩ NEON
Dimensions are shown: Inch (mm)
Dimensions subject to change
6
www.ittcannon.com
