DA12-M Series
12 Watts
Total Power:
Input Voltage:
# of Outputs:
12 Watts
90 - 264 Vac
Single
Interchangeable
Plug
Rev.06.03.10_105
DA12-M Series
1 of 5
Preliminary
Special Features
• 5 V and 12 V versions
• Medical and ITE Safeties
• Switching wallmount
power supply
• Available in interchangeable
& fixed ac plug configurations
• CE Mark EMC & LVD
• Universal AC input
• Fully regulated output
• Overload and short circu it
protection
• Thermal protection
• Energy Star 2.0 and CeC
approvals
• Efficiency level V
• Constant voltage
• High MTBF
• Built in EMI filter
(CISPR 22 Class B)
Electrical Specifications
Input
Input ra nge:
Frequency:
Inrush current:
Input current:
EMI/RFI:
Safety ground
leakage current:
90 - 264 Vac (wide range)
47 - 63 Hz
28 A @ 264 Vac
0.25 A rms @ 120 Vac; 0.15 A @ 240 Vac
FCC Part 15, Subpart B Class B & EN55022
(CISPR 22) Class B
100
µ
A @ 50/60 Hz, 264 Vac input
Output
Voltage (Vo):
Voltage regulation:
Maximum Power (Po):
Hold-up time:
Overvoltage protection:
Overload protection:
5.0 V and 12.0 V
± 5% @ constant voltage mode
12 W for 12 V models, 10 W for 5 V models
10 ms. typical at full load @ 230 Vac
Non-latching type
Output shortcircuit protection auto recover
Overload protected @ 150% above maximum rating
Auto recovery
DC cable with 2.5 mm x5.5mm barrel plug
DC plug center +v
DC plug outer -v
Safety
• UL
60950, 60601-1
• cUL
60950, 60601-1
• TUV
60950-1, 60601-1
• AS/NZS 60950-1, 60601-1
• CB
Certificate and report
• CE
EMC & LVD
• PSE
Denan (US only)
Overtemperature
protection:
Output cable/connector
barrel polarity:
Embedded Power for
Business-Critical Continuity
Environmental Specifications
Operating temperature: 0 ° to +40 °C ambient
Storage temperature:
-40 °C to +85 °C
Electromagnetic
susceptibility:
Humidity:
Vibration:
Designed to meet EN55024
Operating; non-condensing 5% to 95% RH
Frequency/PSD: 5 - 350 Hz
0.0001 g
2
/Hz
350 - 500 Hz - 6dB/Oct.
500 Hz
0.00005g
2
/Hz
Acceleration: 0.21 gRMS
Duration:
20 min per second
Rev.06.03.10_105
DA12-M Series
2 of 5

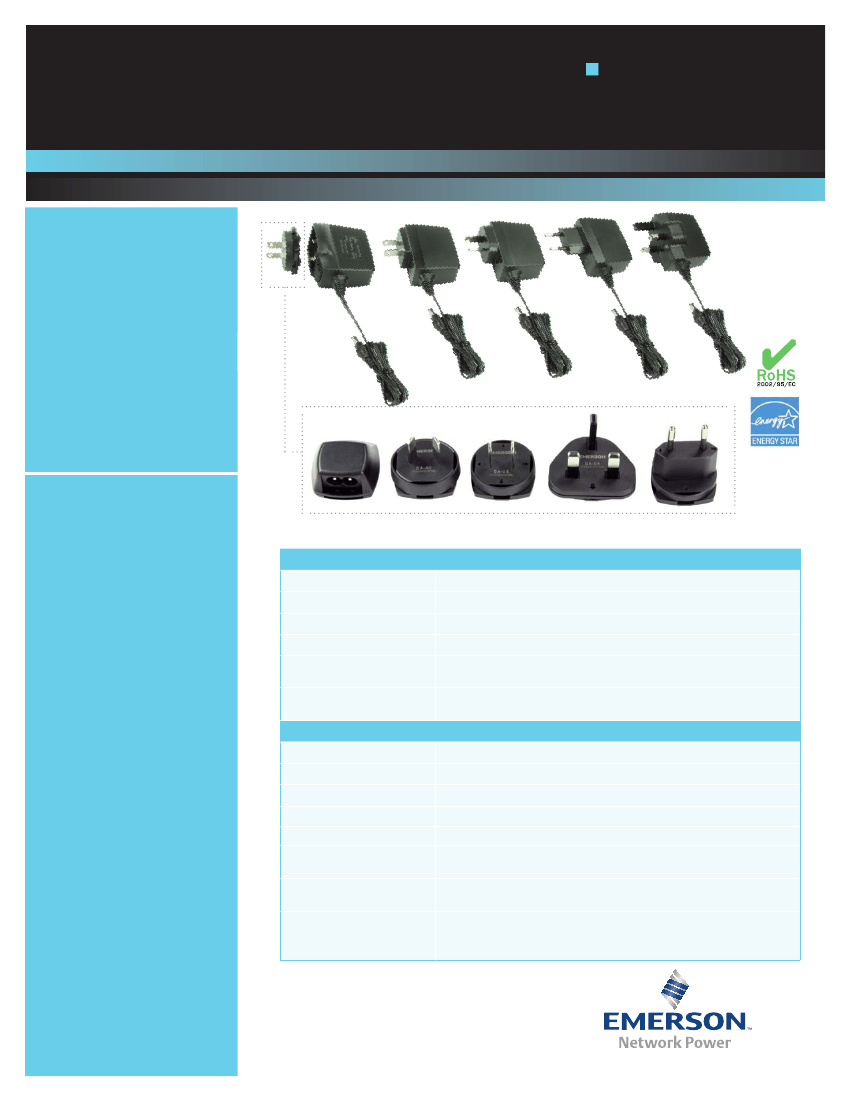

AC Plug Configuration
for Fixed Plug
U.S. 2-prong
Europe 2-prong
United Kingdom 3-prong
Australia 2-prong
US
EU
UK
AU
AC Plug Configuration
for Interchangeable Plug
U.S. 2-prong
Europe 2-prong
United Kingdom 3-prong
Australia 2-prong
C8 - 2 receptacle
DA-US
DA-EU
DA-UK
DA-AU
DA-C8
Ordering Information - DA12 Adapter
Model Number
DA12-120US-M
DA12-120EU-M
DA12-120UK-M
DA12-120AU-M
DA12-120MP-M*
DA12-050US-M
DA12-050EU-M
DA12-050UK-M
DA12-050AU-M
Maximum Power
12 W
12 W
12 W
12 W
12 W
10 W
10 W
10 W
10 W
Output
Voltage
12.0 V
12.0 V
12.0 V
12.0 V
12.0 V
5.0 V
5.0 V
5.0 V
5.0 V
Minimum Load Maximum Load
0.2 A
0.2 A
0.2 A
0.2 A
0.2 A
0.2 A
0.2 A
0.2 A
0.2 A
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
2.0
Regulation2
± 3%
± 3%
± 3%
± 3%
± 3%
± 3%
± 3%
± 3%
± 3%
Ripple
P/P (PARD)3
200 mV
200 mV
200 mV
200 mV
200 mV
50 mV
50 mV
50 mV
50 mV
50 mV
DA12-050MP-M*
10 W
5.0 V
0.2 A
2.0
± 3%
* Interchangeable version - AC Plugs must be purchased separately to be used with DA12-120MP-M and DA12-050MP-M
Ordering Information - DA12 Interchangeable Plug
Model Number
DA-US
DA-EU
DA-UK
DA-AU
DA-C8
DA-All Includes All of the Above
1. Peak current lasting < 30 seconds with a maximum 10% duty cycle.
2 . At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3 . Peak-to-peak with 20 mHz bandwidth and 10 µF in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
4 . Power supplies will operate with no-load.
Embedded Power for
Business-Critical Continuity
Rev.06.03.10_105
DA12-M Series
3 of 5

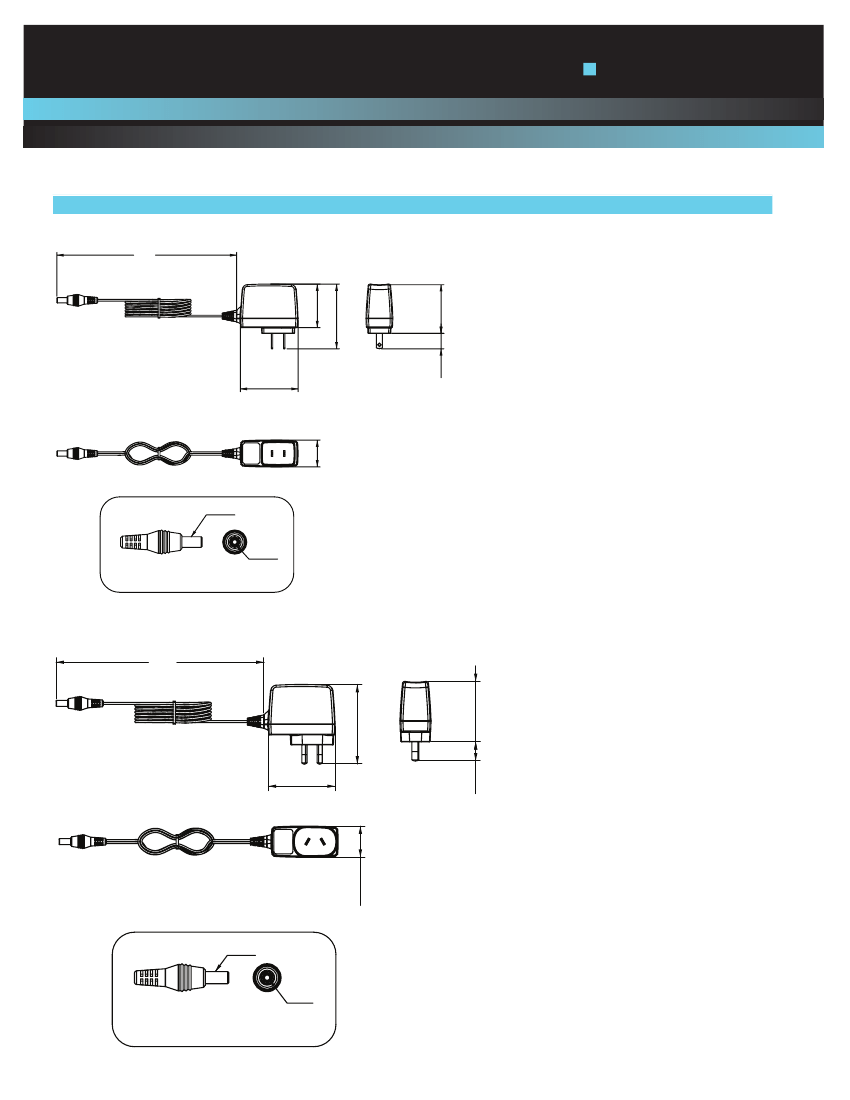

Mechanical Drawings
DA12-XXXUS-M
59”
(1500)
1.78”
(45,3)
2.65”
(67,3)
2.36”
(60)
(-)
(+)
CONNECTOR PIN-OUT DETAIL
DA12-XXXAU-M
59”
(1500)
1.10”
(28)
0.63”
(16)
1.99”
(50,6)
2.8”
(71,4)
2.36”
(60)
(-)
(+)
CONNECTOR PIN-OUT DETAIL
1.10”
(28
±
0,3)
0.67”
(17,1)
2.14”
(54,3)
Embedded Power for
Business-Critical Continuity

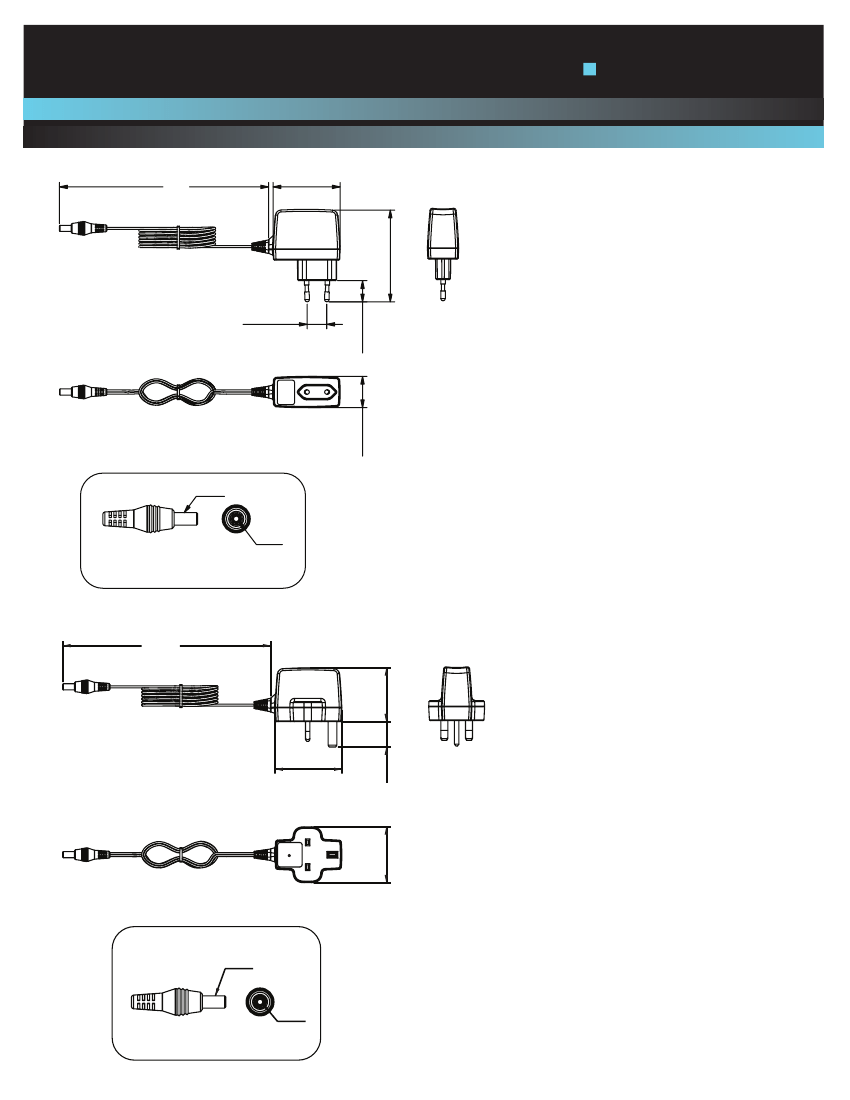

DA12-XXXEU-M
59”
(1500)
2.36”
(60)
Rev.06.03.10_105
DA12-M Series
4 of 5
(-)
(+)
CONNECTOR PIN-OUT DETAIL
DA12-XXXUK-M
59”
(1500)
1.90”
(48,3)
2.36”
(60)
(-)
(+)
CONNECTOR PIN-OUT DETAIL
1.98”
(50.2)
0.893”
(22,7)
1.10”
(28)
0.744”
(18,9)
0.685”
(17,4)
3.22”
(82)
Embedded Power for
Business-Critical Continuity

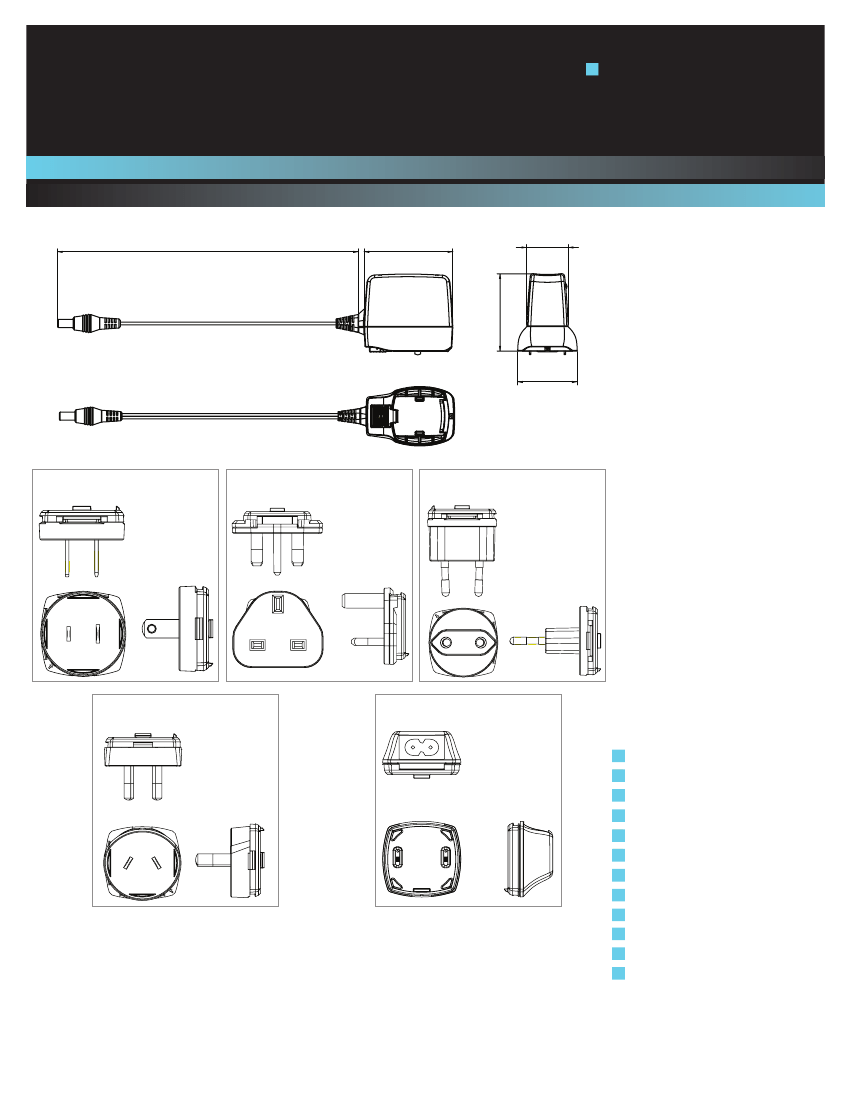

DA12-MP Interchangeable Plug Adapter
59”
(1500)
2.36”
(60)
1.10”
(28)
Americas
Rev.06.03.10_105
DA12-M Series
5 of 5
2.06”
(52.22)
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Europe (UK)
1.58”
(40.18)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
DA-US
DA-UK
DA-EU
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
DA-AU
DA-C8
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Notes:
Surge Protection
EmersonNetworkPower.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2009 Emerson Electric Co.
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ± .02”.
3. Weight: 0.25 lb/0.114 kg
4. Warranty: 2 years
