DB156S

Description
surface mount glass passivated brideg rectifiers
CategoryDiscrete semiconductor    diode
File Size218KB，2 Pages
ManufacturerHY Electronic
Websitehttp://www.hygroup.com.tw
Download Datasheet Parametric View All

DB156S Online Shopping

Suppliers Part Number Price MOQ In stock
DB156S - - View Buy Now

DB156S Overview

surface mount glass passivated brideg rectifiers

DB156S Parametric

Parameter NameAttribute value
package instructionR-PDSO-G4
Contacts4
Reach Compliance Codeunknown
ECCN codeEAR99
Minimum breakdown voltage800 V
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
JESD-30 codeR-PDSO-G4
Maximum non-repetitive peak forward current50 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current1.5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum repetitive peak reverse voltage800 V
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1

Preview

Download Datasheet

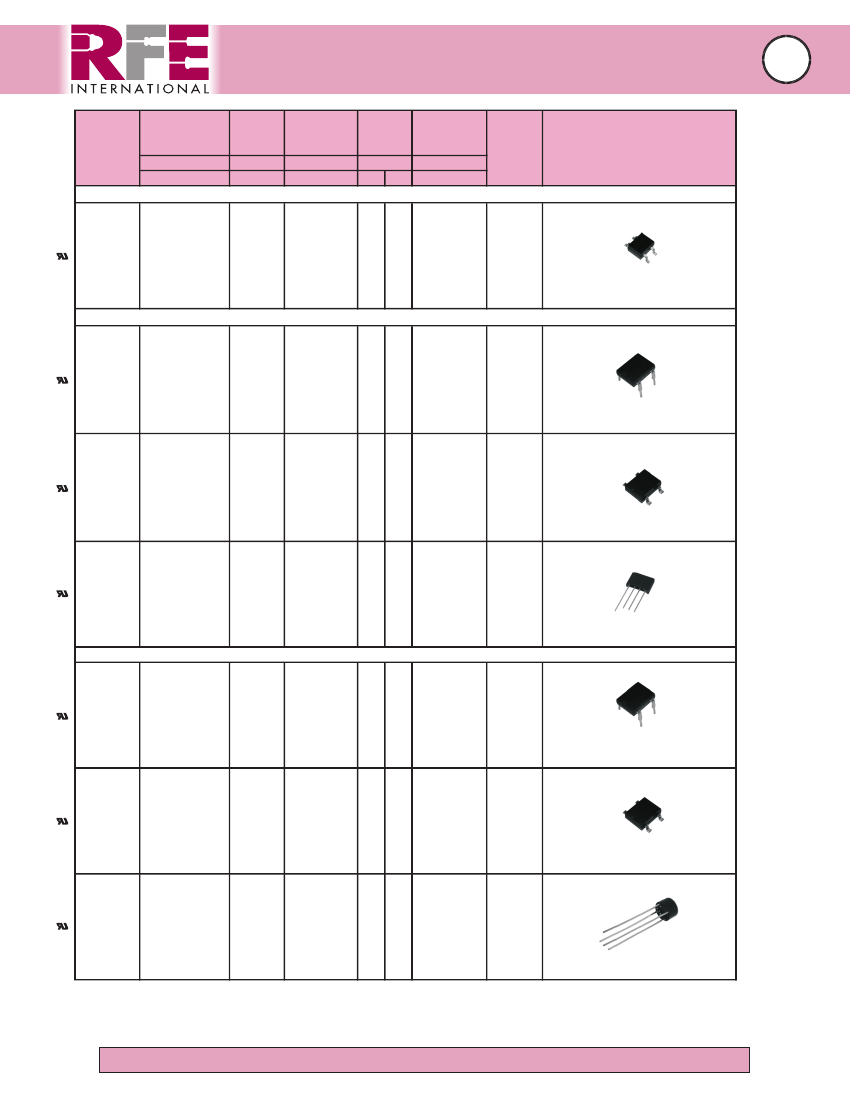

BRIDGE RECTIFIERS
0.8 to 1.5 Amps
RFE Part
Number
Max Avg
Peak Repetitive
Rectified
Reverse Voltage
Current
V
RRM
I
O
V
A
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
50
100
200
400
600
800
1000
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Forward
Max. Peak
Max Reverse
Voltage
Fwd Surge
Current
Drop
Current
Package
V
F
@I
F
I
FSM
I
R
@V
R
A
V
A
µ
A
0.8 AMP Single-Phase Bridge Rectifiers
30
1.0 0.4
5
30
1.0 0.4
5
30
1.0 0.4
5
SMD
30
1.0 0.4
5
MiniDip
30
1.0 0.4
5
30
1.0 0.4
5
30
1.0 0.4
5
1.0 AMP Single-Phase Bridge Rectifiers
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
DB
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
DBS
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
50
1.1 1.0
10
30
1.1 1.0
10
30
1.1 1.0
10
30
1.1 1.0
10
RS1
30
1.1 1.0
10
30
1.1 1.0
10
30
1.1 1.0
10
30
1.1 1.0
10
1.5 AMP Single-Phase Bridge Rectifiers
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
DB
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
DBS
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
WOB
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
50
1.1 1.5
10
Outline
(Typical Size in inches)
RoHS
ü
B05S
B1S
B2S
B4S
B6S
B8S
B10S
DB101
DB102
DB103
DB104
DB105
DB106
DB107
DB101S
DB102S
DB103S
DB104S
DB105S
DB106S
DB107S
RS101
RS102
RS103
RS104
RS105
RS106
RS107
DBS151
DBS152
DBS153
DBS154
DBS155
DBS156
DBS157
DB151S
DB152S
DB153
DB154S
DB155S
DB156S
DB157S
W005M
W01M
W02M
W04M
W06M
W08M
W10M
SMD MiniDip
DB
DBS
RS1
DB
DBS
WOB
RFE International
• Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com
C3D01S
REV 2009.12.21
