DF26A1.2-9CP-1.1V

Description
1.1mm pitch low profile compression connectors
CategoryThe connector    The connector
File Size1MB,6 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

DF26A1.2-9CP-1.1V Overview

1.1mm pitch low profile compression connectors

DF26A1.2-9CP-1.1V Parametric

Parameter NameAttribute value
MakerHirose
Reach Compliance Codeunknown
Is SamacsysN
Board mount optionsPEG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance50 mΩ
Contact styleCOMPRESSION
Dielectric withstand voltage150VAC V
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial numberDF26
Plug contact pitch0.043 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-35 °C
PCB contact patternRECTANGULAR
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.0922 mm
Termination typeSURFACE MOUNT
Total number of contacts9
Base Number Matches1
NEW

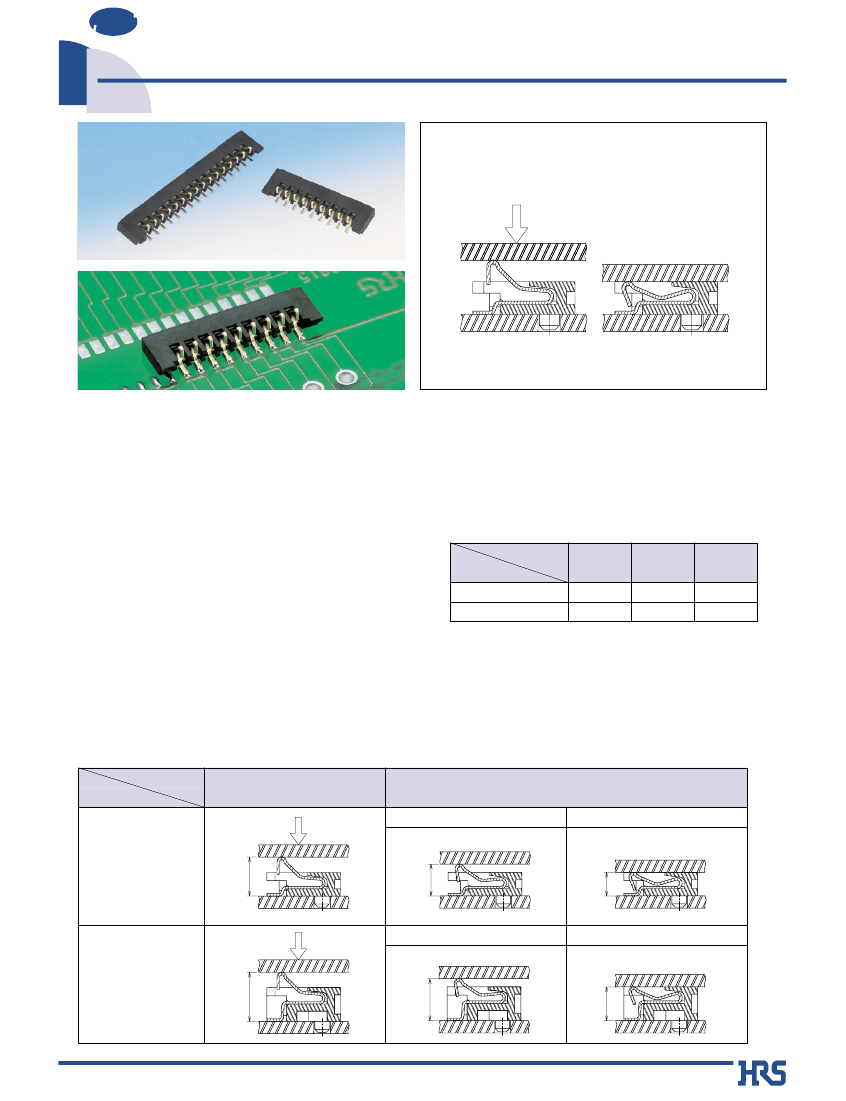

1.1mm Pitch Low Profile Compression Connectors
DF26 Series
Compression Connectors
-Mating height: 1.2mm and 1.7mm
Press down
Press in
s
Features
1. Low Profile
Connectors are available in heights : 1.2mm and
1.7mm.
3. One-Piece Connector
These connectors support cost reduction requirement
since there is no need for a mating half connector.
This design also permits a reduction in the number of
assembly steps.
2. Miniature, Space-Saving Design
The space-saving design of these connectors permits
increase in the mounting density as compared to
equivalent products.
4. Variations
Number of Contacts
Mating Height
1.2mm
1.7mm
9 Contacts 16 Contacts 18 Contacts
Under development
s
Applications
LCD, cellular phones, notebook computers, miniature office automation
equipment, and miniature consumer products.
Item
Product
Before Contact
Contacting (Effective Mating Height)
1.55mm
1.2mm
Press
Press
in
down
1.9mm
1.55mm
1.2mm
2.05mm
Press
Press
in
down
1.2mm
1.7mm
2.4mm
2.05mm
1.7mm
1.7mm
2003.7
1

DF26A1.2-9CP-1.1V Related Products

DF26A1.2-9CP-1.1V DF26A1.7-9CP-1.1V
Description 1.1mm pitch low profile compression connectors 1.1mm pitch low profile compression connectors
Maker Hirose Hirose
Reach Compliance Code unknown unknown
Is Samacsys N N
Board mount options PEG PEG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU AU
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact resistance 50 mΩ 50 mΩ
Contact style COMPRESSION COMPRESSION
Dielectric withstand voltage 150VAC V 150VAC V
Insulation resistance 500000000 Ω 500000000 Ω
Insulator color BLACK BLACK
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number DF26 DF26
Plug contact pitch 0.043 inch 0.043 inch
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -35 °C -35 °C
PCB contact pattern RECTANGULAR RECTANGULAR
Plating thickness 4u inch 20u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.5 A 0.5 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 1.0922 mm 1.0922 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 9 9
Base Number Matches 1 1
