MICRO-CON-X® 2-7
NEW PRODUCT BULLETIN C708

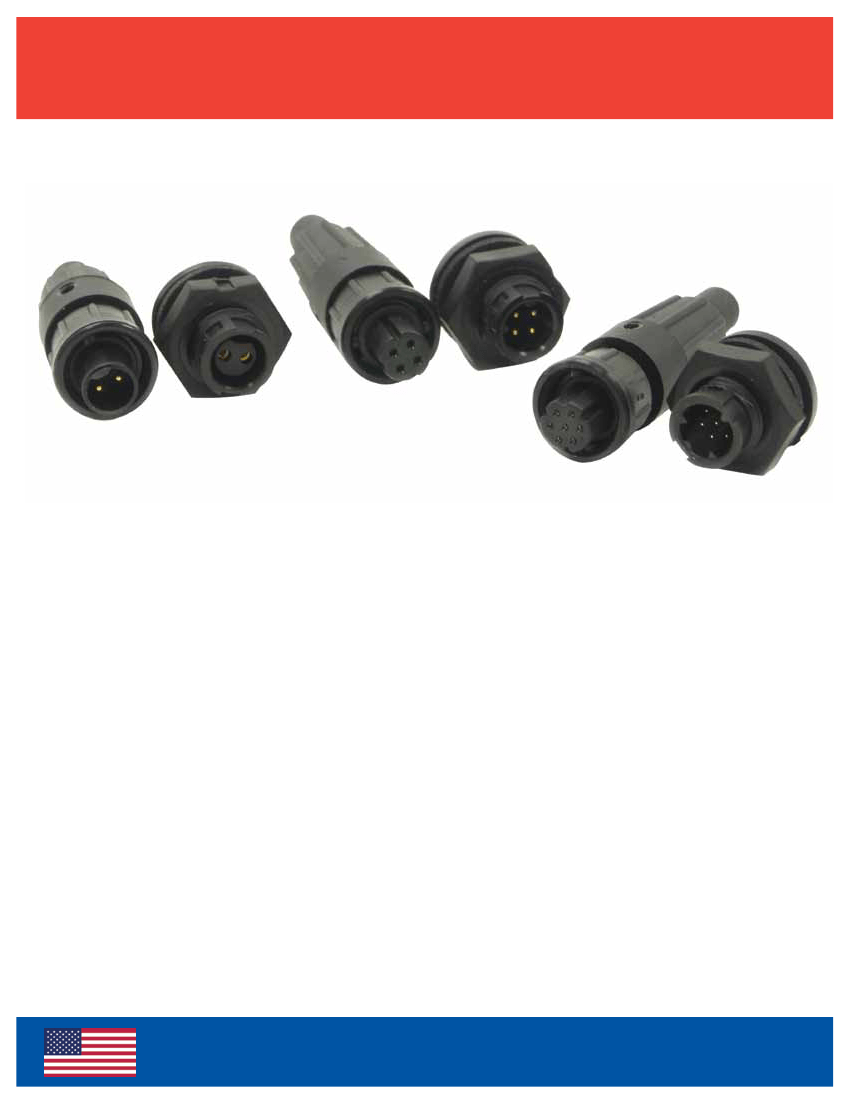

FEATURES & BENEFITS
• Up to 7 contacts in compact design
• IP-67 rating, at the face (when mated)
• IP-67 molded cable assemblies
(when mated)
• All plastic design is light weight
• Variety of standard options to meet
all design specifications
• Custom cable
assemblies available
• UL recognized
APPLICATIONS
• Instrumentation
• Medical Equipment
• Lighting
• GPS Locating Devices
• Data Acquisition
• General industrial
electronic applications
CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504
Please visit conxall.com for the most up-to-date product specifications. Made in USA.
MICRO-CON-X® 2-7
NEW PRODUCT BULLETIN C708
SpecificationS
Mechanical Specifications
Life:
Vibration:
Hex Nut Torque:
Coupling Locking Style:
Backshell Style:
Conductor Sizes:
Minimum 300 cycles insertion / withdrawal cycles
Coupling rings have overriding locking feature to prevent loosening or separation of connector
9 in-lb max tightening torque.
Bayonet with ribbed coupling nut (winged coupling nut available) P/N 16482
Non-removable snap lock
#20 accepts 20 through 24 AWG
#22 contacts accepts 22 through 24 AWG
#26 contacts accepts 24 through 28 AWG
600V AC/DC
7.5 A – max (See Electrical Current Rating Chart)
-40ºC to +85ºC (-40ºF to +185°F)
300 Hr salt spray when mated
IP67 at the face, when mated
Thermoplastic, UL 94HB, Black
Copper Alloy, Gold over Nickel Plate
Thermoplastic, UL 94HB, Black
Elastomer, Black
Elastomer, Black
Thermoplastic, UL 94HB, Black
Elastomer, Black
Thermoplastic, UL 94HB, Black
Elastomer, Black
NEMA 6P, 13: IEC IP67
UL File E150822
CSA File 181200
Not for current interruption
RoHS compliant
REACH compliant
f1 available
UL 94-HB; UL 94V-0 available
electrical Specifications
Voltage Rating:
Current Rating:
environmental Specifications
Operating Temperature Rating:
Salt Atmosphere (Corrosion):
Weathertight:
Material Specifications
Backshell:
Contacts:
Coupling Ring:
Gasket:
Grommet / Strain Relief:
Hex Nut:
O-Ring:
Shell:
Optional Dust Cap:
Weathertight:
Molded cable assemblies
certifications
options
UV Rating:
Flame Rating:
Consult factory for optional colors and materials

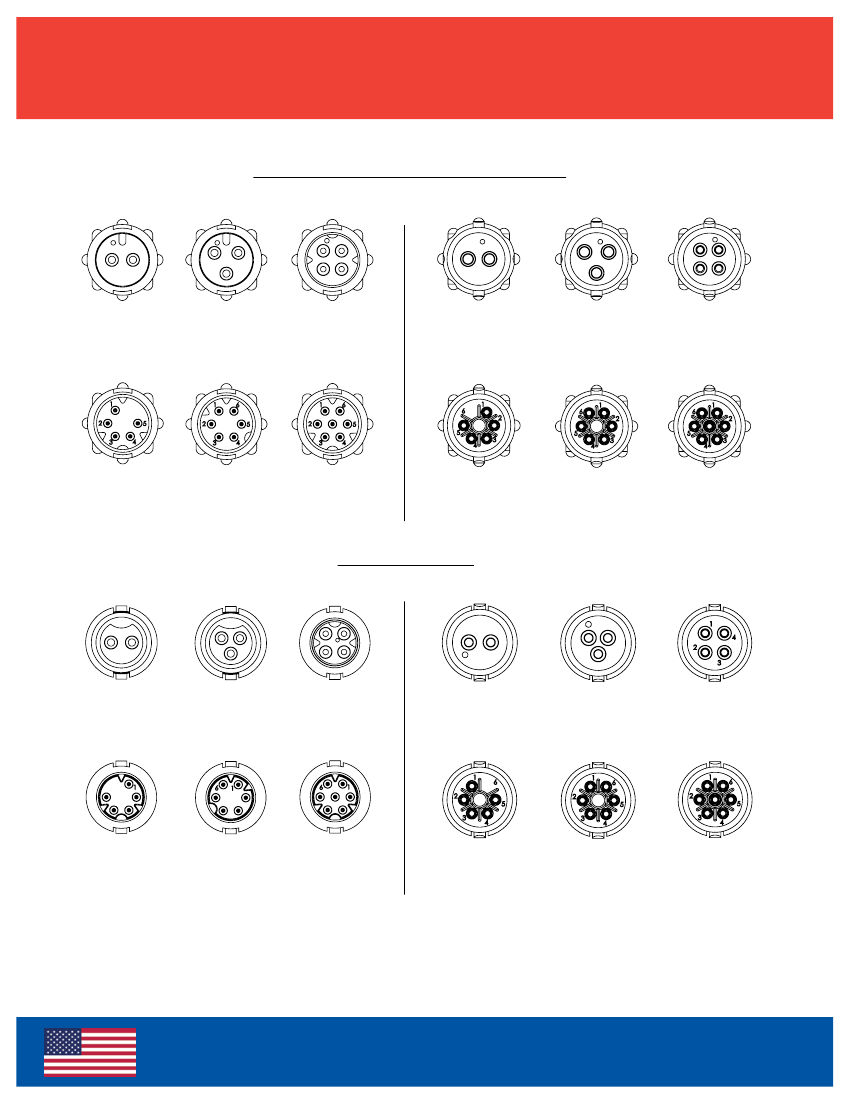

contact SiZe
#20
#22
conDUctoR SiZe - aWG
#18
#20
#22
#24
#24
#26
#24
#26
#28*
nUMBeR of conDUctoRS
1 through 3
1 through 3
4
4
5, 6
5, 6
7
7
5-7
*Not UL tested for this wire conductor size
#26
cURRent RatinG
7.5A
7.5A
6.0A
6.0A
4.0A
4.0A
3.5A
3.5A
2.0A
CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504
Please visit conxall.com for the most up-to-date product specifications. Made in USA.
MICRO-CON-X® 2-7
NEW PRODUCT BULLETIN C708

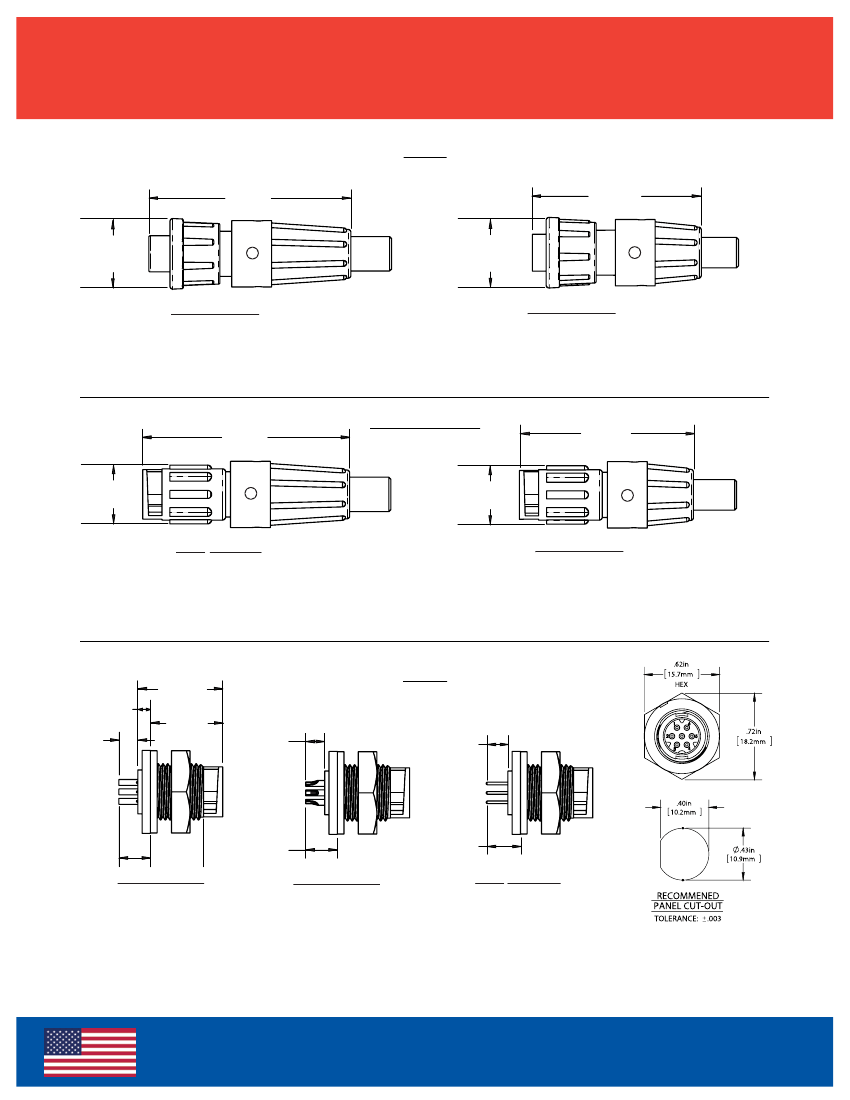

caBLe
1.52in
[38.7mm]
1.27in
[32.3 mm]
0.53in
[13.5mm]
0.53in
[13.5mm]
16XXX-XXG-5XX
FIELD INSTALLABLE
CABLE CONNECTOR
BACKSHELL TYPE 5-LONG
16XXX-XXG-3XX
FIELD INSTALLABLE
CABLE CONNECTOR
BACKSHELL TYPE 3-SHORT
*2 & 3 POSITION ONLY*
1.56in
[39.6mm]
caBLe to caBLe
1.31in
[33.3mm]
0.44in
[11.2mm]
0.44in
[11.2mm]
18XXX-XXG-5XX
FIELD INSTALLABLE
CABLE TO CABLE
CONNECTOR
BACKSHELL TYPE 5-LONG
18XXX-XXG-3XX
FIELD INSTALLABLE
CABLE TO CABLE
CONNECTOR
BACKSHELL TYPE 3-SHORT
*2 & 3 POSITION ONLY*
0.10in
[2.4 mm]
X
0.55in
[13.9 mm]
Z
SKIRT
paneL
X
X
Y
Y
Y
17X80-XXG-3XX
PANEL MOUNT CONNECTOR
CRIMP
17X82-XXG-3XX
PANEL MOUNT CONNECTOR
SOLDER CUP
17X8X-XXG-3XX
PANEL MOUNT CONNECTOR
PC TAIL
*X, Y, Z - CONSULT FACTORY
All dimensions are for reference only.
CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504
Please visit conxall.com for the most up-to-date product specifications. Made in USA.
