DF20A-30DS-1V: Description1 mm pitch double rows low profile board-to-cable connectors; File Size231KB，7 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet View All

DF20A-30DS-1V Overview

1 mm pitch double rows low profile board-to-cable connectors

Preview

Download Datasheet

View All

NEW

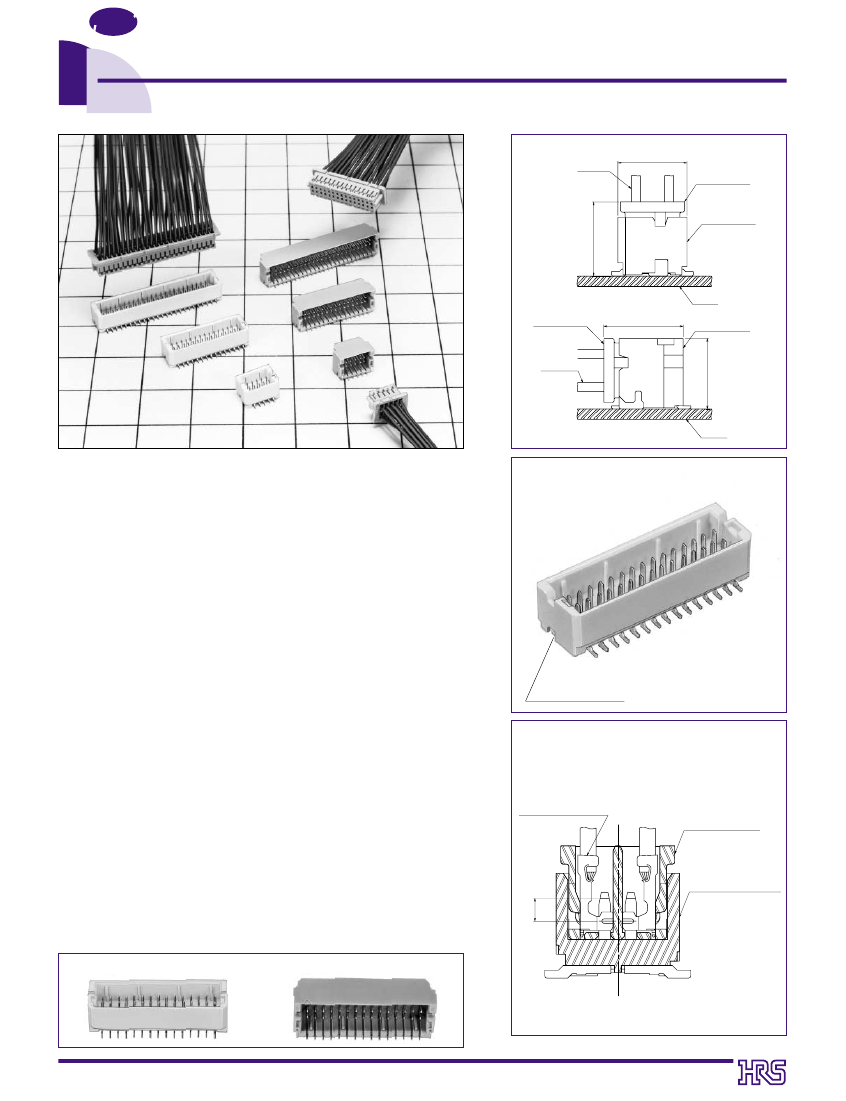

1 mm Pitch Double Rows Low Profile Board-to-Cable Connectors

DF20 series

5.4

Socket

DF20A-

**DS-1C

DF20F(G)-

**DP-1V

Header

5.8

Cable

PCB

DF20A-

**DS-1C

Socket

Cable

6.2

DF20F

**DP-1H

Header

5.5

PCB

DF20A-**DS-1C

Socket

DF20F(G)-**DP-1V

Pin Header

sFeatures

1. Contact Pitch

1 mm contact pitch allows reliable solder and cable

termination.

Narrower external width and length

2. Low profile

Total mating height above the board is 5.8 mm for the

straight type and 5.5 mm for the right angle type.

3. Reliable electrical connection wipe

Effective electrical connection is assured with a 1mm wipe of

mating contacts.

4. Narrower external width and length

Redesigned metal fittings decreased the overall length of the

board- mount receptacle and permit end-to-end mounting of

several connectors.

Metal fitting

5. Automatic equipment board placement

Straight type pin headers are supplied with a 5.4 mm X 4.6mm

flat platform to allow vacuum pick-up and placement on the

board.

6. Product variations

(1) Available with 10, 20, 30, 40, and 50 contacts.

(2) Pin headers are available in two types: with or without

board positioning bosses.

(3) Depending on specific application pin headers can be

ordered in straight or right angle types.

DF20F-****SCFA

Contact

sApplications

Notebook PC, small office automation equipment, small

consumer devices, portable devices.

Any application requiring low profile reliable board-to-cable

connection with a AWG #28, AWG#30, AWG#32 conductors.

1mm Pitch, Double Rows
