LGR4609-7000: DescriptionAudio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LGR4609-7000 Overview

Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,

LGR4609-7000 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	6.3mm AUDIO
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of poles	3
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLID LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

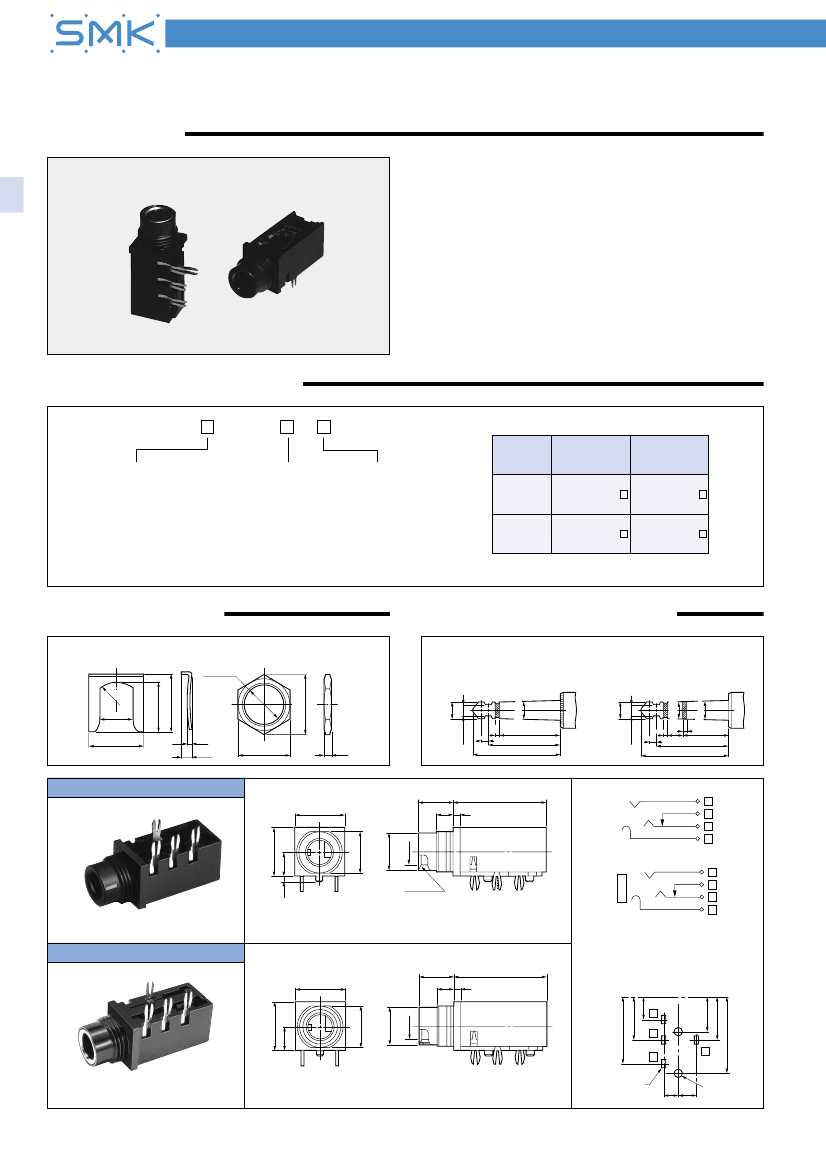

Phone Jack, MS-1 Series

Features

1. Readily adaptable to either monaural or stereo circuits,

which helps standardize jacks allowing to keep inventory

levels low.

2. Choice of with or without a sleeve metal version is

available.

3. Choice of with or without a top cover version is available.

PHONE JACKS

Numbering System

L G R 4 6

(Metal Sleeve)

0 : Without Metal

1 : With Metal

9 – 7

0

(Accessories)

0 : None

1 : Mounting Plate

2 : Hexagon Nut

(Cover)

0 : Without

5 : With

Cover

With

Without

Without Metal

LGR4609-750

LGR4609-700

With Metal

LGR4619-750

LGR4619-700

Accessories

Mounting Plate

Hexagon Nut

Applicable Plug

M12X1

16.2

15

18

Circuit No.1

EIAJ RC-6701A

EIAJ RC-6701A plug

Circuit No.2.7

EIAJ RC-6701A

EIAJ RC-6701A plug

ø6.34

9

17

1

2.5

1.5

2.5

14

2

21

25

31

1.5 5 1 16

2.5

25

31

ø3.8

LGR4609-7000

13

ø10.4

ø6.43

9

4.5 2

24.5

Circuits

3

4

2

1

13

6.5

10.6

3

4

2

1

1.5

CO.6

Without Metal

9

4.5 2

ø10.4

ø6.43

24.5

(Recommended P.W.Board Dimension)

LGR4619-7500

13

(The Pattern Side)

17.3

11.3

5.8

1

3

4

ø3.8

13

6.5

10.6

With Metal

2.2X0.8

4 4.5 ø2.1

9

11.3

20

2

ø6.34

ø6.2

ø6

R6

.2

Base

LGR4609-7000 Related Products

	LGR4609-7000	LGR4609-7001	WQFN20612401C	LGR4609-7002	LGR4609-7501	LGR4609-7500
Description	Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,	RES,SMT,THIN FILM,12.4K OHMS,100WV,.2% +/-TOL,-100,100PPM TC,0202 CASE	Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	-	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	-	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	6.3mm AUDIO	6.3mm AUDIO	-	6.3mm AUDIO	6.3mm AUDIO	6.3mm AUDIO
DIN compliance	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO
MIL compliance	NO	NO	-	NO	NO	NO
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of poles	3	3	-	3	3	3
Number of ports	1	1	-	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	-	SOLID LEAD	SOLID LEAD	SOLID LEAD
Base Number Matches	1	1	-	1	1	1
