82-22-6034: Descriptioncable rnd cond 34pos 22awg 100'; CategoryWire/cable; File Size51KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet View All

82-22-6034 Overview

cable rnd cond 34pos 22awg 100'

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 36 circuits

Tested for insulation resistance

Tin topcoat provides easy PCB card direct termination

Bulk cable available on 100, 300 and 500’ reels

To order notched bulk cable, jumpers cut to length or

complete cable assemblies, contact Molex

Reference Information

UL File No.: E61522

UL Style No.: 2651

CSA File No.: LL61126

Use With: 40555,

7720, 70400

and

70475

IDT connectors

Designed In: Inches

Electrical

Voltage: 300V

See Electrical Speciﬁcations Table

on Page H-29 for More Information

Physical

Flammability: VW-1

Operating Temperature: -20 to +105˚C

Insulation: Gray PVC

Edge Mark: Black

2.54mm (.100") Pitch

Round Conductor Flat Cable

7767

28 AWG (7 x 36) Stranded, Topcoat

8996

26 AWG (7 x 34) Stranded, Topcoat

8997

24 AWG (7 x 32) Stranded, Topcoat

8867

22 AWG (7 x 30) Stranded, Topcoat

Ribbon Cable Systems

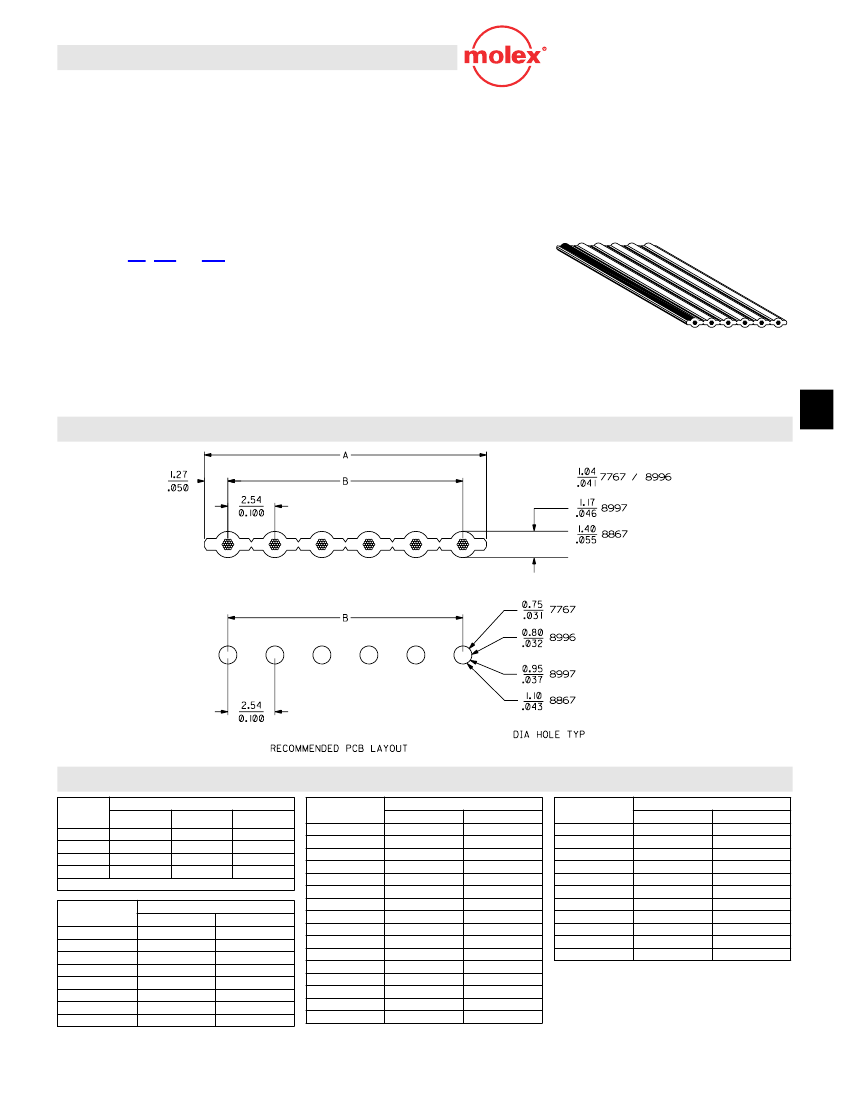

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

For Cable

Series

No.

7767-XX

8996-XX

8997-XX

8867-XX

Order No.

100’ Reel

300’ Reel

500’ Reel

• 82-28-6XX1

• 82-28-6XX3

• 82-28-6XX8

• 82-26-58XX

• 82-26-71XX

• 82-26-76XX

• 82-24-59XX

• 82-24-60XX

• 82-24-65XX

• 82-22-60XX

• 82-22-65XX

• 82-22-74XX

Replace "XX" with number of circuits, 02-36

Dimension

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

(.100)

(.200)

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

Circuits

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

Dimension

(1.000)

(1.100)

(1.200)

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

(2.500)

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

(.900)

(1.000)

(1.100)

(1.200)

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

Circuits

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

Dimension

(2.600)

(2.700)

(2.800)

(2.900)

(3.000)

(3.100)

(3.200)

(3.300)

(3.400)

(3.500)

(3.600)

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

(2.500)

(2.600)

(2.700)

(2.800)

(2.900)

(3.000)

(3.100)

(3.200)

(3.300)

(3.400)

(3.500)

Circuits

• US Standard Product, available through Molex franchised distributors

MX01

H-39
