B012-L15-01 datasheet, PDF - EEWORLD Datasheet

B012-L15-01: DescriptionBlindmate Connector, Male, Board Mount, Surface Mount Terminal,; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerCorning Gilbert Inc

Download Datasheet Parametric Compare View All

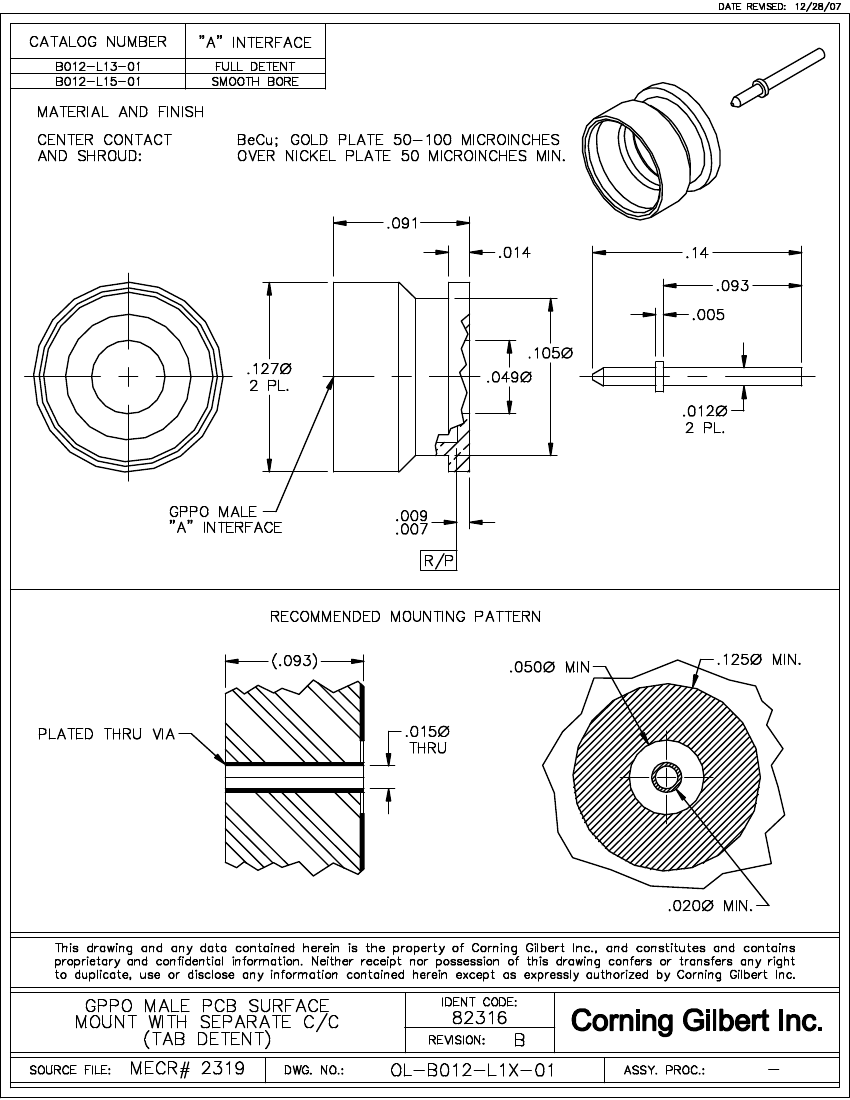

B012-L15-01 Overview

Blindmate Connector, Male, Board Mount, Surface Mount Terminal,

Parameter Name	Attribute value
Maker	Corning Gilbert Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	GPPO
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	B012-L
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	65 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SURFACE MOUNT
voltage standing wave ratio	1.3
Base Number Matches	1

	B012-L15-01	B012-L13-01
Description	Blindmate Connector, Male, Board Mount, Surface Mount Terminal,	Blindmate Connector, Male, Board Mount, Surface Mount Terminal,
Maker	Corning Gilbert Inc	Corning Gilbert Inc
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	GPPO	GPPO
Characteristic impedance	50 Ω	50 Ω
Connector type	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	B012-L	B012-L
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	65 GHz	65 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SURFACE MOUNT	SURFACE MOUNT
voltage standing wave ratio	1.3	1.3
Base Number Matches	1	1
