EX-4212-EEJ-2082-10M0000000: DescriptionSine Output Oscillator; CategoryPassive components oscillator; File Size293KB，5 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

EX-4212-EEJ-2082-10M0000000 Overview

Sine Output Oscillator

EX-4212-EEJ-2082-10M0000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	8034971163
Reach Compliance Code	compliant
Other features	TR
Ageing	0.1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.02%
Frequency Stability - Voltage	0.005 ppm
input power	0.25 W
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	8
offset frequency	1 kHz
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.632 V
Oven power supply voltage	3.3V
phase noise	-160 dBc/Hz
physical size	13.46mm x 13.46mm x 9.8mm
Maximum supply voltage	3.46 V
Minimum supply voltage	3.14 V
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Preheating power	1.5 W
Maximum warm-up time	1 Minute

EX-4212-EEJ-2082-10M0000000 Preview

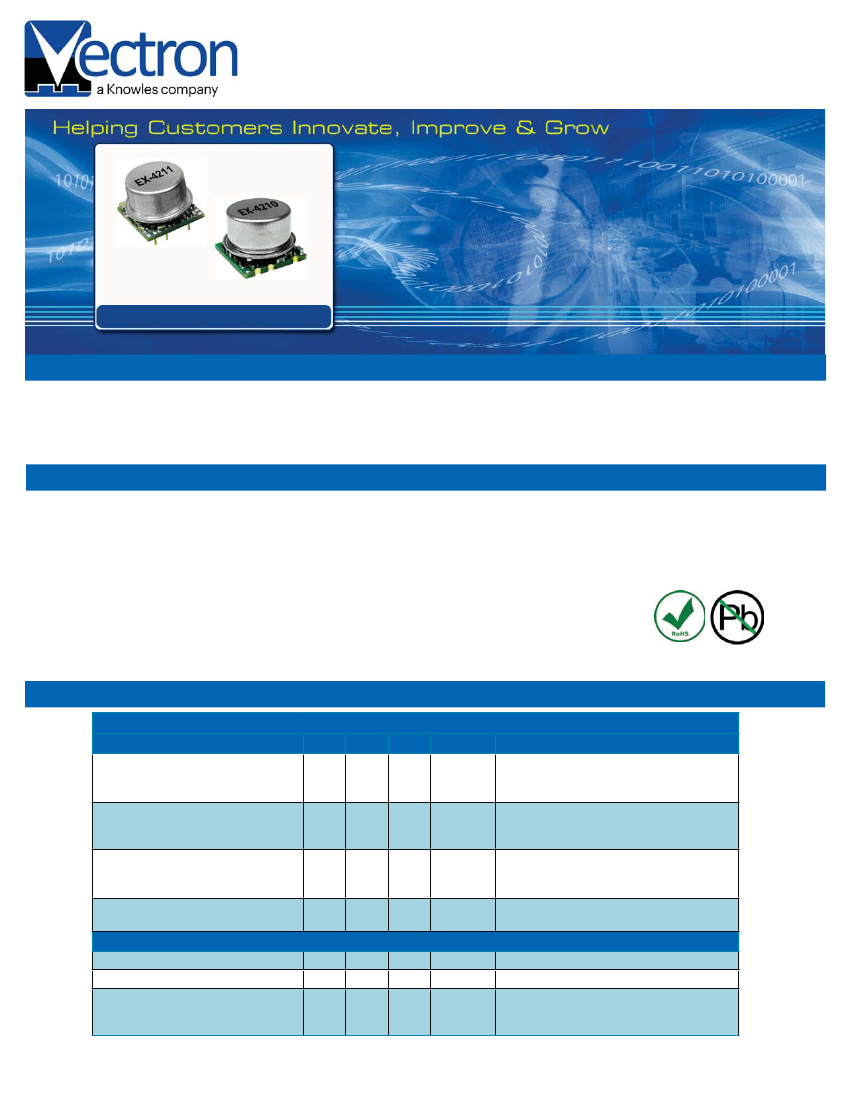

EX-421

Evacuated Miniature Crystal Oscillator

EX-421

Description

The EX-421 provides exceptionally low aging rates and tight temperature stabilities in an extremely small package over a wide

range of environmental conditions. This EMXO series bridges the gap between current large, high precision OCXO’s and smaller

TCXO’s. The EX-421 Series becomes the most economical choice where there is a need for spectral purity, short and long term

stability, along with small size and dramatically reduced power consumption.

Features

Low Power Consumption Precision Oscillator

Fast Warm-up

Low Phase Noise

Good Aging

Small Form Factor

SMD and Thru-Hole Mounting Option

RoHS Compliant

*

Standard Frequencies: 10MHz, 20MHz and 100MHz

Design/Material Sourcing/Manufacture/Test in MHS,PA COO:USA

No ITAR Restriction for importing EAR99

Previous Model Number: EX-620, EX-420 series

•

Applications

Mobile Data Communications

Military Portable Radio

Satellite Communications

Airborne Equipment

Avionics

Instrumentation

Marine/Land Seismic

•

*

Performance Specifications

Frequency Stabilities

1

Min

Max

Condition

Initial Accuracy

Supply Voltage (Vs)

VDC

Watts

1 of 5

Performance Specifications

Min

Max

HCMOS

VDC

ns

Duty cycle

Sinewave

Condition

dBc

Frequency Tuning (EFC)

Vdc

VDC

Positive

Additional Parameters

Acceleration Sensitivity

Absolute Maximum Ratings

VDC

Standard Environmentals

Sine

Vibration Random

Solderability

MIL-STD-202, Method 204, Condition G (30g peak, 10Hz-2000Hz)

MIL-STD-202, Method 214, Condition I-H (30g RMS, 10Hz-2000Hz)

E 1000 g 0.5

MIL-STD-883, Method 2003

1/2 sine

2 of 5

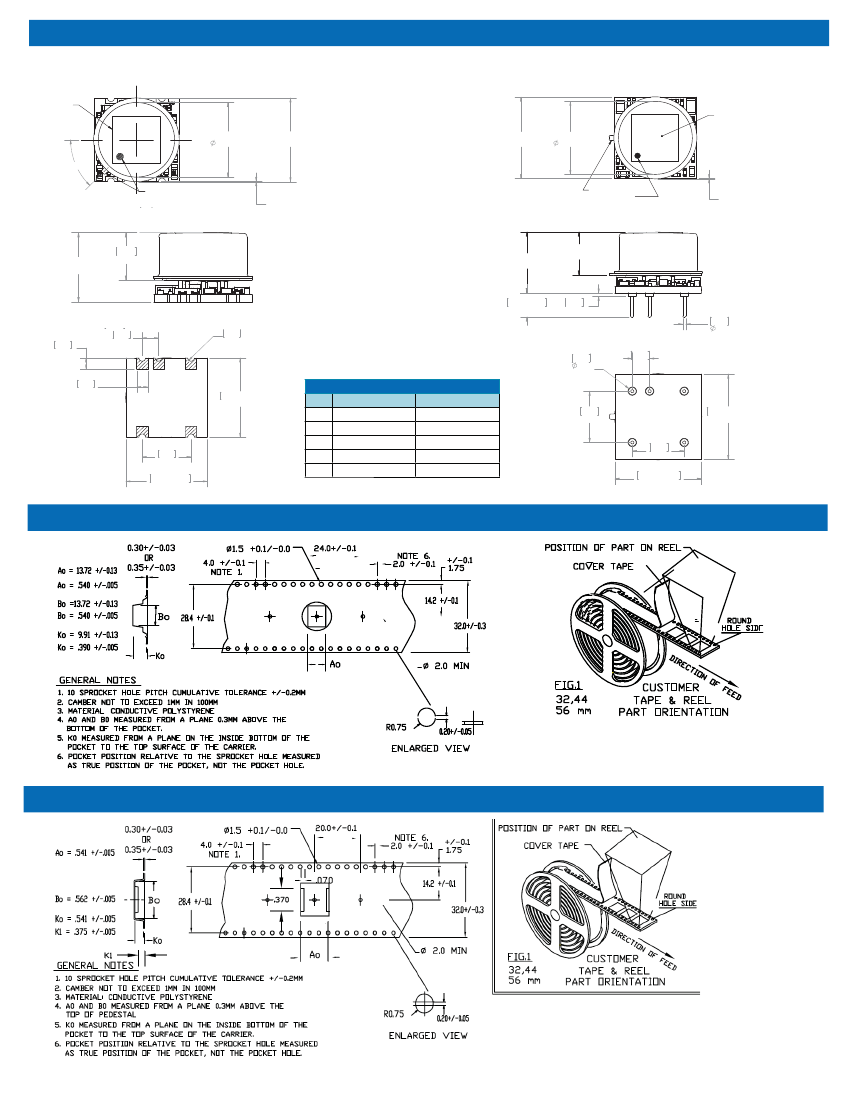

Outline Drawing / Enclosure

Surface Mounture

LABEL

ure

Thru-hole

[11.43] MAX

.450 MAX

45°

[13.46] MAX

.530 MAX

[13.46] MAX

.530 MAX

[11.43. MAX

.450 MAX

METAL TAB AND

DOT INDICATE PIN 1

[0.64] MAX

0.025 MAX

(ALL 4 SIDES)

METAL TAB AND DOT

INDICATE PIN 1

[.64] MAX

.025 MAX

(ALL 4 SIDES)

[9.80] MAX

.385 MAX

6.60

.260

[9.40] MAX

.370 MAX

[6.60]

.260 REF

3.72±0.254

.146±.010

0.51

.020

0.46

.018

1.73

.068

2.54

.100

1

2

4

0.51

R.020

1.14

.045

(5X)

1.73

.068

2.54

.100

Pin Connections

12.70±0.254

.500±.010

7.62

.300

1

2

4

12.70±0.254

.500±.010

8

5

No Connection

8

5

4

5

7.62

.300

12.70±0.508

.500±.020

7.62

.300

12.70±0.508

.500±.020

Standard Shipping Method (surface mount)

Hi Janice,

We can offer MOQ of 10+pcs with

our 25+pcs pricing, under Stan-

dard USD price list. Please quote

and Jake will approve the MOQ

and price.

Thanks,John

Standard Shipping Method (thru-hole)

3 of 5

Recommended Reflow Profiles for Pb-Free & Sn-Pb

tp

T

p

Ramp up

Ts

Critical Zone

T

L

to T

p

T

L

Temperature

t

L

Ramp dow n

Ts

ts

preheat

25

t 25°C to peak

Time

230°C Reflow Profile

W

&

^ W

3°C/seconds max.

135°C

155°C

60-90 seconds

3°C/seconds max.

183°C

40-60 seconds

max 230°C

Time within 5°C of actual

Peak Temperature (tp)

Ramp-down Rate

6°C/seconds max.

10-20 seconds max.

W

&

^ W

4 minutes max.

Average ramp-up rate (TL to TP)

Preheat - Temperature min Tsmin

- Temperature Min Tsmax

- Time (min to max) (ts)

Tsmax to TL -Ramp-up Rate

Time maintained above - Temperature (TL)

- Time (TL)

Peak Temperature (Tp)

E

Time 25°C to Peak Temperature

Time maintained above

- Temperature (TL)

- Time (tL)

183°C

45-60 seconds

All temperatures refer to topside of the package, measured on the package body surface.

260°C Reflow Profile

W

&

W &

3°C/seconds max.

150°C

200°C

60-180 seconds

3°C/seconds max.

217°C

60-150 seconds

max 260°C

Time within 5°C of actual

Peak Temperature (tp)

Ramp-down Rate

6°C/seconds max.

20-40 seconds max.

W

&

W &

8 minutes max.

Average ramp-up rate (TL to TP)

Preheat - Temperature min Tsmin

- Temperature min Tsmax

- Time (min to max) (ts)

Tsmax to TL -Ramp-up Rate

Time maintained above - Temperature (TL)

- Time (TL)

Peak Temperature (Tp)

E

Time 25°C to Peak Temperature

Time maintained above

- Temperature (TL)

- Time (tL)

217°C

60-150 seconds

All temperatures refer to topside of the package, measured on the package body surface.

4 of 5

Ordering Information

EX - 421 0 - D A P - 108 0 - 10M0000000

Frequency

Frequency Control

Configuration

Thru-hole

Thru-hole with Solder Coated Leads

Supply Voltage

508: ±50ppb

758: ±75ppb

107: ±100ppb

Stability Code

d

^

Z

^

&

d

^

d

108 (+/-10ppb)

208 (+/-20ppb)

308 (+/-30ppb)

508 (+/-50ppb)

758 (+/-75ppb)

107 (+/-100ppb)

A: -55°C to +85°C E: -40°C to +85°C J: -20°C to +70°C P: 0°C to +50°C

10-20MHz

10-50MHz

10-80MHz

10-100MHz

10-20MHz

10-50MHz

10-100MHz

10-20MHz

10-50MHz

10-100MHz

10-20MHz

10-50MHz

10-100MHz

Aging Table

Notes:

(+/-10ppb)

1.

208 (+/-20ppb)

frequencies.

2.

308 (+/-30ppb) 10-30MHz

4.

10-30MHz

Subject to technical modification.

Contact factory for availability.

For Additional Information, Please Contact

USA:

Vectron International

Europe:

Vectron International

Asia:

Vectron International

Disclaimer

Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.

No rights under any patent accompany the sale of any such product(s) or information.

Rev: 8/4/2015 JV

5 of 5
