HIGH PERFORMANCE DP3T-SPDT SWITCHES PLATINUM Series
PAGE
1/12
ISSUE
07-01-2015
SERIES
DP3T/SPDT
PART NUMBER
R595 XXX XXX
DP3T-SPDT Coaxial Switches DC to 6 GHz, DC to 20 GHz, DC to 26.5 GHz, DC to 40 GHz
Radiall’s PLATINUM SERIES switches are optimised to perform at a high level over an extended life span. With outstanding RF
performances, and a guaranteed Insertion Loss repeatability of 0.03 dB over a life span of 10 million switching cycles. PLATINUM
SERIES switches are perfect for automated test and measurement equipment, as well as signal monitoring devices.

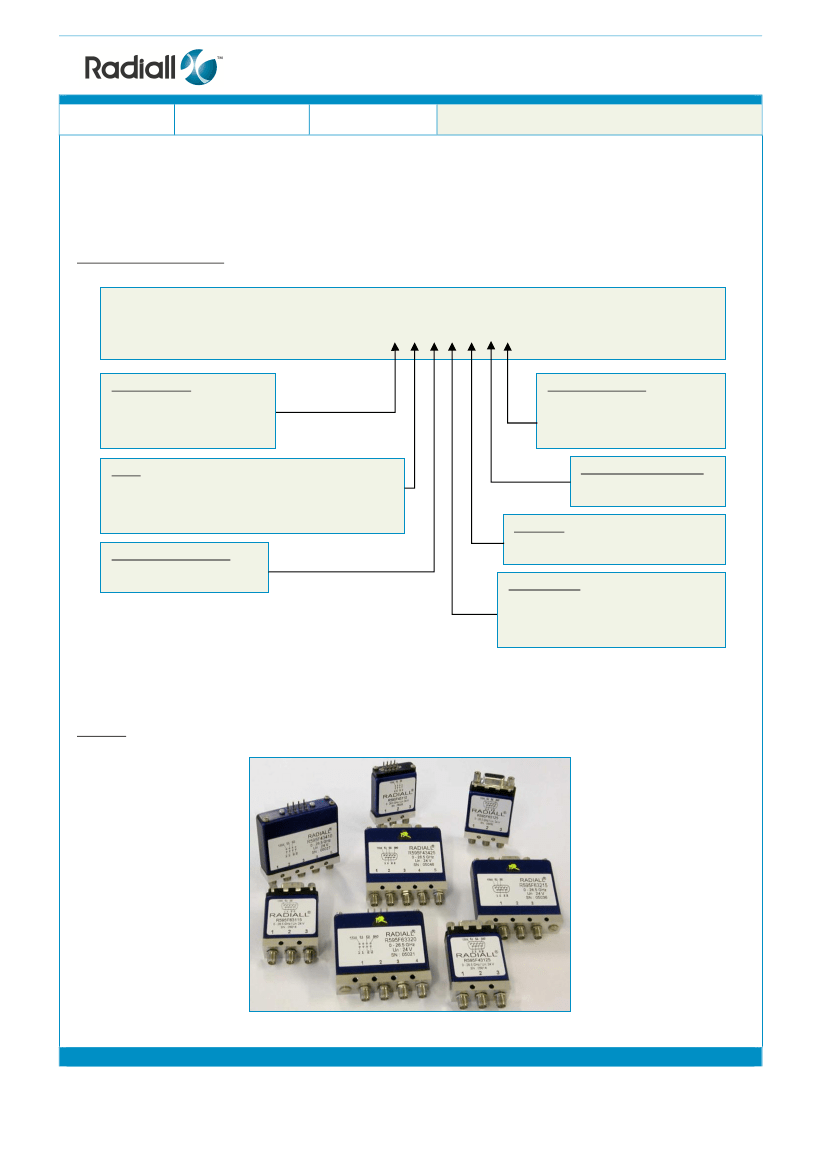

PART NUMBER SELECTION
R595_______
RF Connectors :
3 : SMA up to 6 GHz
4 : SMA up to 20 GHz
F : SMA up to 26.5 GHz
8 : SMA 2.9 up to 40 GHz (1)
TYPE :
3 : Latching
4 : Latching + Indicators
5 : Latching + Self Cut-Off
6 : Latching + Self Cut-Off + Indicators
ACTUATOR VOLTAGE :
3 : 24Vdc
7 : 15Vdc
DOCUMENTATION :
- : Certificate Of Conformity
C : Calibration certificate
R : Calibration certificate
+ RF curves
ACTUATOR TERMINAL :
0 :Solder pins
5 : D-Sub connector
OPTIONS :
1 : Without option (Positive common)
2 : Compatible TTL driver (High level)
Switch model :
1 : Non terminated SPDT switch
2 : Terminated SPDT switch
3 : Terminated 4 port bypass switch
4 : Non terminated 5 port DP3T switch
(1)
Connector SMA2.9 is equivalent to “K Connector
®
”, registered trademark of Anritsu
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
HIGH PERFORMANCE DP3T-SPDT SWITCHES PLATINUM Series
PAGE
2/12
ISSUE
07-01-2015
SERIES
DP3T/SPDT
PART NUMBER
R595 XXX XXX
RF PERFORMANCES
PART NUMBER
Frequency Range
GHz
Impedance
Ohms
Insertion Loss dB
(Maximum)
Isolation dB
(Minimum)
R5953-----
DC to 6
R5954-----
DC to 20
50
0.20 + (0.45 / 26.5) x frequency (GHz)
DC to 6 GHz : 85
6 to 12.4 GHz : 75
12.4 to 20 GHz : 65
DC to 6 GHz : 85
6 to 12.4 GHz : 75
12.4 to 20 GHz : 65
20 to 26.5 GHz : 60
DC to 6 GHz : 1.15
6 to 12.4 GHz : 1.25
12.4 to 20 GHz : 1.30
20 to 26.5 GHz : 1.60
DC to 6 GHz : 85
6 to 12.4 GHz : 75
12.4 to 20 GHz : 65
20 to 26.5 GHz : 60
26.5 to 40 GHz : 55
DC to 6 GHz : 1.15
6 to 12.4 GHz : 1.25
12.4 to 20 GHz : 1.30
18 to 26.5 GHz : 1.60
26.5 to 40 GHz : 1.80
R595F-----
DC to 26.5
R5958-----
DC to 40
85
V.S.W.R.
(Maximum)
Third order Inter Modulation
Repeatability
(up to 10 million cycles
measured at 25°C)
1.15
DC to 6 GHz : 1.15
6 to 12.4 GHz : 1.25
12.4 to 20 GHz : 1.30
-120 dBc typical (2 carriers 20W)
0.03 dB maximum
0.05 dB maximum

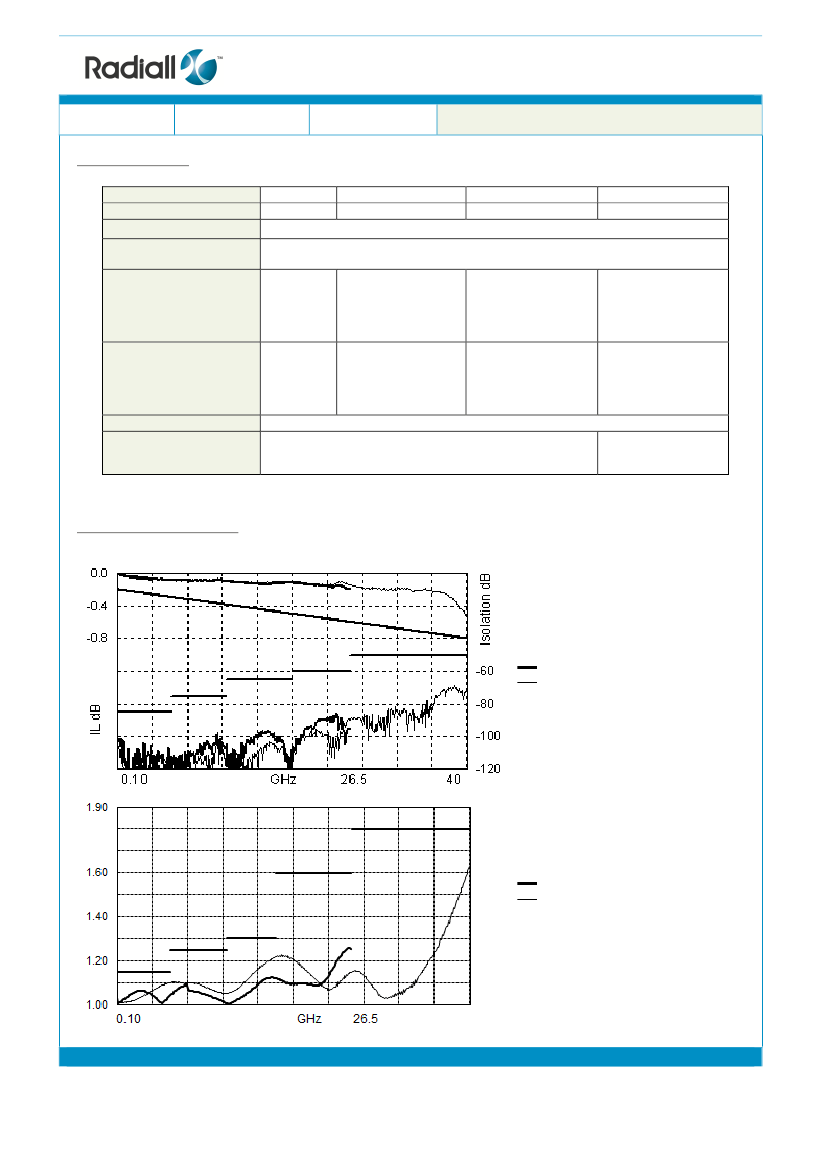

TYPICAL RF PERFORMANCES
Insertion Loss and Isolation :
26.5GHz model with SMA connector
40GHz model with SMA2.9 connector
V.S.W.R :
26.5GHz model with SMA connector
40GHz model with SMA2.9 connector
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
HIGH PERFORMANCE DP3T-SPDT SWITCHES PLATINUM Series
PAGE
3/12
ISSUE
07-01-2015
SERIES
DP3T/SPDT
PART NUMBER
R595 XXX XXX
ADDITIONAL SPECIFICATIONS
Operating mode
Nominal operating voltage (Vdc)
(across operating temperature)
Coil resistance (+/-10%) (Ohms)
Nominal operating current at 23°C (mA)
All models
Average power
Terminated model
High Level
TTL input
Low Level
SPDT
Terminated SPDT, DP3T, Bypass
Latching
24
(20 / 32)
350
175
15
(12 / 20)
120
60
SPDT
68
125
Terminated SPDT, DP3T, Bypass
140
250
RF path
Cold switching : See Power Rating Chart on final page
Hot switching : 1 Watt CW
Internal terminaisons 1 Watt average into 50
External terminations 0.5 Watt average into 50
3 to 7 V
800 µA max at 7 V
0 to 0.8 V
15
10 million cycles
5 million cycles
SMA – SMA 2.9
D-Sub pin female
Solder pins
< 60
< 100
20 µA max at 0.8V
Switching time max (ms)
Life min for
SMA
SMA 2.9
Connectors
Actuator terminal
Weight max (g)
SPDT
Terminated SPDT, DP3T,
Bypass
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
(°C)
Storage temperature range
(°C)
Temperature cycling
(MIL-STD-202 , Method 107D , Cond.A) (°C)
Sine vibration operating
(MIL STD 202 , Method 204D , Cond.D)
Random vibration operating
Shock operating
(MIL STD 202 , Method 213B , Cond.G)
Humidity operating
Humidity storage
(MIL STD 202 , Method 106E , Cond.E)
Altitude operating
Altitude storage
(MIL STD 202 , Method 105C , Cond.B)
-25 to +75
-55 to +85
-55 to +85 (10 cycles)
10-2000 Hz, 20g
16.91g (rms) 50–2000 Hz 3min/axis
50g / 11 ms, sawtooth
15 to 95% relative humidity
65°C, 95% RH, 10 days
15,000 feet (4,600 meters)
50,000 feet (15,240 meters)
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
HIGH PERFORMANCE DP3T-SPDT SWITCHES PLATINUM Series
PAGE
4/12
ISSUE
07-01-2015
SERIES
DP3T/SPDT
PART NUMBER
R595 XXX XXX
SWITCH MODEL 1 : NON TERMINATED SPDT SWITCH
The non-terminated SPDT switch is a single pole double throw switch. This switch is “break before make”.

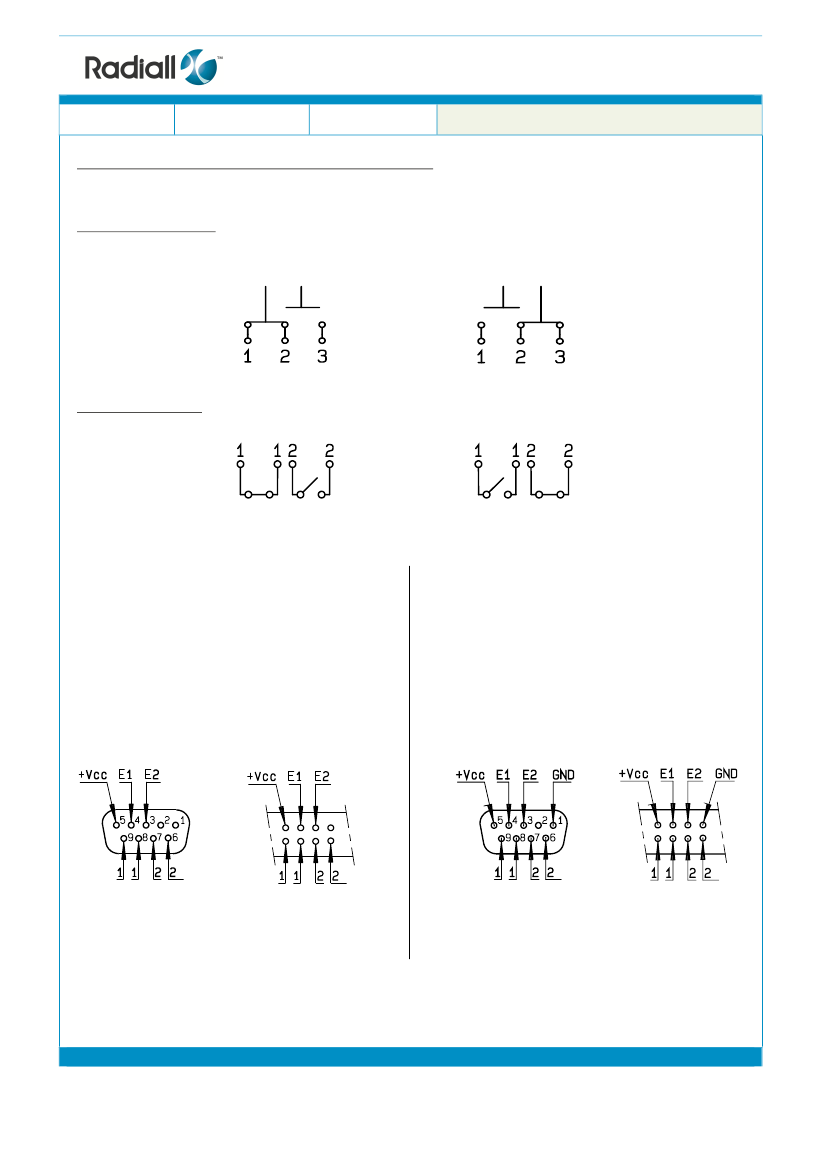

RF SCHEMATIC DIAGRAM
Position E1
Position E2
INDICATORS POSITION
State “11”
State “22”
Standard drive option “1” (Positive common):
Connect pin +Vcc to supply
Select desired RF path by applying ground to the
corresponding "Close" pin (Ex: ground pin E1 to switch to
position E1. RF path 1-2 closed and RF path 2-3 open).
To open desired path and close the new RF path, connect
ground to the corresponding “close” pin (Ex: ground pin E2
to open RF path 1-2 and close RF path 2-3)
TTL drive option “2”
Connect pin GND to ground.
Connect pin +Vcc to supply
Select (close) desired RF path by applying TTL "High " to
the corresponding "drive" pin (Ex: apply TTL "High" to pin
E1 to switch to position E1. RF path 1-2 closed and RF
path 2-3 open).
To open desired path and close the new RF path, apply
TTL "High" to the "drive" pin which corresponds to the
desired RF path.
(Ex: apply TTL “High” to pin E2 to open RF path 1-2 and
close RF path 2-3).
D-Sub connector
Solder pins
D-Sub connector
Solder pins
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
HIGH PERFORMANCE DP3T-SPDT SWITCHES PLATINUM Series
PAGE
5/12
ISSUE
07-01-2015
SERIES
DP3T/SPDT
PART NUMBER
R595 XXX XXX

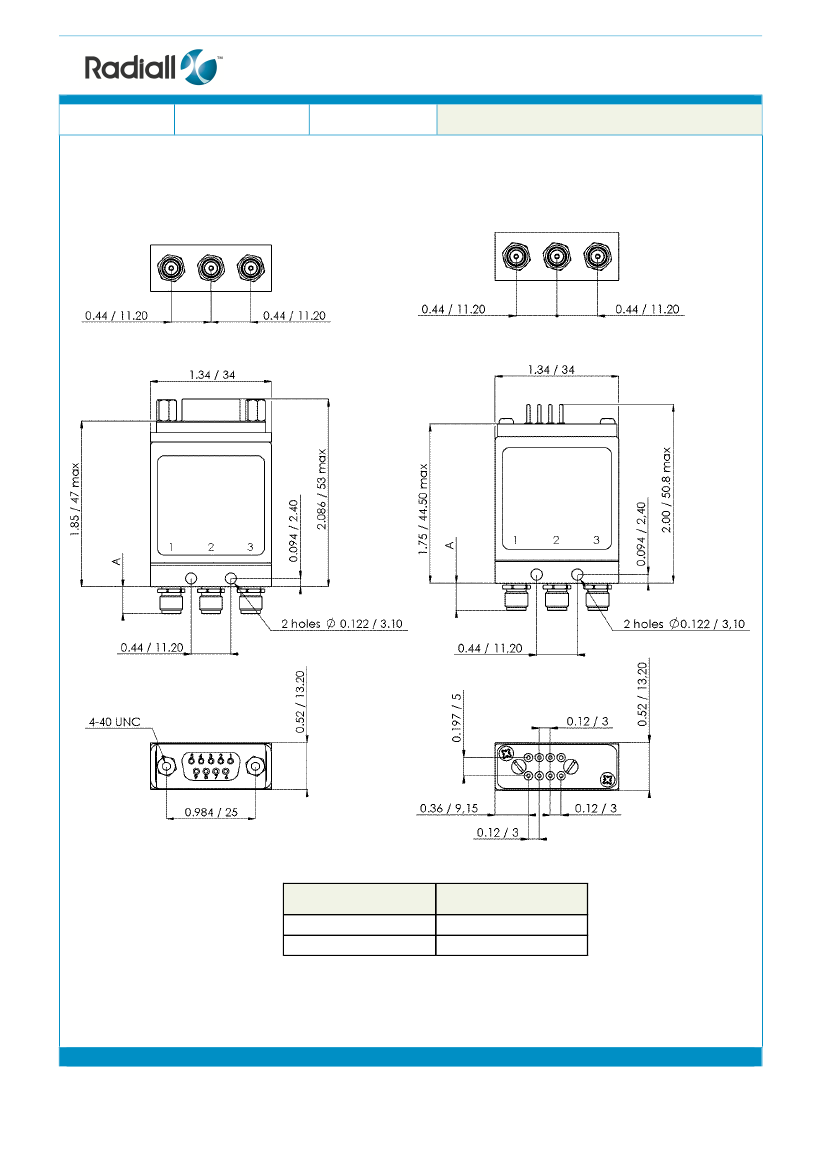

All dimensions are in inches/millimetres.
With D-Sub connector
With solder pins
Connectors
SMA up to 26.5GHz
SMA 2.9 up to 40GHz
A max (inches / mm)
0.307 / 7.50
0.248 / 6.30
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
