RT314110 110VDC 1CO
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

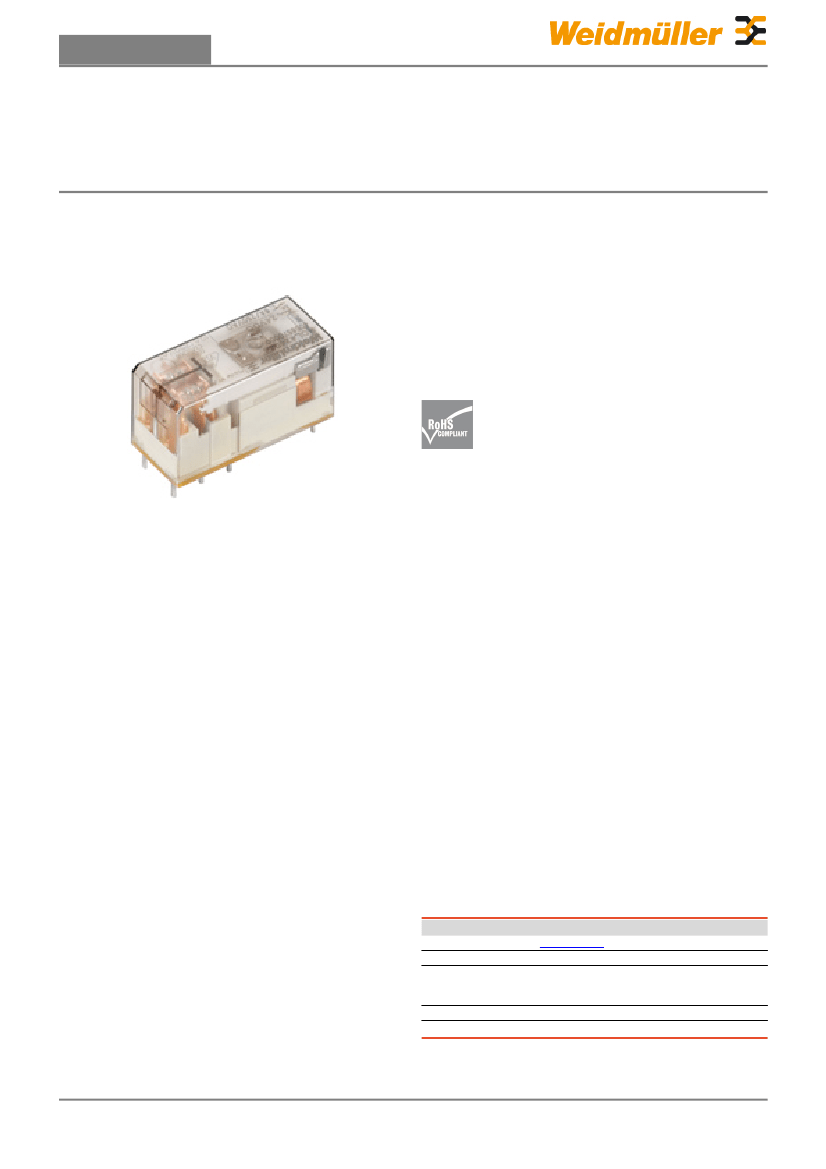

Standard relays in the RIDERSERIES RCL
• 1 CO contact
• Low height of 15.7 mm
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8630770000
RT314110 110VDC 1CO
RIDERSERIES, Relais, No. of contacts: 1, CO
contact, AgNi 90/10, Rated control voltage: 110 V
DC, Continuous current: 16 A, Plug-in connection
4032248291908
20 pc(s).
Creation date March 11, 2013 4:00:06 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
RIDERSERIES
RT314110 110VDC 1CO
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Plug-in connection
V-0
Weight
Ambient temperature
Ratings
Conductor connection system
UL 94 flammability rating
14 g
-40 °C...+85°C
Dimensions and weights
Width
Depth
Net weight
12.7 mm
15.7 mm
14 g
Height
Weight
29 mm
14 g
Temperatures
Operating temperature
Storage temperature
-40 °C...+85 °C
-40 °C...+85 °C
Ambient temperature
-40 °C...+85°C
Input
Rated control voltage
110 V DC
Power rating
400 mW // 0.75 VA
Output
Max. switching voltage, AC
Max. switching power
400 V
4 kVA
Duration of Bounce
Shutter/break contact
element: typ.1/3ms
Max. switching frequency at rated load 0.1 Hz
Continuous current
Response time
Min. switching power
16 A
DC coil: typ. 7/3 ms // AC
coil: 9/45 ms
100 mA / 5 V, 10 V / 10
mA, 24 V / 1 mA
Contact specifications
No. of contacts
Contact material
1
AgNi 90/10
Contact design
Mechanical service life
CO contact
3 x 10
7
switching cycles
Insulation coordination
Rated voltage
250 V
Clearance and creepage distances for
control side - load side
Protection degree
≥ 10 mm
IP 40
Dielectric strength for control side - load
5 kV
eff
/ 1min
side
Insulating material group
IIIa
Other technical data
Version
Relay
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001437
30-21-19-17
27-37-16-01
27-37-16-01
ETIM 3.0
eClass 4.1
eClass 6.0
EC001437
40-02-06-14
27-37-16-01
Creation date March 11, 2013 4:00:06 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
RIDERSERIES
RT314110 110VDC 1CO
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
Creation date March 11, 2013 4:00:06 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
RIDERSERIES
RT314110 110VDC 1CO
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings

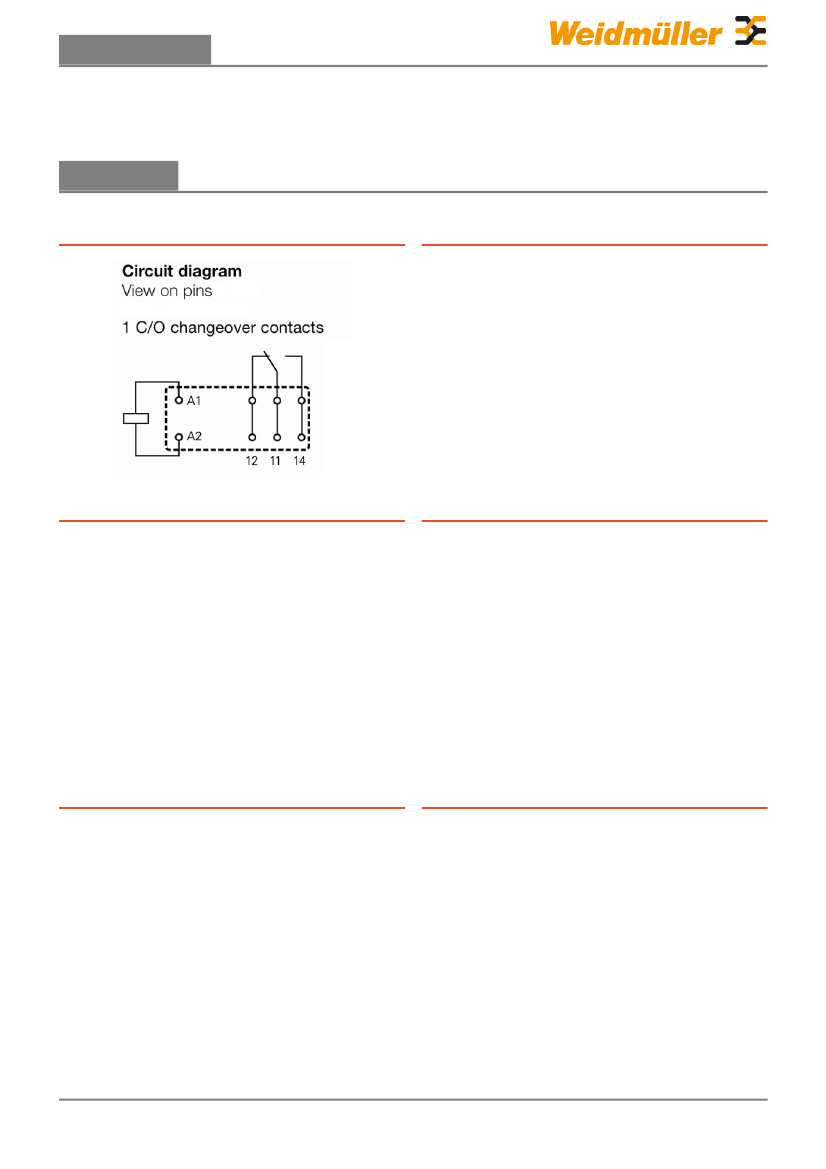

Electric symbol
Creation date March 11, 2013 4:00:06 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
4
Data sheet...
RIDERSERIES
RT314110 110VDC 1CO
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

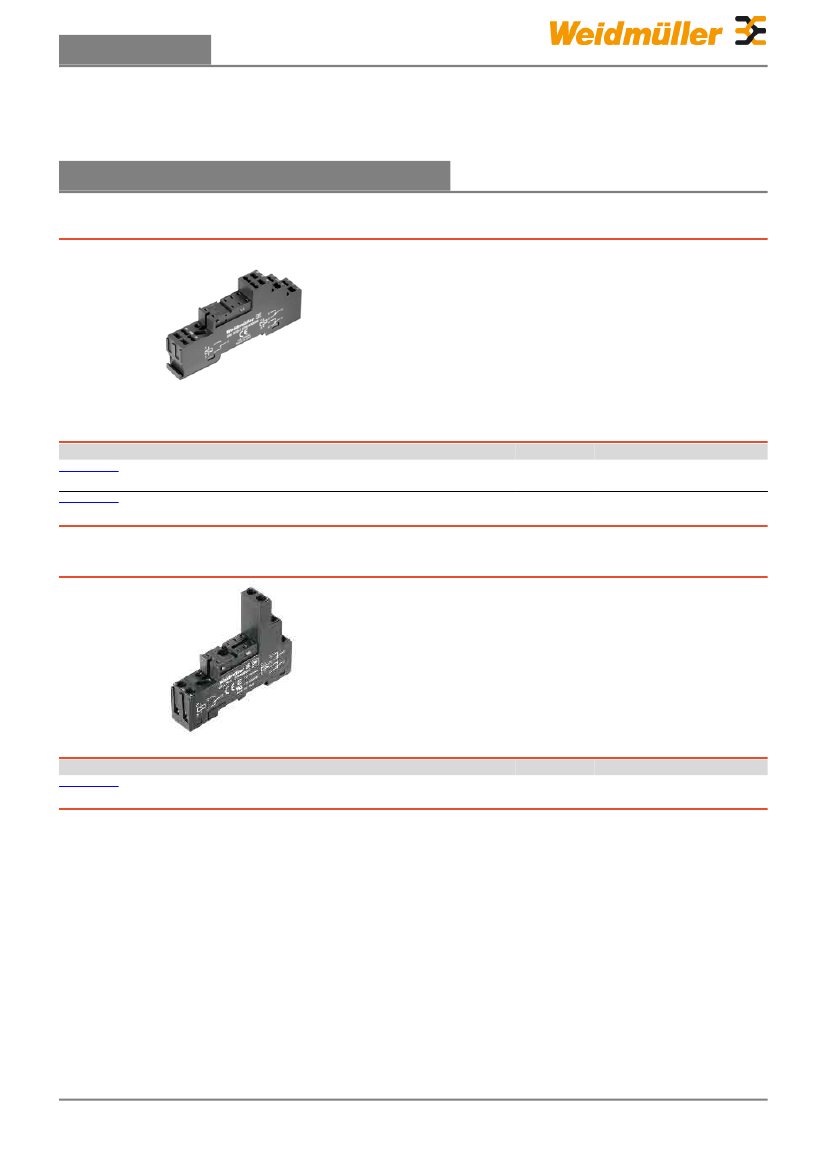

Mating connector (fully pluggable)
Base
General ordering data
Order No.
8690830000
SRC 2CO
8783930000
SRC 2CO Z
• Coupling relay with positively driven contacts: for
monitoring signals within safety-critical circuits
• Relays with positively driven contacts have a 99%
diagnostics coverage and an excellent reputation for
use in safety systems.
• The contacts interlock with each other in order to
ensure a synchronous switching status between both
contacts. This guarantees that the alert contact will
maintain the same switching status in the event of an
error (for example, if the working contact melts from an
overload).
GTIN (EAN)
Qty.
Type
Version
RIDERSERIES, Relay base, 4032248361519 10 pc(s).
Screw connection
RIDERSERIES, Relay base, 4032248471430 10 pc(s).
Tension clamp connection
Base
Relay base for RIDERSERIES RCL relays
• Screw and tension clamp connection
• Standard and low heights
• Plug-in frame for PCB connections
General ordering data
Order No.
8693930000
SRC 2CO N
Type
Version
RIDERSERIES, Relay base, 4032248365418 10 pc(s).
Screw connection
GTIN (EAN)
Qty.
Creation date March 11, 2013 4:00:06 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
5
