VHP-26 Overview

ultra-reliable high pass filters 1300 to 5500 mhz

VHP-26 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
package instruction	CASE FF704
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
Maximum attenuation frequency	2000 MHz
minimum attenuation frequency	1500 MHz
Attenuation at maximum frequency	20 dB
Attenuation@frequency min	40 dB
average input power	10 W
Center frequency or cutoff frequency (fo/fc)	2570 MHz
diameter	10.41 mm
filter type	HIGH PASS FILTER
high	36.32 mm
input connector	SMA FEMALE
input resistance	50 OHM
Maximum insertion loss	3 dB
JESD-609 code	e0
Installation type	PANEL MOUNT
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Output connector	SMA MALE
Output impedance	50 OHM Ω
physical size	D10.41XH36.32 (mm)/D0.41XH1.43 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
voltage standing wave ratio	1.4

Preview

Download Datasheet

View All

Ultra-Reliable

High Pass Filters

1300 to 5500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

-55°C to 100°C

NEW

VHP-SERIES

Features

•

rugged unibody construction

pass band insertion loss, 1.0 dB typ.

high power handling, up to 14W

very low cost

CASE STYLE: FF704

PRICE: $29.95 ea. QTY (1-9)

Applications

• sub-harmonic rejection of VCO

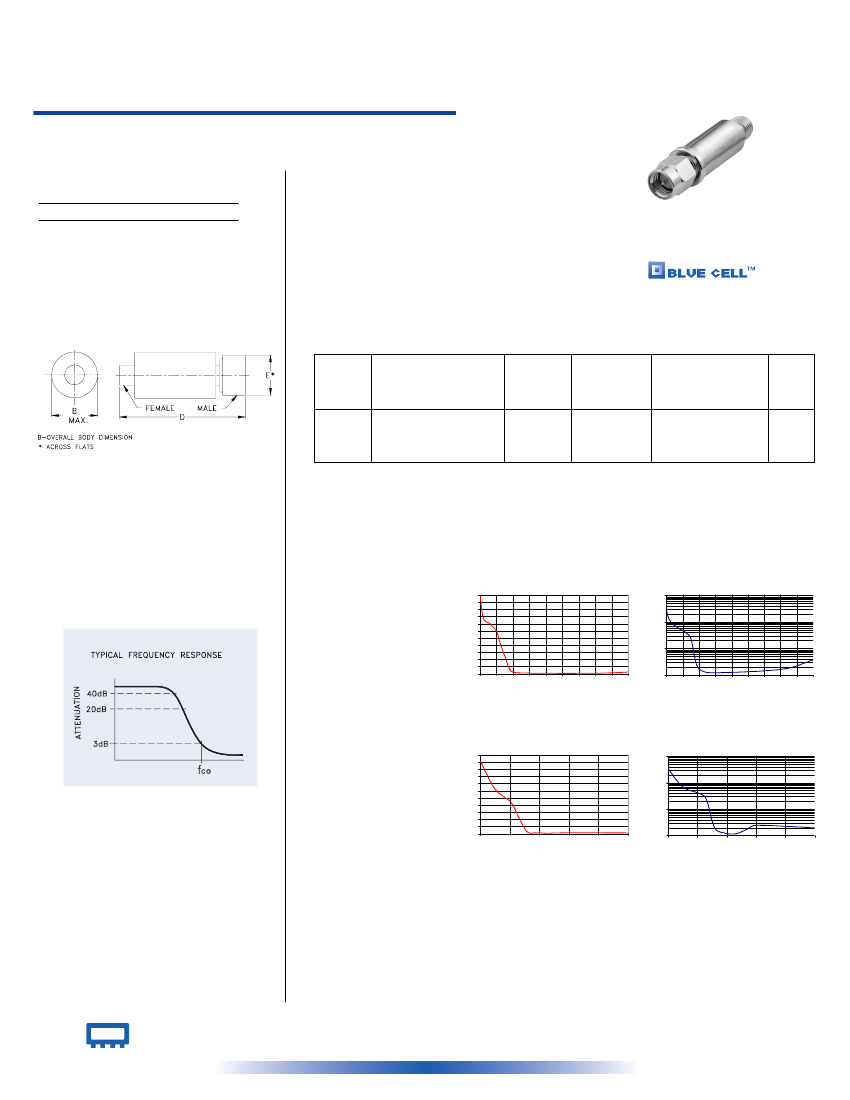

Outline Drawing

Electrical Specifications (T

AMB

=25°C)

MODEL

NO.

STOP BAND (MHz)

(loss >40 dB)

VHP-9R5

VHP-16

VHP-19

VHP-26

VHP-39

DC-600

DC-1030

DC-1450

DC-1500

DC-2000

(loss >20 dB)

750

1300

1650

2000

3050

fco, MHz

Nom.

(loss 3 dB)

Typ.

950

1580

1995

2570

3900

PASSBAND

(MHz)

(loss < 1.3 dB)

1300-3500

1900-2700

2300-5500

3000-7000

4600-5500

VSWR (:1)

Stopband

Typ.

Passband

Typ.

1.3

1.4

1.3

POWER

INPUT*

(W)

Pmax.

* Derate linearly to 0.4 x Pmax. at 100°C

Outline Dimensions (

inch

)

.461

1.42

11.71 36.07

wt.

.312 grams

7.92

Typical Performance Data/Curves

Freq.

(MHz)

1.00

100.00

300.00

500.00

600.00

750.00

950.00

1300.00

3500.00

4500.00

Insertion

Loss (dB)

109.09

77.03

69.91

59.22

43.87

24.51

3.18

0.94

0.69

2.21

VSWR

(:1)

273.43

114.28

66.79

47.03

38.78

23.57

2.06

1.23

1.62

3.67

VHP-9R5

INSERTION LOSS

VHP-9R5

VSWR

110

100

1000

INSERTION LOSS (dB)

VSWR

500 1000 1500 2000 2500 3000 3500 4000 4500

FREQUENCY (MHz)

100

500 1000 1500 2000 2500 3000 3500 4000 4500

FREQUENCY (MHz)

Freq.

(MHz)

1.00

500.00

1030.00

1300.00

1580.00

1900.00

2300.00

2700.00

3000.00

5000.00

Insertion

Loss (dB)

101.37

62.34

44.28

23.15

2.82

1.12

0.80

1.01

1.47

1.03

VSWR

(:1)

330.92

68.33

40.07

24.17

2.03

1.27

1.17

1.74

2.45

1.97

110

100

1000

VHP-16

INSERTION LOSS

1000

VHP-16

VSWR

INSERTION LOSS (dB)

VSWR

2000

3000

4000

5000

100

1000

2000

3000

4000

5000

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

ISO 9001 CERTIFIED

REV. A

M92137

VHP-9R5 ED-10545B/7

VHP-16 ED-10545B/2

VHP-19 ED-10545B/6

VHP-26 ED-10545B/11

VHP-39 ED-10545B/12

WZ/AD/CP

040429

Page 1 of 2

VHP-26 Related Products

	VHP-26	VHP-39	VHP-16	VHP-19
Description	ultra-reliable high pass filters 1300 to 5500 mhz	ultra-reliable high pass filters 1300 to 5500 mhz	ultra-reliable high pass filters 1300 to 5500 mhz	ultra-reliable high pass filters 1300 to 5500 mhz
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA	SMA	SMA	SMA
Maximum attenuation frequency	2000 MHz	3050 MHz	1300 MHz	1650 MHz
minimum attenuation frequency	1500 MHz	2000 MHz	1030 MHz	1450 MHz
Attenuation at maximum frequency	20 dB	20 dB	20 dB	20 dB
Attenuation@frequency min	40 dB	40 dB	40 dB	40 dB
average input power	10 W	10 W	14 W	10 W
Center frequency or cutoff frequency (fo/fc)	2570 MHz	3900 MHz	1580 MHz	1995 MHz
diameter	10.41 mm	10.41 mm	10.41 mm	10.41 mm
filter type	HIGH PASS FILTER	HIGH PASS FILTER	HIGH PASS FILTER	HIGH PASS FILTER
high	36.32 mm	36.32 mm	36.32 mm	36.32 mm
input connector	SMA FEMALE	SMA FEMALE	SMA FEMALE	SMA FEMALE
input resistance	50 OHM	50 OHM	50 OHM	50 OHM
Maximum insertion loss	3 dB	3 dB	3 dB	3 dB
JESD-609 code	e0	e0	e0	e0
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output connector	SMA MALE	SMA MALE	SMA MALE	SMA MALE
Output impedance	50 OHM Ω	50 OHM Ω	50 OHM Ω	50 OHM Ω
physical size	D10.41XH36.32 (mm)/D0.41XH1.43 (inch)	D10.41XH36.32 (mm)/D0.41XH1.43 (inch)	D10.41XH36.32 (mm)/D0.41XH1.43 (inch)	D10.41XH36.32 (mm)/D0.41XH1.43 (inch)
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
voltage standing wave ratio	1.4	1.3	1.3	1.3
ECCN code	EAR99	-	EAR99	EAR99
