Ruggedized Multimode
Fiber Optic Switch
TYPICAL APPLICATIONS
• FDDI LANs
• Local area network (LAN) bypass switching
• Loopback diagnostic testing
• Ring networks
• Test sets
• Tactical platforms (ships, aircraft, etc.)
FO4665
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
FO4663R switch direct replacement
FDDI compatible
SAFENET compatible
Fail-safe operation
Built-in loss for loopback testing
High reliability
Bidirectional
Low insertion loss
MIL-S-901D (hard or shock mounted)
MIL-S-1344A vibration
Low power: 5 Vdc, 70 mA nominal
Switching time <15 ms
62.5/125 µm fiber standard
Low weight: 3.2 oz
Stand alone package (see back for details)
Variety of cable and connector options
Environmentally rugged construction
The FO4665 switch is a form, fit and functional replacement
for the highly regarded FO4663R ruggedized multi-
mode switch. Improvements to the switch housing
simplifies the manufacturing process, resulting in a more
affordable product.
The multimode 2x2 moving-mirror optical bypass switch
meets all the requirements of the FDDI Physical Medium
Dependent (PMD) standard and SAFENET specifications
for fiber optic data network applications. The highly reliable
performance of the device is made possible by its unique
silicon micromachine based switch design. A sealed,
ruggedized housing isolates the optical components from
external shock and vibration effects.
The standard switch has 62.5/125 µm multimode fiber
pigtails that can be ordered with various customer option
cables and connectors. Other fiber core sizes are also
available.
For more information about our entire line of fiber optic
products, please visit our web site at
www.moog.com.
1213 North Main Street • Blacksburg, VA 24060-3127
800-336-2112
• FAX 540-557-6400
www.moog.com • e-mail: mcg@moog.com
SPECIFICATIONS
Symbol Min Typ
Environmental Ratings
Operating Temperature Range
T
C
–30
––
Storage Temperature Range
T
STG
–62
––
Humidity
––
––
––
Mechanical Life
––
1.0
––
Military Standards
Shock
MIL-S-901
Vibration
MIL-STD1344
Characteristics
Actuation Voltage
––
4.75 5.0
Actuation Current
I
––
70
Insertion Time
T
SI
––
––
Media Interruption Time
T
MI
––
––
Active Loss* 1-3 port
––
––
0.7
Bypass Loss* 3-4 port
––
––
0.7
Active Loss* 2-4 port
––
––
0.7
Self-test Loss* 1-2 port
––
––
––
Active Crosstalk
––
60
––
Bypass Crosstalk
––
60
––
Operating Wavelength
λ
1270 1320
*Loss without connectors
Max
85
85
95
––
Unit
°C
°C
% RH
M
cycle
FO4665 –
BASIC PART NUMBER
FIBER
CODE
SIZE
A
50/125
**B
62.5/125
100/140
**C
**Standard
JACKET
CODE STYLE
1
3
5
PART NUMBERING
–
Enter 3 digit code representing the length
in centimeters (+ 10/-00 cm). Maximum
length equals 300 cm, for greater lengths
and tighter tolerances please consult fac-
tory. Minimum length equals 15 cm.
PIGTAIL LENGTH
INDEX
GRADED
GRADED
GRADED
NA
.20
.28
.29
5.5
90
15.0
5.0
0.8*
0.8*
0.8*
6.0
––
––
1380
Vdc
mA
ms
ms
dB
dB
dB
dB
dB
dB
nm
900 µm Teflon tube
3 mm (Standard)
Low smoke/no Halogen
2 mm
Low smoke/no Halogen
Example:
FO4665–B3ST–100
This is a standard 62.5/125 µm fiber switch hard mounted with a 3 mm
low smoke/no halogen jacket. The pigtail length is 100 cm (+10, -0) cm,
terminated with ST connectors.
CONNECTOR
CODE
STYLE
OO
None
SM
SMA 906
95
SMA 905
ST
ST
FC
FC
SC
SC

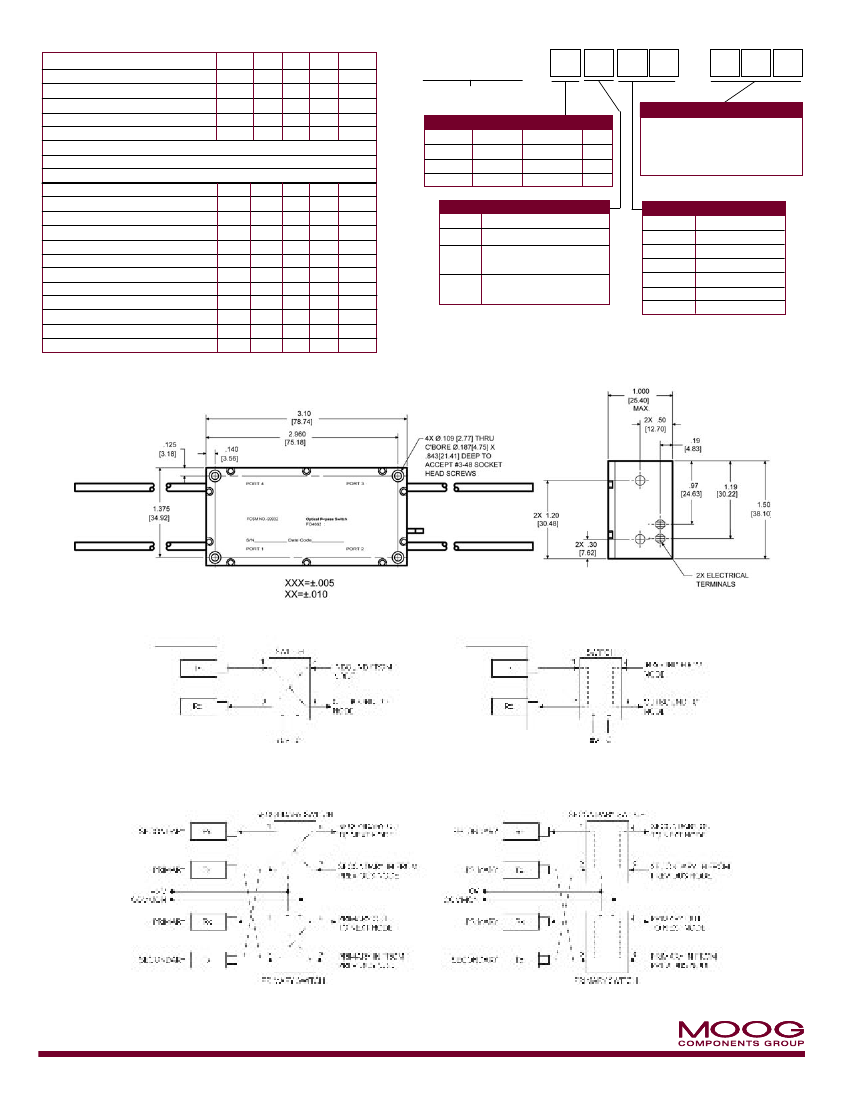

DIMENSIONS
All dimensions are in inches (millimeters).
TYPICAL BYPASS SWITCH APPLICATIONS
A. Operate State (Power On)
B. Bypass State (Power Off)
Figure 1. FDDI Single-Switch Application
A. Operate State (Power On)
Specifications and information are subject to change without prior notice.
© 2005 Moog Components Group MSG80023 07/05
B. Bypass State (Power Off)
800-336-2112
• FAX 540-557-6400 • www.moog.com • e-mail: mcg@moog.com
1213 North Main Street • Blacksburg, VA 24060-3127
