54F656A/BKA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F656A/BKA

54F656A/BKA: DescriptionIC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver; Categorylogic logic; File Size157KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F656A/BKA Overview

IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver

54F656A/BKA Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	24
Reach Compliance Code	unknown
Other features	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS
series	F/FAST
JESD-30 code	R-CDFP-F24
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	110 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.144 mm
Base Number Matches	1

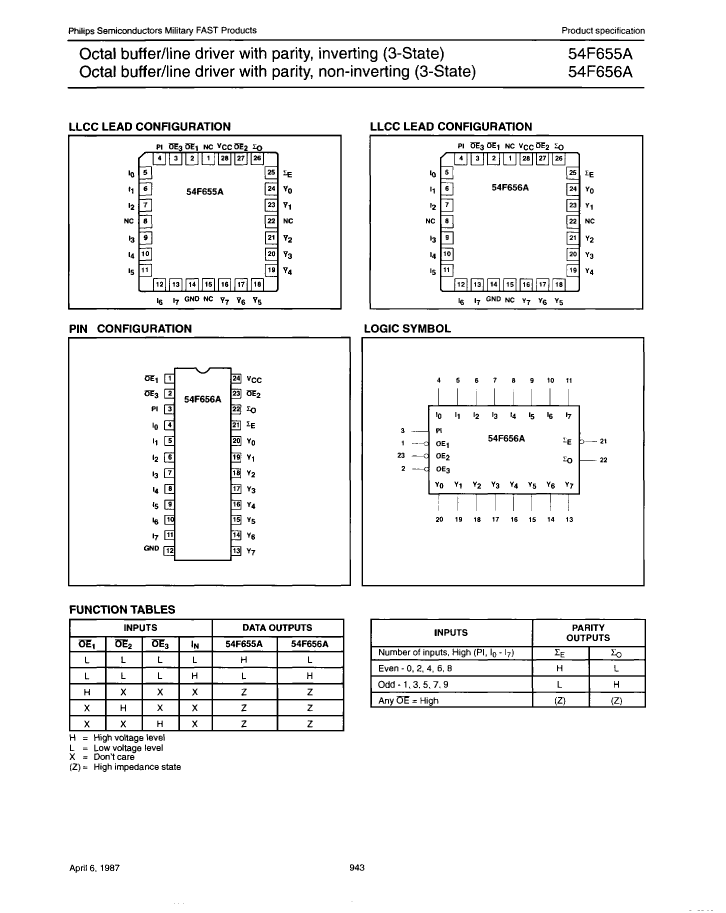

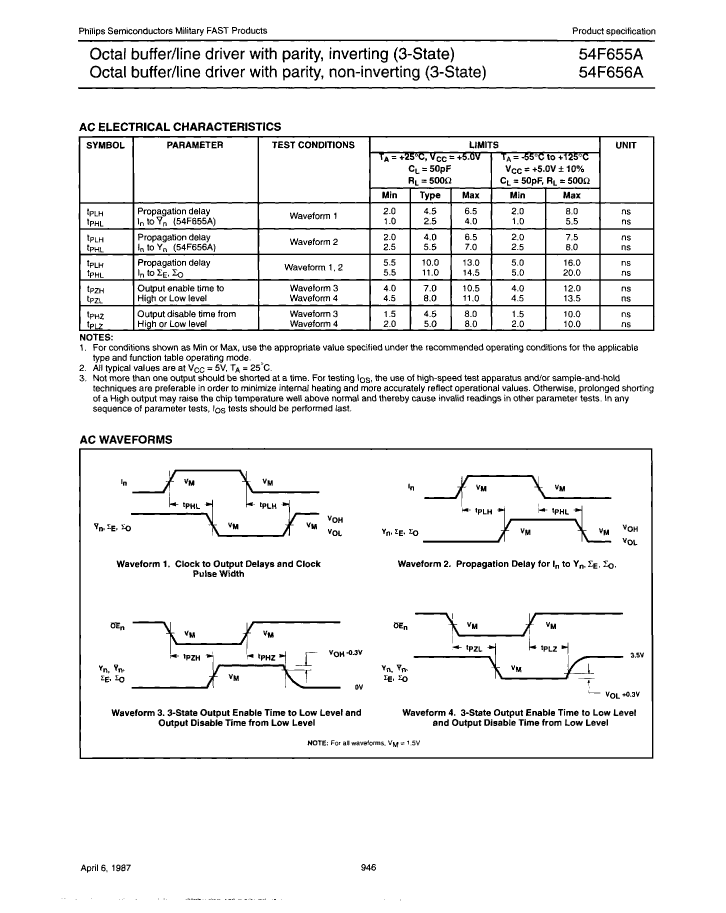

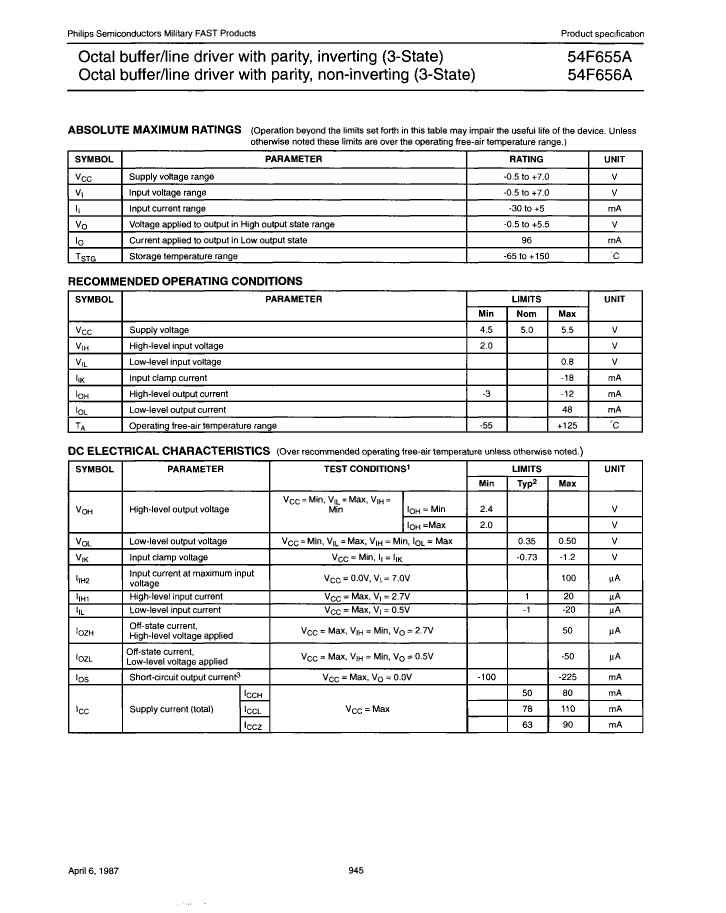

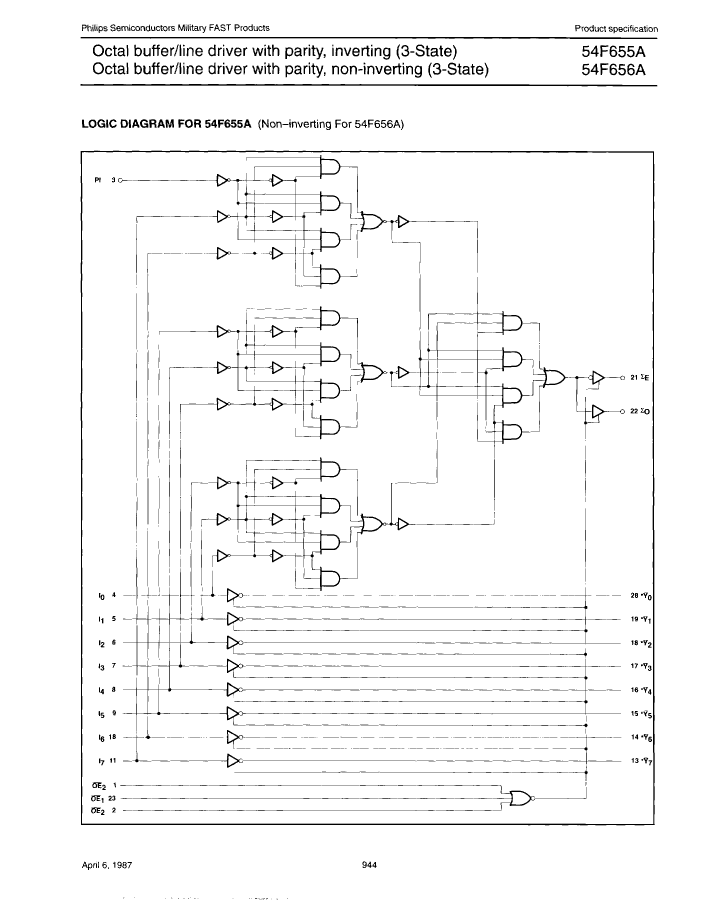

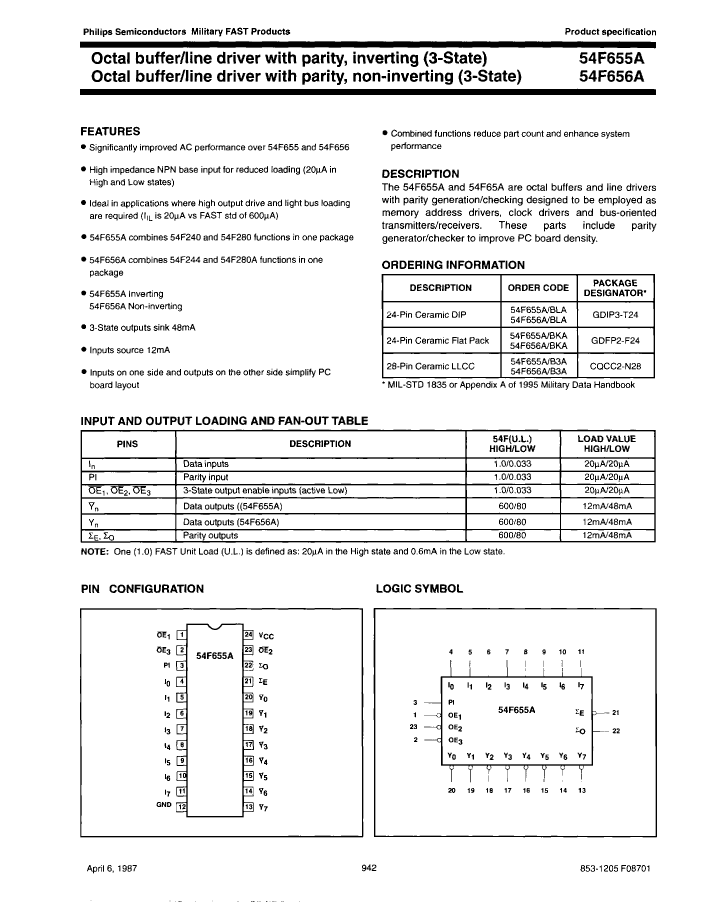

Preview

Download Datasheet

View All

54F656A/BKA Related Products

	54F656A/BKA	N54F655A/B3A	N54F656A/BKA	N54F655A/BKA	N54F656A/B3A	54F655A/B3A	54F656A/BLA	54F655A/BKA	54F655A/BLA	54F656A/B3A
Description	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CQCC28, CERAMIC, LLCC-28, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC28, CERAMIC, LLCC-28, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CQCC28, CERAMIC, LLCC-28, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDFP24, CERAMIC, FP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDIP24, CERAMIC, DIP-24, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC28, CERAMIC, LLCC-28, Bus Driver/Transceiver
Parts packaging code	DFP	QLCC	DFP	DFP	QLCC	QLCC	DIP	DFP	DIP	QLCC
package instruction	DFP,	QCCN,	DFP,	DFP,	QCCN,	QCCN,	DIP,	DFP,	DIP,	QCCN,
Contacts	24	28	24	24	28	28	24	24	24	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS	WITH TRIPLE OUTPUT ENABLE; ODD/EVEN PARITY GENERATION WITH TRISTATE OUTPUTS
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F24	S-CQCC-N28	R-CDFP-F24	R-CDFP-F24	S-CQCC-N28	S-CQCC-N28	R-GDIP-T24	R-CDFP-F24	R-GDIP-T24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2	2
Number of terminals	24	28	24	24	28	28	24	24	24	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	TRUE	INVERTED	TRUE	INVERTED	TRUE	INVERTED	INVERTED	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DFP	DFP	QCCN	QCCN	DIP	DFP	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA
propagation delay (tpd)	8 ns	5.5 ns	8 ns	5.5 ns	8 ns	5.5 ns	8 ns	5.5 ns	5.5 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	1.905 mm	2.286 mm	2.286 mm	1.905 mm	1.905 mm	5.08 mm	2.286 mm	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	FLAT	FLAT	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL	QUAD
width	9.144 mm	11.4554 mm	9.144 mm	9.144 mm	11.4554 mm	11.4554 mm	7.62 mm	9.144 mm	7.62 mm	11.4554 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
