101X15N471MV4T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 101X15N471MV4T

101X15N471MV4T: DescriptionCeramic Capacitor, Ceramic, EIA STD PACKAGE SIZE 0805; CategoryPassive components capacitor; File Size289KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

101X15N471MV4T Overview

Ceramic Capacitor, Ceramic, EIA STD PACKAGE SIZE 0805

101X15N471MV4T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Number of terminals	2
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Base Number Matches	1

Preview

Download Datasheet

View All

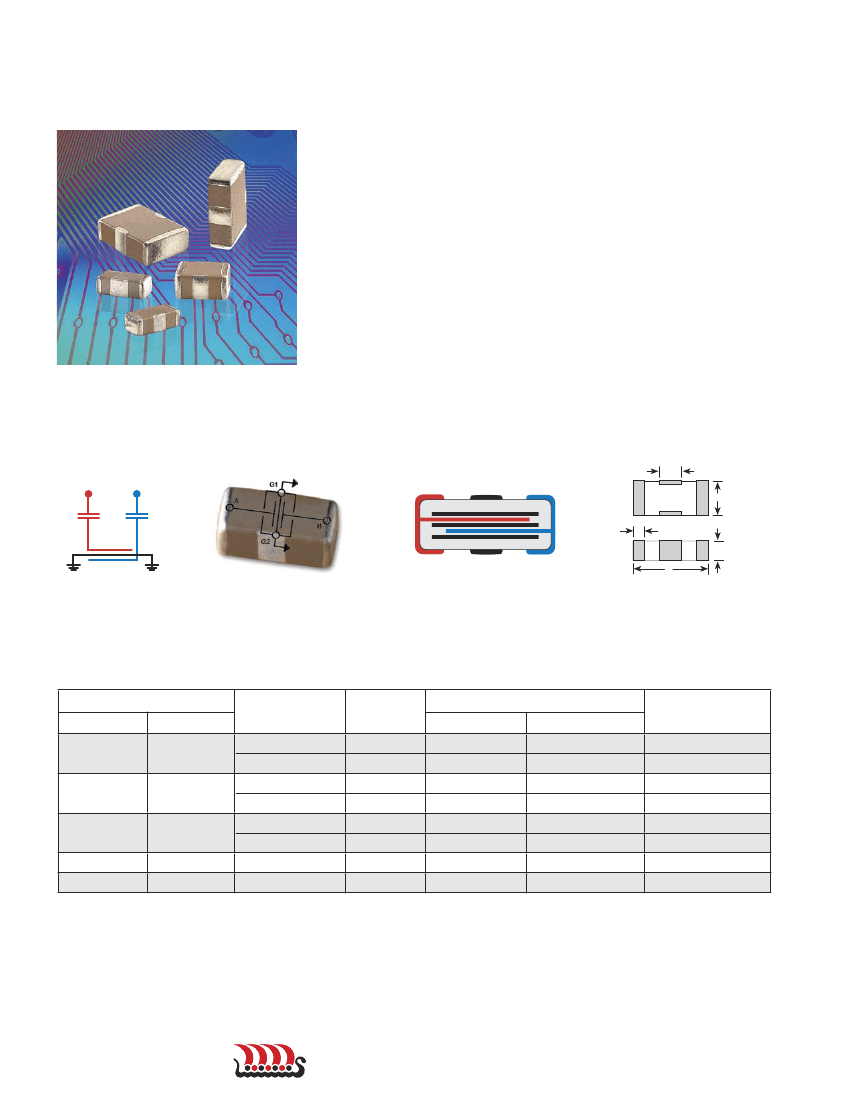

X2Y

ILTER

& D

ECOUPLING

APACITORS

X2Y® filter capacitors employ a unique, patented low inductance design

featuring two balanced capacitors that are immune to temperature,

voltage and aging performance differences.

These components offer superior decoupling and EMI filtering

performance, virtually eliminate parasitcs, and can replace multiple

capacitors and inductors saving board space and reducing assembly

costs.

DVANTAGES

• Superior noise suppression

• Differential and common mode attenuation

• Replace multiple components with one device

• Matched capacitance line to ground, both lines

• Low inductance due to cancellation effect

PPLICATIONS

• FPGA / ASIC Decoupling

• µ-Processor Decoupling

• Broadband EMI Filtering

• DC Motor Noise Suppression

• Cellular Handsets

Equivalent Circuits

Cross-sectional View

Dimensional View

VAILABLE

APACITANCE

& V

OLTAGE

ANGES

CHIP SIZE

EIA

0603

JDI

X14

DIELECTRIC

NPO

X7R

NPO

X7R

NPO

X7R

VOLTAGE

(WVDC)

C1 CAPACITANCE RANGE

VALUE

22 pF - 220 pF

470 pF - .018 µF

22 pF - 470 pF

1000 pF - .047 µF

1000 pF

.022 µF - 0.10 µF

0.22 µF - 0.68 µF

0.22 µF - 0.47 µF

JOHANSON

PART NUMBER

500X14N***MV4*

500X14W***MV4*

500X15N***MV4*

500X15W***MV4*

500X18N***MV4*

500X18W***MV4*

500X44W***MV4*

500X43W***MV4*

CODE

220 - 221

471 - 183

220 - 471

102 - 473

102

223 - 104

224 - 684

224 - 474

0805

X15

1206

1410

1812

X18

X44

X43

C1 = A or B to ground, A to B capacitance = 1/2 of C1.

Rated voltage if for A or B to ground. A to B rating is 2 X Vrated

Contact the factory for other voltage ratings and capacitance values.

X2Y filter capacitor meet JDI standard NPO & X7R dielectric specifications listed on page 20.

X2Y® technology patents and registered trademark under license from X2Y ATTENUATORS, LLC

www.johanson dielectrics.com
