38FD372505-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 38FD372505-F

38FD372505-F: DescriptionFilm Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 30uF, Chassis Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size305KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

38FD372505-F Overview

Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 30uF, Chassis Mount, CAN, ROHS COMPLIANT

38FD372505-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	30 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	370 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

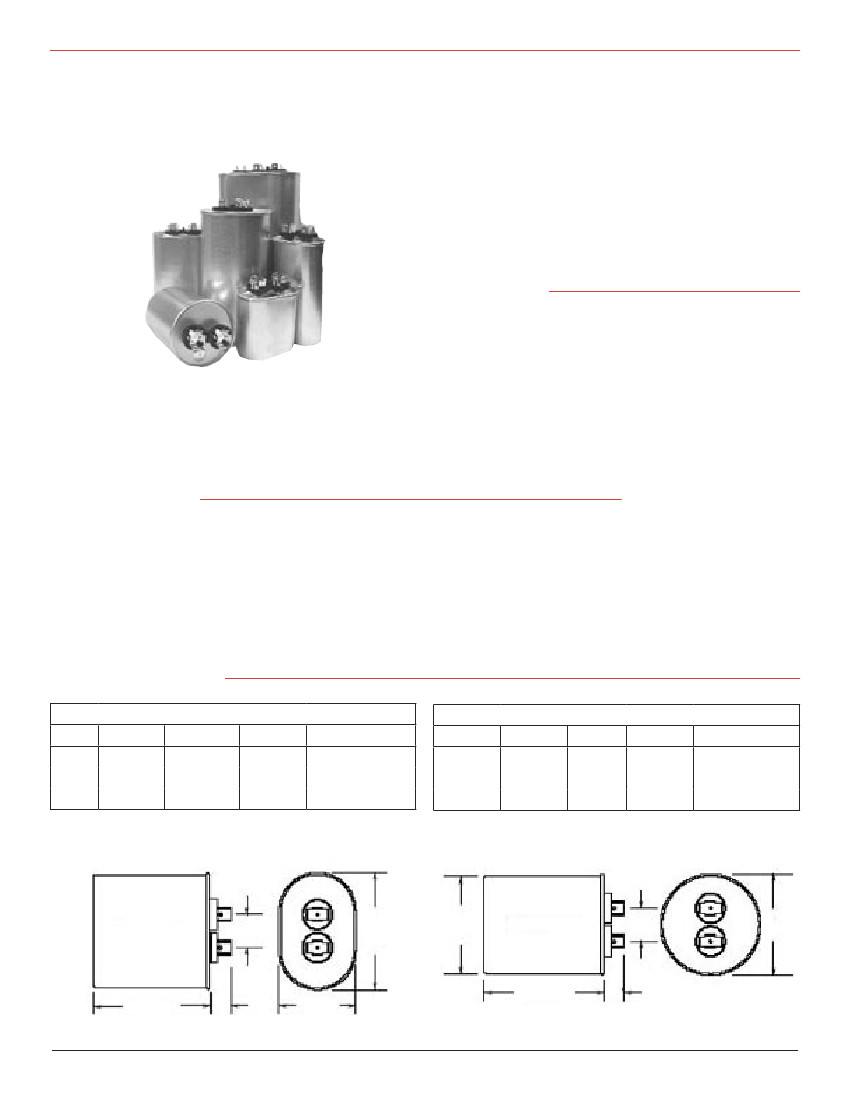

Type MPF

AC Motor Run Capacitors

Round and Flat Oval, Oil Filled, 70 ºC, Metallized Polypropylene Capacitors

Type MPF AC metallized polypropylene ﬁlm dielectric

capacitors offer a reliable option for alternating current

applications. All devices are oil ﬁlled in metal cases

with 4-prong quick disconnect terminals for easy as-

sembly. These capacitors pack high capacitance and

voltage capabilities into a small, light-weight package.

The MPF is internally protected for fail-safe operation.

These capacitors have extremely low DF that is ideal

for AC motor-run applications.

Highlights

•

Low DF

Protected with a pressure sensitive interrupter

Small size and light weight

UL E233394

CSA 219950

Air conditioning and refrigeration applications

Power factor correction

Motors

Speciﬁcations

Capacitance Range:

Voltage Ratings:

Capacitance Tolerance:

Operating Temperature Range:

Operating Frequency:

Dissipation Factor:

1 to 80 µF

330 Vac, 370 Vac, 440 Vac

±10%

–40 ºC to +70 ºC

50 to 60 Hz

0.1% max @ 60 Hz

RoHS Compliant

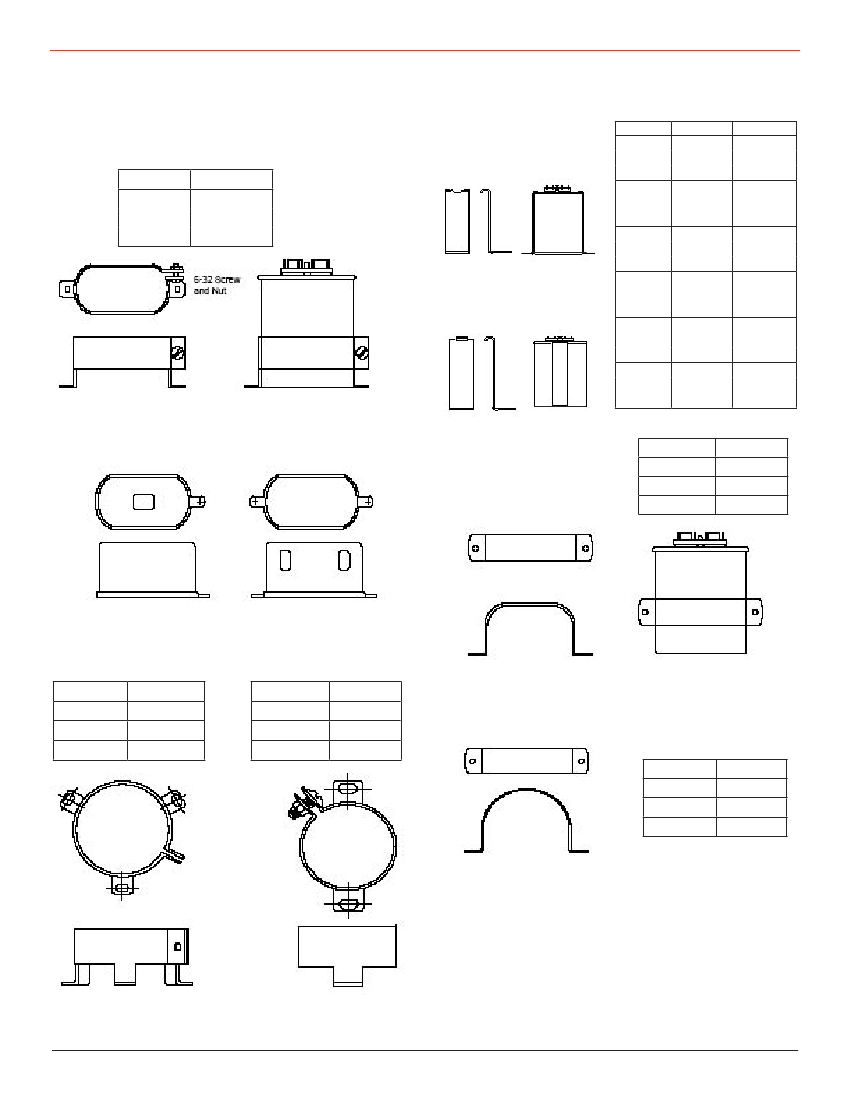

Outline Drawings

Flat Oval

Style

1 5/16"

1 29/32"

1 19/32"

2 5/32"

2 29/32"

3 19/32"

13/16"

Industry Type

1¼" Flat Oval

1¾" Flat Oval

2.0" Flat Oval

Style

1¾"

2.0"

2½"

Round

1⅞"

2⅛"

2⅝"

13/16"

Industry Type

1¾" Round

2.0" Round

2½" Round

*See Ratings Table for “H” dimension

Style 32, 37,38

±.030”

Style 21, 23, 24

±.030”

H ±.250”

.5”

A ±.030”

H ±.250”

.5”

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

38FD372505-F Related Products

	38FD372505-F	37FD371510-F	37FD371504-F	38FD374505-F	37FD371505-F	38FD373504-F	38FD373505-F	38FD373503-F	38FD374510-F
Description	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 30uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 25uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 19uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 50uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 20uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 39uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 40uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 38uF, Chassis Mount, CAN, ROHS COMPLIANT	Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 55uF, Chassis Mount, CAN, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	30 µF	25 µF	19 µF	50 µF	20 µF	39 µF	40 µF	38 µF	55 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
positive tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]	-	-	CDE [ CORNELL DUBILIER ELECTRONICS ]	-	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]
Rated (AC) voltage (URac)	370 V	-	-	370 V	-	370 V	370 V	370 V	370 V
Base Number Matches	1	1	1	1	1	-	-	-	-
