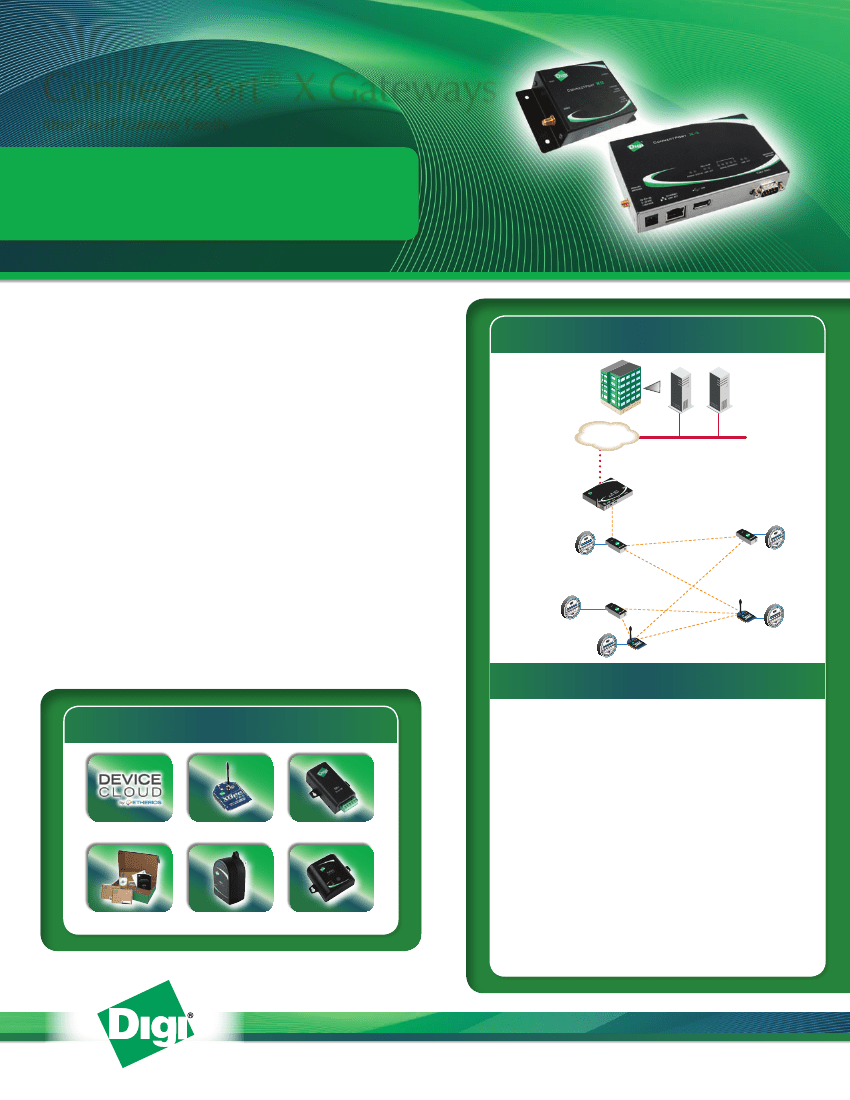

ConnectPort
®
X Gateways
XBee
®
to IP Gateway Family
Gateways manage XBee WPANs and provide IP-to-
application connectivity with secure cellular, Wi-Fi,
WiMAX and Ethernet options.
Overview
ConnectPort X gateways provide IP network connectivity for
end point devices in wireless XBee networks. Gateways collect
end node data, process it, and send it to a parent application
using cellular, WiMAX, Wi-Fi or Ethernet connections.
Available in multiple configurations and supporting a
wide range of applications, ConnectPort X gateways are
ideal for centralized data collection and communication in
geographically diverse applications.
The Python
®
development environment, built into all
ConnectPort X gateways, enables users to customize their
application locally within the gateway. This easy-to-use
universal programming language allows complete control of
device connections, data manipulation and event based actions.
ConnectPort X gateways are compatible with XBee adapters,
XBee modules and XBee accessories, providing users with
unparalleled flexibility and end-to-end communication between
devices.
Application Highlight
Headquarters
Servers
Wireless/
Telco/VPN
Ethernet
ConnectPort
®
X
Gateway
Co
nn
ec
tP
t
X
or
4
XBee
®
Adapter
DC
9-30V MAX
525mA
DC
9-30V MAX
525mA
Meter
Features/Benefits
Related Products
•
•
•
•
Device Cloud
Modules
Adapters
Cellular, WiMAX, Wi-Fi and Ethernet IP options
Wireless XBee to IP gateway supports numerous
XBee protocols
Multiple form factors and configuration options
for a wide range of applications
Easy-to-use Python development environment for
custom applications
IPsec and SSL VPNs on WAN connections with DES,
3DES or AES encryption
128-bit AES encryption on mesh network
Enclosed PCIe module to reduce breakage/theft
•
•
•
Dev Kits
Range Extenders
Sensors
DC
9-30V MAX
525mA
Serial
kni
L
XBee WPAN
PR
O
PR
O
XBee
®
Module
www.digi.com
Specifications
General
Management
Protocols
LEDs
Security
VPN
ConnectPort® X4
ConnectPort® X2
HTTP/HTTPS web interface, Password access control, IP service port control, Optional secure enterprise management
via Device Cloud by Etherios™
UDP/TCP, DHCP, SNMPv1
Ethernet status, power, cellular link/activity, signal strength
(4 bars), ZigBee link/activity, Wi-Fi link/activity
SSL tunnels, SSHv2, FIPS 197 (serial port)
IPsec with IKE/ISAKMP, multiple tunnel support, DES, 3DES and
up to 256-bit AES encryption, VPN pass-through, GRE forwarding
5.25 in x 3.35 in x 1.00 in
(13.33 cm x 8.50 cm x 2.54 cm)
0.75 lb (0.34 g)
Ethernet status, power, ZigBee link/activity
SSL tunnels
N/A
5.50 in x 2.75 in x 1.13 in
(13.9 cm x 7.0 cm x 2.9 cm)
0.44 lb (0.20 kg)
Dimensions (L x W x H)
Weight
Antenna
XBee Antenna
4” dipole (Ethernet models), 4” dipole with 2’ cable,
tabletop mountable (GPRS models); RP-SMA
(Center pin - on device: male; on antenna: female)
4” dipole; RP-SMA
(Center pin - on device: male; on antenna: female)
Wi-Fi (optional)
Cellular (optional)
Interfaces
USB
Cellular
4" dipole with 2' cable, tabletop mountable; RP-SMA (Center pin - on device: male; on antenna: female)
7” dipole; SMA
(Center pin - on device: female; on antenna: male)
N/A
1 powered USB Type A connector (Host)
EV-DO/1xRTT or HSDPA/EDGE/GPRS PCI Express modules (1)
WiMAX (802.16e-2005); 2.3-2.7 GHz (WF3A Profile);
Wave2; S-OFDMA MIMO; QPSK, 16 QAM, 64 QAM;
5/10 MHz bandwidth UL/DL
N/A
N/A
WiMax
N/A
Serial
Ports
Throughput
Signal Support
Ethernet
Ports
Physical Layer
Data Rate
Mode
1 RJ-45 port
10/100Base-T
10/100 Mbps (auto-sensing)
Full or half duplex (auto-sensing)
1 RS-232 DB-9M serial port
Up to 230 Kbps
TXD, RXD, RTS, CTS, DTR, DSR and DCD
N/A
N/A
N/A
Specifications
Wi-Fi (802.11b/g)
Frequency
Data Rate
ConnectPort® X4
2.4 GHz
Up to 54 Mbps with automatic rate fallback
DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11,5.5 Mbps),
BPSK (6,9 Mbps), QPSK (12,18 Mbps),
16-QAM (24,36 Mbps), 64-QAM (48, 54 Mbps)
15 dBm ± 2 dBm
-71 dBm @ 54 Mbps; -81 dBm @ 11 Mbps;
-88 dBm @ 6 Mbps; -93 dBm @ 1 Mbps
ConnectPort® X2
Up to 11 Mbps w/fallback
DBPSK (1 Mbps), DQPSK (2 Mbps),
CCK (11,5.5 Mbps)
16 dBm typical
-82 dBm @ 11 Mbps
Modulation
Transmit Power
Receiver Sensitivity
Connector
Modes
Power Requirements
Power Input
Power Supply
Power Consumption
Surge Protection (with included power supply)
Environmental
Operating Temperature
Relative Humidity
Ethernet Isolation
Serial Port Protection (ESD)
Regulatory Approvals
Safety
Emissions/Immunity
Mobile Certifications - CDMA/EV-DO
Mobile Certifications - GSM/UMTS
1 x RP-SMA (Center pin - on device: male; on antenna: female)
Ad-hoc & AP Client Modes only; Access Point Mode not supported
6-30 VDC
9-30 VDC
12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included;
extended temperature power supply available separately
Idle: 1.5 W, Max: 10.4 W
Idle: 1.2 W, Max: 3.4 W
4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4
-30° C to +70° C (-22° F to +158° F)
5% to 95% (non-condensing)
1500 VAC min per IEEE802.3/ANSI X3.263
+15 kV Air Gap and +8 kV contact discharge per IEC 1000-4-2
N/A
UL 60950, CSA 22.2 No. 60950, EN60950
CE, FCC Part 15 (Class A), AS/NZS CISPR 22,
EN55024, EN55022, Class A
CDG, TIA/EIA-690, TIA/EIA-98-E
PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
EN60950
CE, FCC Part 15 (Class A)
N/A
N/A

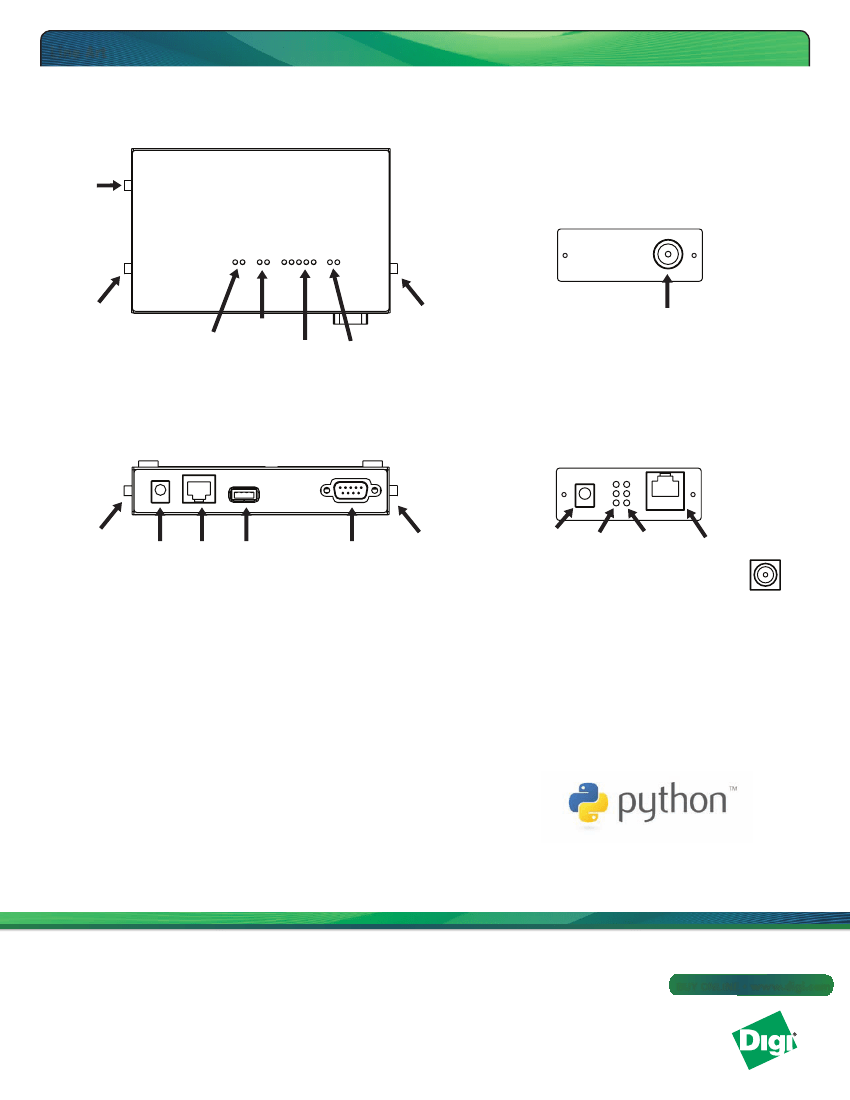

Line Art
ConnectPort X4 - Top
ZigBee
Antenna
Connector
ConnectPort X2 - Side
Primary
Cellular
Antenna
Connector
Power
&
Status
LEDs
Cellular
Link &
Activity Signal ZigBee
LEDs Strength Link &
LEDs
Activity
LEDs
Secondary
Cellular
Antenna
Connector
ZigBee
Antenna
Connector
ConnectPort X4 - Front
ConnectPort X2 - Side
Primary
Antenna
Connector
Power Ethernet
USB
Serial
Secondary
Antenna
Connector
Power
ZigBee Signal
Ethernet
Signal Strength
or
Status
LEDs Wi-Fi Antenna
LEDs
Connector
Visit www.digi.com for part numbers.
