Technical Data Sheet
5483/G1DC-AMPA/X/MS

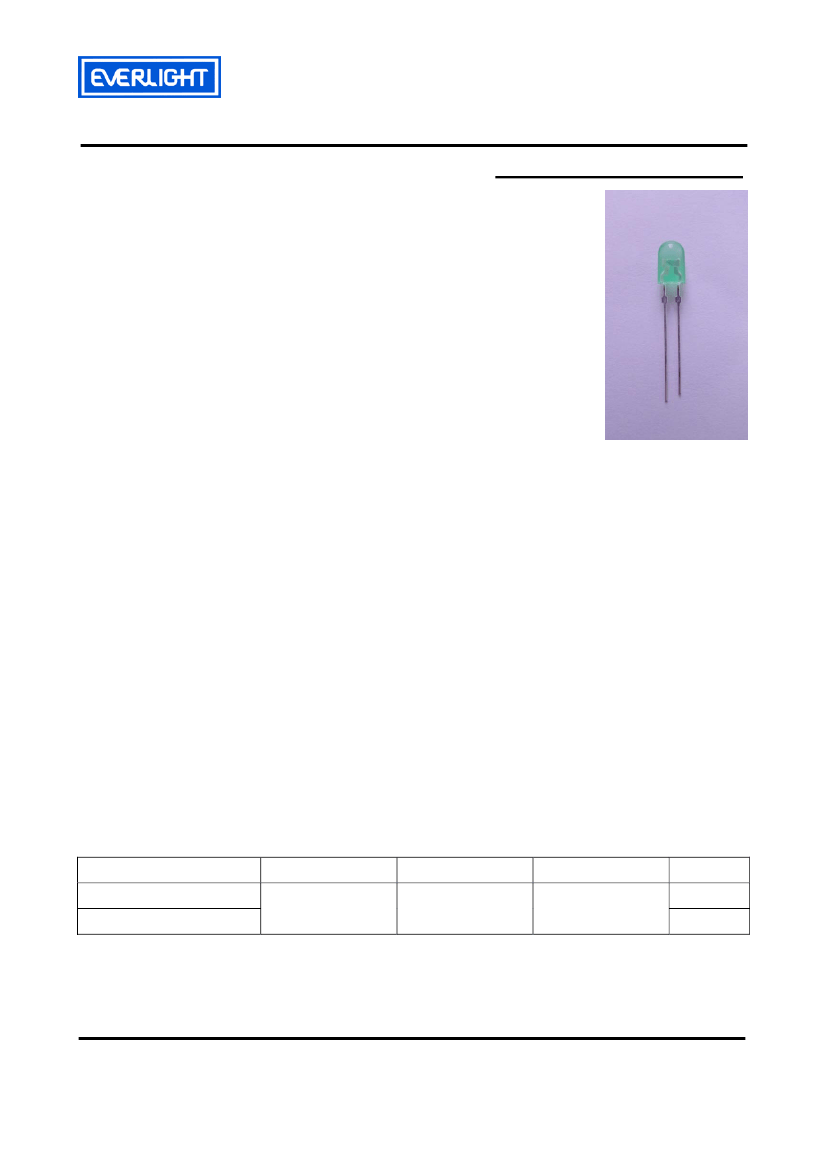

Features
․High
luminous intensity output
․Oval
Shape
․Well
defined spatial radiation
․Wide
viewing angle (2θ
1/2
) : 110
o
/ 40
o
․UV
resistant epoxy
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version
Descriptions
․This
precision optical performance oval LED is specifically
designed for passenger information signs
․This
lamp has matched radiation patterns with red and blue
mixing color applications
․Superior
performance in outdoor environment
Applications
․Single
or dual color graphic signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
5483/G1DC-AMPA/MS
5483/G1DC-AMPA/P/MS
Chip Material
InGaN
Emitted Color
Super Green
Lens Color
Green Diffused
Stopper
No
Yes
Everlight Electronics Co., Ltd.
Device Number : DLE-548-007
http\\:www.everlight.com
Prepared date: 11-01-2005
Rev 2
Page: 1 of 7
Prepared by: Grace Shen
Technical Data Sheet
5483/G1DC-AMPA/X/MS

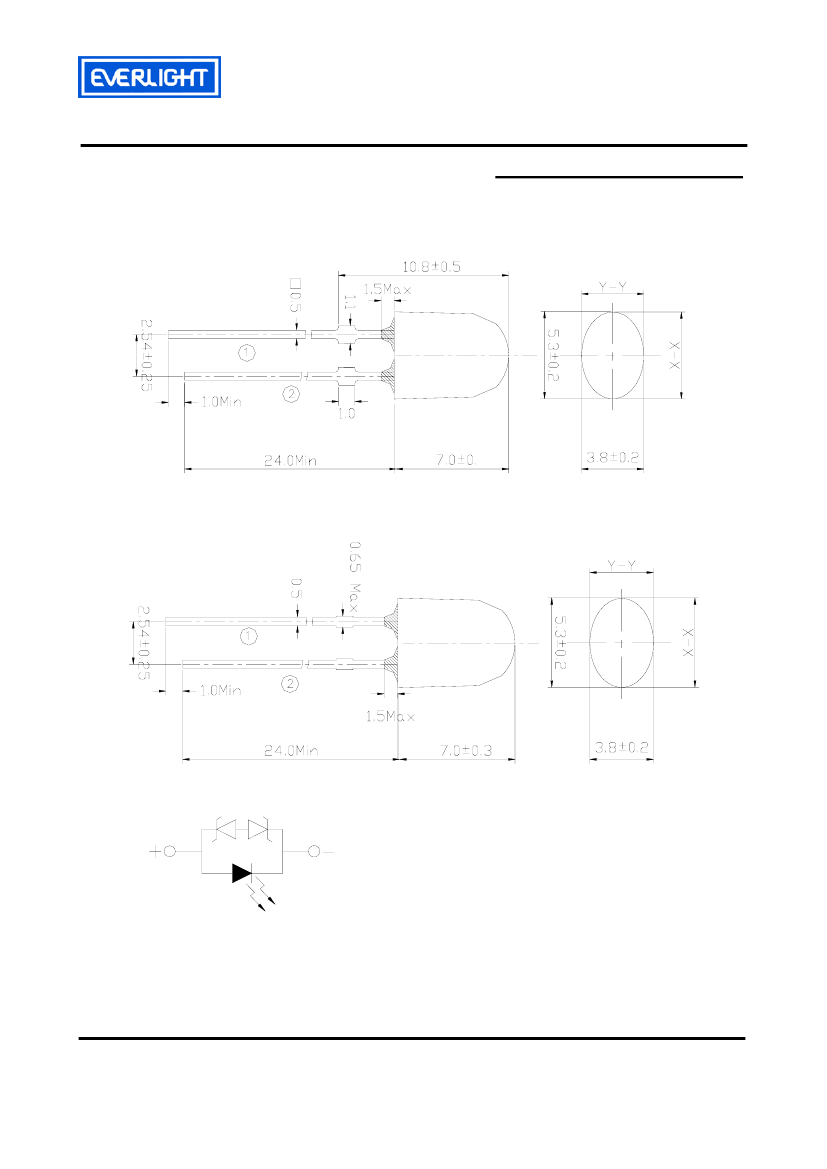

Package Dimensions
Stopper Type
3
No Stopper Type
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Everlight Electronics Co., Ltd.
Device Number : DLE-548-007
http\\:www.everlight.com
Prepared date: 11-01-2005
Rev 2
Page: 2 of 7
Prepared by: Grace Shen
Technical Data Sheet
5483/G1DC-AMPA/X/MS
Absolute Maximum Rating (T
a
=25℃)
Parameter
Symbol Absolute Maximum Rating
Forward Current
I
F
30
Pulse Forward Current (Duty1/10@ 1KHz)
I
FP
100
Operating Temperature
T
opr
-40 ~ +85
Storage Temperature
T
stg
-40 ~ +100
Electrostatic Discharge
ESD
4K
260
±5
Soldering Temperature
T
sol
Power Dissipation
P
d
100
Reverse Voltage
V
R
5
Zener Reverse Current
Notes: Soldering time≦5 seconds.
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Zener Reverse Voltage
Rank
Luminous Intensity
Rank
Forward Voltage
Rank
Dominant Wavelength
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Vz
M
1800~2250
0
2.8~3.0
1
1
3.0~3.2
Min.
1800
--
--
--
--
--
--
5.2
Iz
100
Unit
mA
mA
℃
℃
V
℃
mW
V
mA
Electro-Optical Characteristics (T
a
=25℃)
Typ.
2250
X:110 Y:40
518
525
35
3.4
--
--
N
2250~2850
2
3.2~3.4
2
528~532
Unit:nm
Max.
3600
--
--
--
--
3.6
50
--
Unit
mcd
deg
nm
V
μA
V
P
Condition
I
F
=20mA
V
R
=5V
Iz=5mA
Rank Combination (I
F
=20mA)
2850~3600
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±15%
3
3.4~3.6
Unit:V
*Measurement Uncertainty of Forward Voltage:
±0.1V
524~528
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
*The quantity ratio of the ranks is decided by EVERLIGHT.
Everlight Electronics Co., Ltd.
Device Number : DLE-548-007
http\\:www.everlight.com
Prepared date: 11-01-2005
Rev 2
Page: 3 of 7
Prepared by: Grace Shen
Technical Data Sheet
5483/G1DC-AMPA/X/MS

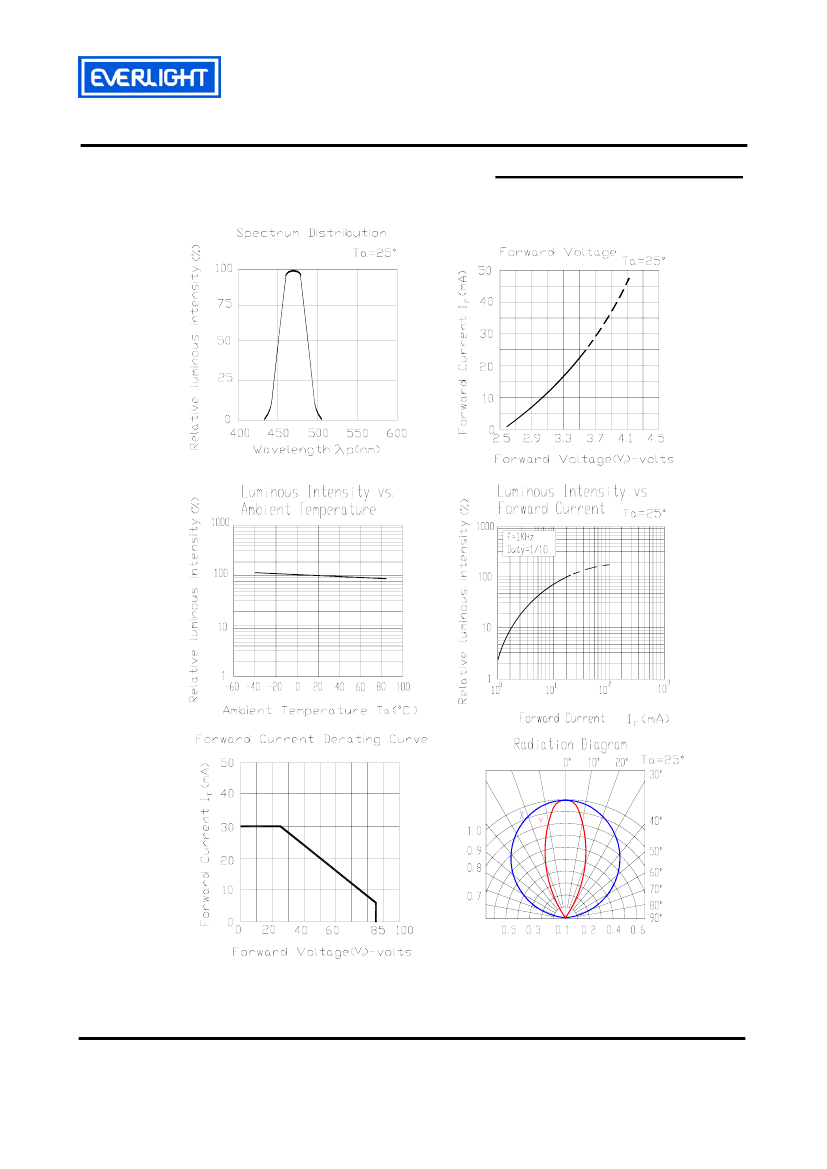

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DLE-548-007
http\\:www.everlight.com
Prepared date: 11-01-2005
Rev 2
Page: 4 of 7
Prepared by: Grace Shen
Technical Data Sheet
5483/G1DC-AMPA/X/MS
Packing Quantity Specification
1.500PCS/1Bag，5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
EVERLIGHT
CPN:
P/N:
RoHS
5483/G1DC-AMPA/X/MS
QTY：
CAT:
LOT NO：
HUE:
REF:
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous and Forward Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
MADE IN TAIWAN
Everlight Electronics Co., Ltd.
Device Number : DLE-548-007
http\\:www.everlight.com
Prepared date: 11-01-2005
Rev 2
Page: 5 of 7
Prepared by: Grace Shen
