SPECIFICATIONS
Voltage Rating:
Current Rating:
Contact Resistance:
Insulation Resistance:
Withstanding:
Durability:
PCB Retention:
Housing Material:
Contact Material:
Plating:
Shield:
Gold Plating:
Storage Temp:
Operating Temp:
125 VAC RMS
1.5 AMP
50 Milliohms Max.
500 Megohms Min @ 500V DC
1000V AC RMS 50V DC
750 Cycles Min
(pre solder) 1 Lb Min
Glass Filled Polyester, UL94V-0
Phosphor Bronze, Ø0.46mm
Gold Plating over Nickel
0.23 thick Copper Alloy w/ Nickel Plating
See Table
-40C ~ +85C
-40C ~ +85C
A
B
LED Color Codes
Code
R
G
Y
O
A
D
E
W
P
K
LED
Red
Green
Yellow
Orange
Amber
Red/Green
Red/Yellow
Yellow/Green
Orange/Green
Blank
C
D
D
E
Series
Positions
Ports
X
2-10
Body
Style
LED
Contacts
Color
BK
BK=Black
Plating
PX
P0=6µ”
P1=15µ”
P2=30µ”
P3=50µ”
Options
XX
[blank]=None
SX=Full Shield
X; No. of Panel
Grounds
E
F
RoHS compliant
Rev.
Description
Date
SGCTJ
0X
Stacked
6, 8
ganged
modular jack
Approved
E27011
LXX
X
Type E27011 (omitted)=no LED 4, 6, 8
Left then right LED
(see chart)
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
Central Components Manufacturing
11/23/’12
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
11/23/’12
11/23/’12 Part No.:

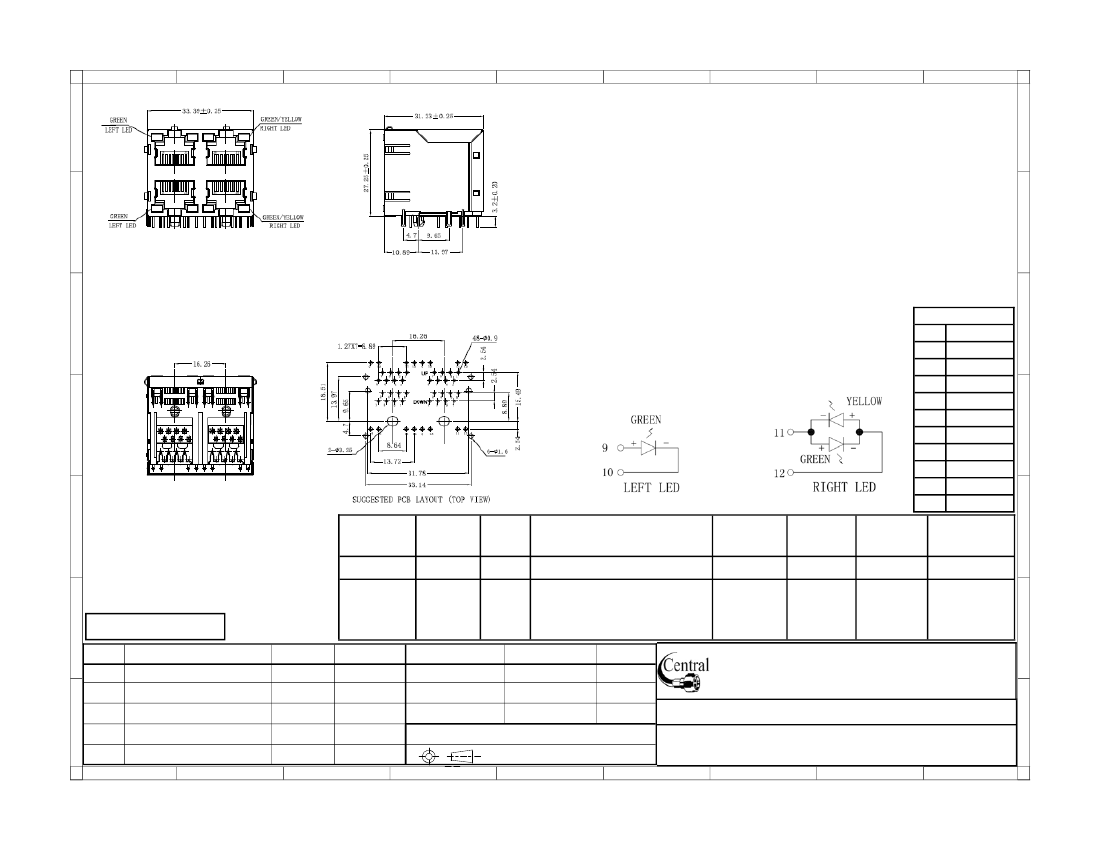

SGCTJ-08-4-E27011LGW-8-BK-PX-S5
Description: Ganged stacked modular jack, 2x2 with LEDs.
6
7
8
9
G
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
1
2
3
4
