13-PWF-010-12-H datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 13-PWF-010-12-H

Preview

13-PWF-010-12-H: DescriptionThree Phase EMI Filter, 440V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size423KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

13-PWF-010-12-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	13-PWF-010-12-H	-	-	View	Buy Now

13-PWF-010-12-H Overview

Three Phase EMI Filter, 440V, 50/60HzHz,

13-PWF-010-12-H Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
filter type	THREE PHASE EMI FILTER
high potential	1500 V
Minimum insulation resistance	300 MΩ
Maximum leakage current	1.5 mA
length	85 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L85XB51X36 (mm)/L3.3XB2XH1.4 (mm)
Rated current	10 A
Rated voltage	440 V
width	51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Power Line Filters

Three Phase

13-PWF/PWL/PWB Series

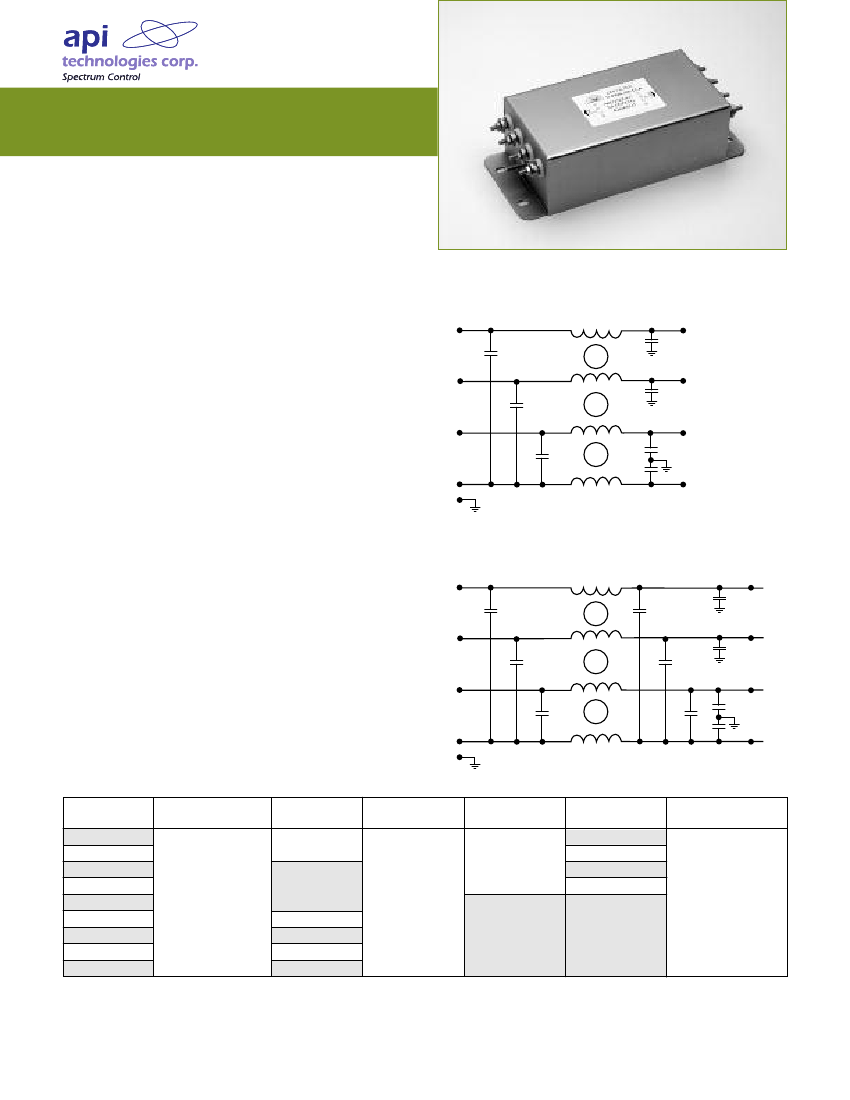

Features

I

Excellent attenuation for high voltage impulse

Effective for both balanced and unbalanced

three-phase loads

Metal case provides effective EMI shielding

Epoxy molded for internal component reliability

Suitable for both Wye and Delta connection

Excellent filtering characteristics for both normal

and common mode

Operating temperature: -40°C to +85°C

Designed for 3-phase 4-line power supply systems

Circuit Diagram

Circuit 1

A

B

C

N

G

A'

B'

C'

N'

Applications

I

Digital equipment

Industrial equipment (UPS, inverters and converters)

Automation equipment

Computerized washing machines

Circuit 2

A

B

C

N

G

A'

B'

C'

N'

Circuit

Diagram

1

Temperature Rise

(Max.)

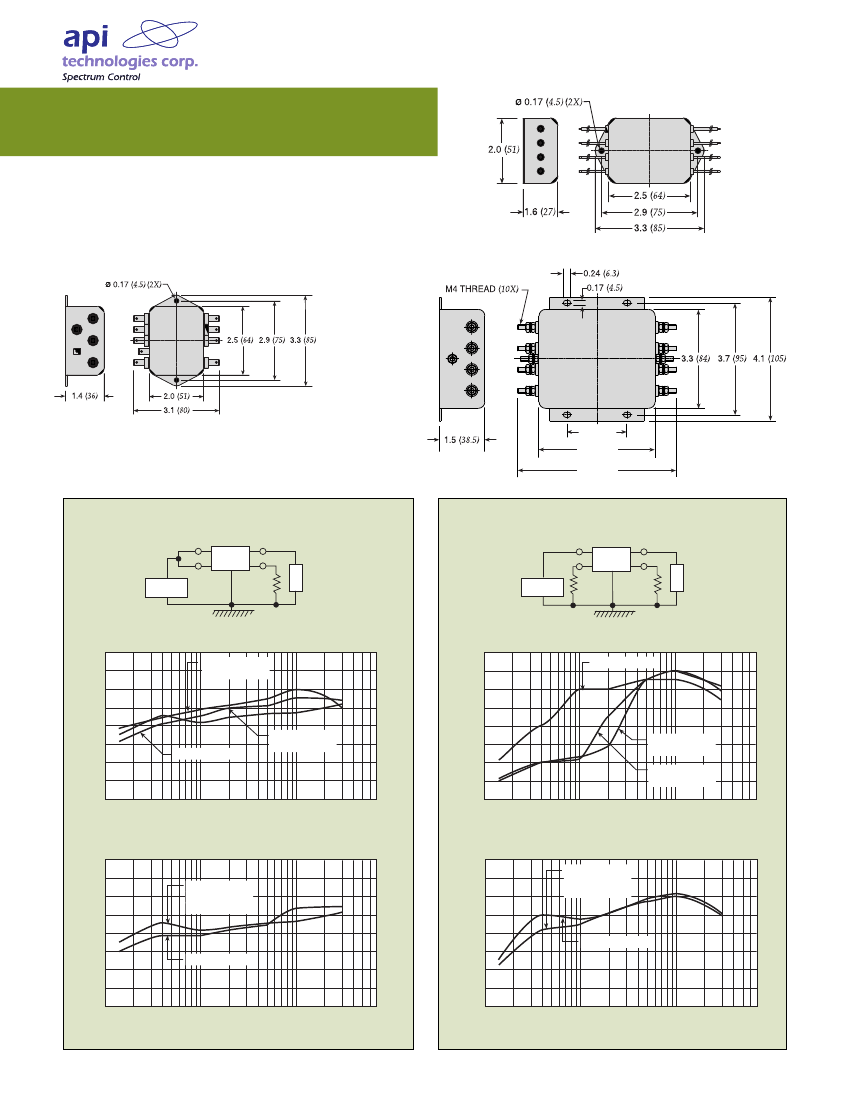

Specifications

Model

13-PWF-005-12-H

13-PWL-005-12-C

13-PWF-010-12-H

13-PWL-010-12-C

13-PWB-010-12-D

13-PWB-015-12-D

13-PWB-020-12-D

13-PWB-025-12-D

13-PWB-030-12-D

Rated Voltage

(@ 50/60Hz)

Rated

Current

5A

Leakage

Current (Max.)

Figure

A

B

A

B

10A

440/250VAC

15A

20A

25A

30A

1.5mA

2

30°C

C

Note: Test Voltage 1500VAC one minute, line to ground.

Insulation Resistance: 300 MΩ min. at 500VDC.

Voltage Drop: 1V max. at rated current.

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

PF82

13-PWF-010-12-H Related Products

	13-PWF-010-12-H	13-PWB-025-12-D	13-PWB-020-12-D	13-PWB-015-12-D	13-PWB-010-12-D	13-PWF-005-12-H	13-PWL-005-12-C	13-PWL-010-12-C
Description	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,	Three Phase EMI Filter, 440V, 50/60HzHz,
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compliant	compliant
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high potential	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
Minimum insulation resistance	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ
Maximum leakage current	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA
length	85 mm	105 mm	105 mm	105 mm	105 mm	85 mm	85 mm	85 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L85XB51X36 (mm)/L3.3XB2XH1.4 (mm)	L105XB98.5XH38.5 (mm)/L4.1XB3.9XH1.5 (inch)	L105XB98.5XH38.5 (mm)/L4.1XB3.9XH1.5 (inch)	L105XB98.5XH38.5 (mm)/L4.1XB3.9XH1.5 (inch)	L105XB98.5XH38.5 (mm)/L4.1XB3.9XH1.5 (inch)	L85XB51X36 (mm)/L3.3XB2XH1.4 (mm)	L85XB51XH27 (mm)/L3.35XB2XH1.6 (inch)	L85XB51XH27 (mm)/L3.35XB2XH1.6 (inch)
Rated current	10 A	25 A	20 A	15 A	10 A	5 A	5 A	10 A
Rated voltage	440 V	440 V	440 V	440 V	440 V	440 V	440 V	440 V
width	51 mm	98.5 mm	98.5 mm	98.5 mm	98.5 mm	51 mm	51 mm	51 mm
Base Number Matches	1	1	1	1	1	1	-	-
high	-	38.5 mm	38.5 mm	38.5 mm	38.5 mm	-	27 mm	27 mm
