089-2-080-0-F-XS0-2160 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 089-2-080-0-F-XS0-2160

089-2-080-0-F-XS0-2160: DescriptionBoard Stacking Connector; CategoryThe connector The connector; File Size1023KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

089-2-080-0-F-XS0-2160 Overview

Board Stacking Connector

089-2-080-0-F-XS0-2160 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1546372854
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	8.5
body width	0.197 inch
subject depth	0.496 inch
body length	4 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	707VAC V
Filter function	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

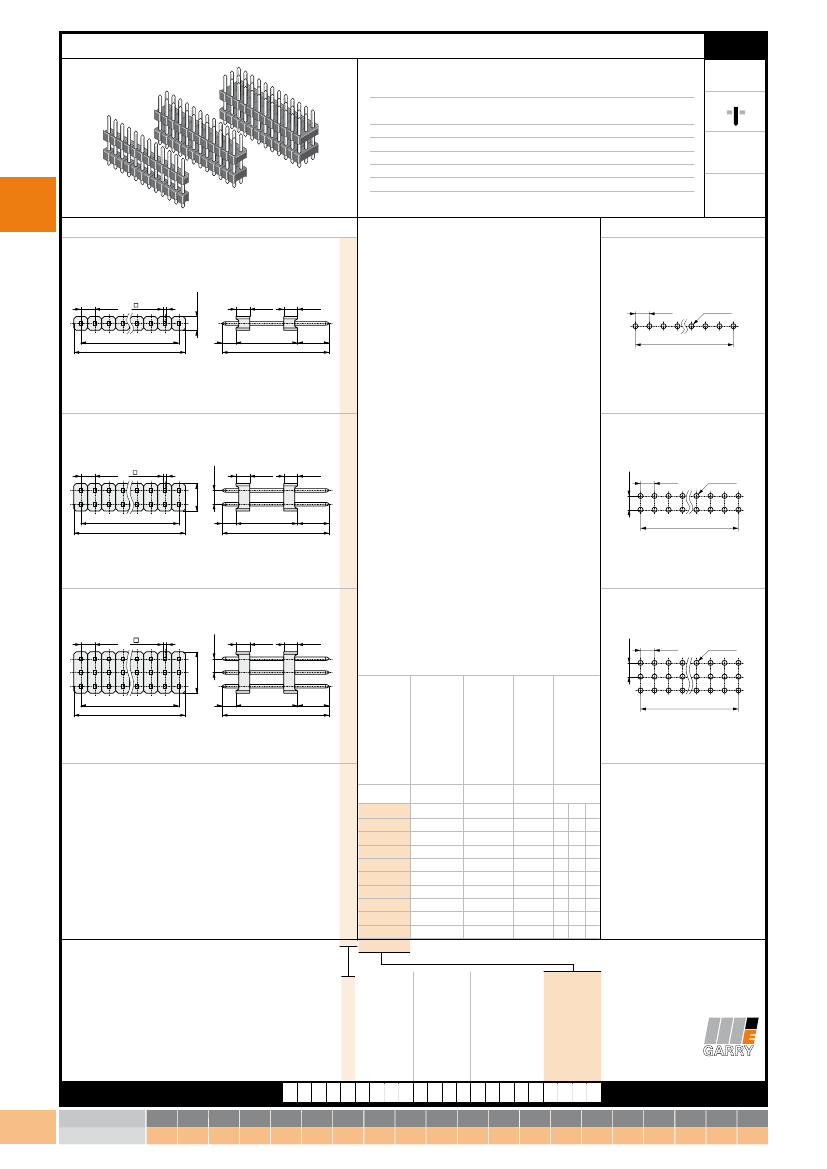

Pin Header Sandwich 2,54 mm

Rated current

Rated voltage

3,0 A

250 V

RMS

/ V

Series

089

pitch

termination

contact

size

2,54

Product

group

Variation

All dimensions in mm.

PCB Layout

050/100/120

max.

pincount

☐

0,64

2,54

0,64

2,50

2,54

(n-1) x 2,54

ø 1,00

(n-1) x 2,54

n x 2,54

2,54

0,64

5,00

2,50

2,54

ø 1,00

(n/2-1) x 2,54

(n/2) x 2,54

(n/2-1) x 2,54

2,54

0,64

7,50

2,50

2,54

ø 1,00

see figure left

17,70

19,80

21,60

22,80

24,90

26,70

29,00

30,80

37,80

40,80

** Plating:

T = Sn

F = Au

S = Selective Au

(only for variation 1 and 2)

* No. of contacts:

Variation 1 = 001 - 050

Variation 2 = 002 - 100

Variation 3 = 003 - 120

5,70

Plating contact **(T,...)

3,30

8,70

10,80

12,60

13,80

15,90

17,70

20,00

21,80

28,80

31,80

see figure left

(n/3-1) x 2,54

(n/3) x 2,54

available in variation

(n/3-1) x 2,54

www.mpe-connector.de

Order code:

089-?-???-0-?-XS0-????

4-22 4-23 4-24 4-25 4-26 4-27 4-28 4-29 4-30 4-31 4-32 4-33 4-34 4-35 4-37 4-38 4-39 6-10

3-38

Mating series

see page

094 095 096 097 298 299 099 100 098 366 111 115 612 613 114 122 120 430

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

Withstand voltage

500 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

Please consider air- and creepage distances

2,50

CS170611_V2

e.g. 1000 = 10,00 mm

No. of contacts *

(001,... - 120)

Variation (1,2,3)

A (1/100 mm)
