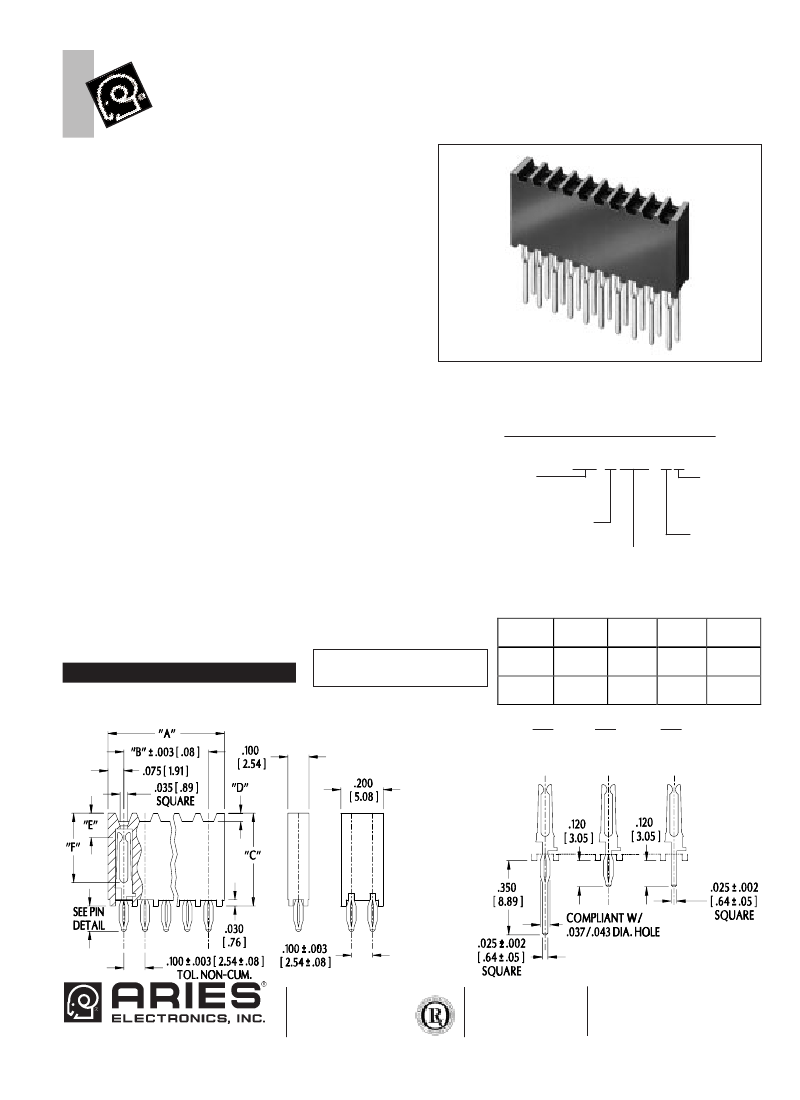

Series 9X5
Press-Lok
™
Stackable Connectors
FEATURES:
• Hermaphroditic stackable connectors allow the stacking of .062
[1.58] PCBs on .500 [12.70] or .600 [15.24] board centers.
• Stack as many boards as desired by soldering the solder tail
version in the bottom mother board and then press fitting
equivalent pin count units with the stackable style pin in the
daughter boards.
• Designed to accept .025 [.64] square pins.
SPECIFICATIONS:
• Body material is blue UL 94V-0 Glass-filled Polyester
Thermoplastic.
• Pins are Phosphor Bronze Alloy 510, hard temper.
• Pin plating options are as follows:
“0”: 100µ [2.54µm] min. Tin per MIL-T-10727 over
50µ [1.27µm] min. Nickel per QQ-N-290.
“1”: 10µ [.25µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290.
“2” 10µ [.25µm] min. Gold over 50µ [1.27µm] min.
Nickel, as in option “1”, in contact area, and
100µ [2.54µm] min. Tin over 50µ [1.27µm] min.
Nickel, as in option “0”, on balance of pin.
• Current rating=1 Amp.
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• PCB Installing Force=5 pounds nom./pin; based on a .040
[1.02] dia. plated thru hole.
• Insertion Force=85 grams/pin max.; Withdrawal Force=28
grams/pin min.; Normal Force=100 grams/pin min.
• Insulation resistance=1000 MOhms min.
• Dielectric withstanding voltage=600 VAC.
• Accepts leads .020-.030 [.51-.76] square, .115-.325
[2.92-8.23] long.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size (for solder tail)=.045 ± .002
[1.14 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X9X5-XX
No. of pins:
1 thru 20 single row
2 thru 40 dual row
Spacing between boards:
5=.500 [12.70]
6=.600 [15.24]
Plating:
0=Tin
1=Gold
2=Gold/Tin
1=single row
2=dual row
Pin style
(see diagram)
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Board
Spacing
.500
[12.70]
.600
[15.24]
Dim.
“C”
.440
[11.18]
.540
[13.71]
Dim.
“D”
.040
[1.02]
.140
[3.56]
Dim.
“E”
.115
[2.92]
.215
[5.46]
Dim.
“F”
.329
[8.36]
.429
[10.90]
905
Stackable
Press-Lok
Pin
925
Short
Press-
Lok Pin
915
Solder
Tail
Pin
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
15004
