T-1 (3mm) SOLID STATE LAMP
L-132XYC
YELLOW
Features
LOW POWER CONSUMPTION.
POPULAR T-1 DIAMETER PACKAGE.
GENERAL PURPOSE LEADS.
RELIABLE AND RUGGED.
LONG LIFE-SOLID STATE RELIABILITY.
AVAILABLE ON TAPE AND REEL.
RoHS COMPLIANT.
Description
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAB3282
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: Y.W.WANG
PAGE: 1 OF 3

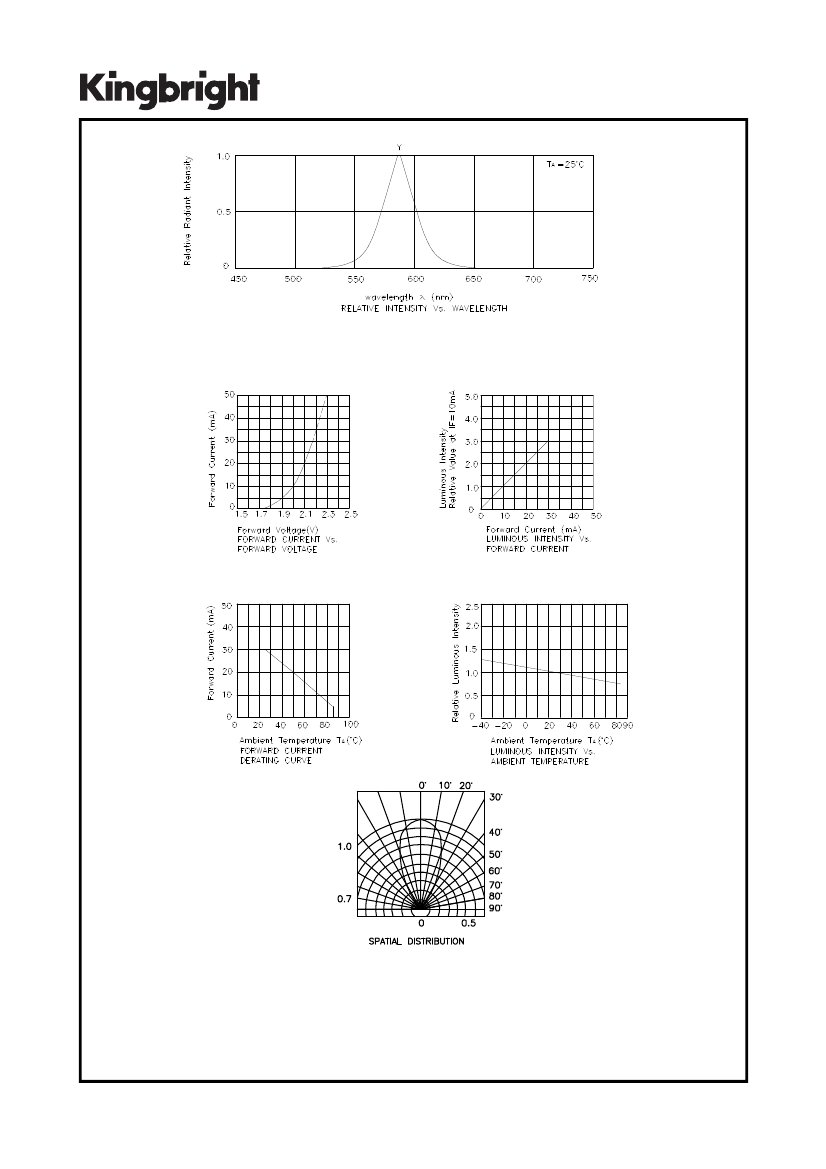

Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Min.
L-132XYC
YELLOW (GaAsP/GaP)
WATER CLEAR
8
Typ.
20
Viewing
Angle
2θ1/2
θ
50
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Typ.
590
588
35
20
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Yellow
105
30
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAB3282
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: Y.W.WANG
PAGE: 2 OF 3
Yellow
L-132XYC
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength), the typical
accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAB3282
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: Y.W.WANG
PAGE: 3 OF 3
