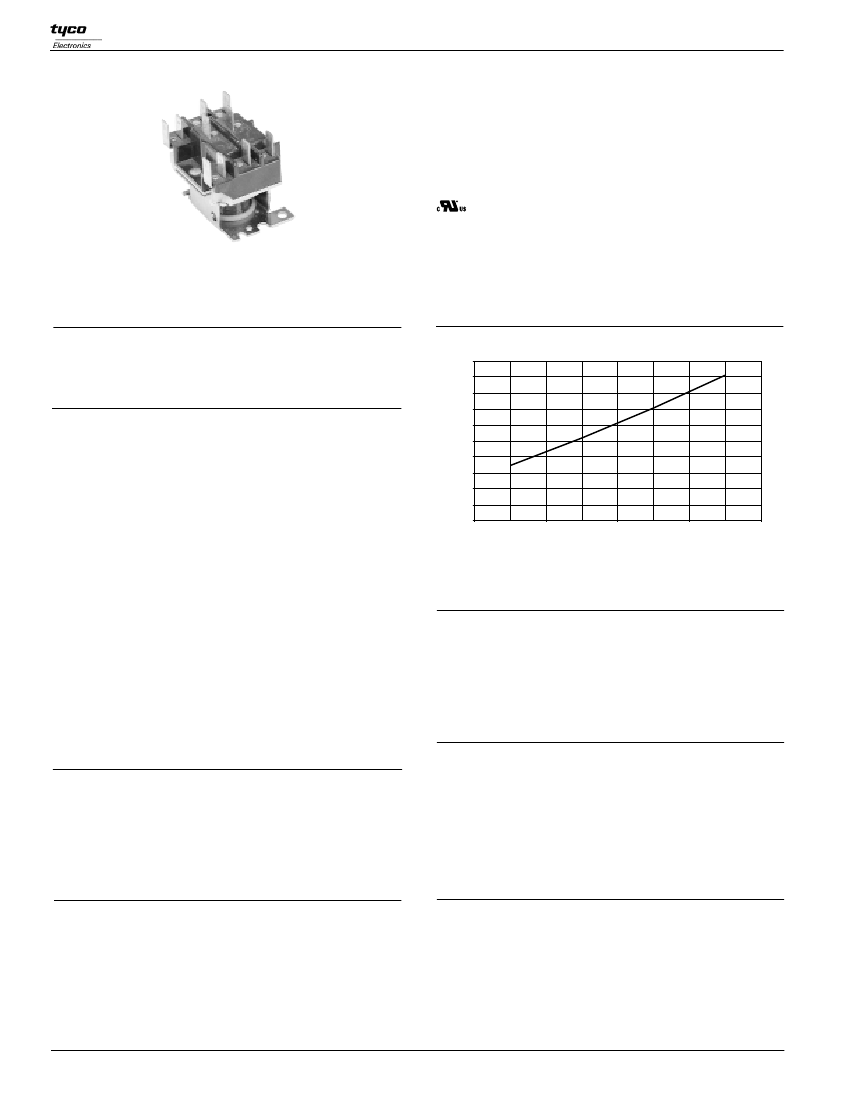

9100

series

Power Relay

1- and 2-pole, 3-12 FLA

AC or DC Coil

File E75492

Users should thoroughly review the technical data before selecting a product part

number. It is recommended that users also seek out the pertinent approvals files of

the agencies/laboratories and review them to ensure the product meets the

requirements for a given application.

Features

• Single- or double-pole relay used extensively in HVAC applications.

• Multi-positional mounting without affecting operation.

• Convenient 0.250” (6.35 mm) quick connect terminals.

Coil Temperature Rise Above Ambient

100

Coil Temperature Rise (C)

100

120

% Of Nominal Coil Voltage

130

Contact Data @ 25°C

Arrangements:

1 Form A (SPST-NO), 1 Form B (SPST-NC), 1 Form C

(SPDT), 2 Form A (DPST-NO), 2 Form B (DPST-NC), 2 Form

C (DPDT) or 1 Form A + 1 Form B (SPST-NO+SPST-NC).

Materials:

Silver, Fine Silver and Gold Alloy.

Maximum Ratings:

Silver (Power) Contacts

All Forms:

3/4 HP @ 125/250VAC;

12 FLA, 60 LRA, 15A resistive @ 125VAC;

6 FLA, 35 LRA, 15A resistive @ 250/277VAC;

3 FLA, 18 LRA, 12.5A resistive @ 480VAC;

3 FLA, 14 LRA @ 600VAC;

Form A only: 25A @ 277VAC, resistive.

Fine Silver and Gold Alloy (Pilot) Contacts

All Forms:

1/10 HP @ 125/250VAC;

3A @ 277VAC;

125VA @ 125VAC.

Expected Life:

1 million ops., mechanical.

250,000 ops., at rated resistive loads.

100,000 ops., at rated inductive loads.

Operate Data @ 25°C

Must Operate Voltage:

Approximately 85% of AC nominal coil voltage.

Approximately 75% of DC nominal coil voltage.

Environmental Data

Temperature Range:

Storage and Operating: -40°C – +65°C.

Initial Dielectric Strength

Initial Breakdown Voltage:

2,200 VAC @ 60 Hz. between live parts and

exposed non-current carrying metal parts.

Coil Data @ 25°C

Voltage:

12 & 24 VDC; 24-277 VAC, 50/60 Hz.

Max. Sealed Power:

9.5 VA (AC coils.); 5.75 W (DC coils).

Nominal Inrush Power:

21.5 VA (AC coils.); 5.75 W (DC coils).

Insulation Class:

UL Class B (130°C).

Duty Cycle:

Continuous.

Mechanical Data

Termination:

0.250” (6.35 mm) quick connects. Dual terminals on the coil

are standard.

Weight:

6.08 oz. (173 g) approximately

Dimensions are shown for

816

reference purposes only.

Dimensions are in inches over

(millimeters) unless otherwise

specified.

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

Refer to inside back cover.
