10084429-902LF datasheet, PDF - EEWORLD Datasheet

10084429-902LF: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size217KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10084429-902LF Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE

Parameter Name	Attribute value
Objectid	1174425960
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	MATTE TIN (118) OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0

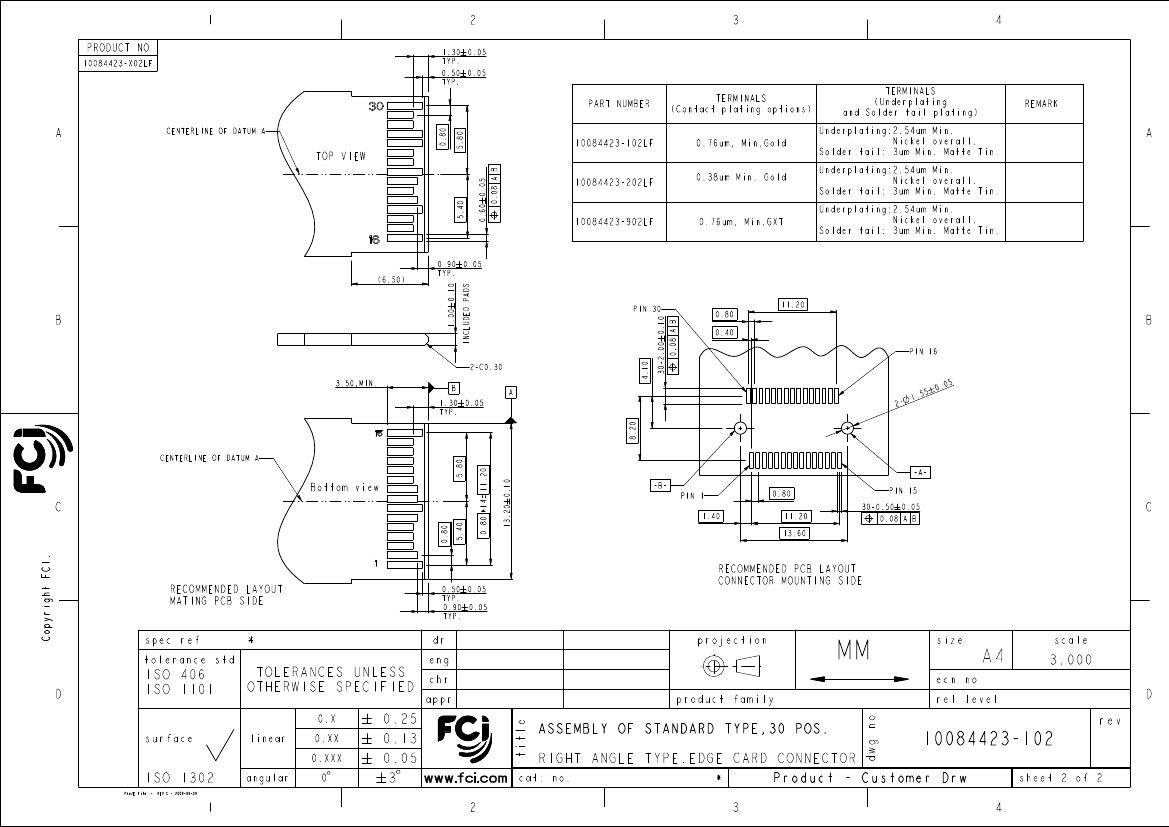

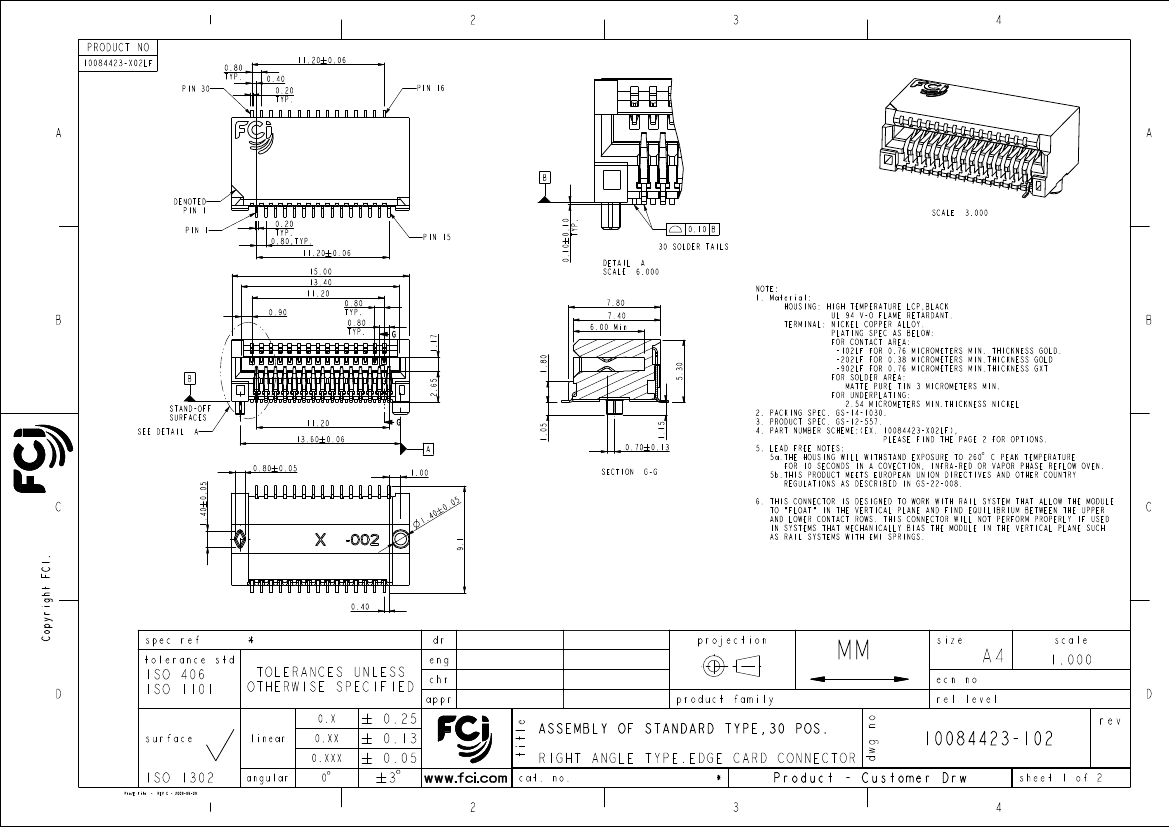

Junon Huang

De-Feng, Qin

Terry Qiu

Pei-Ming Zheng

2009/04/21

2012/03/22

2012/03/26

ELX-DG-010777-1

Released

F

PDS: Rev :F

STATUS:Released

Printed: Mar 26, 2012
