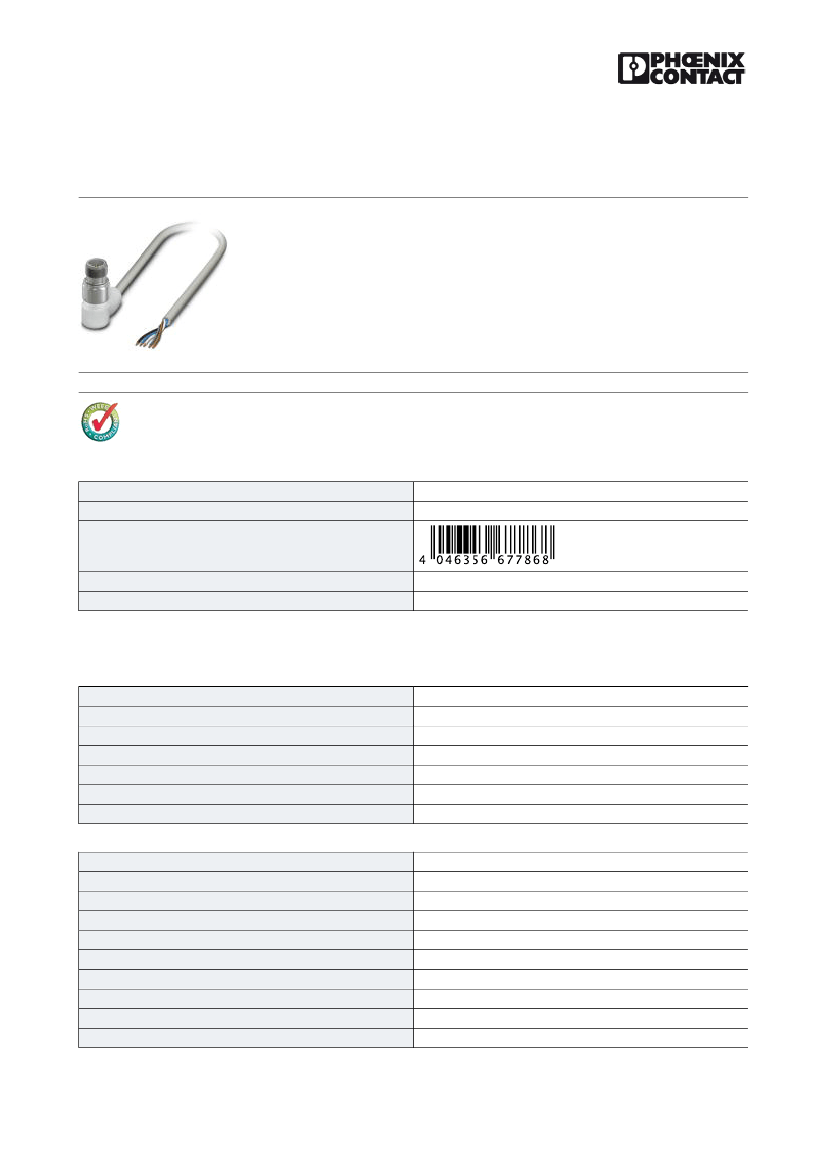

Sensor/Actuator cable - SAC-5P-M12MR/10,0-600 HD - 1404048
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 5-position, PP-EPDM halogen-free, Gray RAL 7035, Plug angled M12, A-
coded, on Free cable end, Cable length: 10 m, Hygienic design, With high-grade steel knurl
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85444290
POLAND
0
1
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
4A
60 V
5
≤ 5 mΩ
≥ 100 MΩ
10 m
-40 °C ... 105 °C (Male connector / female connector)
General characteristics
Standards/regulations
Coding
Surge voltage category
Pollution degree
Degree of protection
Insertion/withdrawal cycles
Torque
Contact material
Contact surface material
Contact carrier material
M12 plug-in connector IEC 61076-2-101
A - standard
II
3
IP65/IP68/IP69K
≥ 100
0.4 Nm (M12 plug-in connector)
CuSn
Ni/Au
PP
18.01.2013 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1404048
Sensor/Actuator cable - SAC-5P-M12MR/10,0-600 HD - 1404048
Technical data
General characteristics
Material of grip body
Material, knurls
Status display
PP
High-grade steel
No
Conductor data
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Special properties
Halogen-free
Ambient temperature (operation)
Halogen-free PP gray
600
Li9Y9Y
5x 0.34 mm² (signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (signal line)
≥ 0.21 mm (Core insulation)
Brown, white, blue, black, gray
5 cores, twisted
55 mm
Gray RAL 7035
Approx. 0.7 mm
5 mm ±0.15 mm
5xD
10 x D
34 kg/km
PP-EPDM
PP
Bare Cu litz wires
58 Ω/km (At an ambient temperature of 20°C)
≤ 300 V AC
≥ 3000 V AC
FDA compliant
in accordance with DIN VDE 0472 part 815
-40 °C ... 105 °C (cable, fixed installation)
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
18.01.2013 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1404048
Sensor/Actuator cable - SAC-5P-M12MR/10,0-600 HD - 1404048
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
31251501
31251501
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060306
27060306
27061801
27061801
27061801
27061801
Accessories
Accessories
Tools

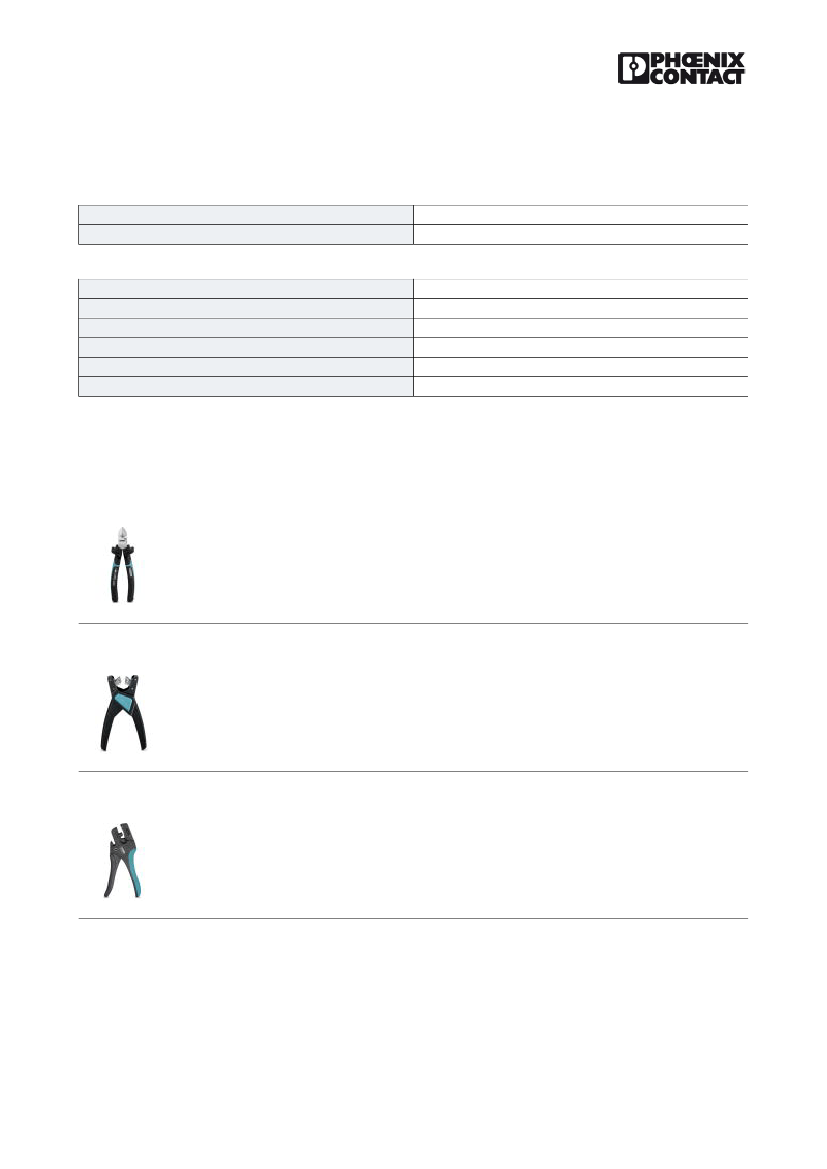

Cable-cutting tool - CUTFOX-S VDE - 1212207
Diagonal cutter for copper and aluminum conductors, VDE-tested
Stripping tool - WIREFOX SAC - 1212623
Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from
Ø of 4.4 to 7 mm, any stripping length
Stripping tool - WIREFOX 10 - 1212150
Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm,
cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
18.01.2013 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1404048
Sensor/Actuator cable - SAC-5P-M12MR/10,0-600 HD - 1404048
Accessories

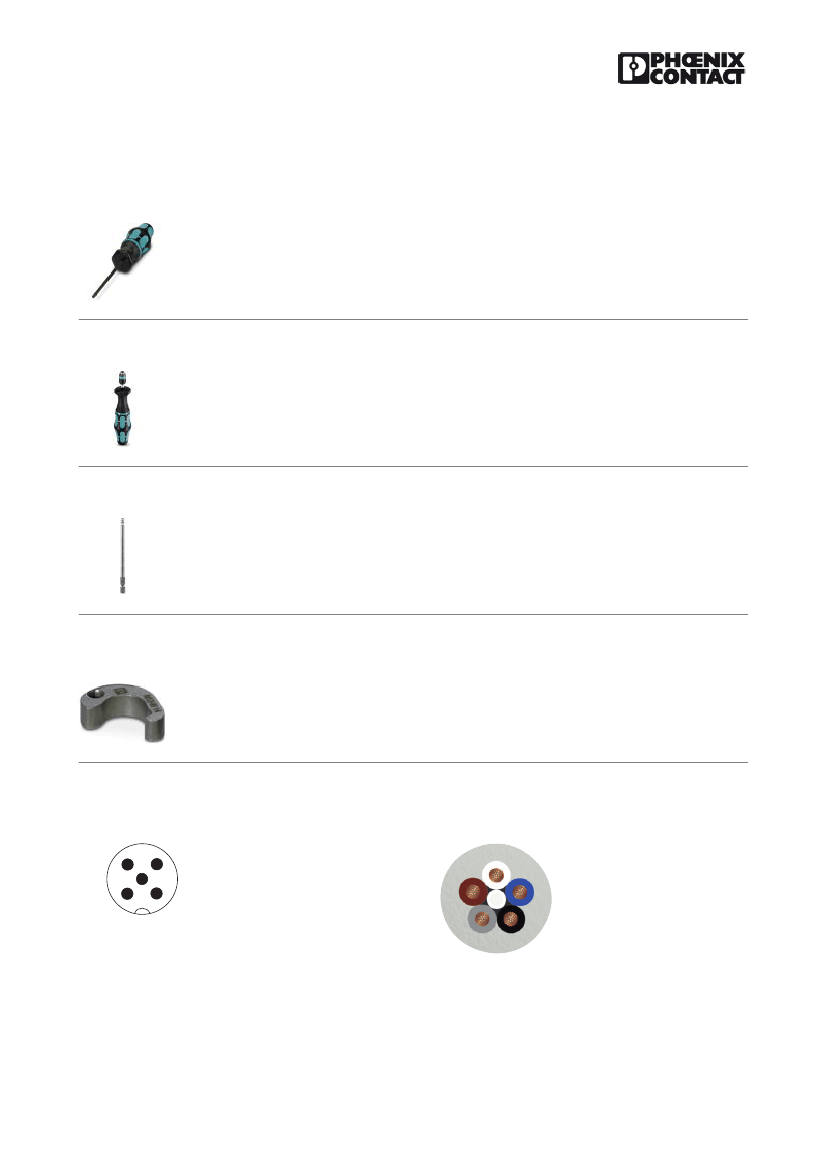

Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Adapter - SAC BIT M12-W14 - 1212513
SAC nut, for assembling M12 connectors with hexagonal high-grade steel knurl, with 4 mm hexagonal drive
Drawings
Schematic diagram
4
5
3
Cable cross section
1
2
Pin assignment M12 male connector, 5-pos., A-coded, male side
Halogen-free PP gray [600]
18.01.2013 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1404048
Sensor/Actuator cable - SAC-5P-M12MR/10,0-600 HD - 1404048
Circuit diagram
1
2
4
3
5
BN
WH
BK
BU
GY
Contact assignment of the M12 plug
18.01.2013 Page 5 / 7
