2375-2-07-1: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2375-2-07-1 Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle

2375-2-07-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.274 inch
subject depth	0.374 inch
body length	0.78 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2375
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	7
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

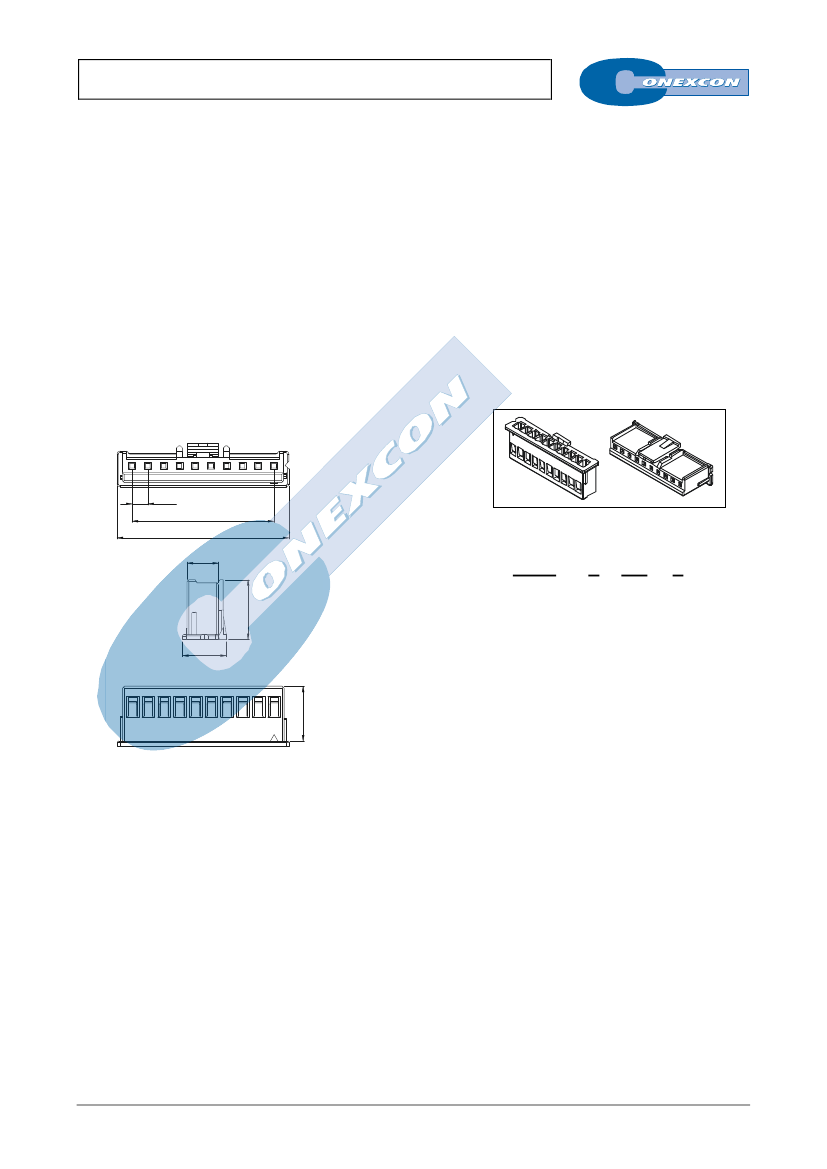

SINGLE ROW CRIMP CONNECTOR HOUSING

2375 SERIES.

2.50 mm. (0.098”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 2.50 mm pitch 2376 and 2377 headers

Positive retention lock

Use crimp terminal 2378



Voltage Rating: < 250 V

Current Rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Contact retention force to the housing: > 1.0 Kgf

Insertion force to header: < 0.70 Kgf/pin

Withdraval force from header: < 0.15 Kgf/pin

Durability: 25 cycles



Insulator: Nylon 6/6 UL 94 V-0

Operating temperature. -40ºC to + 85ºC

RoHS compliant

Dimensional Information

2.5

.098

A

B

5.00

.197

9.50

. 374

2375 -

1

2- XX- 1

2

3

1. Connector Serie

6.95

.274

3. (XX) Number of circuits



8.70

.343

Available in 2 through 15 circuits

Dimensions:

(in mm.)

0000

A

= 2.50 x (XX*-1)

B

= 2.50 x (XX*)+2.30

*XX (Number of circuits)

D-XX
